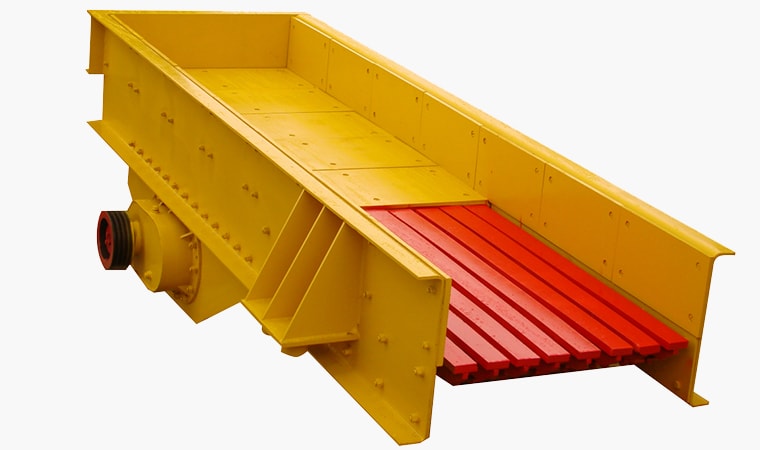

Vibrating Feeder

Vibrating Feeder Multiple models for selection, can be customized according to customer requirements
The first machine in the crushing production line

Vibrating feeder consists of feeder trough, vibration exciter, spring bearing, transmission parts and other components. In the aggregate production line, the vibrating feeder can evenly and continuously feed stone for crushers so as to avoid the clogging of jaw crusher feed opening.

  • Different models as options
  • Famous brand bearings
  • Eccentric shaft and eccentric block are available
  • introduction
  • Technical parameters
  • gallery
Related Product
Related Cases

Vibrating feeder is also known as vibratory feeder. In the production process, the vibrating feeder can feed the massive and granular materials from storage hopper to the primary crusher or secondary crusher evenly, timely and continuously. In some production line, vibratory feeder or feeder machine, vibration feeder can evenly and timely feed raw materials for the crushing machines and do coarse screening of materials by grizzly bar, which is widely used in metallurgical, coal mine, ore dressing, building materials, chemical and other industries.

Working Principle of vibrating feeder:

The vibrating feeder is composed of a feeding trough, a vibration exciter, a spring support, and a transmission device. The vibration source of the vibrating feeding of the trough body is a vibration exciter or a motor. The vibration exciter is composed of two eccentric shafts (main and passive) and a gear pair. The motor drives the driving shaft through the V-belt, and then the gear on the driving shaft meshes The eccentric shaft rotates, and the main and eccentric shafts rotate in opposite directions at the same time, which makes the trough body vibrate, so that the material flows continuously and achieves the purpose of feeding the material.

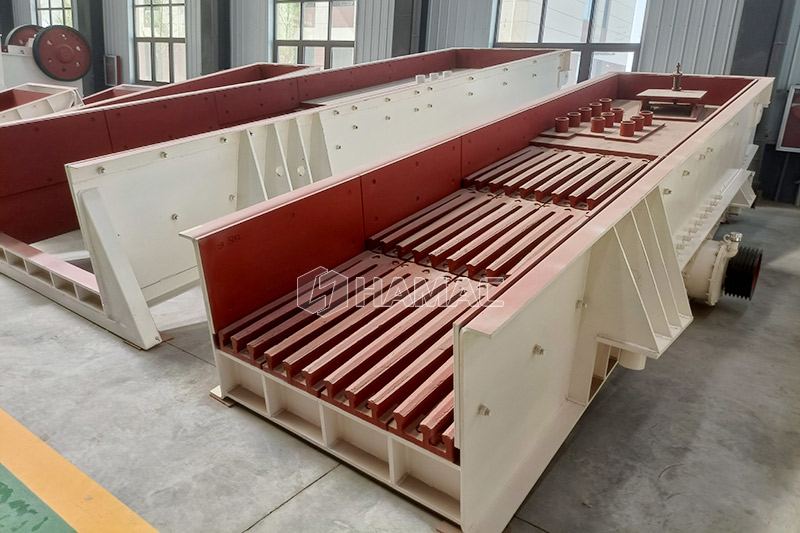

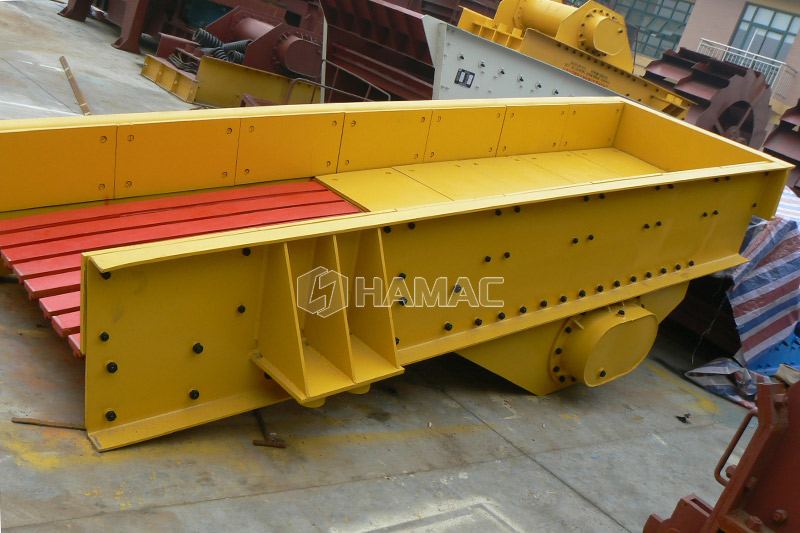

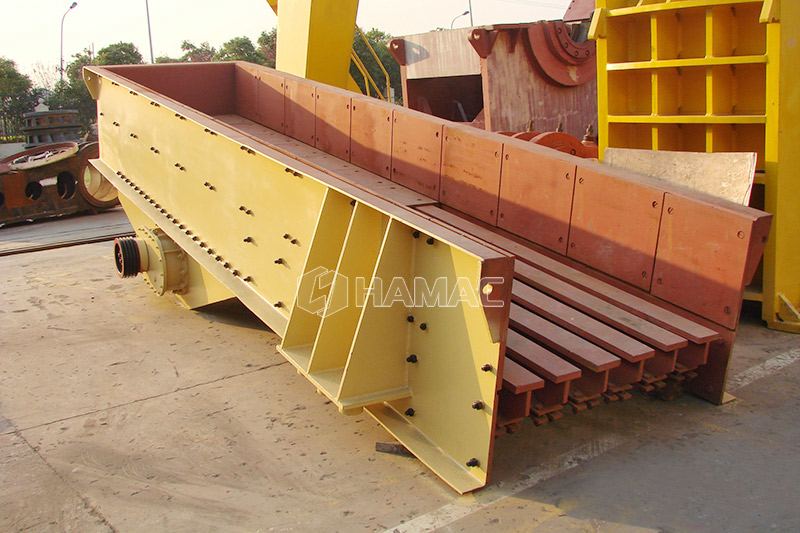

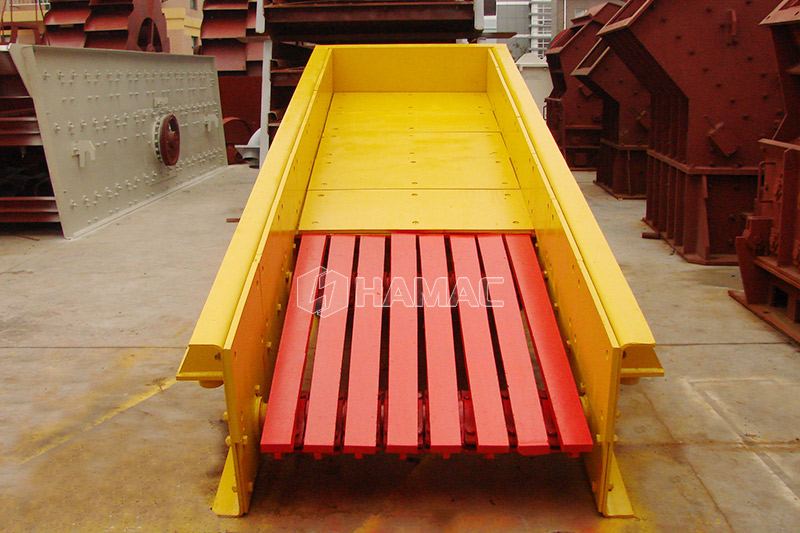

vibrating feeder

Advantages

  • 1.Stable work performance, using vibrating motor or double eccentric shaft as the excitation source, the amplitude is stable, the continuity is good, the excitation force is adjustable;
  • 2.Cost-effective, reduce the pressure of the back-end crushing and screening procedure, simple structure, strong and durable;
  • 3.Easily to be controlled, frequency conversion motor as options, by adjusting the frequency, so as to change the capacity, easy to control the amount of feeding, no need to start the motor frequently.

Contact us to visit the factory or order products

Leave a message Online chat

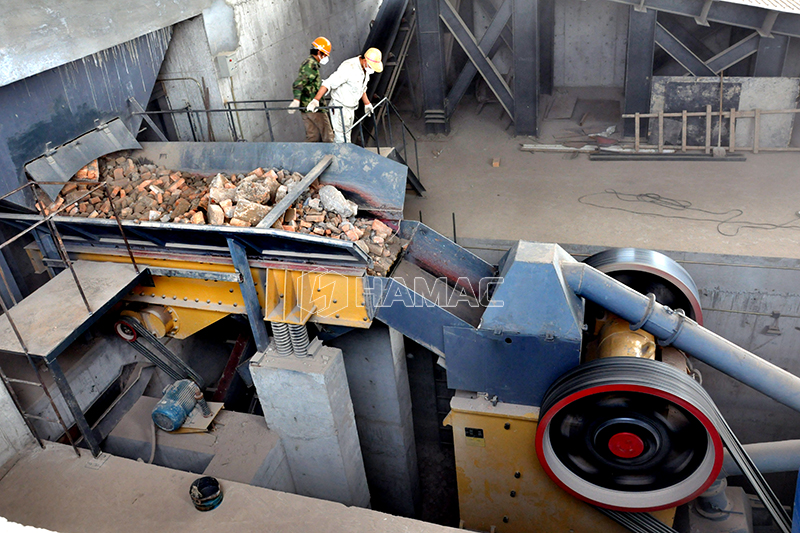

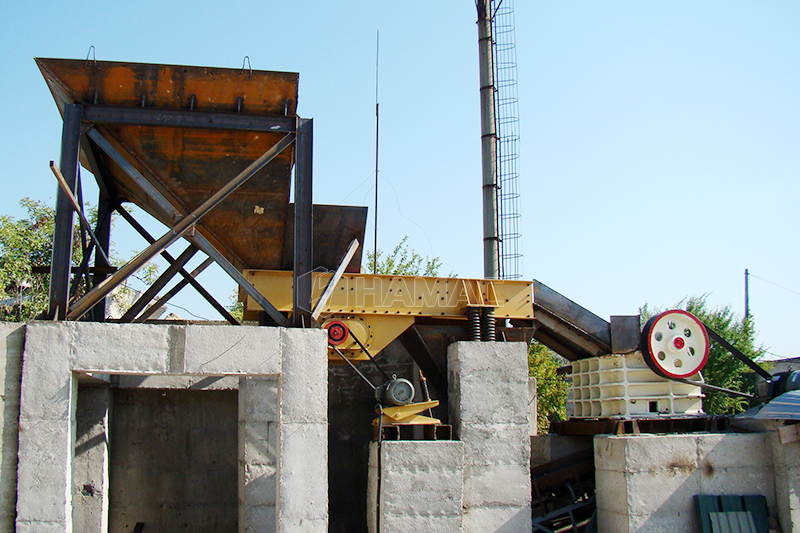

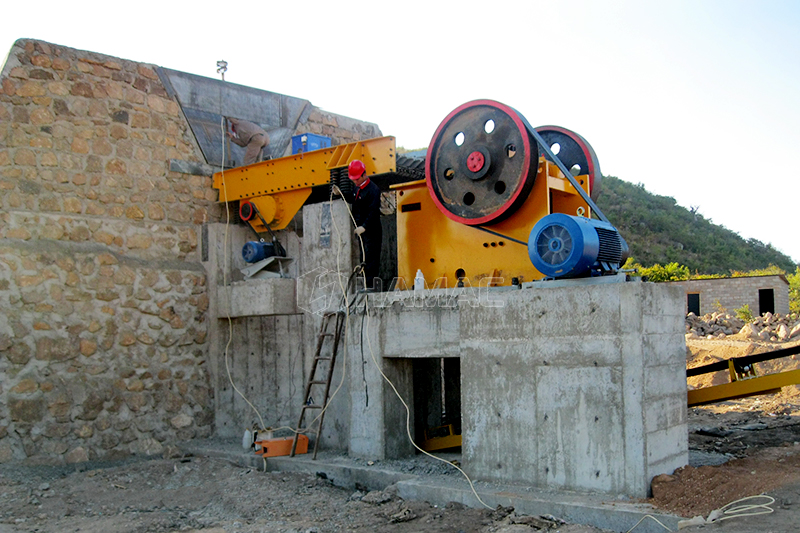

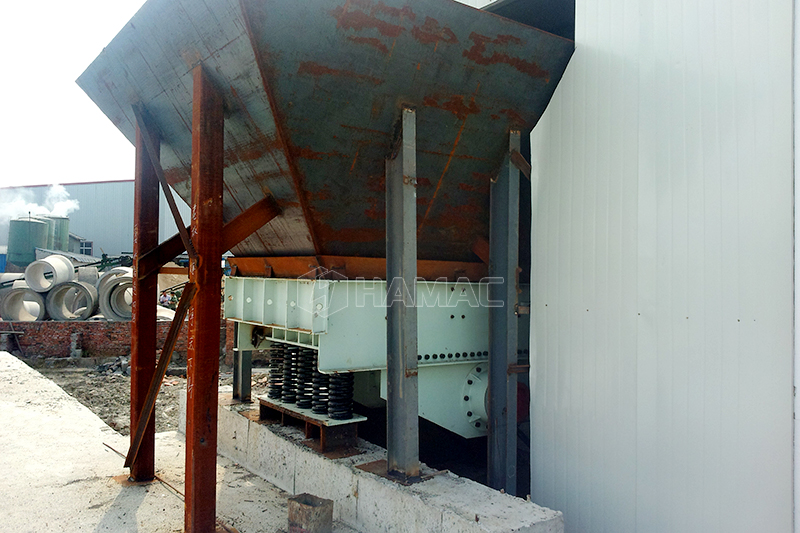

application case

The Vibrating Feeder is widely used for different projects all over the world. HAMAC exported the Vibrating Feeder to different countries and got good comments from our clients.

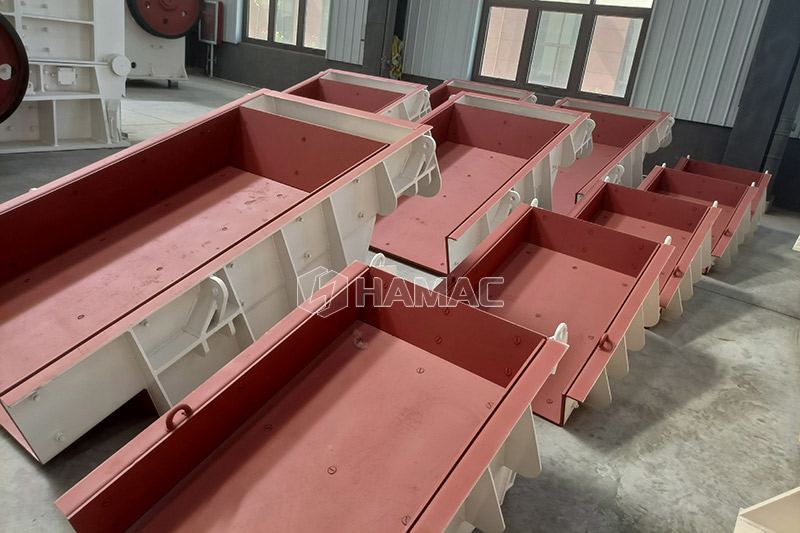

Goods Delivery

Based on good quality and decades of experience, the Vibrating Feeder which is manufactured by HAMAC was exported to different countries. The Vibrating Feeder will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

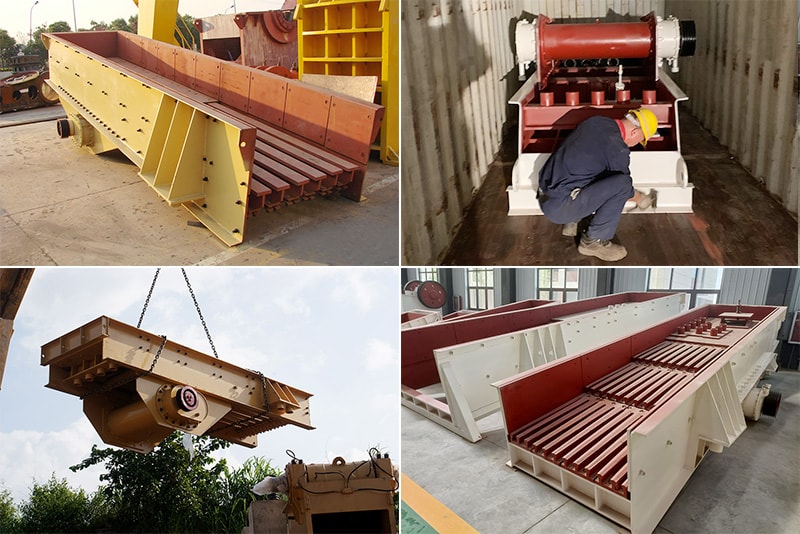

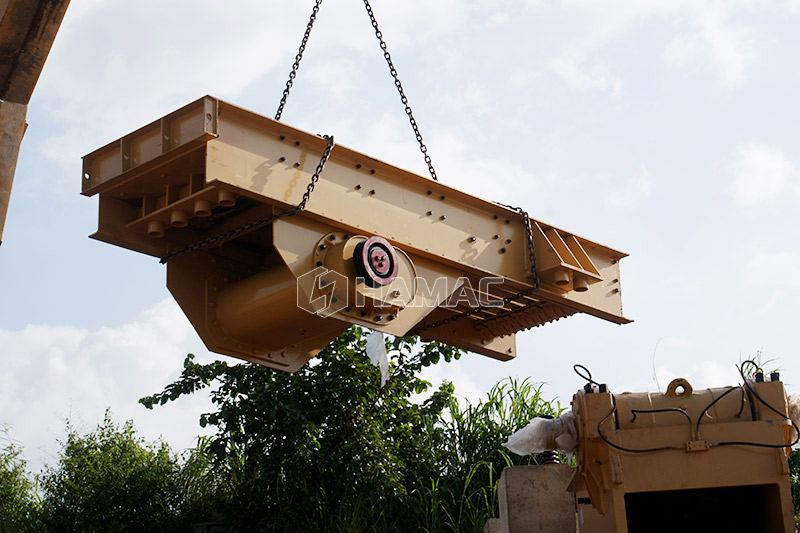

Vibrating Feeder shipping pictures
Model Length of feeding trough
(mm)
Width of feeding trough
(mm)
Max. Feeding size
(mm)
Capacity
(t/h)
Motor Power
(kW)
Overall Dimension
(mm)
VF0812 1200 800 300 50-100 0.75*2 1490*1107*1040
VF 0816 1600 800 300 160-300 1.1*2 1900*1074*1077
VF 0918 1800 900 300 160-300 2.2*2 2200*1256*1390
VF 2407 2400 700 450 30-80 1.5*2 2486*1280*875
VF 1015 1500 1000 300 160-380 1.5*2 1770*1356*1280
VF 1020 2000 1000 300 160-400 2.2*2 2400*1356*1444
VF 1120 2000 1100 300 160-700 3*2 2170*1780*1060
VF1820 2000 1800 400 160-740 3*2 2500*2080*1800
VF3075 3000 750 420 50-100 3 3090*1787*1014
VF3895(10°) 3800 950 520 96-160 11 3866*1650*1525
VF4211(10°) 4200 1100 580 120-240 15 4273*1868*1733
VF4911(10°) 4900 1100 700 120-240 15 4963*1868*1750
VF5012(10°) 5000 1200 800 220-350 22 5060*1968*1700
VF6015(13°) 6000 1500 1000 700-1000 45 5994*2117*2268

Note: Our products are being updated constantly, all rights reserved by HAMAC.
