Twin-shaft concrete mixer

Twin-shaft concrete mixer Multiple models for selection, an ideal mixer for the concrete batching plant
The most widely used concrete mixer

Twin shaft concrete mixer, is also named double shaft horizontal concrete mixer. It is the most widely used concrete mixer for the different types of concrete mixer. It is mainly suitable for mixing dry hard concrete, plastic concrete, wet concrete, various mortars and other commercial concrete. It is equipped with automatic grease pump for lubrication, hydraulic discharge opening etc.

  • 0.5-4.0m3 per batch as options
  • Different brands as options
  • Customized accessories for it
  • introduction
  • Technical parameters
  • gallery
Related Product
Related Cases

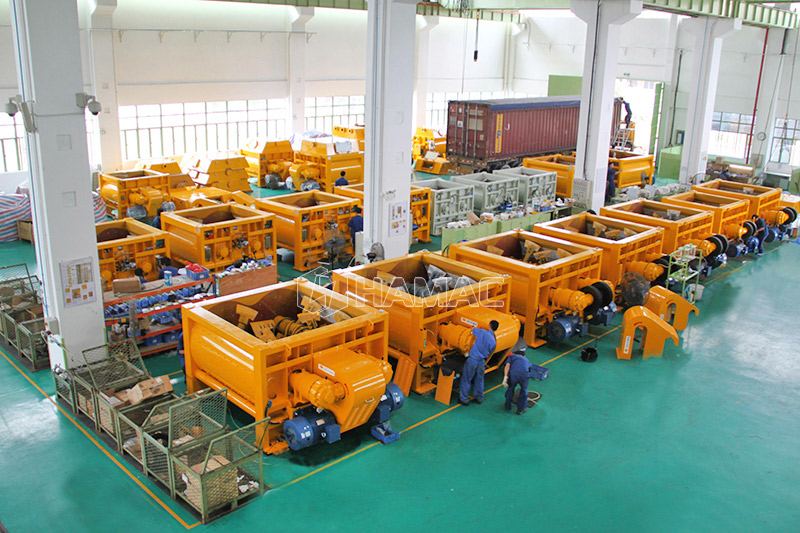

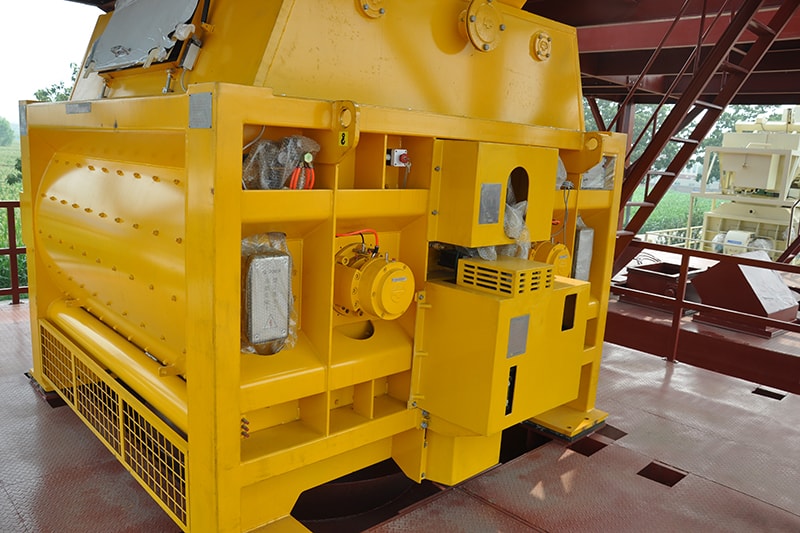

As a leading manufacturer of twin shaft concrete mixer, HAMAC provide our clients with the model from 0.5m3 to 4m3 per batch. It is compact, intelligent, safe, quiet and reliable. This series of twin-shaft concrete mixers can mix various grades of concrete, lightweight aggregate concrete and mortar, and are suitable for commercial concrete mixing plants,  mixing plant for various own projects, prefabricated enterprises, etc.

It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.

Advantages

  • 1. Compact: small footprint, easy to be produced, transported and installed;

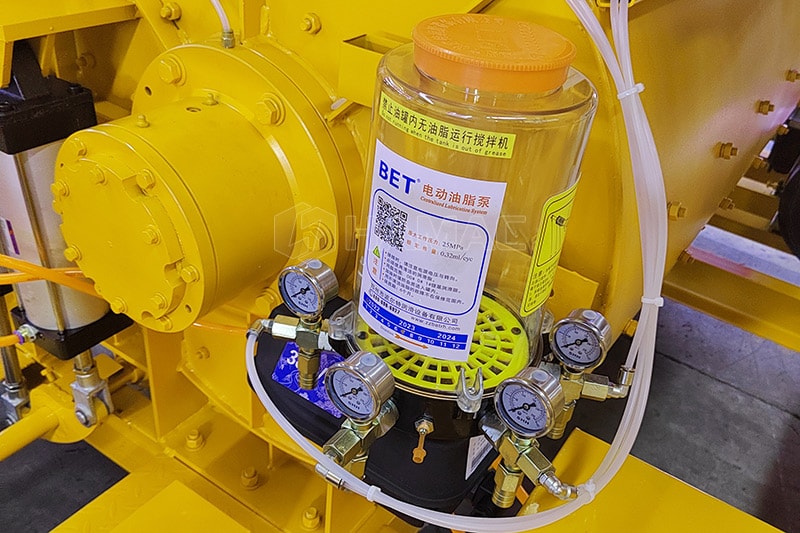

  • 2. Intelligence: automatic lubrication, independent pump core, balanced pressure, good sealing;
  • 3. Safety: The safety switch and the emergency stop switch are double-insured, with a high safety factor. ,

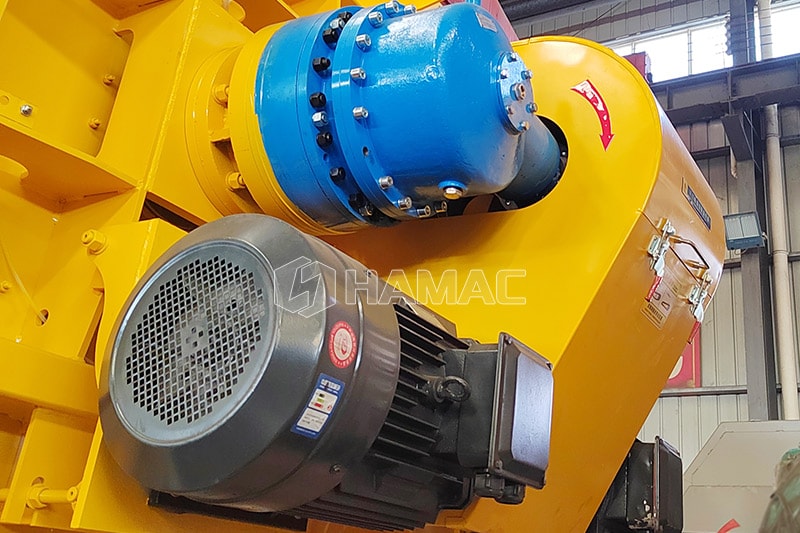

  • 4. Low noise: planetary reducer, small size;
  • 5. Reliable: The new shaft end seal has good performance and long service life.

Contact us to visit the factory or order products

Leave a message Online chat

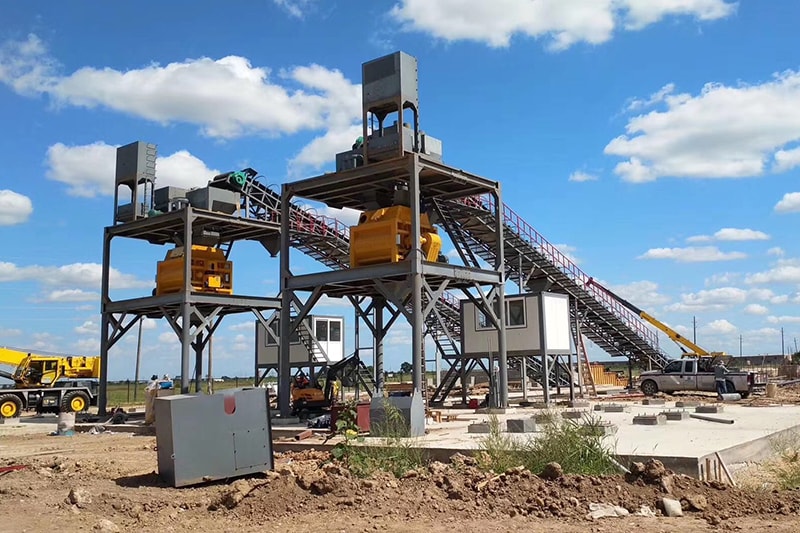

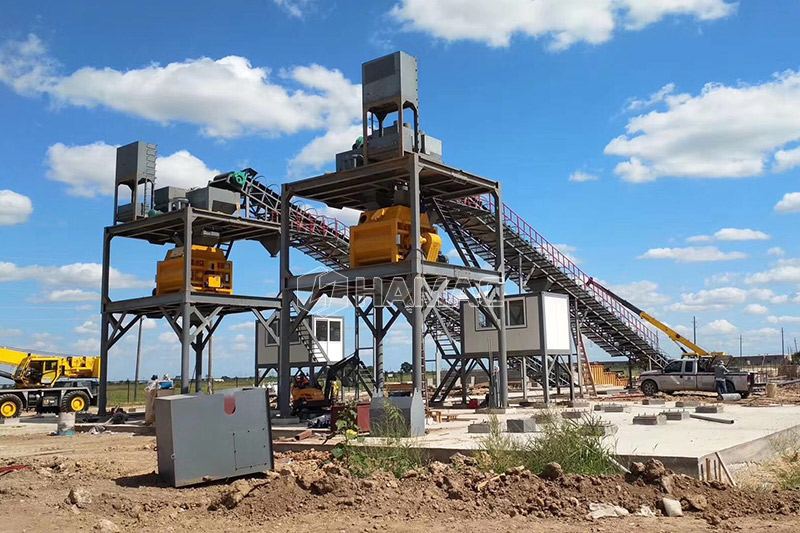

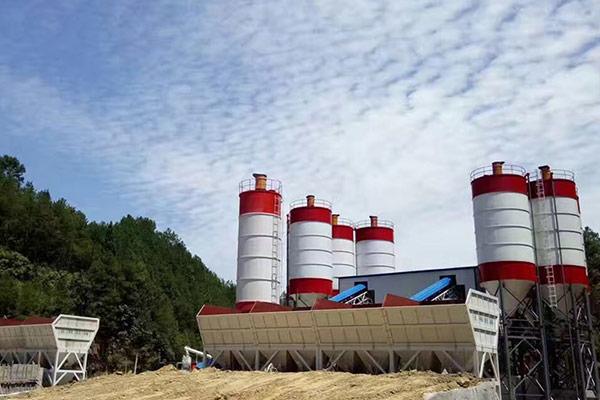

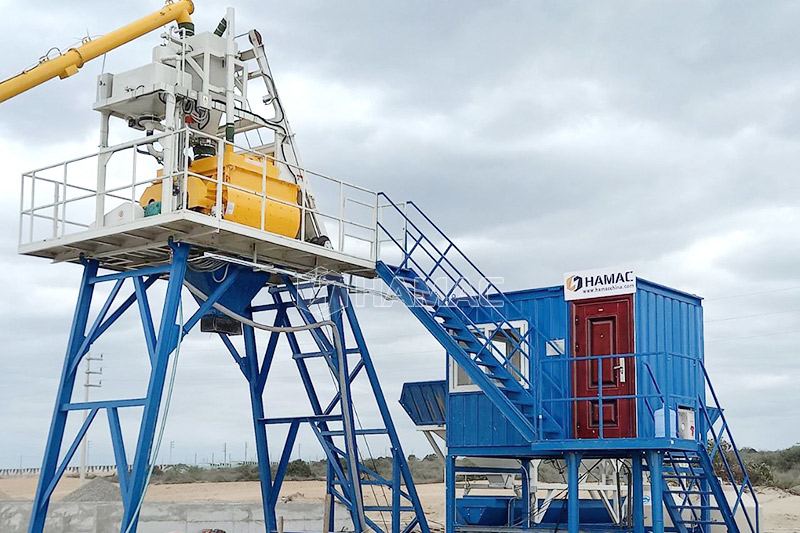

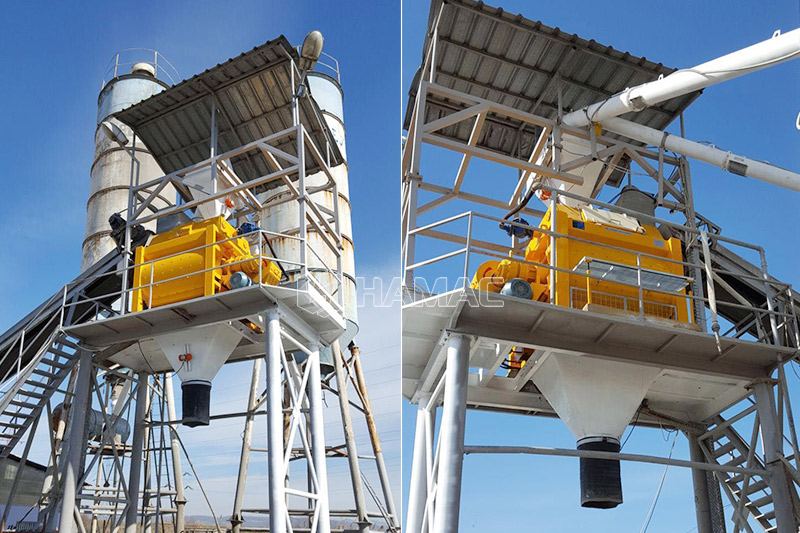

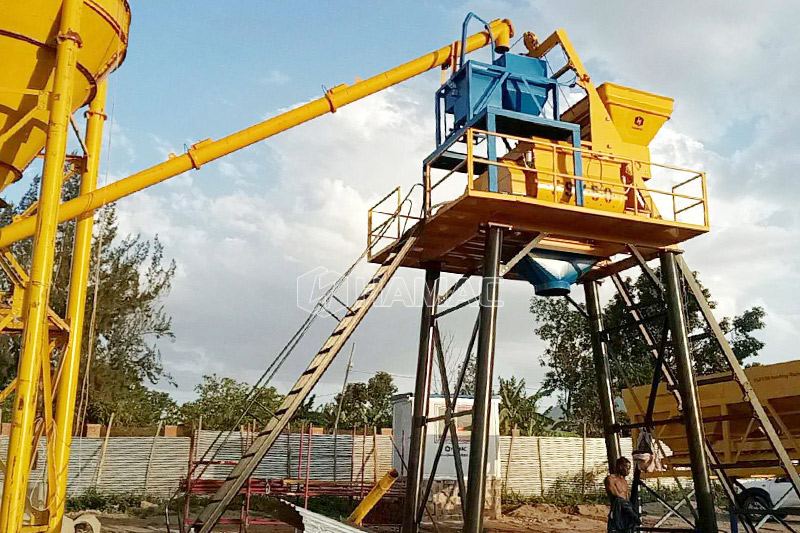

application case

The Twin-shaft concrete mixer is widely used for different projects all over the world. HAMAC exported the Twin-shaft concrete mixer to different countries and got good comments from our clients.

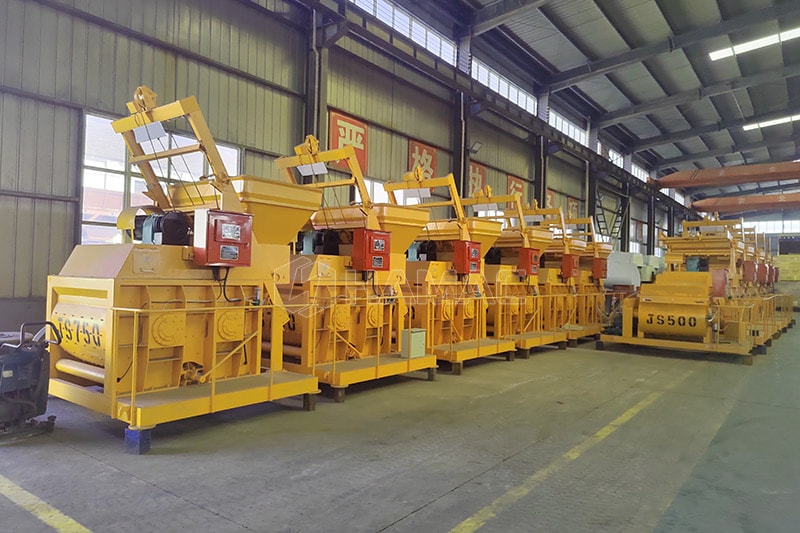

Goods Delivery

Based on good quality and decades of experience, the Twin-shaft concrete mixer which is manufactured by HAMAC was exported to different countries. The Twin-shaft concrete mixer will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

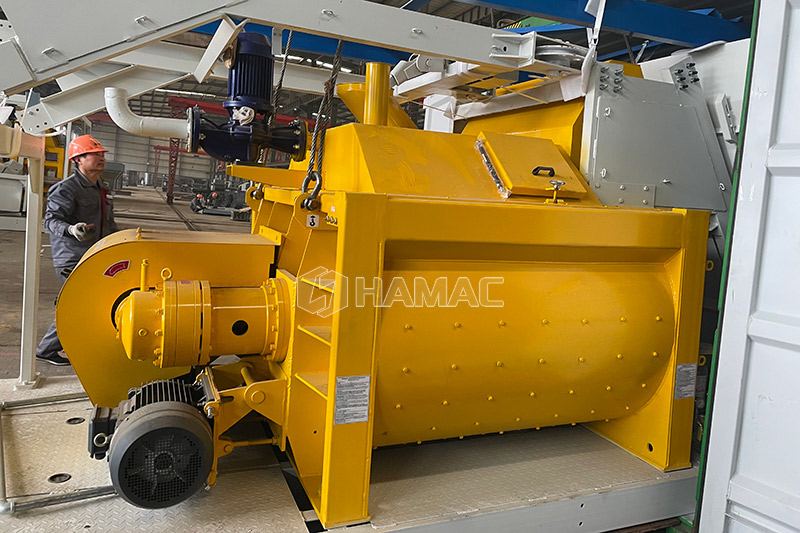

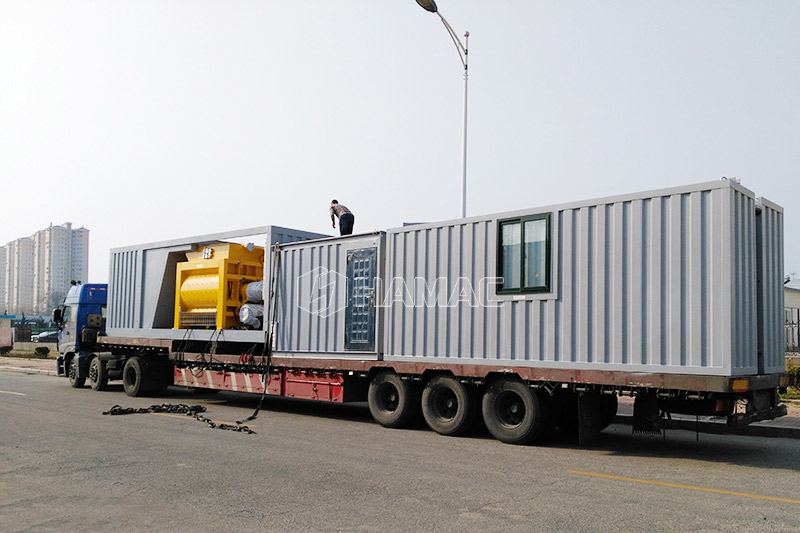

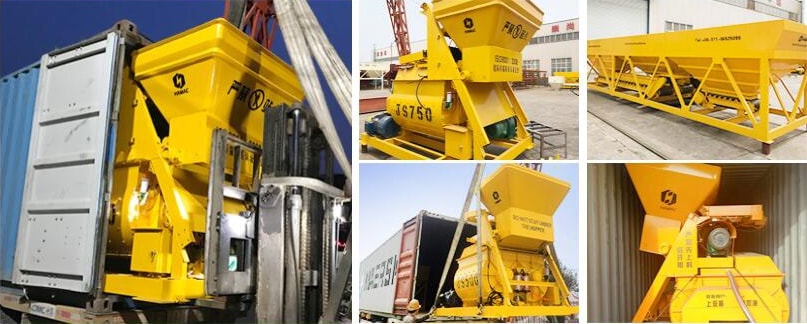

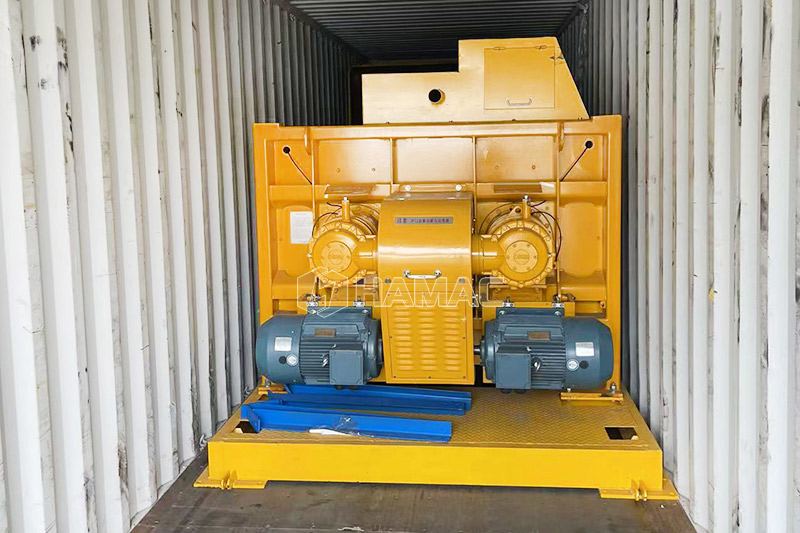

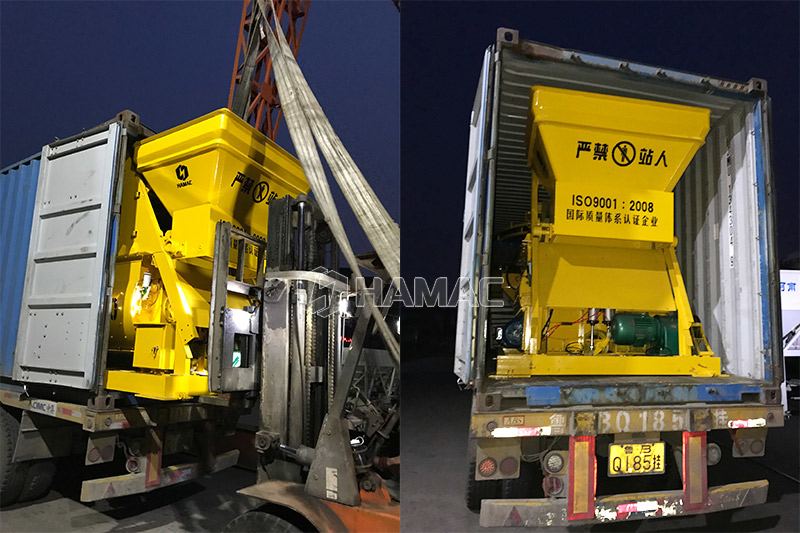

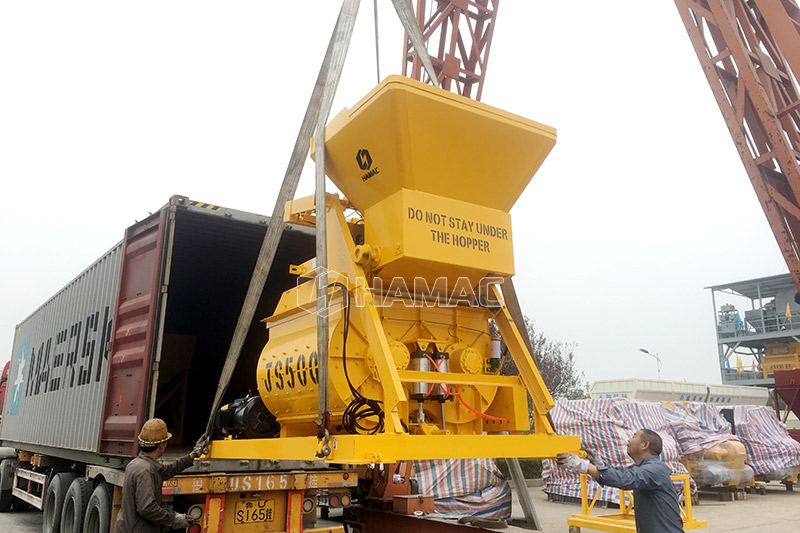

Twin-shaft concrete mixer shipping pictures

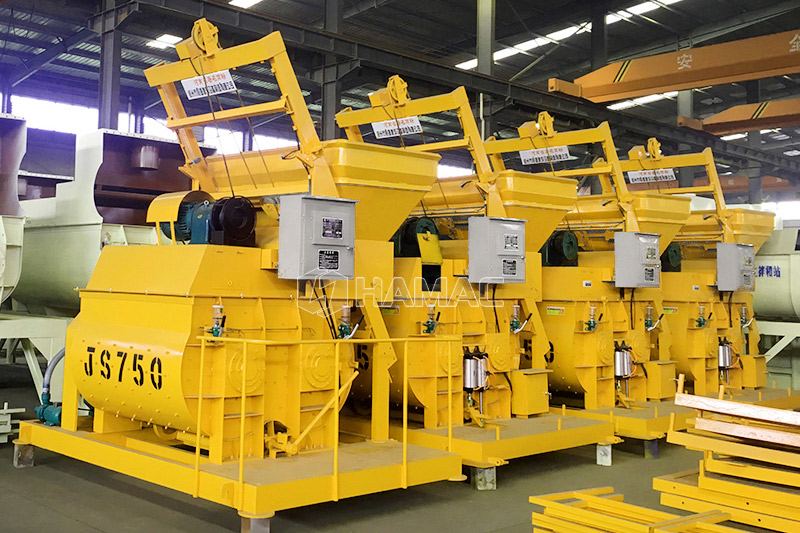

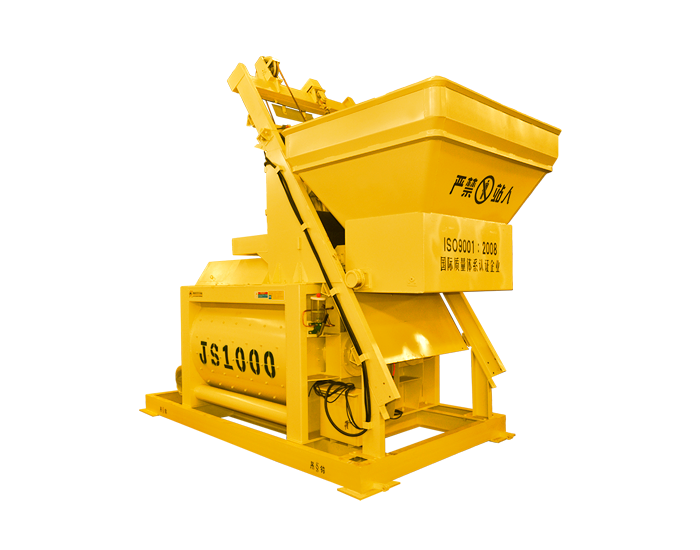

Model JS500 JS750 JS1000 JS1500 JS2000 JS3000 JS3500 JS4000
Discharging Volume (L) 500L 750L 1000L 1500L 2000L 3000L 3500L 4000L
Feeding Volume (L) 800L 1200L 1600L 2400L 3200L 4800L 5600L 6400L
Capacity ≥25m³/H ≥37.5m³/H ≥50m³/H ≥75m³/H ≥100m³/H ≥150m³/H ≥180m³/H ≥200m³/H
Maximum Aggregate Size (Pebble/Gravel)Mm 40/50 40/60 60/80 80/100 80/100 80/120 80/120 80/120
Cycle Time (S) 72 72 60 60 60 60 60 60
Total Weight (Kgs) 4000 5500 8700 11300 15000 11450 12000 19000
Discharge Height (M) 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8

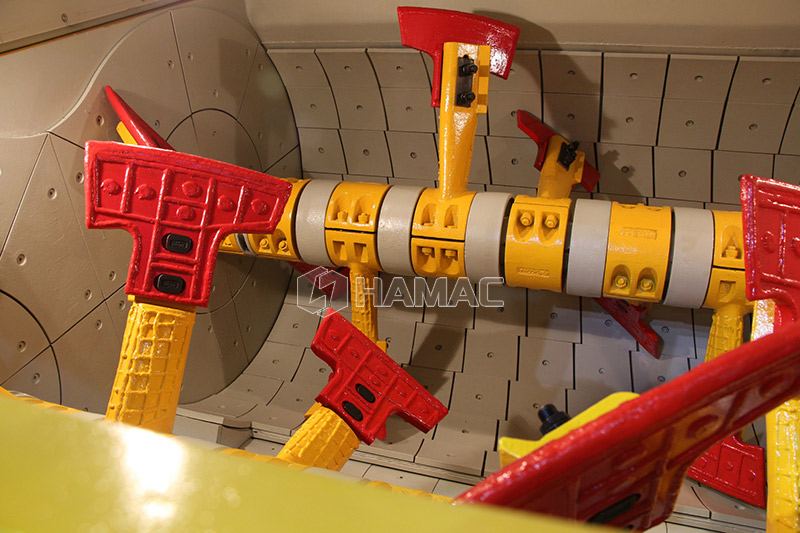

Mixing Blade Rotary Speed 35r/Min 26r/Min 29.6r/Min 24.5r/Min 24.5r/Min 21r/Min 21r/Min 21r/Min
Quantity 2×7 2×7 2×8 2×8 2×8 2x10 2x10 2x11 2x12
Mixing Motor Model Y180M-4 Y200L-4 Y180M-4 Y225M-6 Y250M-6 Y280M-6 Y280M-6 Y315S-6
Power 18.5kw 30kw 2x18.5kw 2x30kw 2X37kw 2X55kw 2X55kw 2X55kw
Hoist Motor Model YEZ1325-4-B5 YEZ132M-4-B5 YEZ160L-4 YEZ180L-4 YEJ180L-4 Y25M -4 Y25M -4 Y25M -4
Power 5.5KW 7.5KW 15KW 18.5KW 22KW 2 × 55 Kw 2 ×55 Kw 2 × 75 Kw
Pump Motor Power 1.1KW 1.1KW 3KW 3KW 4KW 5KW 5KW 6KW

Note: Our products are being updated constantly, all rights reserved by HAMAC.
