Self-climbing Concrete Placing Boom

Self-climbing Concrete Placing Boom Multiple models for selection, can be customized according to customer requirements
An ideal product works together with a stationary concrete pump

The concrete placing boom is an ideal device to assist the trailer concrete pump and truck-mounted concrete pumps. It is used to enlarge the pouring range of the concrete. There is a pipeline inlet under the concrete placing boom, just connect the pipeline of the pump to the pipeline under the concrete placing boom, then the concrete can be placed at different positions on the floor by the concrete placing boom.

  • 13-33m length boom as options
  • Famous brand hydraulic parts
  • Mobile type and stationary type
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

What is a self-climbing concrete placing boom for sale?

The self-climbing concrete placing boom machine is fixed in the elevator shaft and is equipped with an automatic climbing mechanism. Featuring a hydraulic self-climbing system, the placing boom is able to climb up alongside the lift shaft in the building with the rise of floor levels. The vertical reach of the placing boom relies on the performance of your concrete pump.

It is lifted by a hydraulic cylinder and automatically climbs in the elevator shaft, so that the concrete boom placer rises with the rise of the floor. It also can be fixed in the floor directly if there is not an elevator shaft.

self-climbing concrete placing boom for sale

Features of self-climbing concrete placing boom for sale

  1. 1. Horizontal placing radius 21-32 meters (exclude 3m hose), full hydraulic driven;
  2. 2. The concrete placing boom can be anchored to the floor with initially prepared holes when working, and it can be lifted by its climbing system. One lifting can meet the need for two floors concrete placement; If the floor area is too large, several tower bodies can be installed and move the boom assembly onto relevant tower body to meet the needs of certain area concrete placement and save cost;
  3. 3. Compact structure, easy operation, reliable safety, economical and practical, it can be installed on either floor or elevator shaft.
Features of self-climbing concrete placing boom for sale

Types of self-climbing concrete placing boom

Self-climbing concrete placing boom, its placing boom radius is bigger. Normally speaking, it is installed in the elevator shaft or in the building floors. It can rise by itself through the hydraulic climbing system. It is more suitable for the high building with big floor area.

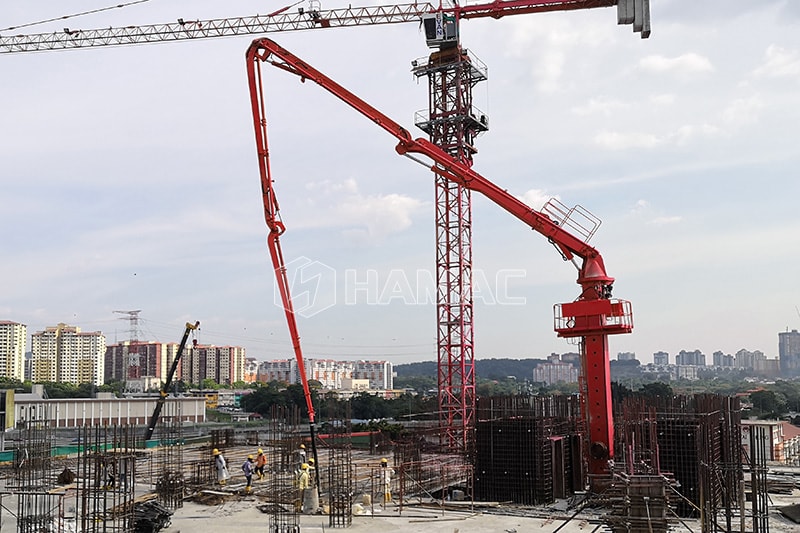

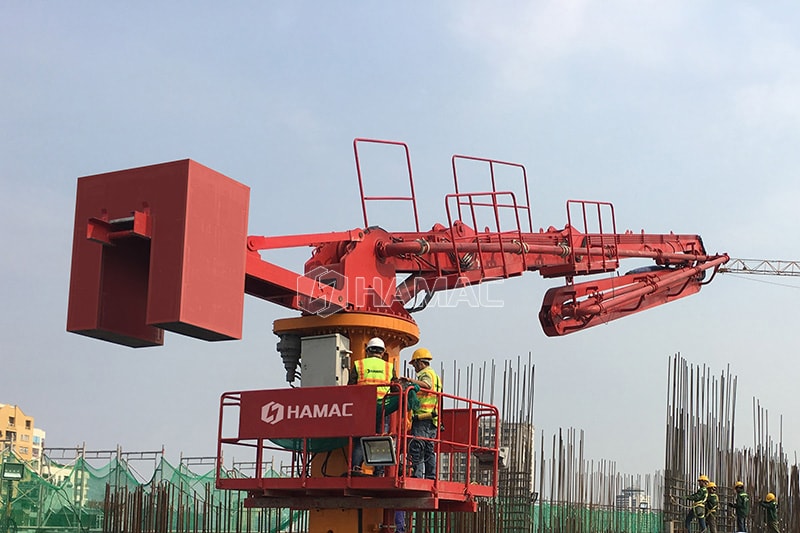

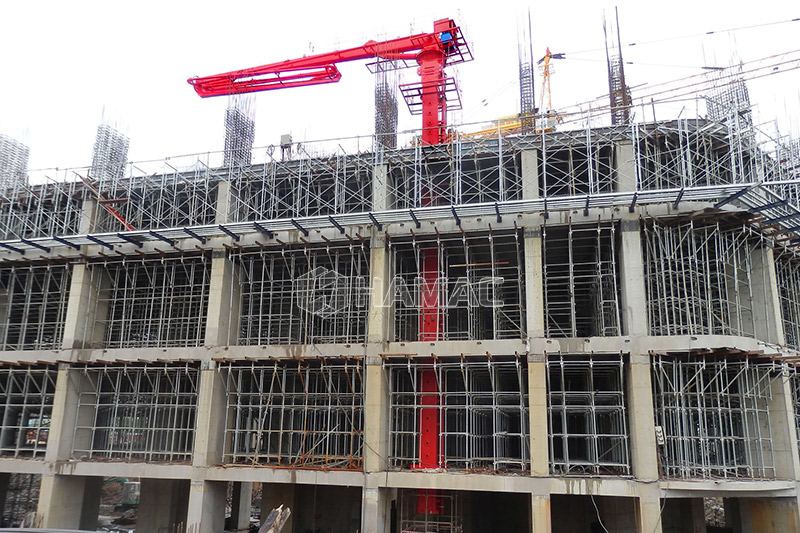

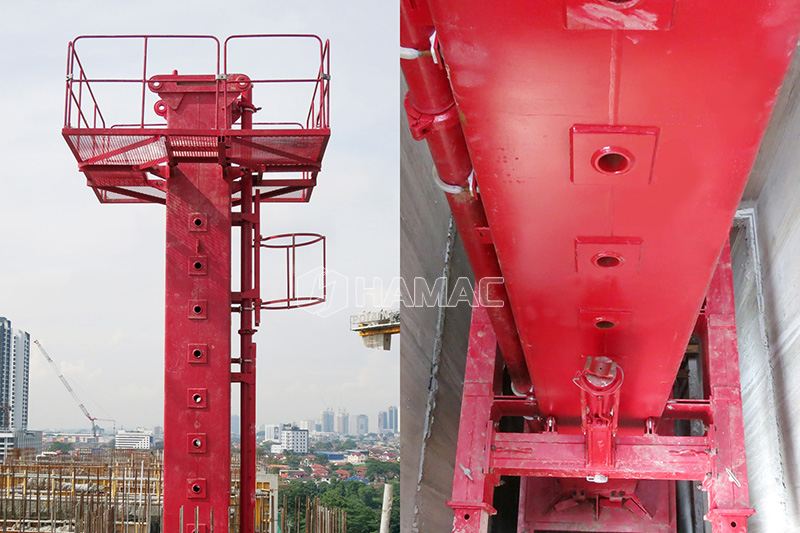

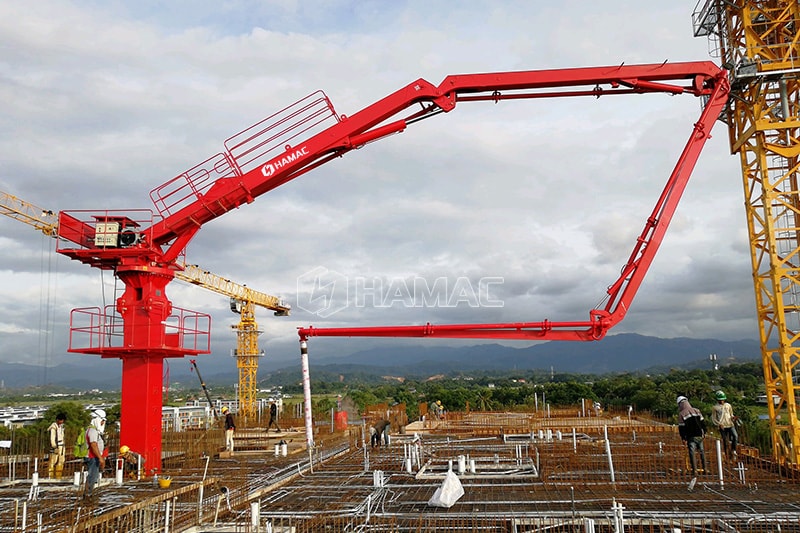

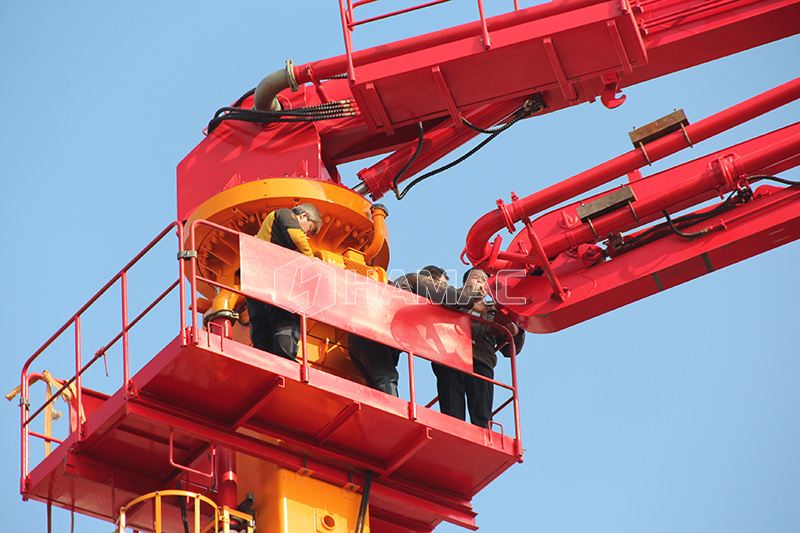

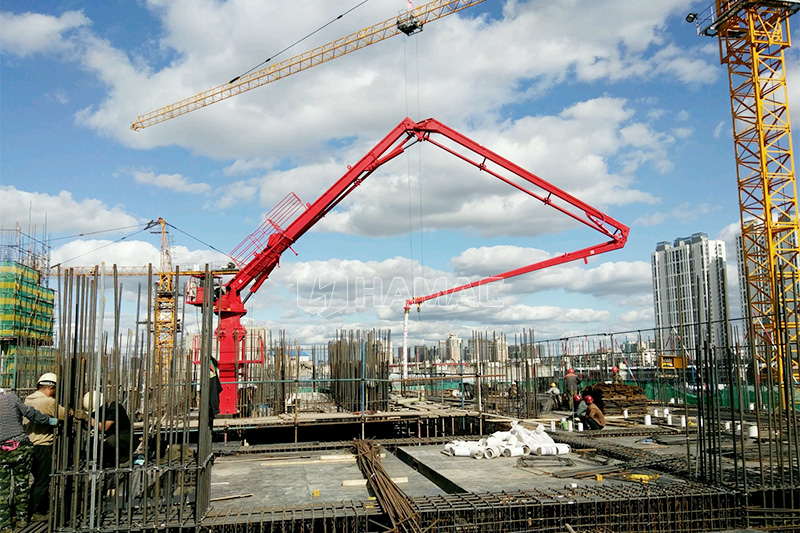

Self-Climbing Placing Boom Installed In The BuildingSelf-Climbing Placing Boom Installed In The Building

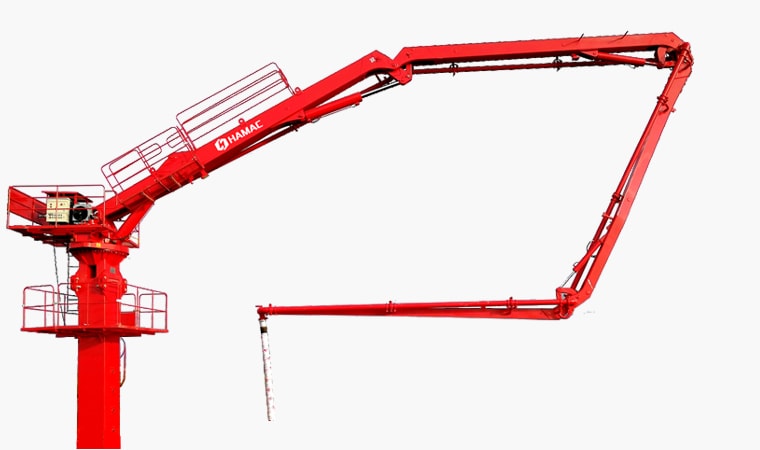

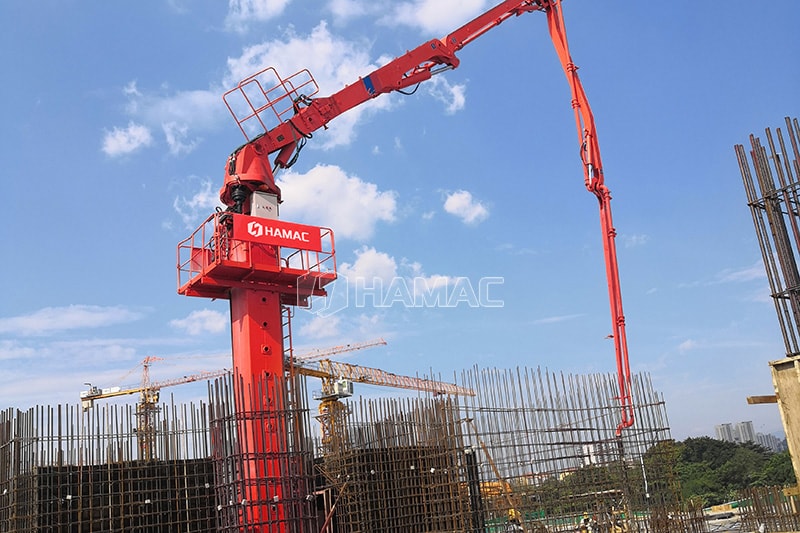

HGY32 Concrete Placing Boom With Counter WeightHGY32 Concrete Placing Boom With Counter Weight

principle of the concrete placing boom

Self climbing Concrete placing boom is composed of supporting device, boom, pipeline installed on the boom, hydraulic drive device, rotating device, end hose and control system etc.

Drawing Of stationary concrete placing boom Drawing Of stationary concrete placing boom

The front end of the feeding elbow pipe of the concrete placing boom for sale is connected with the tail end of the concrete pump conveying pipe, and the conveying pipeline of the integrity pumping project is formed. The concrete is pumped by the trailer concrete pump into the pipe of concrete placing boom, and then the concrete placing boom can rotate, fold and unfold, so the concrete is continuously transmitted to the construction site.

Please note: The concrete placing boom is only auxiliary equipment, and the output capacity and pumping pressure are not related to this equipment.

The concrete placing boom is only auxiliary equipment, and the output capacity and pumping pressure are not related to this equipment

The factors need to be considered for selecting a concrete placing boom for sale

There are several more related factors to be considered for selecting the suitable placing boom as below

  1. 1. The length and width of the working project;Then you can see how many meters placing radius you need;
  2. 2. Your budget and efficiency you need;Then we can see which type you select, manual concrete placing boom or hydraulic one;
  3. 3. Height of the building;For the high building, its length and width is also big, the self-climbing concrete placing boom with 24-36 m placing radius is recommended;
  4. 4. If there is a tower crane near the building?If yes, one spider type concrete placing boom can be considered because it can be lifted and moved by the tower crane;

What is concrete placing boom price?

The price of the concrete placing boom for sale is related to the model and configuration specifications, such as: the coverage area (placing radius) and configuration. At present, there are three types of distribution machines in the market: manual type placing boom, mobile spider concrete placing boom, and self-climbing placing boom. The use method and effect of a placing boom machine are also different, so the price is also different.

What is concrete placing boom price?
  • 1. The manual concrete placing boom is the cheapest one.It has a simple structure and low cost. The time of delivery is about 3 days. It is fully manual operation, so the cost is low and the price is relatively cheap. The models are 12 meters, 15 meters,and 18 meters. Three specifications, prices ranging from 2000-3000USD;
  • 2. The hydraulic placing boom machine is also an intelligent placing boom machine, and it is also a one-time pouring and molding equipment for concrete on the market.It is also a time-saving, labor-saving and high-efficiency equipment for concrete pouring. One person can perform concrete pouring, which is more than three times the efficiency of traditional concrete pouring. The model is also a relatively comprehensive placing machine, from 13 meters to 36 meters (placing radius), because the price of full hydraulic intelligent operation is relatively high, the price is more than USD20000, and the detailed price needs to be confirmed with concrete placer boom manufacturer’s sales manager.

Concrete placing boom manufacturers in China

There are several professional concrete placing boom manufacturers in China. As one of them, HAMAC is a manufacturing enterprise specializing in the production of concrete placing boom machines, our placing boom machines have passed the EU CE certification and are exported to developed countries such as Europe and the United States. Our products cover the placing range of 13-36 meters, and are the ideal supplier for your purchase of concrete placing booms.

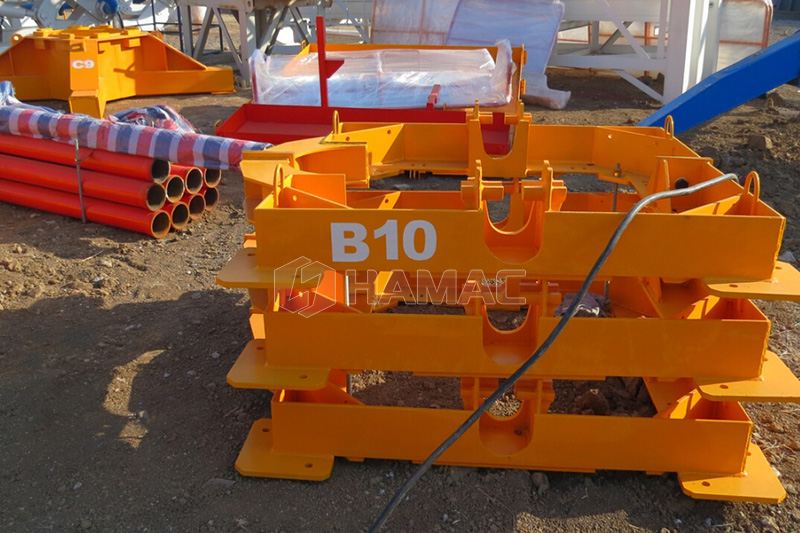

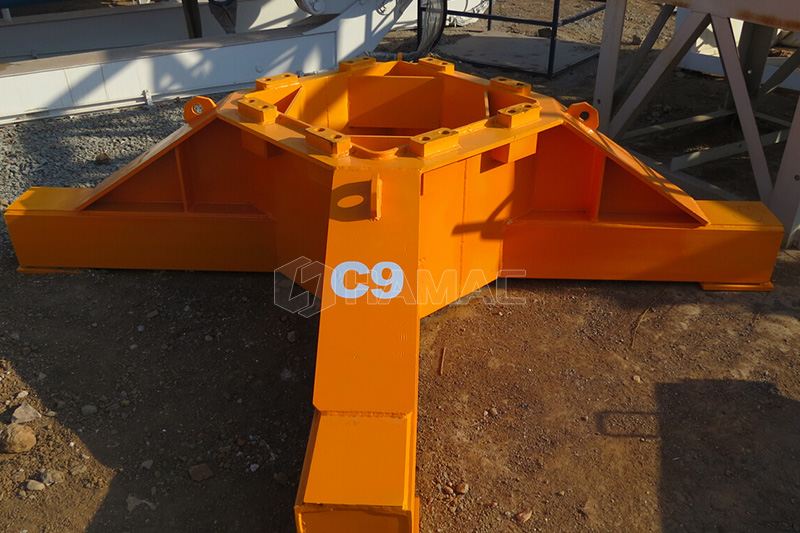

Support Column Of Concrete Placing BoomSupport Column Of Concrete Placing Boom

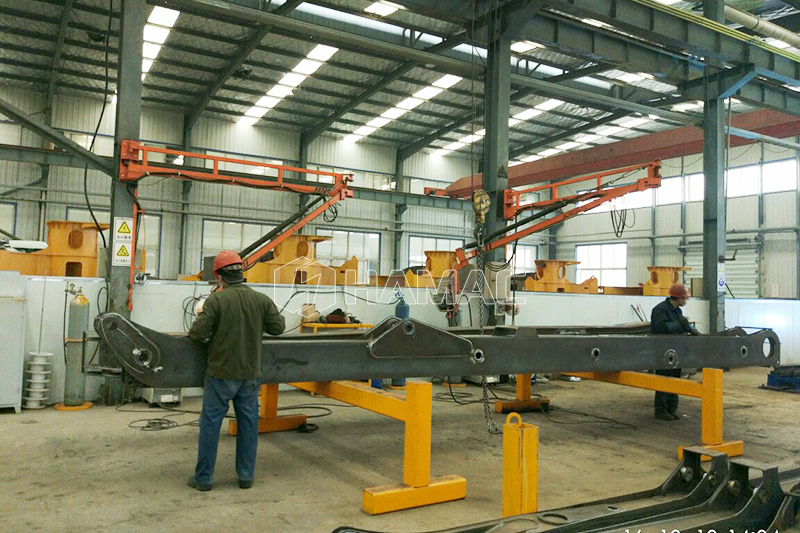

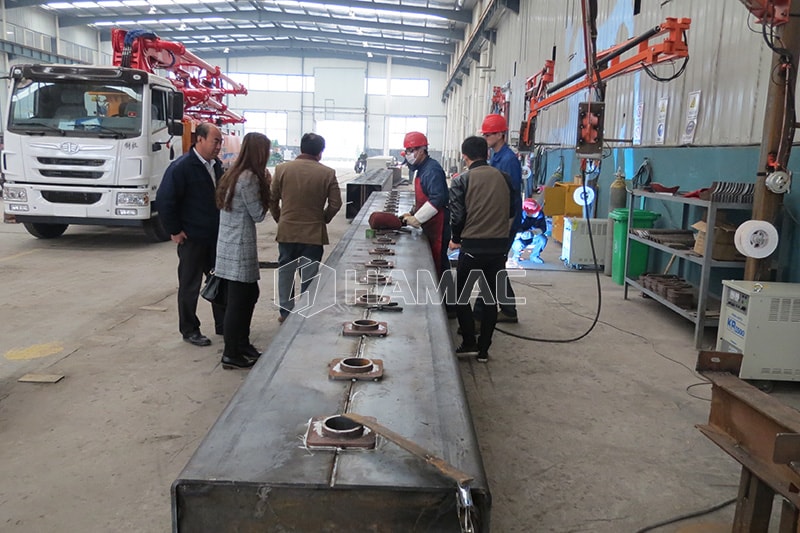

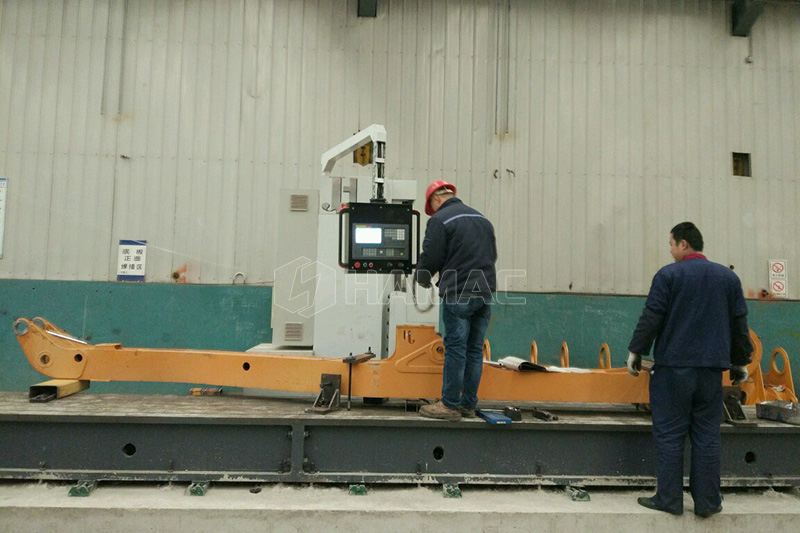

Placing Boom Is Being Produced In FactoryPlacing Boom Is Being Produced In Factory

Contact us to visit the factory or order products

Leave a message Online chat

Self-climbing Concrete Placing Boom Goods Delivery

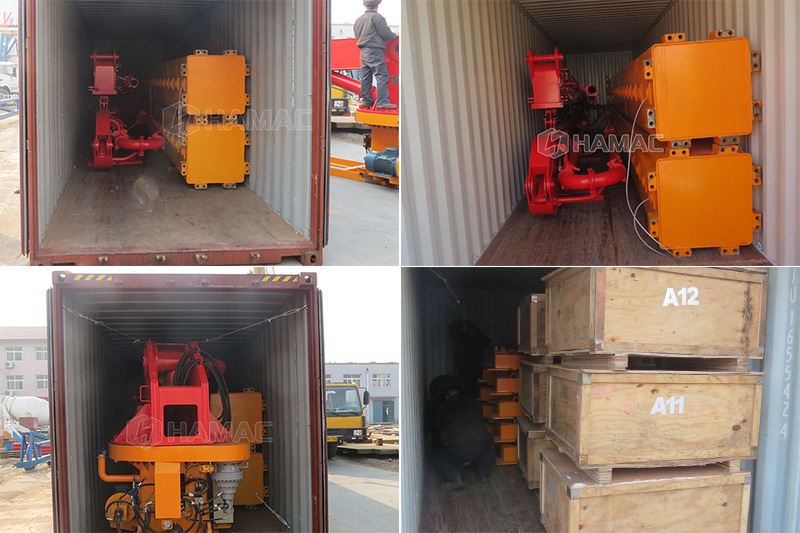

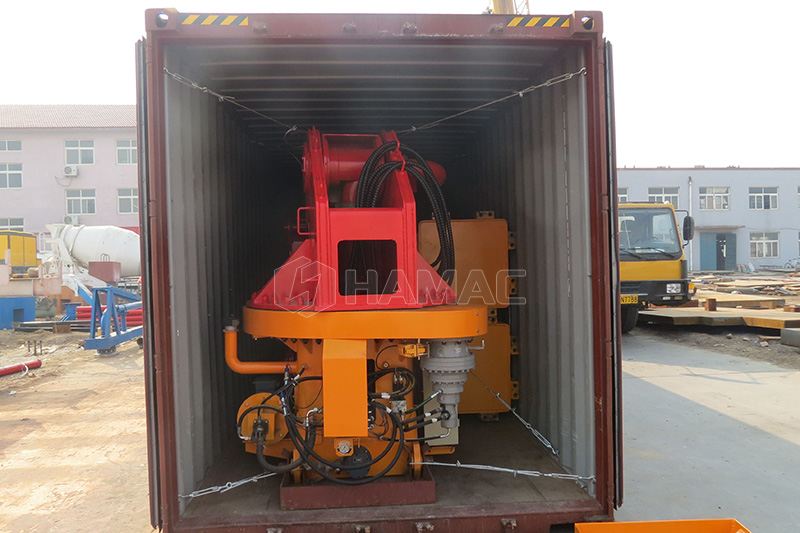

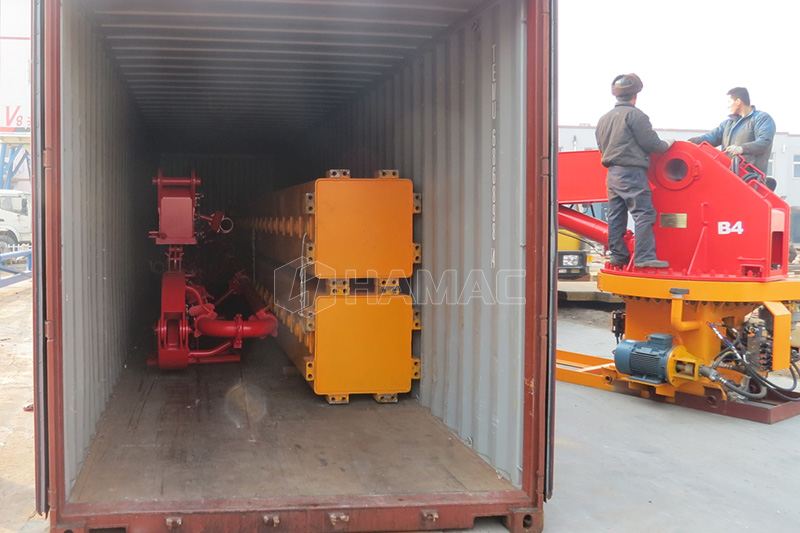

Based on good quality and decades of experience, the Self-climbing Concrete Placing Boom which is manufactured by HAMAC was exported to different countries. The Self-climbing Concrete Placing Boom will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

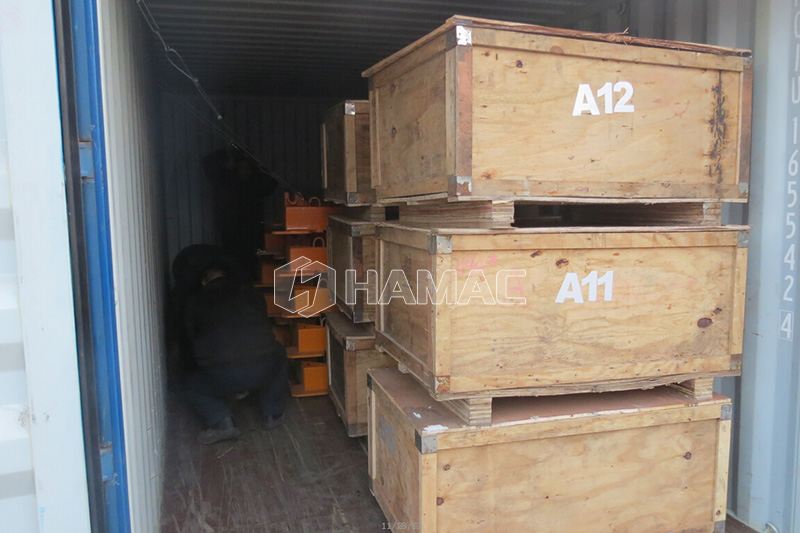

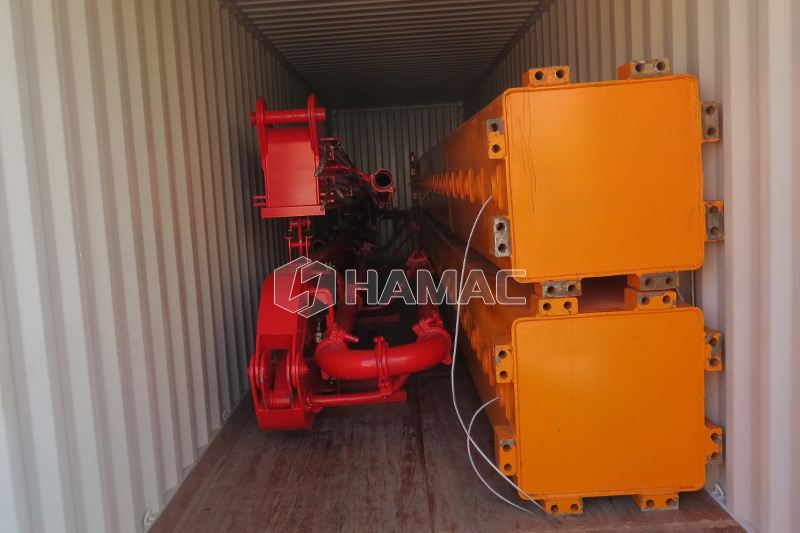

Self-climbing Concrete Placing Boom shipping pictures

Self-climbing Concrete Placing Boom Technical Parameters

Item HGY21D HGY24D HGY28D HGY32D
Max. Placing
Radius (M)
21 24 27.5 32
Big Arm Length (M) 11 12 12.6 14.5
Big Arm Elevation (°) 0-65 0-65 0-65 0-65
Medium Arm Length (M) 6.5 7.5 8.8 9.2
Medium Arm
Elevation (°)
0-180 0-180 0-180 0-180
Small Arm Length (M) 3.5 4.5 6.1 8
Small Arm Elevation (°) 0-180 0-180 0-180 0-180
Hose Length (M) 3 3 3 3
Concrete Delivery
Pipe (Mm)
Ø125×6 Ø125×6 Ø125×6 Ø125×6
Tail Rotary Radius (M) 3.9 3.9 3.9 -
Total Power (Kw) 5.5 5.5 5.5 15
System Pressure (Mpa) 24 24 24 24
Rotary Speed (R/Min) 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8
Rotary Range (°) 0-360 0-360 0-360 0-360
Lifting Speed (M/Min) 0.65 0.65 0.65 0.65
Lifting Height(M/Time) ≤3.6 ≤3.6 ≤3.6 ≤3.6
Overall Height (M) 13.3 13.3 12.6 22.9
Bare Machine Weight (Kg) 8400 9500 10720 16700
Balance Weight(Kg) 3×2000 3×2000 4×2000 -
Control Mode Panel/Wireless Remote Control

Note: Our products are being updated constantly, all rights reserved by HAMAC.
