Concrete Mixer Truck

Concrete Mixer Truck Multiple models for selection, can be customized according to customer requirements
The most widely used concrete transport equipment

For the concrete transportation from the batching station to the working site, HAMAC provide you with the concrete mixer truck from 4-12m3 volume. Regarding the chassis, we have different options such as SHACMAN, HOWO from SINOTRUK, FOTON, DFAC DONGFENG etc. The client can choose the one which can get the local service easily.

  • 4-12m3 drum as options
  • Famous brand hydraulic parts
  • Famous brand chassis as options
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

Brief introduction of truck mixer for sale

For the concrete transportation from the concrete batching station to the working site, HAMAC provide you with the concrete mixer truck for sale from 4-12m³ volume. Regarding the chassis, we have different options such as SHACMAN, HOWO from SINOTRUK,FOTON etc. The client can choose the one which can get the local service easily.

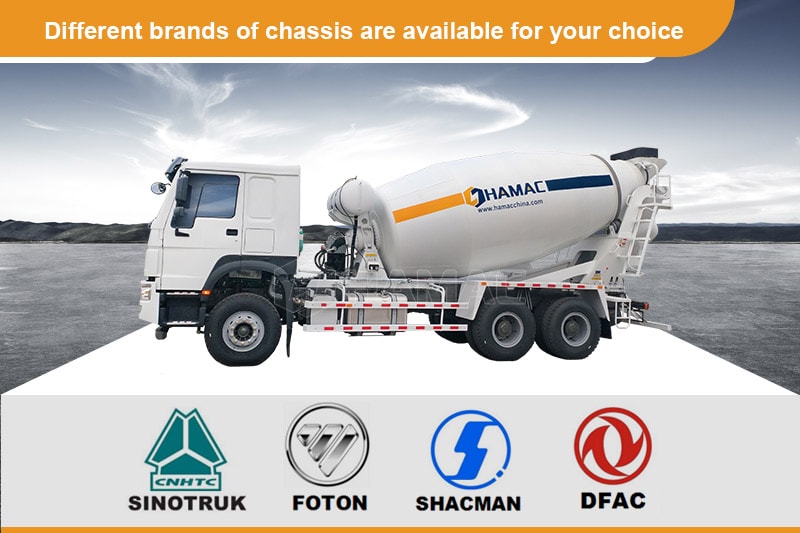

Different brands of chassis are available for your choice

For the ready mix concrete mixer trucks, HAMAC can provide our clients with the standard cement mixer drum sizes volume such as 4m³, 6m³, 8m³, 10m³, 12m³. Meanwhile, we can provide the customized transit mixer for different projects such as tunnel, mines etc. If you have the chassis already, just inform us the dimension of your chassis, then we can customize the drum mixer for you including the hydraulic system.

For the ready mix concrete mixer trucks

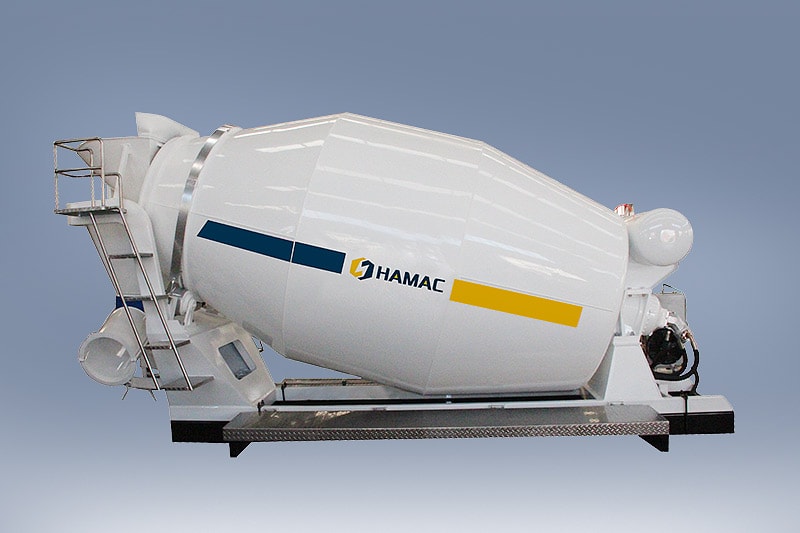

Cement mixer truck Without Chassis

As a professional manufacturer for concrete transit mixer, HAMAC can produce the cement mixer drum only according to the truck chassis which the client have already. The normal procedures are below

1. The client provide the drawing of the truck chassis,We will check the wheel base, tread, the position of PTO to see if this chassis is suitable for a truck mixer or not;

2. After confirm the chassis is suitable for a cement mixer truck,We will communicate with the client the volume of the drum he needs, and if the chassis can load this weight. 1 cubic meters concrete is approximate 2.8 tons.

After confirm the chassis is suitable for a cement mixer truck

3. Confirm the brand of hydraulic pump,hydraulic motor, gearbox speed reducer, and the volume of water tank. In different countries, people prefer different brands of hydraulic parts. HAMAC can provide you with ARK, TOPUNION, REXROTH, INTERPUMP, SUNNY etc.

4. After the drum mixer is ready for delivery,we will test it in our factory and provide a detailed explanation how to install it on the chassis. So our client can assemble it easily together with the chassis.

After the drum mixer is ready for delivery

How tall is a concrete agitator truck?

For all the concrete agitator truck for sale, their height will not exceed 4000mm. Because for the RMC plant for sale, their discharging height is various from 3800mm to 4100mm. This height is designed based on the height of concrete mixer truck.

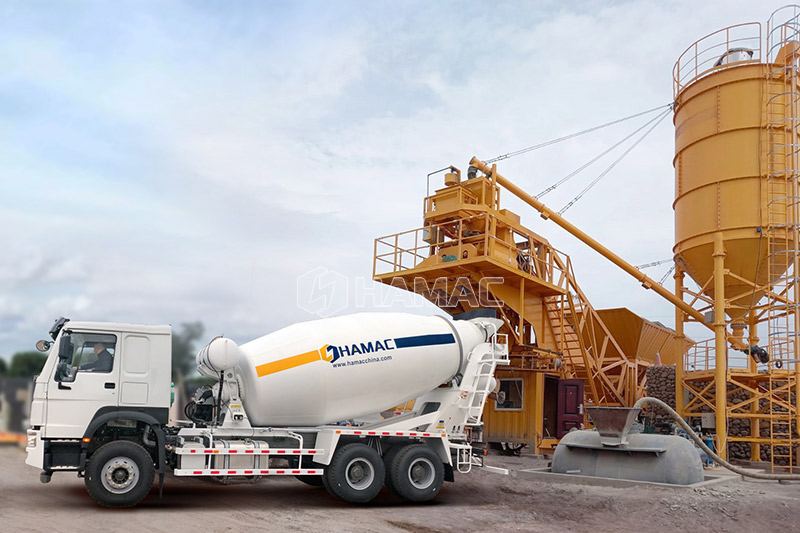

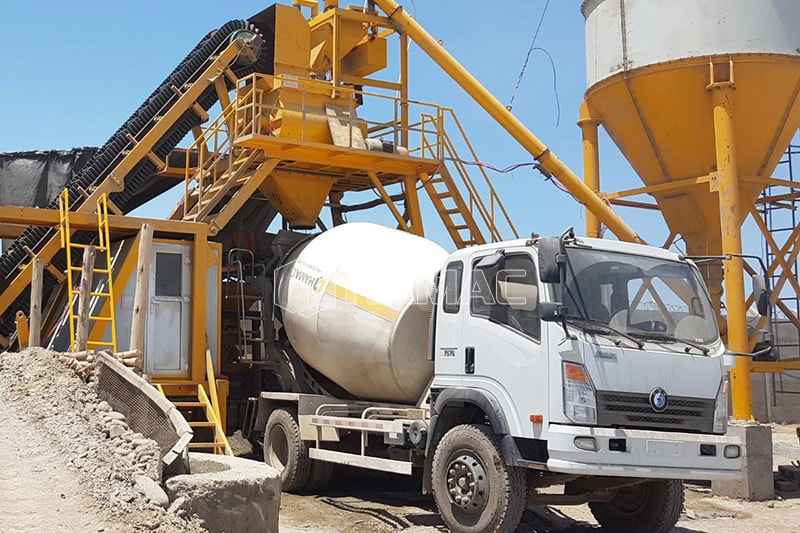

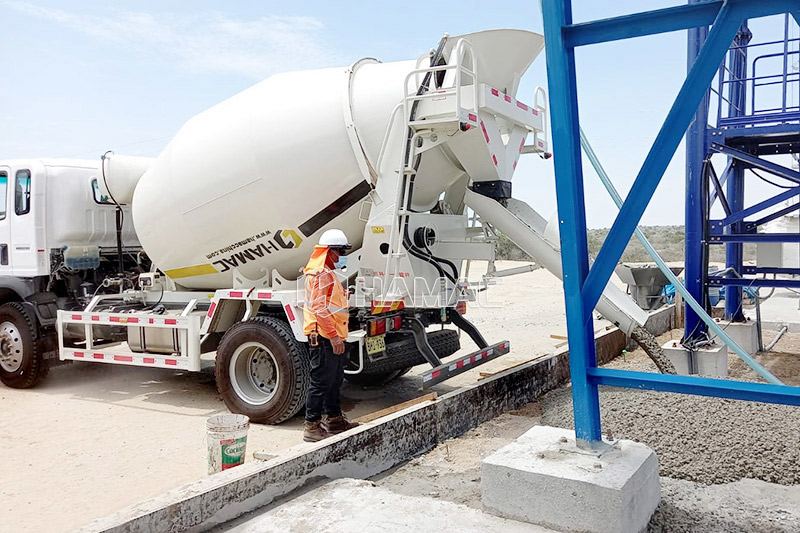

8m3 Concrete mixer truck job site
8 M3 TRANSIT MIXER TRUCK
Overall parameter
Overall dimension 8635x2485x3730mm
Kerb weight 10960kg
Mixing Drum parameter
Mixing drum material High quality wear-resistance steel
Model:Q345
Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity 8M3
Drum overall dimension(with frame) 6600*2500*2675mm
Mixing drum size Diameter: Φ2300mm Length: 4730mm
Charging rate ≥3 m3/min
Top feed hopper dimension ≥650 mm
Discharging rate ≥2 m3/min
Residual rate ≤0.5%
Water supply Baric water supply system
Water tank capacity 450L
Radiator 18L
Reduction gear HL Reducer, Italy brand
Hydraulic pump Interpump, Italy Brand
Hydraulic motor Interpump, Italy Brand
Accessory Tool box
Chassis parameter
Chassis Brand SINO Truck HOWO
Chassis model ZZ1257N3247W
Axle base 3225+1350mm
Driving type Right hand drive
Engine model WD615.69
Rated power (HP) 336HP
Emission standard Euro II
Fuel type Diesel

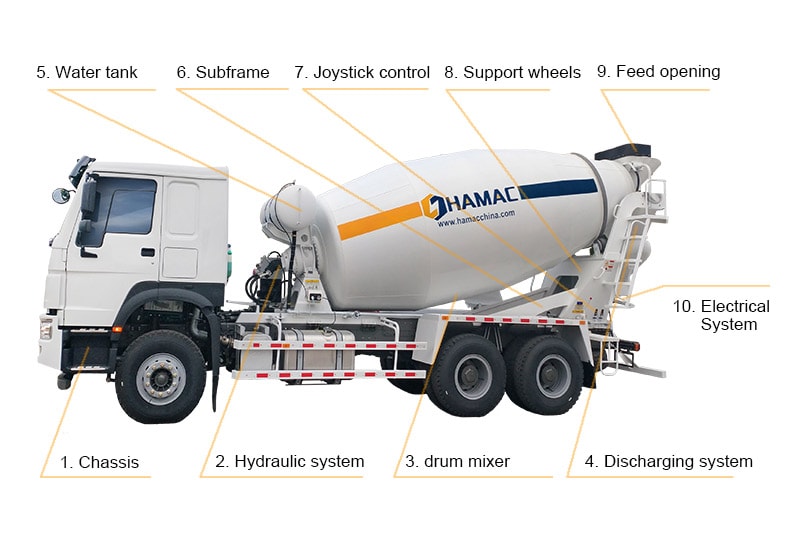

What are the most important parts on transit mixer truck?

For the transit mixer truck for sale, the parts you have to consider are the brand of chassis, diesel engine brand, to see if you can get the parts easily locally; the brand of hydraulic parts and gearbox.

For some famous brand hydraulic parts for the concrete mixer truck, their quality is very good.

It will last very long time. For example, for example our 8m³ for sale, the chassis is SHACMAN, equipped with CUMMINS 345HP, EURO V diesel engine. And the hydraulic parts and gearbox from ARK brand.

We provide 3 years guarantee period.

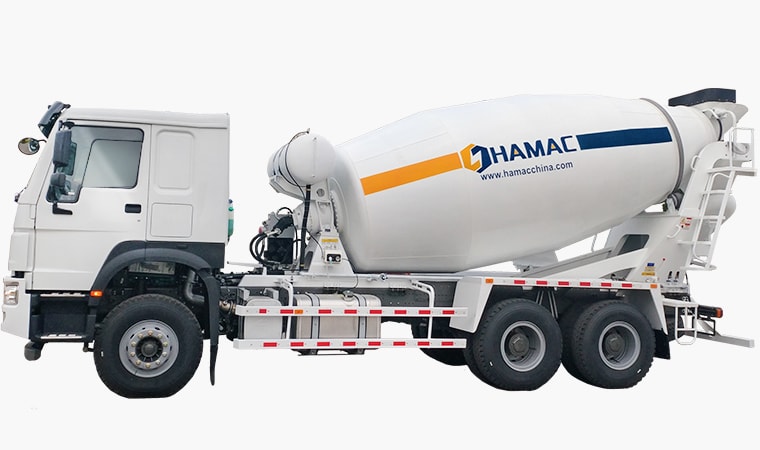

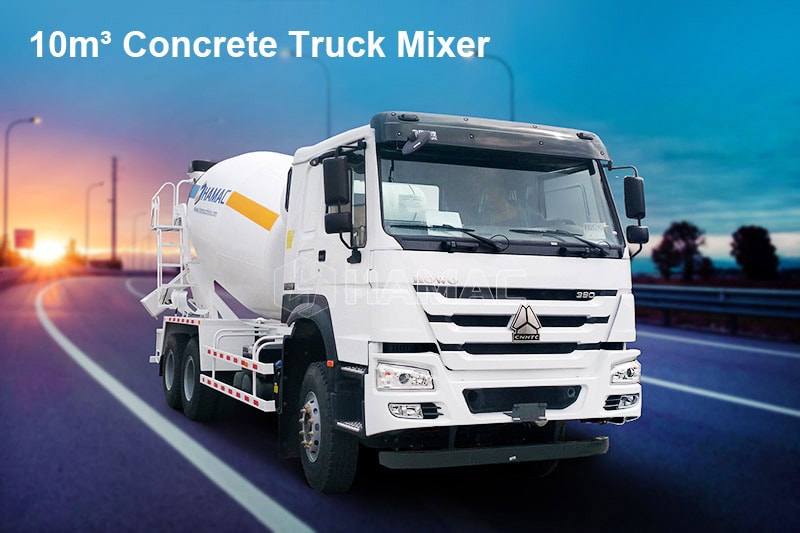

10m3 Concrete Truck Mixer
Overall parameter( Concrete Transit Mixing Truck 10m³)
Overall dimension 9400x2500x3850mm(Approx)
Kerb weight 14500kg(Approx)
Mixing Drum parameter
Mixing drum material High quality wear-resistance steel
Model:Q345
Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity 10m³
Drum overall dimension(with frame) 7100*2500*2730mm
Charging rate ≥3 m3/min
Top feed hopper dimension ≥650 mm
Discharging rate ≥2 m3/min
Residual rate ≤0.5%
Water supply Baric water supply system
Water tank capacity 450L
Radiator 18L
Reduction gear TOP T68 Reducer, Italy Brand
Hydraulic pump EATON 54, American Brand
Hydraulic motor EATON 54, American Brand
Accessory Tool box
Chassis parameter
Chassis Brand SINOTRUCK chassis
Wheelbase (mm) 3825+1350
Drive model Left hand drive
Quantity of axis 3
Engine SINOTRUCK D10.34-40
Engine Power 340hp
Emission Standard EUR IV
Tire 12.00R20

Factors affect the mixer truck price

There are many different models of mixer truck for different usage, their price is different from each other. There are several factors will affect the price of truck mixer for sale as below:

  1. 1. Volume of mixer drum, the bigger the more expensive;
  2. 2. Brand of truck chassis, BENZ, SCANIA, VOLKSWAGON will be more expensive.But the mixer truck in Philippines, most of them are imported from China. The popular chassis brand are HOWO, SHACMAN, FOTON, DFAC etc.
  3. 3. Brand of hydraulic pump, hydraulic motor and gearbox.The more famous the more expensive. We suggest pay more attention to these three parts. Do not save cost on them. It will affect the work performance of the truck mixer in the future;
  4. 4. Quantity of axles, for some same volume drum, two axles and three axles are both ok for it.Then you have to choose a suitable chassis according to the local law for the chassis load;
Factors affect the mixer truck price

How to clean the concrete truck after working?

After working, there will be some concrete remains on the inner walls of the tank, if you do not clean it immediately, it will become thicker and thicker, then the real volume of truck mixer drum will be affected.

In order to solve this problem, the easiest way is put some stone which is approximate 30-50mm, and feed water into the drum, and then start rotating the drum. During this procedure, the stone and water will clean the concrete inside the drum inner wall. After rotating several minutes, you can discharge the water and stone out to a place to recycle the concrete.

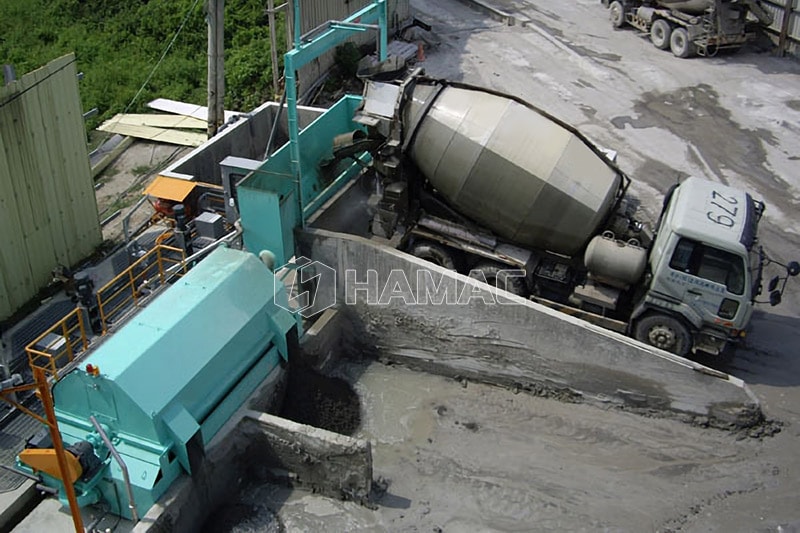

There is another formal way to recycle the concrete and wash the drum, it is a machine called Concrete Reclaimer. It is highly recommended for the Ready mix concrete company. It will recycle the aggregates, sand and cement. The working flow chart as below, you can see it.

How to clean the concrete truck after working?

Why choose HAMAC for ready mix truck mixer?

There are many concrete truck mixer suppliers in the world, all of them have their advantages. Here are some reasons to choose HAMAC cement truck mixer.

  1. 1. Famous brand truck chassis.We have strong relationship with SHACMAN, SINOTRUK, FOTON etc, this can ensure the price and time of delivery;
  2. 2. Famous brand hydraulic parts and gearbox.We provide you with 3 years guarantee for these three critical parts;
  3. 3. The mixing and transporting concrete has good homogeneity.high feeding and discharging speed, low discharge residual rate;
  4. 4. It can be used to transit the concrete.but also can be used to mix the dry material directly when it is moving, it is an ideal truck mixer for dry batch concrete as well.

HAMAC provide you with full solution of commercial ready mix concrete batching plant business. Welcome you contact us for further information.

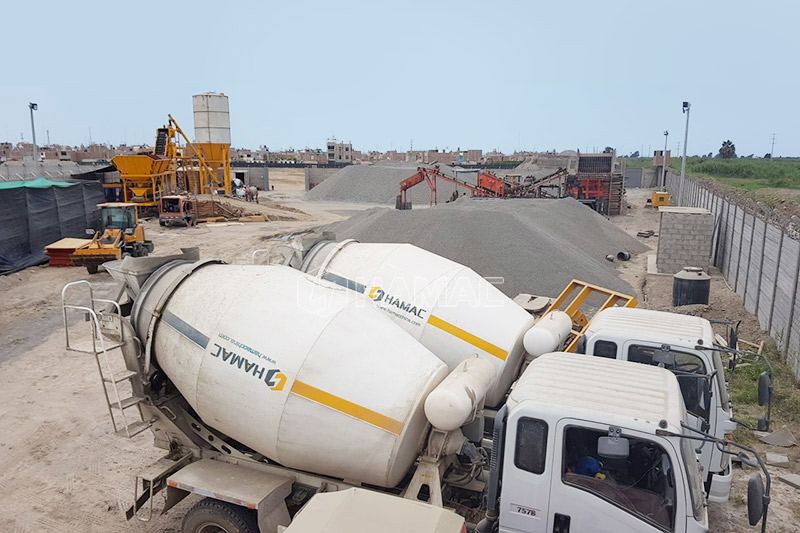

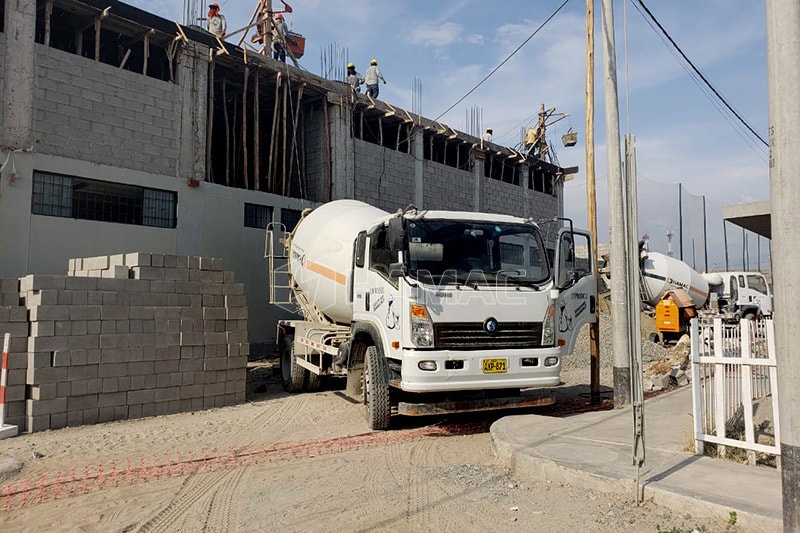

10m3 Concrete mixer truck job site

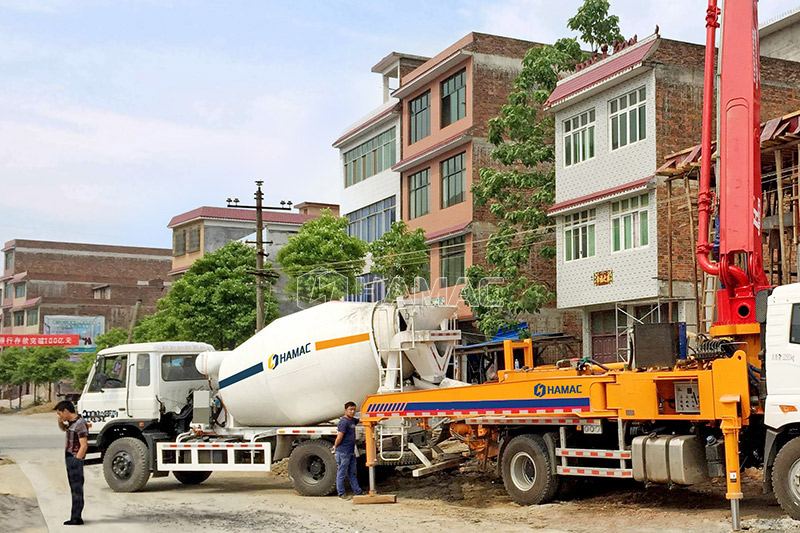

8m3 Concrete mixer truck job site

Contact us to visit the factory or order products

Leave a message Online chat

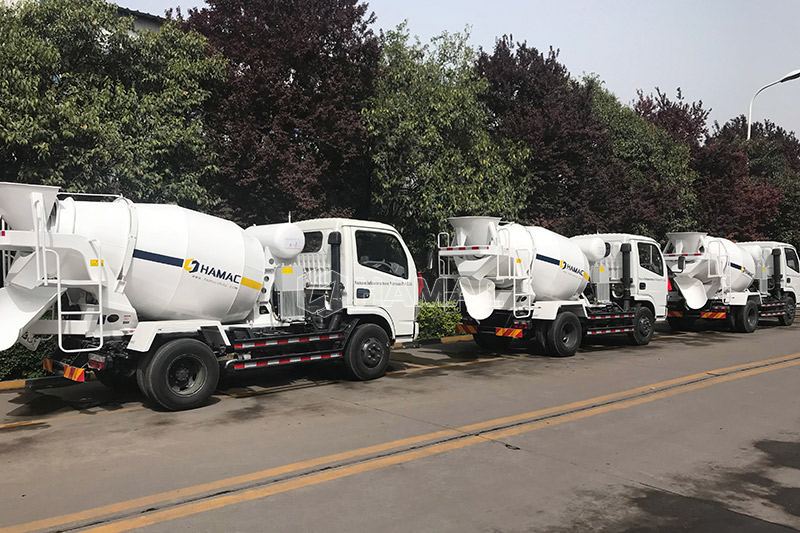

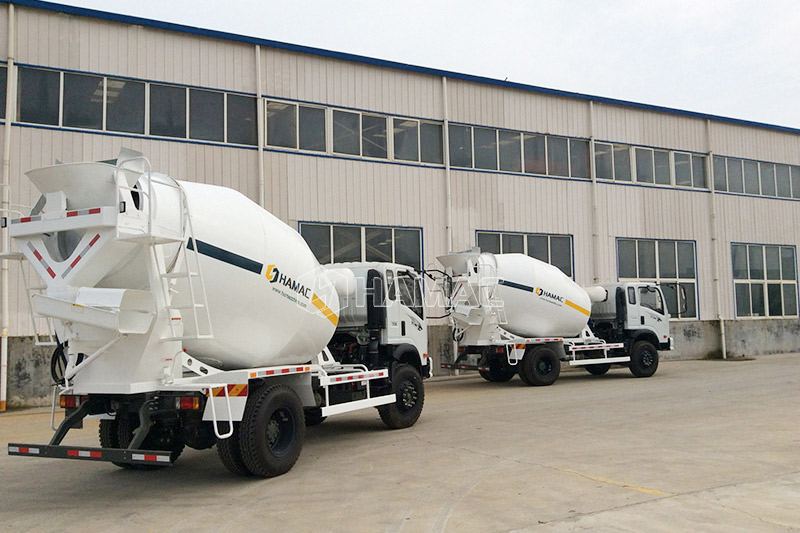

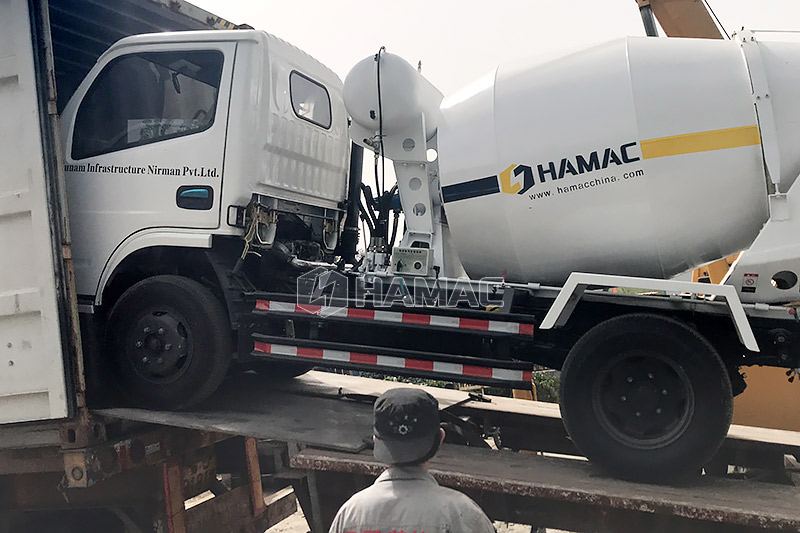

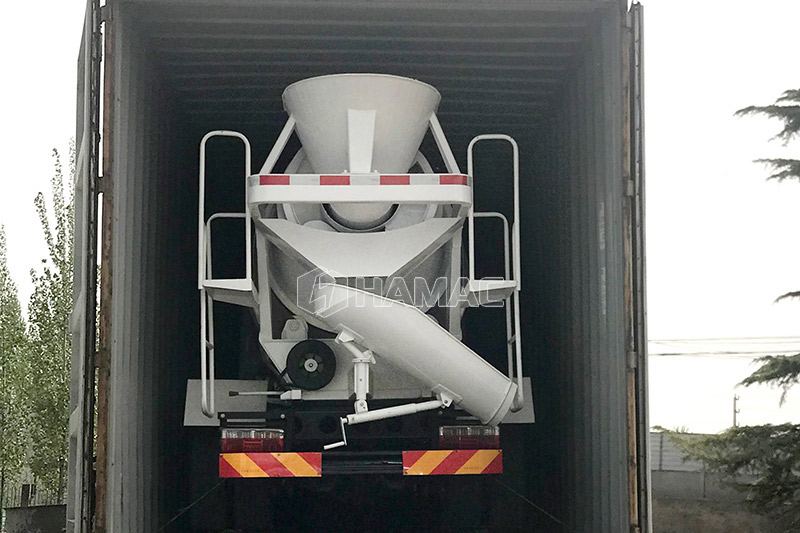

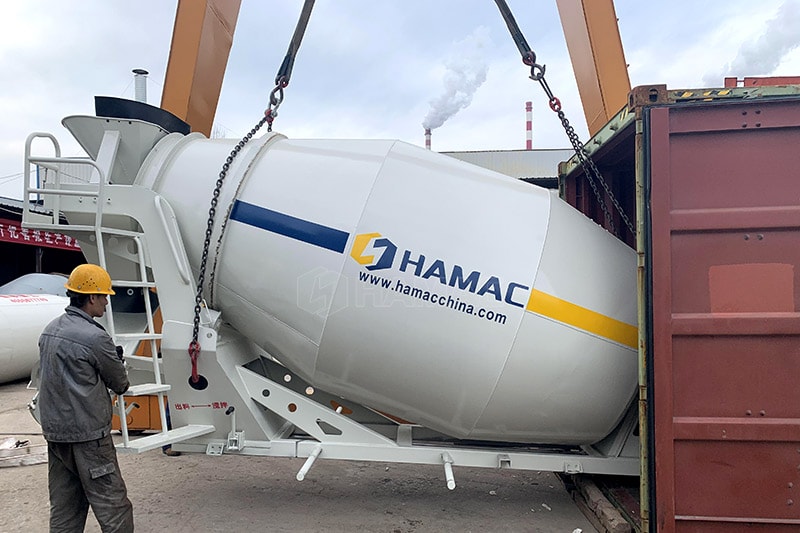

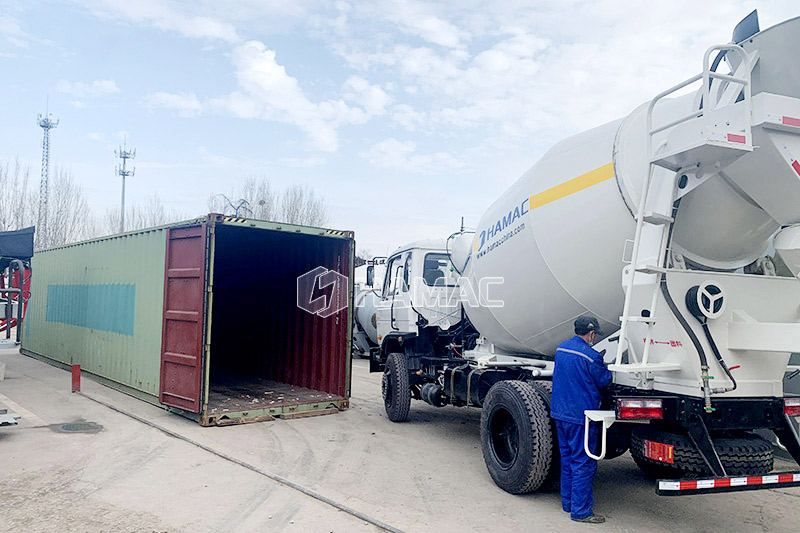

Concrete Mixer Truck Goods Delivery

Based on good quality and decades of experience, the Concrete Mixer Truck which is manufactured by HAMAC was exported to different countries. The Concrete Mixer Truck will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

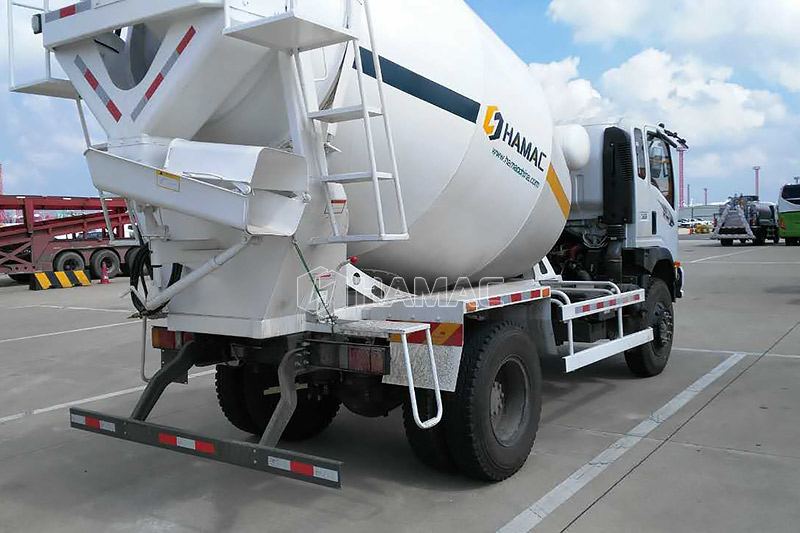

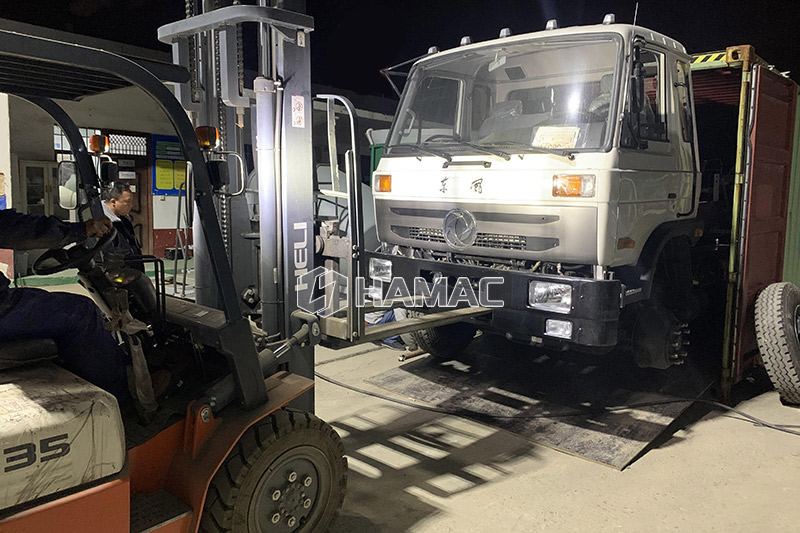

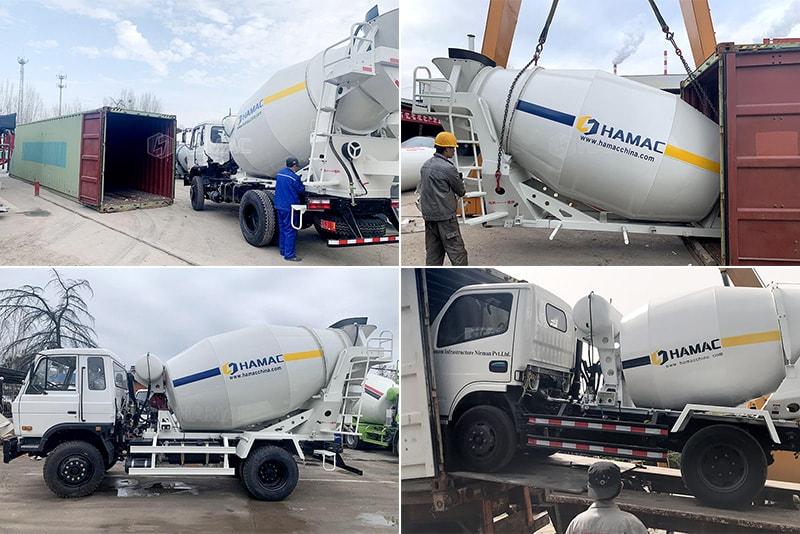

Concrete Mixer Truck shipping pictures

Concrete Mixer Truck Technical Parameters

Item Details 4m3 6m3 8m3 10m3 12m3
Chassis model/Brand/Origin (YUEJIN, WAW, FORLAND ETC) HOHAN, CDW SHACMAN, HOWO
Chassis-driven model 4x2 4*2 4*6 4*6 4*8
Mixing drum Agitating capacity (m3 ) 4.9 6.0 8.0 10.0 12.0
Residual rate (%) ≤0.5%
Feeding rate
(m3/ min )
≥3
Charging rate
(m3/ min )
≥2
Inclination angle of  drum 15 (Customized)
Hydraulic System Pump model/brand SUNNY SUNNY ARK ARK ARK
Motor model/brand SUNNY SUNNY ARK ARK ARK
Reduction gear RONGJIAO RONGJIAO TOP TOP TOP

Note: Our products are being updated constantly, all rights reserved by HAMAC.

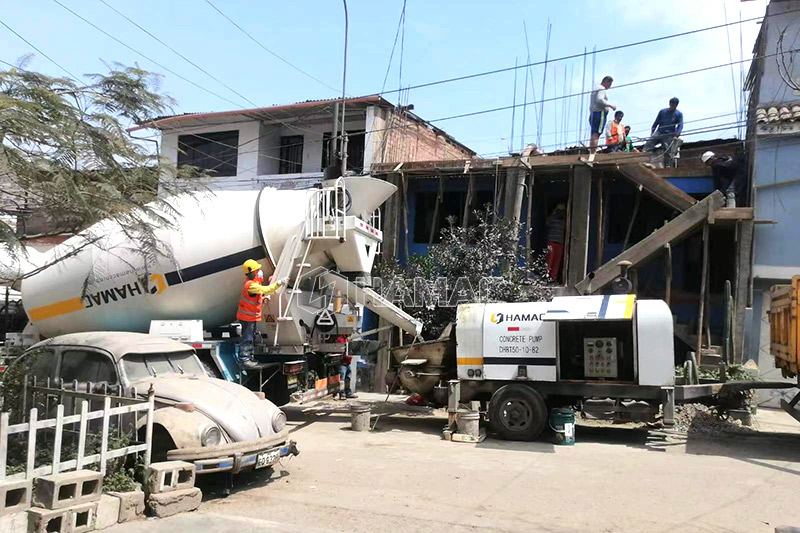

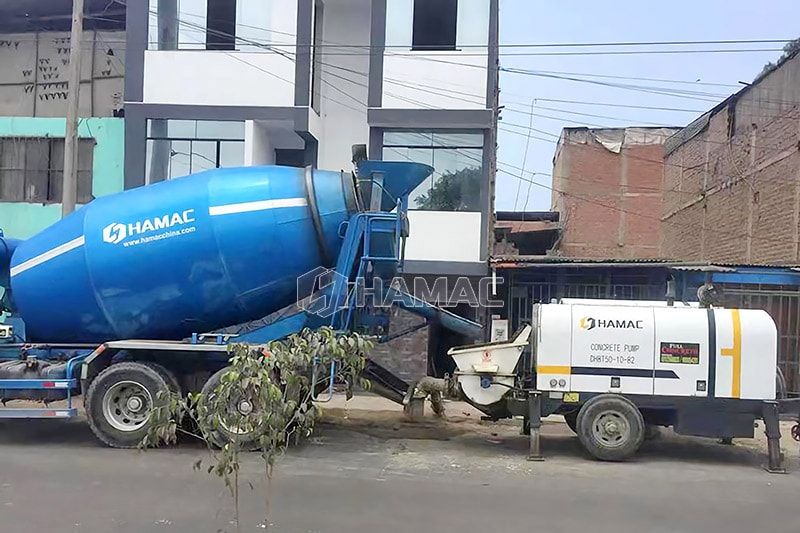

Concrete Mixer Truck Application Case

The Concrete Mixer Truck is widely used for different projects all over the world. HAMAC exported the Concrete Mixer Truck to different countries and got good comments from our clients.
