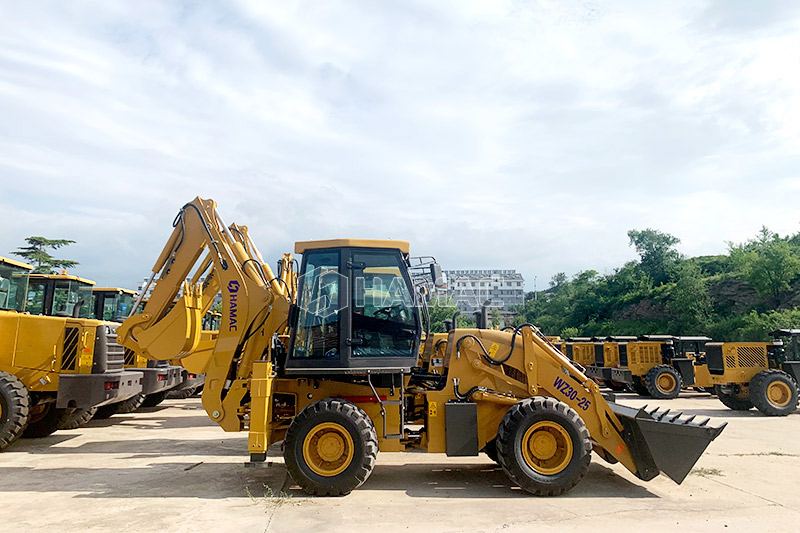

Backhoe Loader

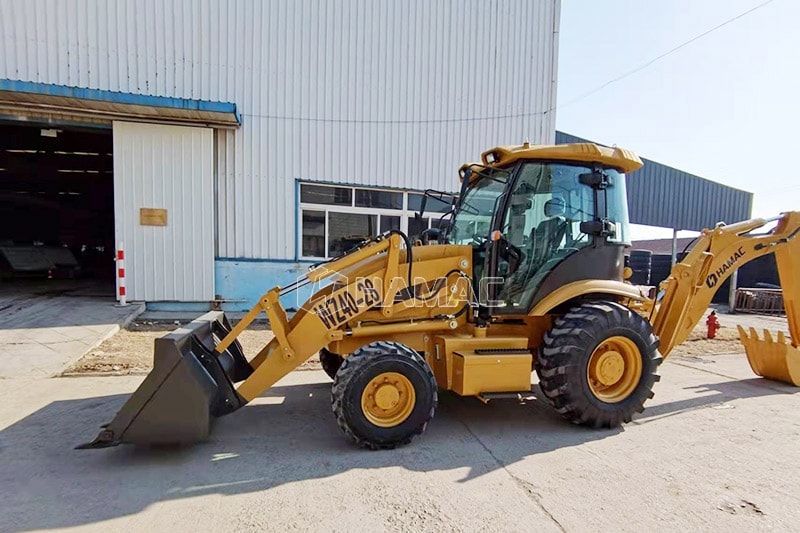

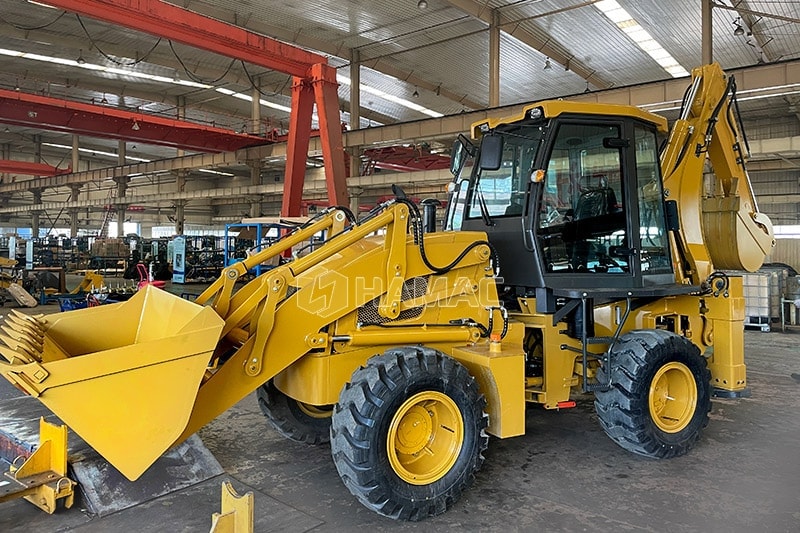

Backhoe Loader Multiple models for selection, articulated chassis and one-piece chassis
A versatile machine integrates loader and excavator

Backhoe Loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to General Construction, Demolitions and Excavations, Landscaping, Breaking Asphalt and Paving.

  • Two models as options
  • Famous brand hydraulic parts
  • High cost performance
  • introduction
  • Technical parameters
  • gallery
Related Product
Related Cases

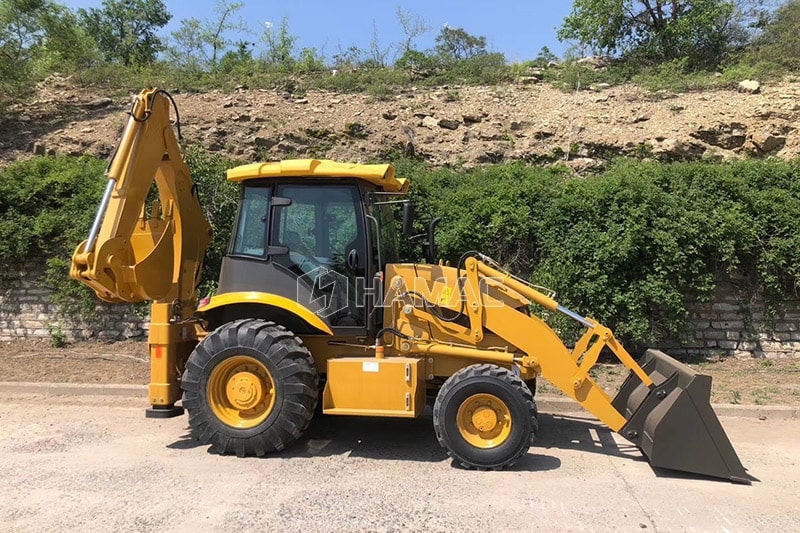

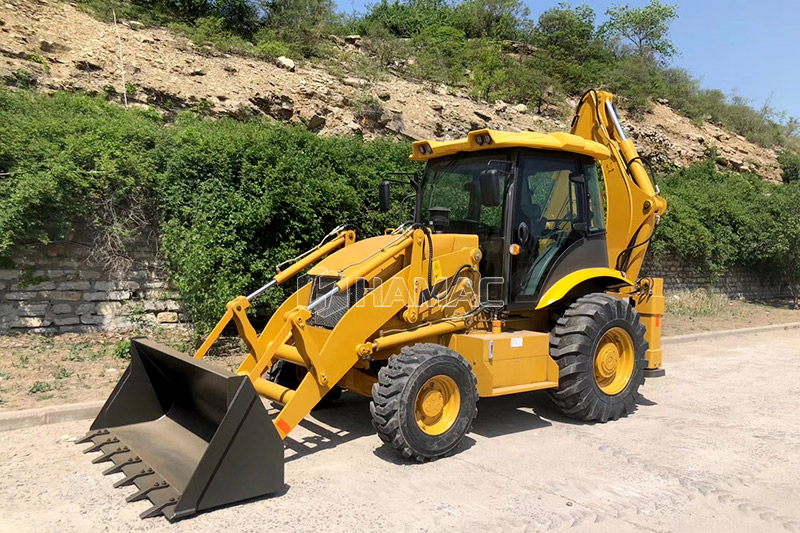

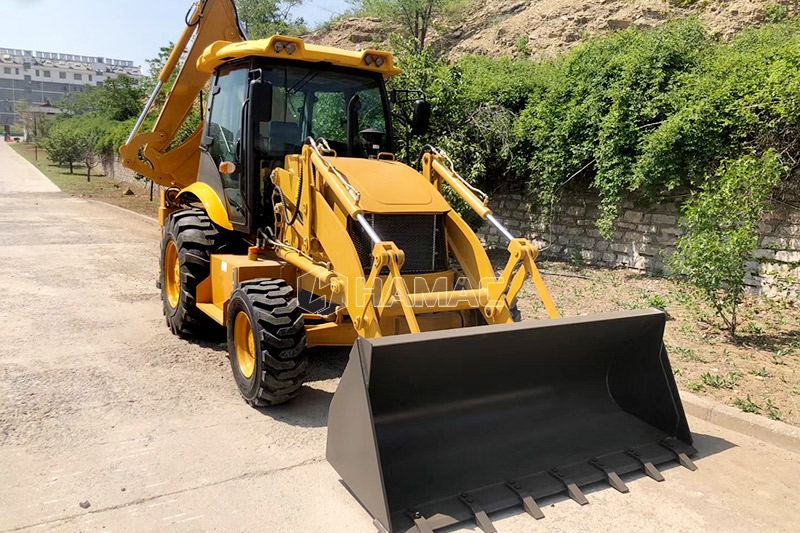

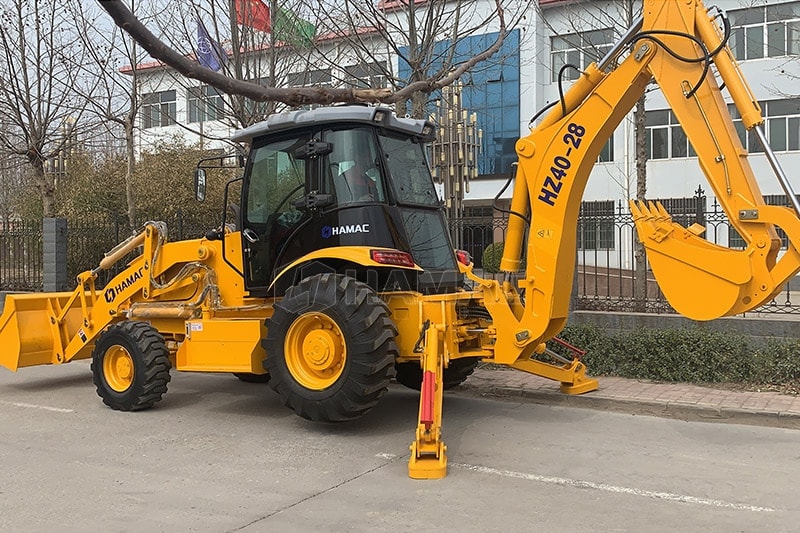

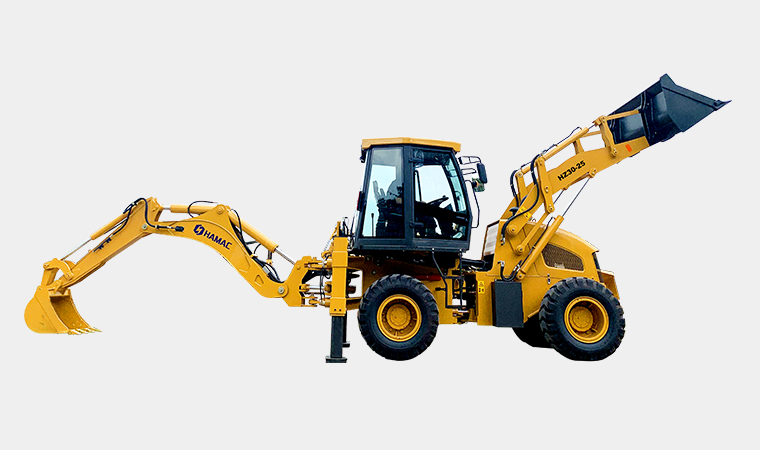

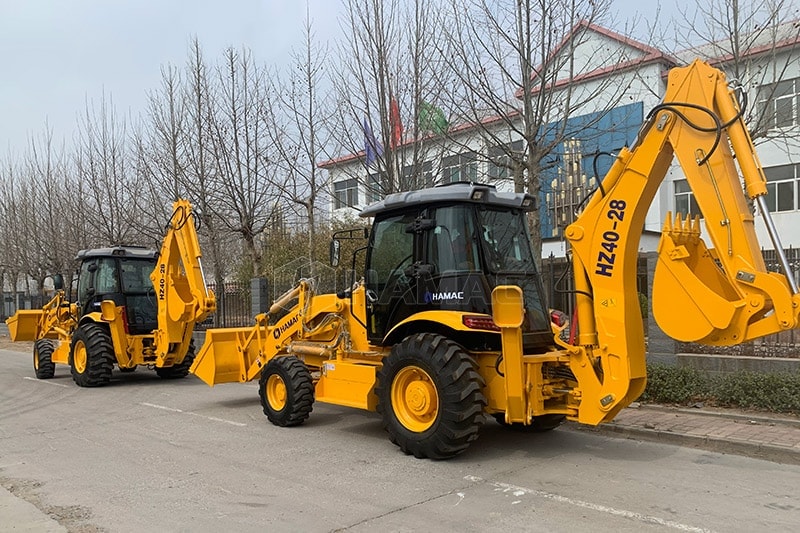

The backhoe loader has a bucket at the front and a backhoe at the rear. Most use two large wheels at the rear of the chassis to power the equipment, and two smaller wheels at the front to steer. HAMAC backhoe loaders are versatile machines that combine excellent trenching, excavating, loading, lifting and material handling capabilities with the benefits of a single machine that is easy to maintain and simple to operate. Based on the overseas technology, HAMAC designed two models of backhoe loader as options.

Advantages

  • 1. HAMAC backhoe loader is high cost performance compared with world famous brands;
  • 2. Two different design of chassis as options for the clients’ different investment;
  • 3. H support legs and A support legs can be customized;
  • 4. Two units can be put into a 40ft container, the sea freight can be saved.

Contact us to visit the factory or order products

Leave a message Online chat

application case

The Backhoe Loader is widely used for different projects all over the world. HAMAC exported the Backhoe Loader to different countries and got good comments from our clients.

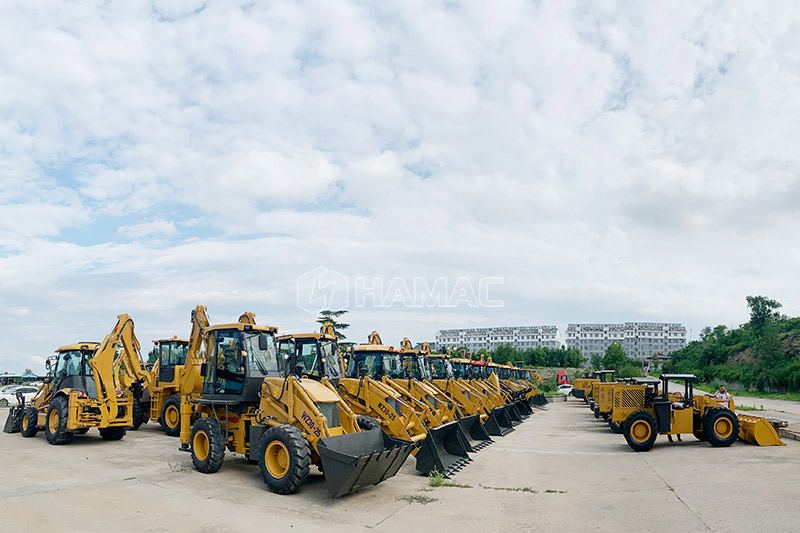

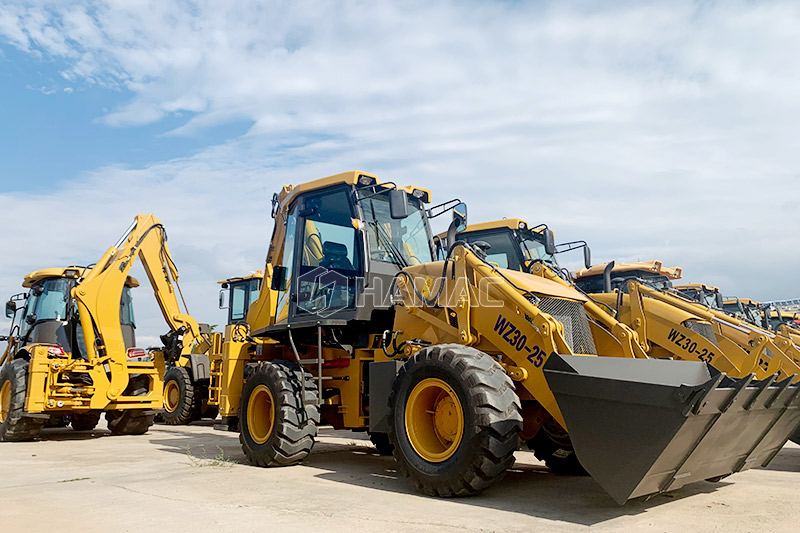

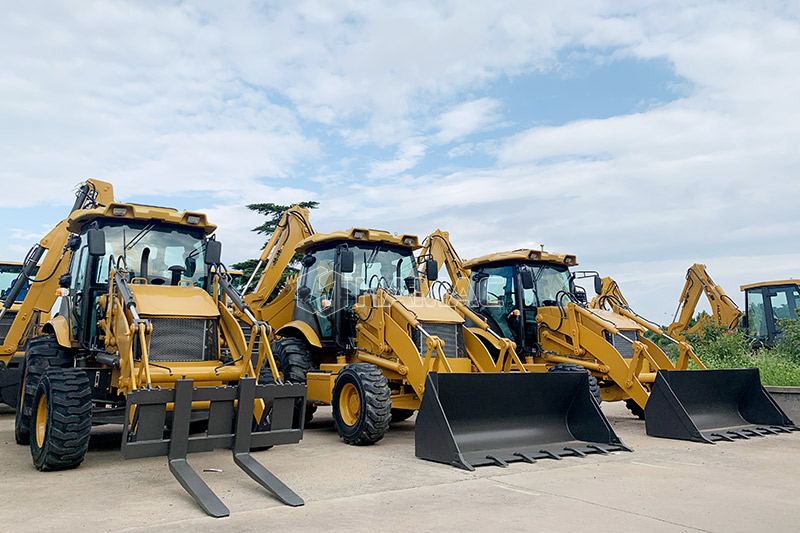

Goods Delivery

Based on good quality and decades of experience, the Backhoe Loader which is manufactured by HAMAC was exported to different countries. The Backhoe Loader will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

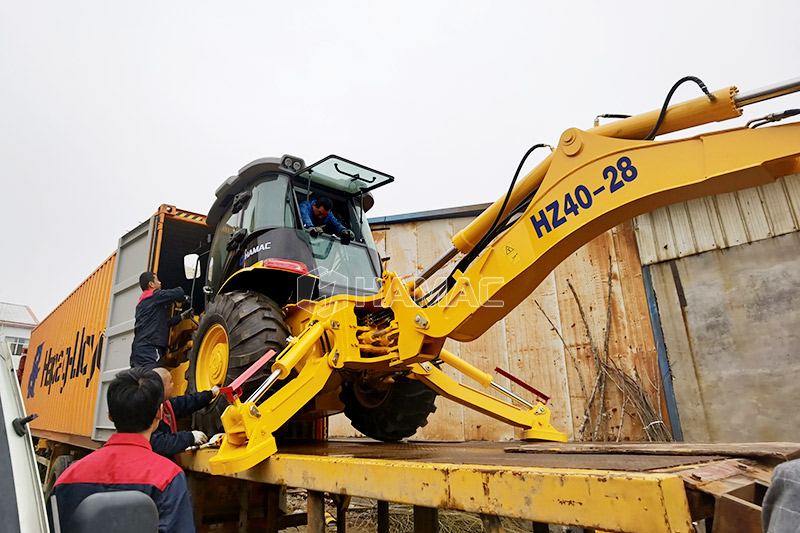

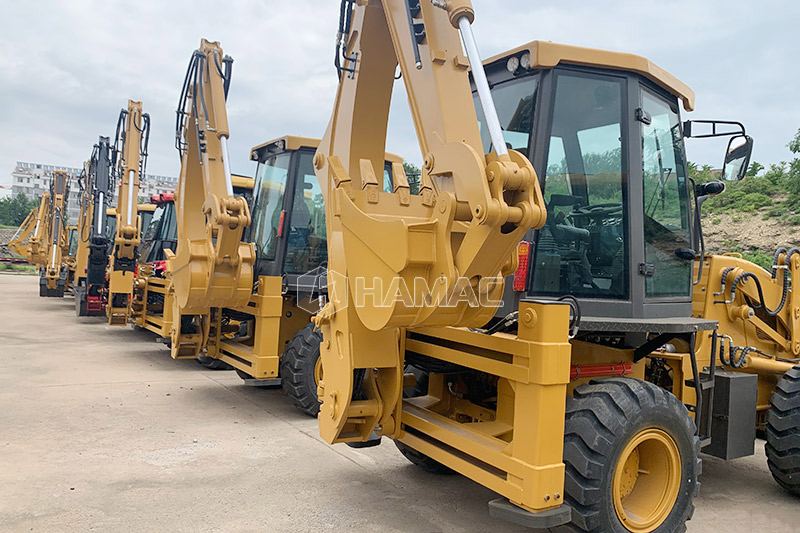

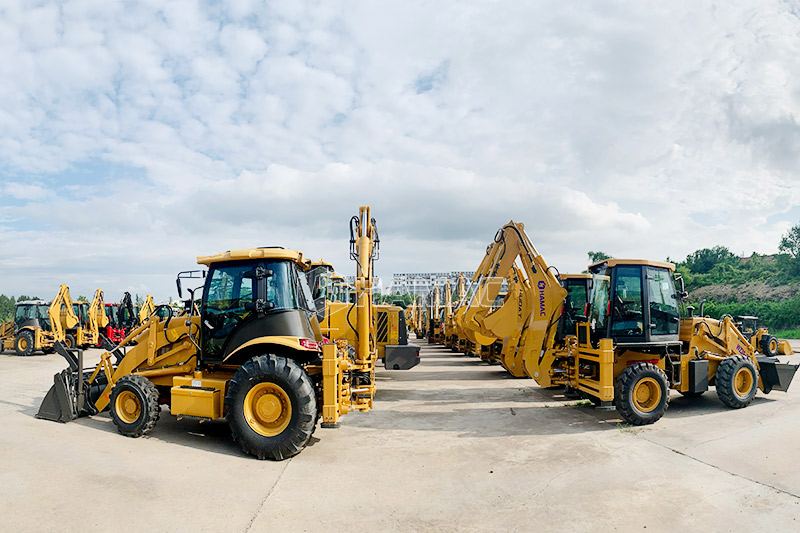

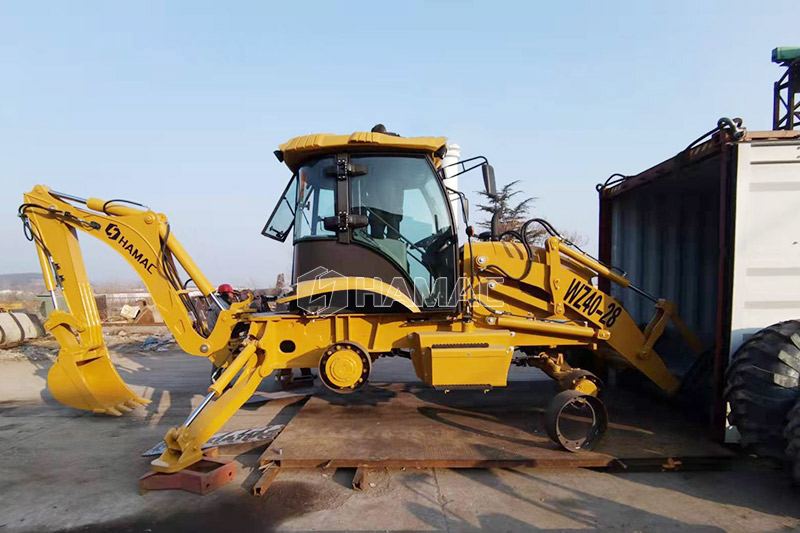

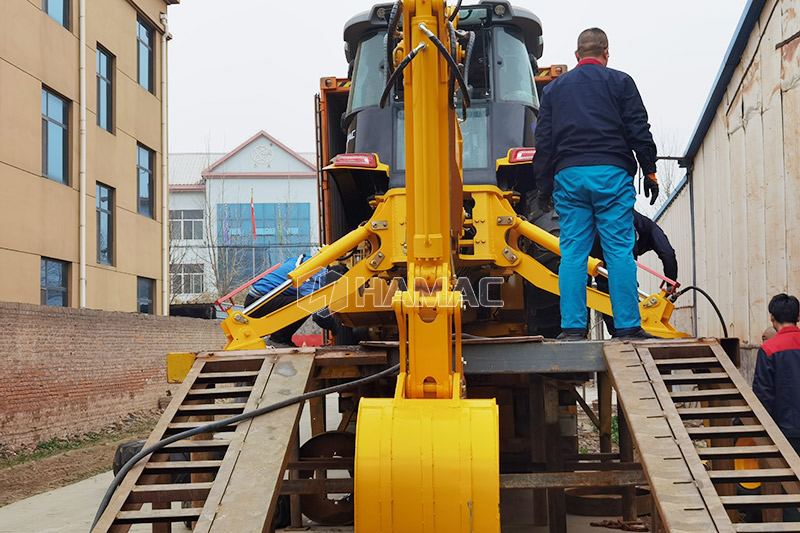

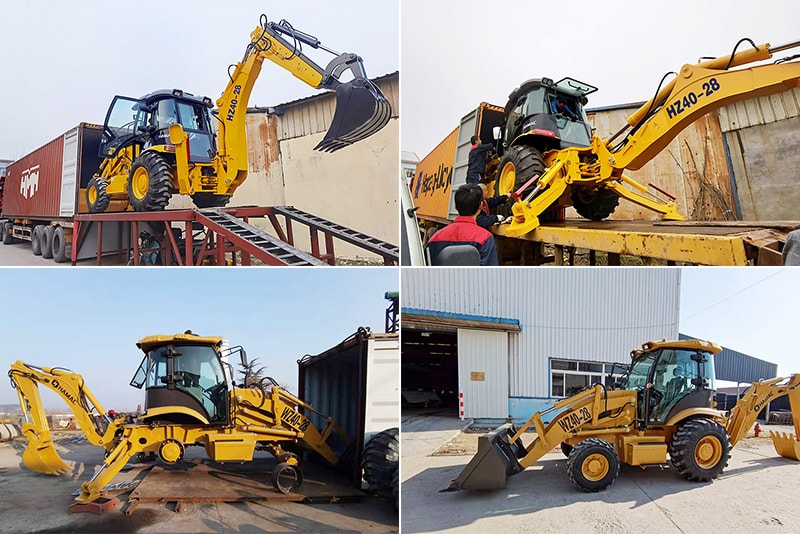

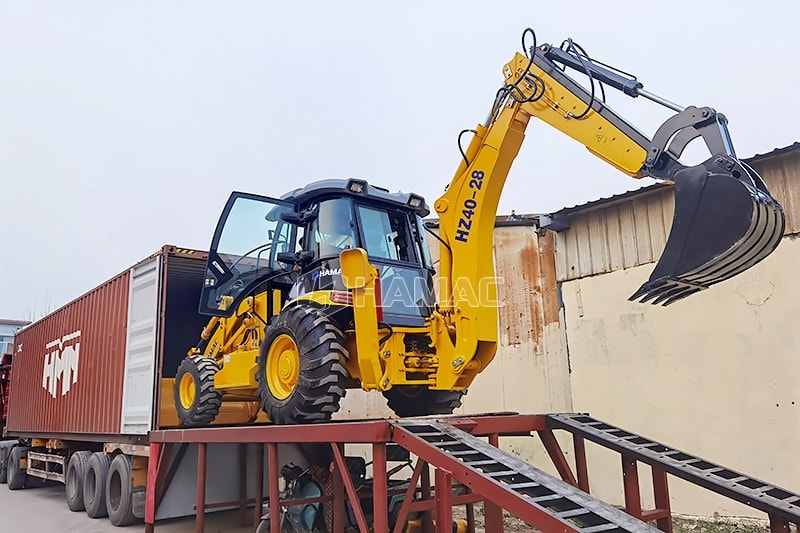

Backhoe Loader shipping pictures
Overall Operating Weight 8200KG Final Reducer Single Stage Final Reducer
Transport Dimension Rated Loader of Axle 8/18.5t
L*W*H (mm) 5920×2250×3770 Transmission System
Wheel base 2200mm Torque Converter
Min. Ground Clearance 300mm Model YJ280
Bucket Capacity 1.0m3 Type Single-stage Three Elements
Breakout Force 38KN Max. Efficiency 84.4%
Loading Lifting Capacity 2500KG Inlet Pressure 0.5Mpa
Bucket Dumping Height 2742mm Outlet Pressure 1.1Mpa—1.3 Mpa
Bucket Dumping Distance 925mm Cooling Method Oil-cooling Pressure Circulation
Digging Depth 52mm Gearbox
Backhoe Capacity 0.3 m3 Type Fixed Shaft Power Transmission
Max. Digging Depth 4082/4500mm Oil Pressure of Clutch 1373Kpa—1569 Kpa
Swing Angle of Excavator Grab 190 Gears Two Gears Ahead, Two Gears Astern
Max. Pulling Force 39KN Max.Speed 28Km/h
Engine Tyre
Model YC4A105Z-T20 Model 14-17.5/19.5L-24
Type In Line Direct injection Four-Stroke and Injection Combustion Chamber Pressure of Front wheel 0.55Mpa
Cylinder-Inside Diameter*Stroke 4-102×120 Pressure of Back Wheel 0.223Mpa
Rated Power 75KW Brake System
Rated Speed 2200r/min Service Brake Air Over Oil Caliper Brake
Min. Fuel Consumption ≤242g/km.h External Type
Max.Torque ≥410N.M Self-regulation
Displacement 4.4L 自Self-balance
Steering System Emergency Brake Operation Power Implementing brake
Model of Steering Device BZZ5-250 Manual Operation Power Terminating Brake
Steering Angle ±36 o Hydraulic System
Min. turning radius 6581mm Digging Power of Excavator Grab 46.5KN
Pressure of the system 12Mpa Digging Power of Dipper 31KN
Axle Bucket Lifting Time 6.8S
Main Transmission Type Double Reduction Bucket Lowering Time 3.1S
Bucket Discharge Time 2.0S

Note: Our products are being updated constantly, all rights reserved by HAMAC.
