HZS35 Stationary concrete batching plant works in Rwanda

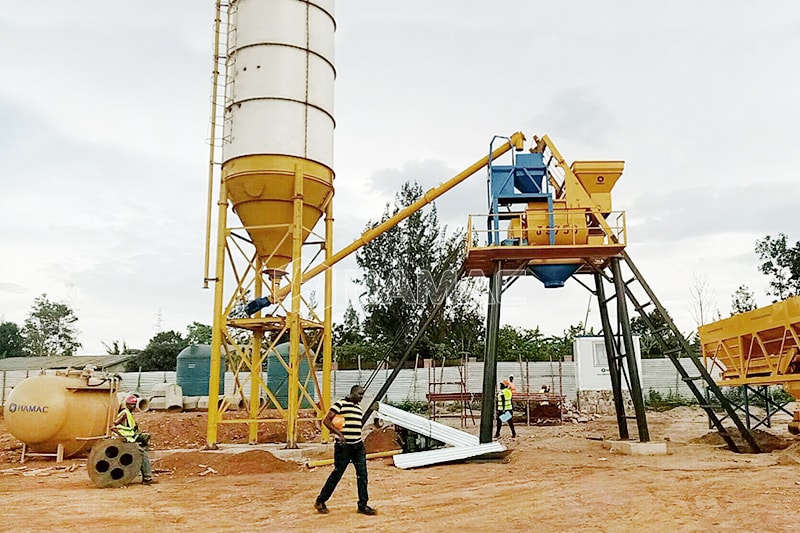

This HZS35 Stationary concrete batching plant works in Rwanda was installed in Rwanda. This is our projects in Kigali, Rwanda. Its capacity is 35 cubic meters per hour. This project belongs to a state-owned company in Rwanda. The concrete will be used for a project to build stock for Rwanda customs. After communicating with so many Chinese suppliers, finally they choose HAMAC as the supplier because of our high quality and professional service.

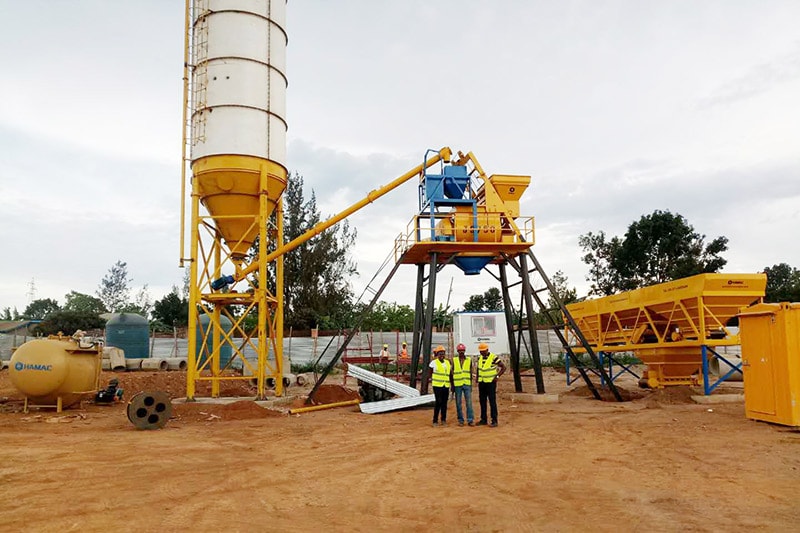

Technician took photos with concrete batching plant for sale
What is included in a HZS35 concrete batching plant?

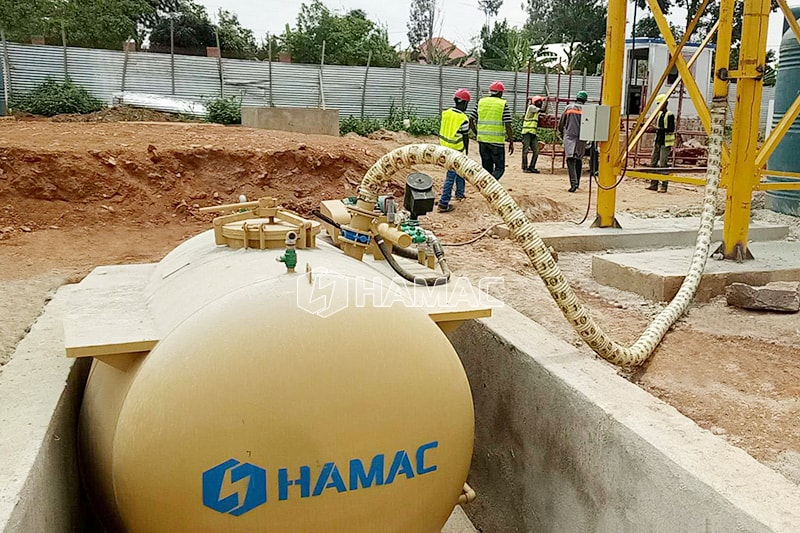

In a HZS35 high quality concrete batching plant, there is a PLD1200 aggregate batching machine, one JS750 twin shaft concrete mixer, hoisting hoppers to feed the mixer, one unit of 100 tons bolted type cement silo, and a horizontal pneumatic cement feeder to blow the cement into the cement silo.
|Max theoretical capacity(m3/h)||35|
|Storage hopper capacity (m3)||3×6|
|Maximum size of aggregate (mm)||60/80|
|Discharge height (m)||1.7-3.8|
|Charge height (m)||2.9|
|Aggregate measuring accuracy (%)||±2|
|Cement measuring accuracy (%)||±1|
|Fly ash measuring accuracy (%)||±1|
|Water measuring accuracy (%)||±1|
|Additive measuring accuracy (%)||±1|
|Power of supply (kw)||61|
|Power voltage (V) /frequency (HZ)（optional)||AC380/50|
|Total weight(kg) ( including 1 cement silo and screw conveyor)||19000|
|Area covered (m) LxW||26 X 10|
