YHZM25 Mobile Batching Plant

Introducción

YHZM25 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the advantage of many models in China and overseas and the advanced technology, combing the experience of HAMAC Group in the past years. The batching unit, aggregate conveying unit, water supplying and additive agent supplying system, scaling system, mixing system, electrical control system and pneumatic system are centralized in one trailerized chassis. It has the feature of instant trailing, instant stop, reasonable structure, well function, reliable working, convenient operation, accurate scale, particularly suitable for moving sites and construction site like road, bridge, dam, airport.
inquiry! Leave a Message!

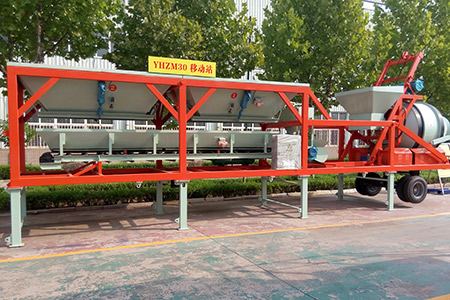

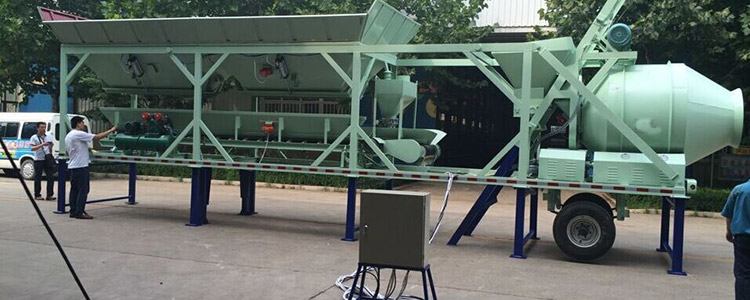

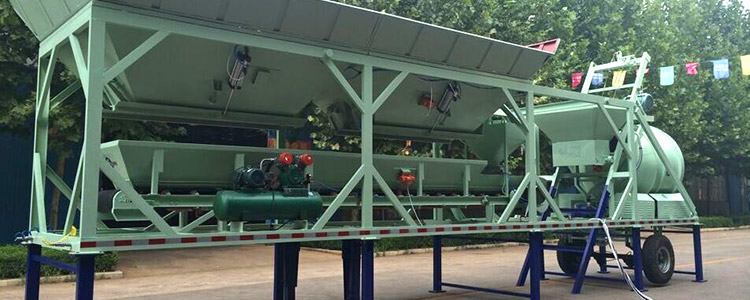

Clients' Working Site



Advantage

1. Adopting module structure, designed as per the loading of container standard. All modules are in one trailing unit.  Easy for installation and disassembly. Fast for moving.
2. Main mixing unit is JZM500 concrete mixing mixer, with good mixing quality, high production efficiency. Perfect mixing can be done within ideal time period for dry-hard, half-dry-hard, plastic and concrete with any mixing ratio.
3. All scaling elements and control elements of scaling unit are imported elements and controlled by computer, guaranteeing completely accurate scale and stable function.
4. Platform or ladder is equipped to each part needing maintenance and repairing. Good for maintenance.
5. The whole system adopts complete automatic system via computer, with dynamic panel display, to show clearly of the running of each part. Visualized monitor interface provides clear and accurate observing to the site working procedure. Table or list can be print out.
6. Electrical control system adopts import elements, providing a stable and powerful function.  Automatic test for the abnormal working condition, Word, sound, light alarm, easy and good for the maintenance and trouble shooting.

Specification

Item YHZM25 mini mobile concrete batching plant
Rated Productivity 25m3/h
Batching Unit PLD800
Concrete mixer JZM500
Measuring Scope & Accuracy of Aggregate 1500Kg ±2%
Measuring Scope & Accuracy of Cement 300Kg ±1%
Measuring Scope & Accuracy of Water (by flow meter) 200Kg ±1%
Discharging Height 1.7 m
Outline Dimension(Operational State) (L*W*H) 12.5m *2.35m *3.7m
General Power 25.0KW (380V,50HZ)
Total Weight 7000Kg
Control Mode Centralized control
Cement Silos(Optional Parts) 1*50T
Screw Conveyor(Optional Parts) 1*φ219 screw conveyor
