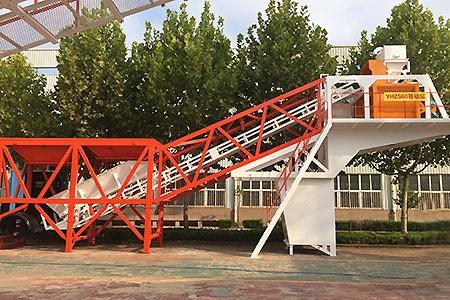

YHZS60 Mobile Batching Plant

Introducción

YHZS60 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the advantage of many models in China and overseas and the advanced technology, combing the experience of HAMAC Group in the past years. The batching unit, aggregate conveying unit, water supplying and additive agent supplying system, scaling system, mixing system, electrical control system and pneumatic system are centralized in one trailerized chassis. It has the feature of instant trailing, instant stop, reasonable structure, well function, reliable working, convenient operation, accurate scale, particularly suitable for moving sites and construction site like road, bridge, dam, airport.
inquiry! Leave a Message!

Clients' Working Site

 concrete batching plant   concrete batching plant

Advantage

1. Adopting module structure, designed as per the loading of container standard. All modules are in one trailing unit.  Easy for installation and disassembly. Fast for moving.
2. Main mixing unit is JS1000 double-shaft, forced concrete mixing mixer, with good mixing quality, high production efficiency. Perfect mixing can be done within ideal time period for dry-hard, half-dry-hard, plastic and concrete with any mixing ratio.
3. All scaling elements and control elements of scaling unit are imported elements and controlled by computer, guaranteeing completely accurate scale and stable function.
4. Platform or ladder is equipped to each part needing maintenance and repairing. Good for maintenance.
5. The whole system adopts complete automatic system via computer, with dynamic panel display, to show clearly of the running of each part. Visualized monitor interface provides clear and accurate observing to the site working procedure. Table or list can be print out.
6. Electrical control system adopts import elements, providing a stable and powerful function.  Automatic test for the abnormal working condition, Word, sound, light alarm, easy and good for the maintenance and trouble shooting.

Specification

YHZS60 Mobile Concrete Mixing Plant Main Specification
Model YHZS60
Theoretical capacity 60m3/h
Mixing unit JS1000
Max. aggregate size 80mm
Size of aggregate silo 2×11m3
Weighing and conveying of aggregate Weighingd and lifted by belt
Weighing of aggregate 3000Kg ±2%
Weighing of cement 720Kg ±1%
Weighing of water 360Kg ±1%
Weighing of additive agent 36Kg ±1%
Power of whole unit 85Kw
Quality of whole unit 24T
Transport way Semi-trailer
Outline (working statue:
length×width×height)
17.7m×3.6m×8.2m
Outline (transport statue:
length×width×height)
18.3m×2.4m×4.35m
Discharging height 3.8 m
Powder silo (option) Depends on the customer. Quantity and capacity are flexible.
Cement screw (option) A φ219 screw is equipped to each powder silo
