HBT/DHBT series Concrete Pump

HBT/DHBT series Concrete Pump video

INTRODUCTION

Based on the mature electric control reversing concrete pump, HAMAC has developed the full hydraulic control concrete pump with excellent performance by our experienced engineers who are in this field many years. Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - DHBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom  - HBT80 Electric concrete pump - Get quote or inquiry!

inquiry! Leave a Message!

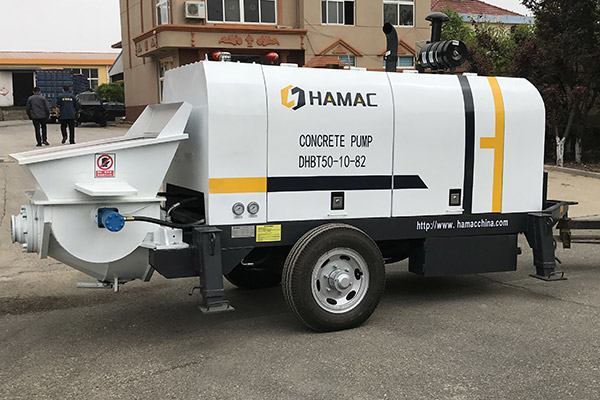

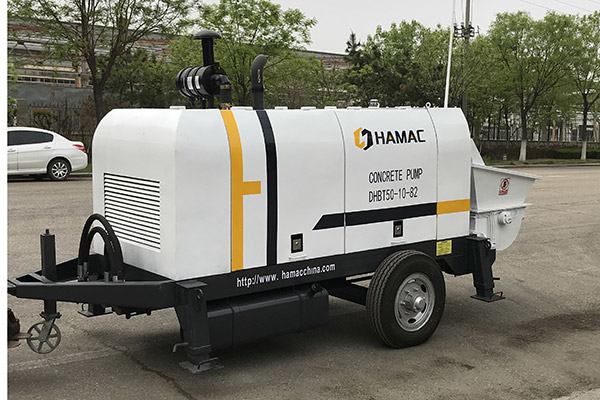

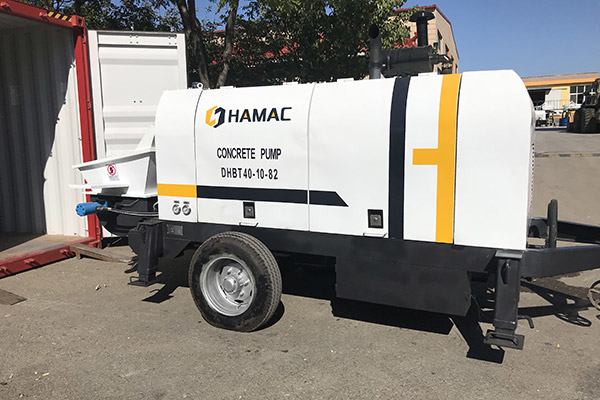

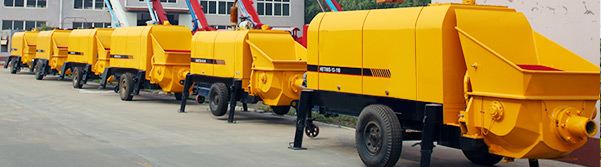

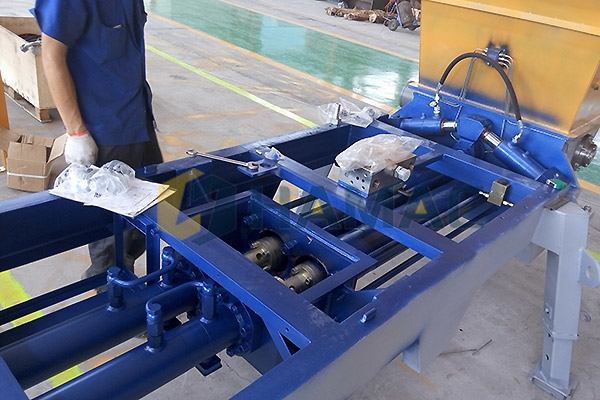

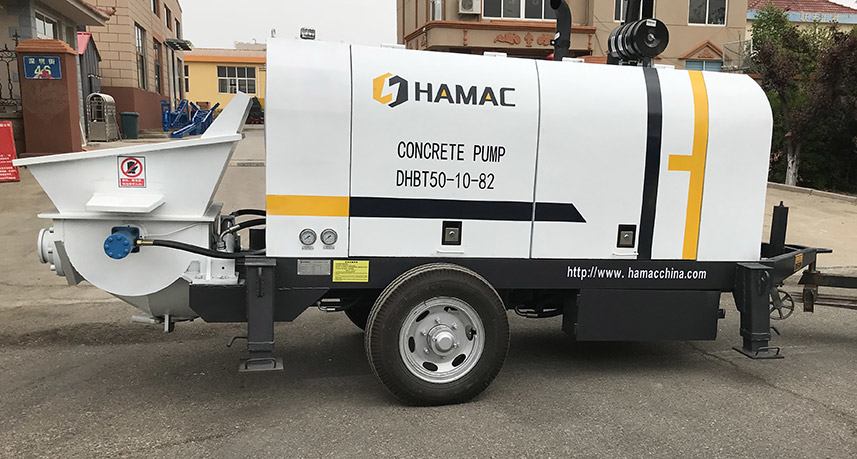

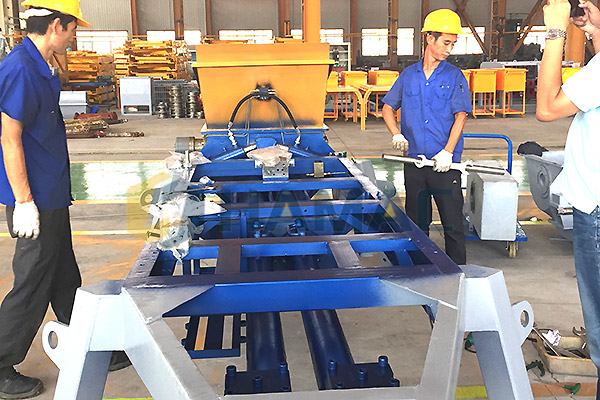

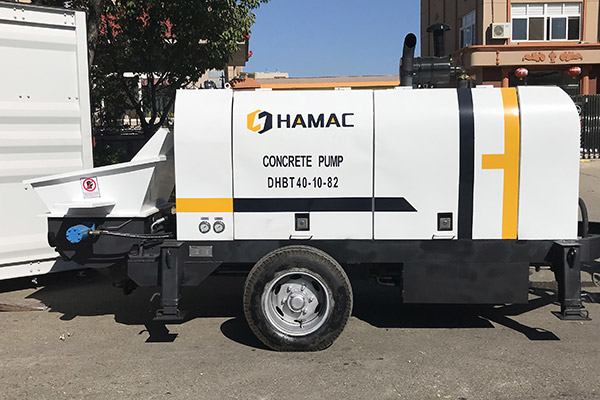

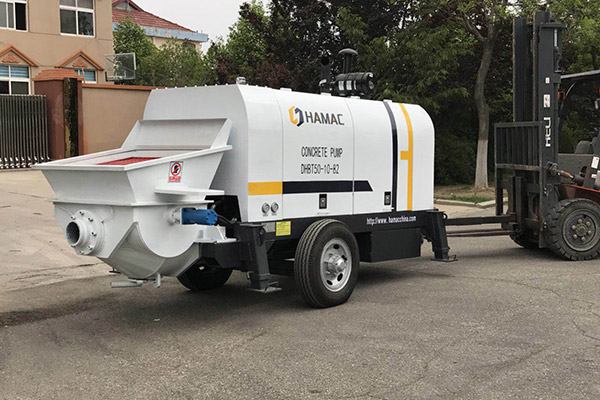

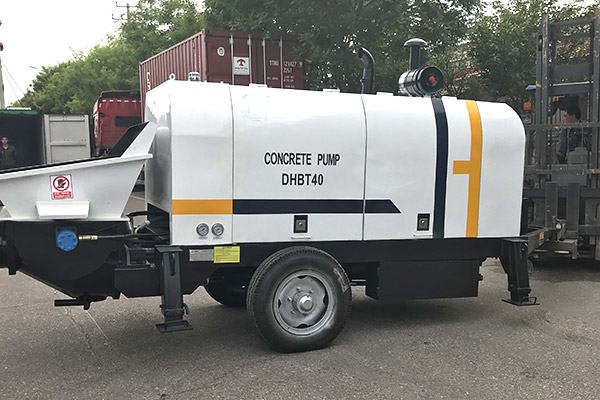

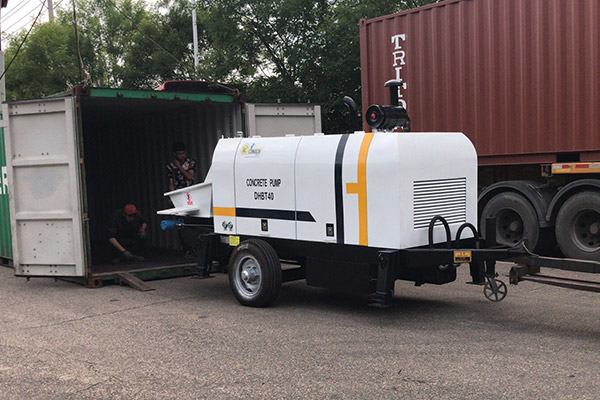

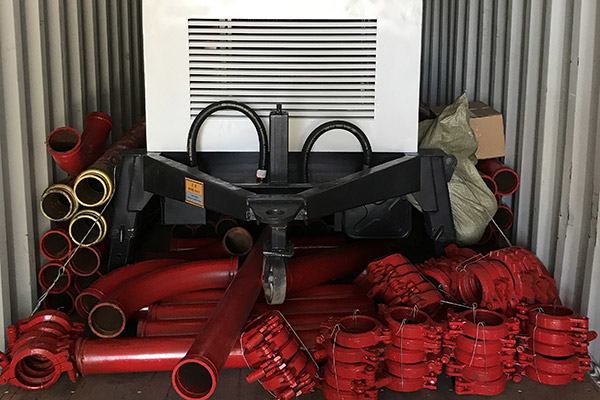

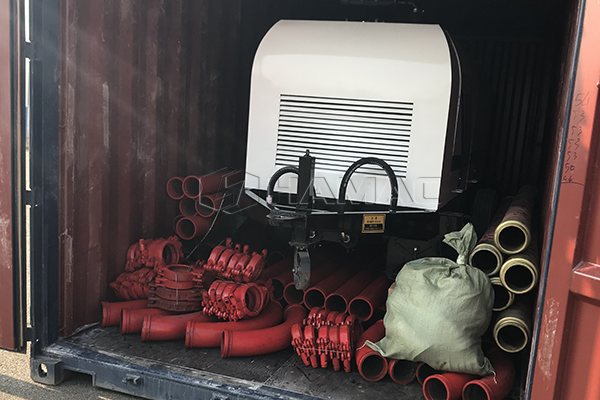

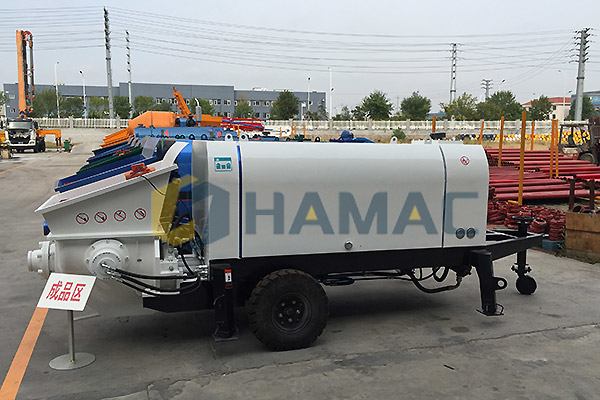

Detailed Photos

Specification

Electromotor concrete pumps:

Item Unit S Valve Concrete Pump
HBT30 HBT40 HBT50 HBT60 HBT80
Theoretic Concrete Delivery Volume Low Pressure M3/H 30 40 50 60 80
High Pressure M3/H / / 23 36 48
Concrete Delivery Pressure Low Pressure MPa / / 5.8 6.3 8.3
High Pressure MPa 10 10 12 13 16
Hydraulic Pressure MPa 25 28 28 28 28
Electric Motor Speed R/Min 1480
Main hydraulic Pump JINDA Kawasaki
Main Cylinder Dia./Pole Dia.×
Stroke
mm Φ80/55×845 Φ100/70×1100 Φ110/70×1300 Φ120/80×1650 Φ140/90×1800
Diameter Of Delivery Cylinder mm 140 160/180 180 200 200
Electric Motor Power KW 37 45 55 90 110
Capacity Of Hydraulic Oil Tank L 200 370 370 560 560
Hopper Capacity M3 0.4 0.55 0.6
Overall Weight Kg 2300 3500 3600 5000 5600
Max.
Delivery Distance
Vertical M 100 160 160 160 160
Horizontal M 300 500 500 800 1000

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Diesel engine concrete pumps:

Item Unit DHBT30 DHBT40 DHBT50 DHBT60 DHBT80 DHBT90
Theoretical Capacity M³/H 30 40 50 60 80 90
Delivery Pressure Mpa 10 10 10 13 16 22
Max. Pump Times Times/Min 24 20 22 22 23 23
Delivery Height M 120 120 120 180 180 350
Delivery Distance M 500 500 500 600 1000 1500
Distribution Valve Type   S Tube Valve S Tube Valve S Tube Valve S Tube Valve S Tube Valve S Tube Valve
Delivery Cylinder Type Mm Φ140×1200 Φ180×1300 Φ180×1300 Φ200×1650 Φ200×1650 Φ200×1800
Main Oil Pump Mm Φ80/55×1200 Φ100/70×1300 Φ110/70×1300 Φ125/80×1650 Φ125/Φ80×1650 Φ125/Φ80×1650
Oil Tank Capacity L 260 370 370 560 560 560
Hopper Capacity L 400 400 400 800 800 800
Filling Height Mm 1100 1100 1100 1400 1400 1400
Outlet Diameter Mm Φ125 Φ150 Φ150 Φ180 Φ180 Φ200
Delivery Pipe Inner Diameter Mm Φ125/Φ100 Φ125 Φ125 Φ125 Φ125 Φ125
Engine Power Kw 56 82 82 129 129/145 199
Rated Spped R/Min 2200 2200 2300 2300 2300 2300
Idling Speed R/Min 800 800 800 800 800 800
Voltage V 24V 24V 24V 24V 24V 24V
Fuel Tank L 150 150 150 150 150 150
Hydraulic Oil-Way Type   Open Open Open Open Open Open
Max. Oil Pressure MPa 26 31.5 31.5 31.5 31.5 31.5
Max. Oil Pressure For Mixing System MPa 6-8 6-8 6-8 6-8 6-8 6-8
Max. Mixing Speed R/Min 24 24 24 24 24 24
Slump Mm 80~200 80~200 80~200 80~200 80~200 80~200
Maximum Aggregate Size Mm ≤30(≤20) Aggregate 40 Pebble 50, Aggregate 40 Pebble 50, Aggregate 40 Pebble 50, Aggregate 40 Pebble 50, Aggregate 40
Overall Dimension Mm 4970×1680
×2580
5270×1860
×2580
6600×1930
×2190
6600×1930
×2190
6600×1930
×2190
6800×2100
×2350
Wight Kg 3500 4500 4500 6500 6800 7000
Towing Speed Km/H ≤8 ≤8 ≤8 ≤8 ≤8 ≤8

Note: Our products are being updated constantly, all rights reserved by HAMAC.
