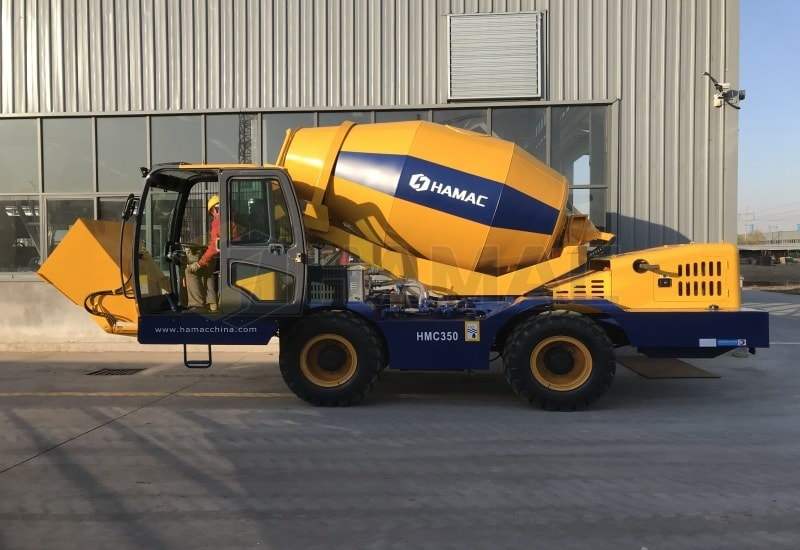

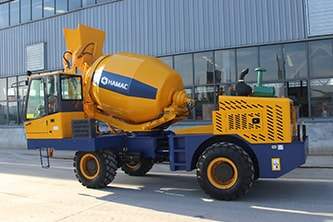

HMC350 Self-loading Concrete Mixer

HMC350 Self-loading Concrete Mixer video

INTRODUCTION

HMC350 Self-loading Concrete Mixer is a mini-mobile concrete batching plant, its capacity Of one Batch is 3.5m3, it owns all the functions of concrete batching plant, loading, weighing, pumping, mixing, travel, discharge and washing. It can produce concrete independently and efficiently in remote areas.

Drum geometric volume is  4.8 m3. Concrete drum output:3.5m3, Double mixing screws. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of  diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.

It is easy to operate and cost efficient to produce and distribute fresh concrete for mining, industrial complexes, shopping plazas, office buildings, warehouses, and residential homes for applications such as footings, poured foundations, floors, sidewalks, driveways, curbs, patios, pools, etc.

inquiry! Leave a Message!

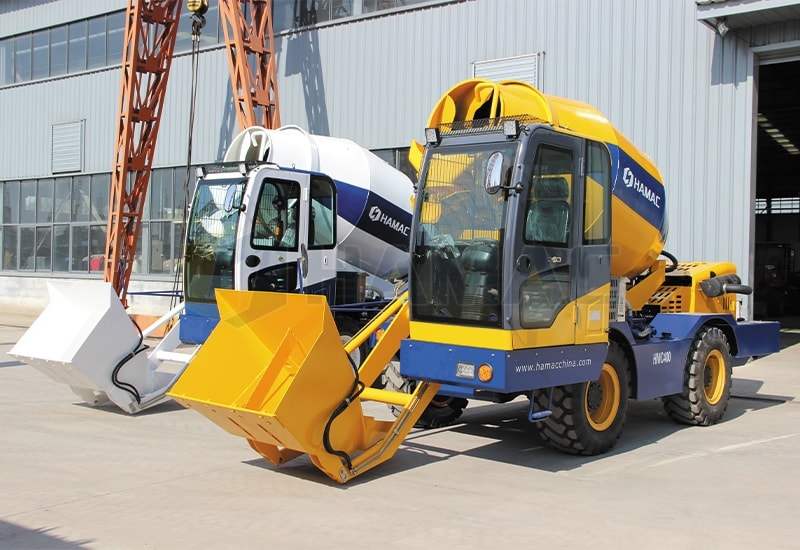

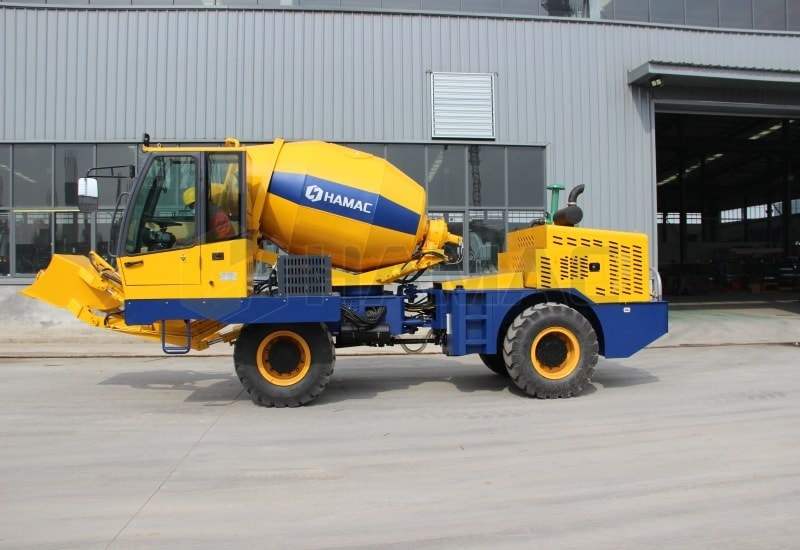

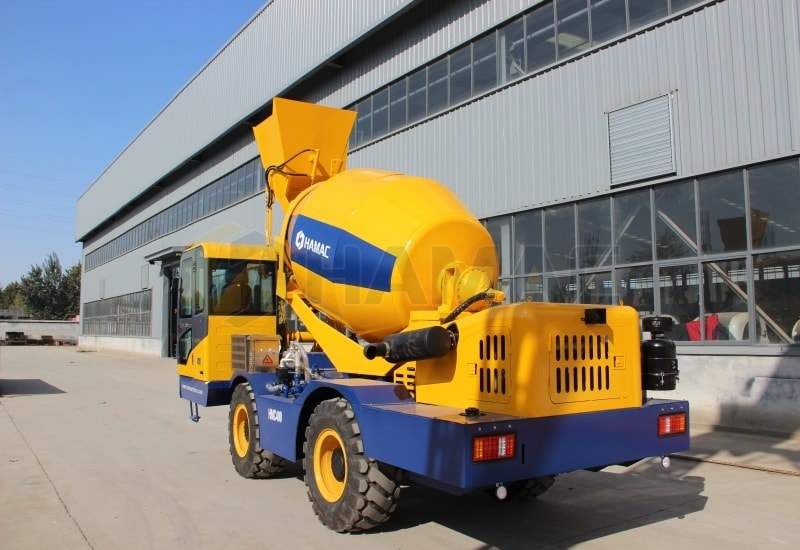

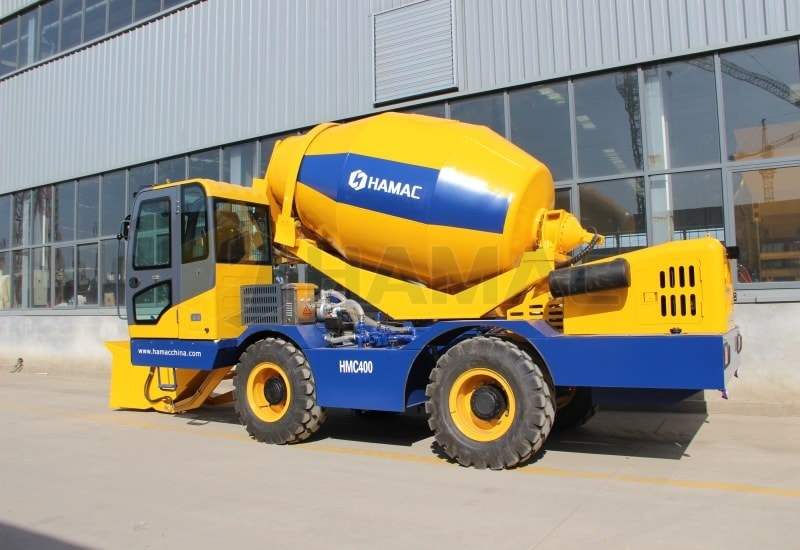

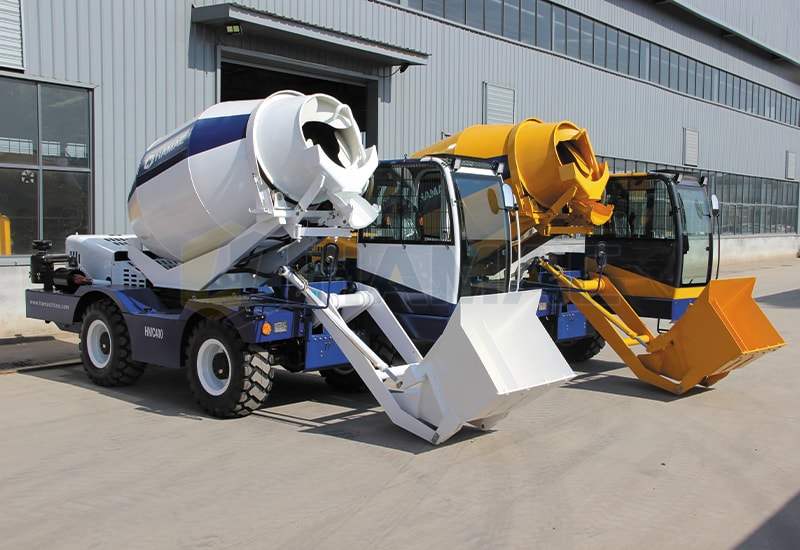

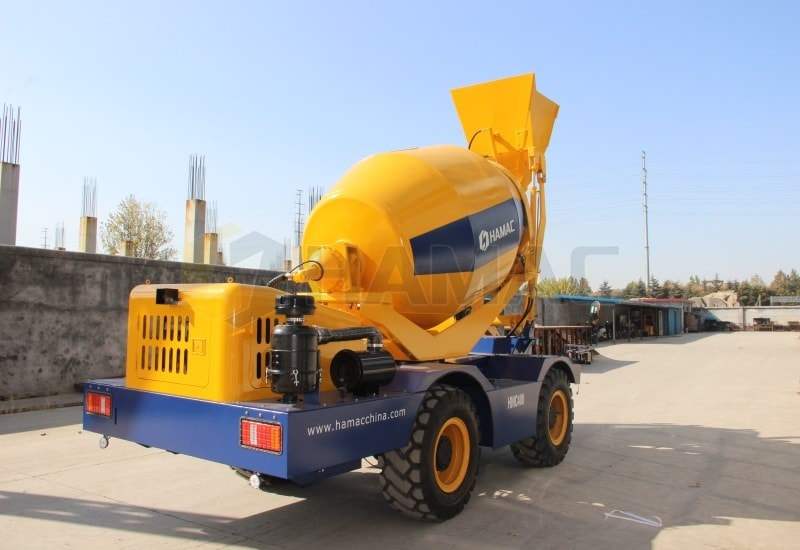

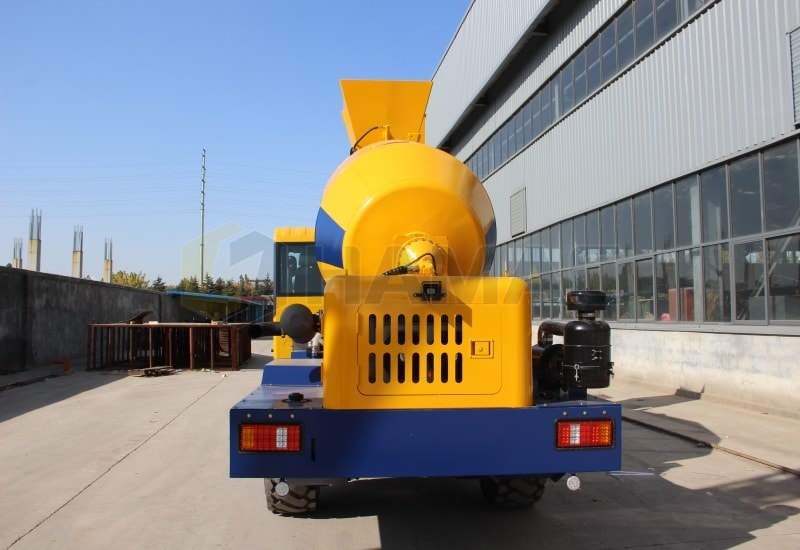

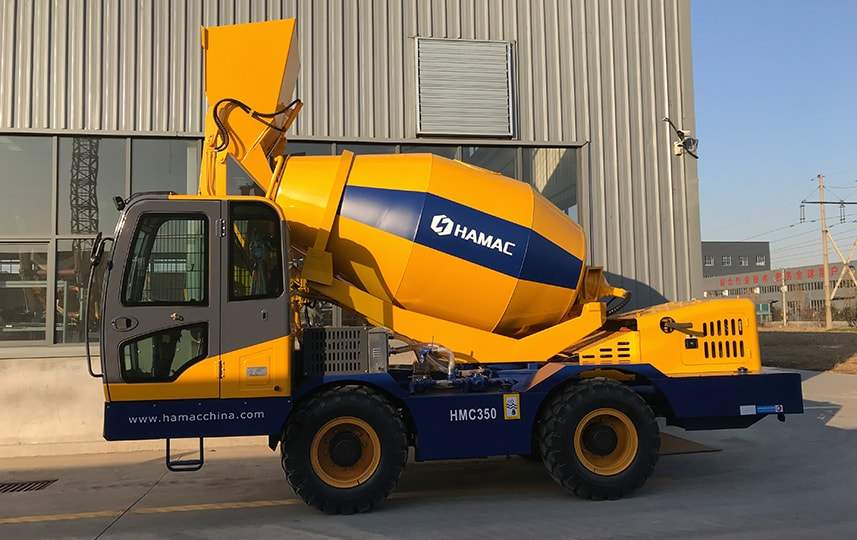

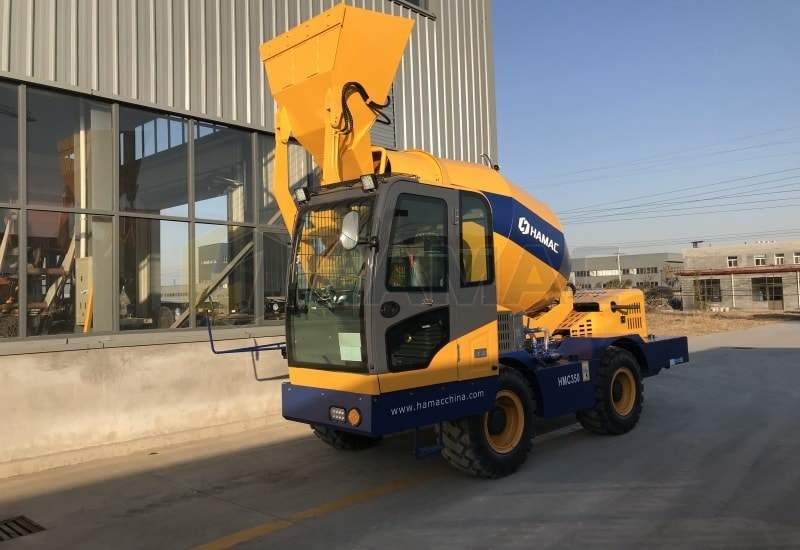

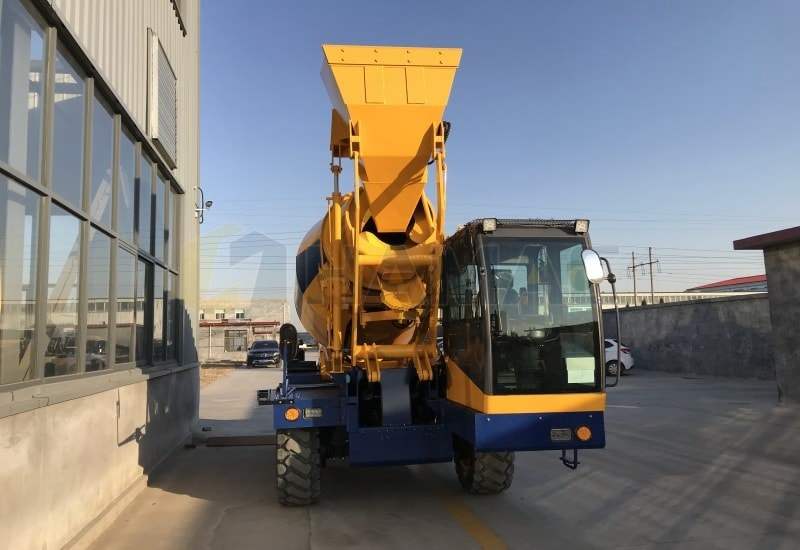

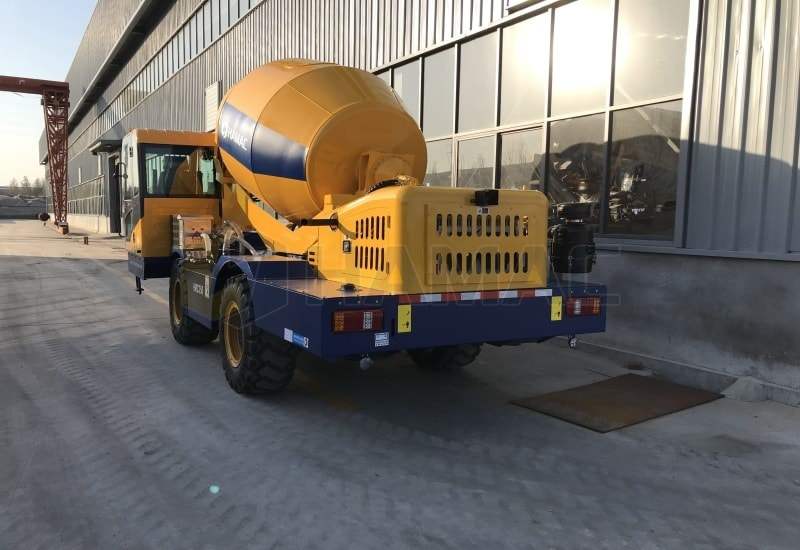

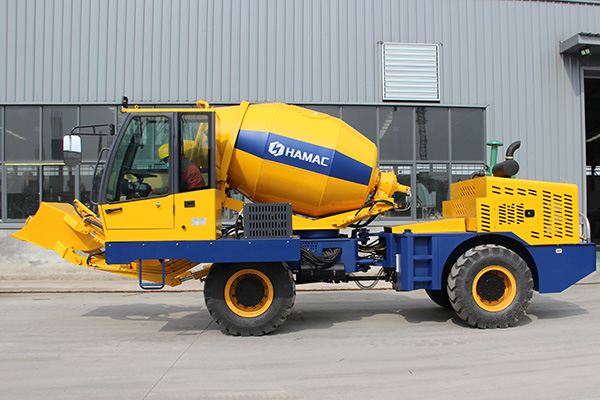

Detailed Photos

Specification

3.5/4.0 m3 Self-loading concrete mixer Technical Data
No. name  Detailed information
1 Mixing system  Drum geometric volume is  4.8 m3. Concrete drum output:3.5m3, Double mixing screws. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of  diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.
2 Max. capacity 16/14 cubic meters per hour;
3 Transmission Diesel engine drives the torque converter, there is a tranmission shaft installed on it to drive the tranmission box which will be used to driven the four wheels;
  High and low speed  flexible shaft shift gear
4 Running mode Hydraulic running,
5 Joymix All hydraulic functions of shovel controlled by a single fully servo controlled Joystick.
6 Hand shank  To controll the mixing drum roration
7 Diesel engine YUCHAI, YCD4J22T-115,water cooled,4 cylindrs,2400r/min, Rated power: 85kW
8 Hydarulic pump double gears, 2080/2040
9 Loading shovel  Effective capacity per load 600 liters, complete with hydraulic opening gate.
10 Discharging chute Slewing and mechanically tilting. Fitted with two pins easily detachable to increase the discharge height.
11 Water tank 2*350L
12 Tanks Fuel tank: 176L, Hydraulic oil tank: 110L
13 Tyre Off road industrial type 16/70-20
14 weighing system Electronic system,“Load cells” acting on the arm, display and printer in the cab.
15 Servicing brake vacuum servo brake
16 Parking brake automatically air-cut brake
17 Water supply system Self-contained. Hydraulic driven water pump, water meter, washing outlet. High pressure water pump for washing;
18 Electric system 24V
19 Overll dimension Legnth: 7800mm; Width: 2500mm;Height: 3400mm;Wheel base:2300mm; Tread:1900mm
20 Runnding speed  Low speed:  0-8  KM/H;High speed:  0-25 KM/H;
21 Min. Turning radius 6400mm
22 Weight 7200kgs
