C series Wheeled Skid Steer Loader

C series Wheeled Skid Steer Loader

INTRODUCTION

C series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

inquiry! Leave a Message!

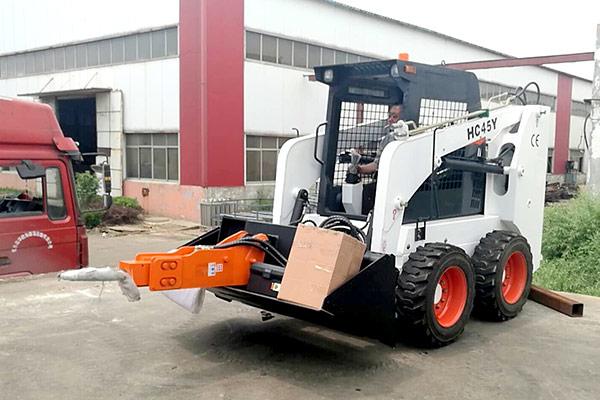

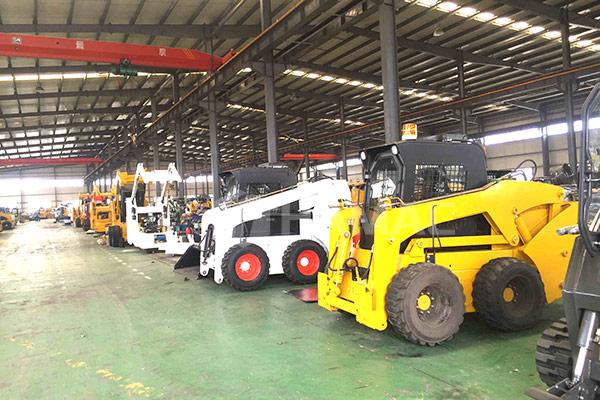

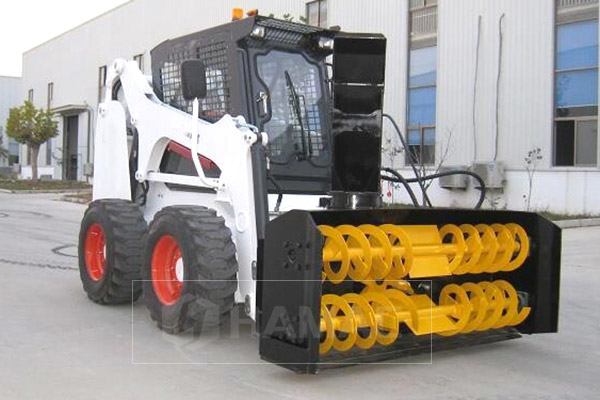

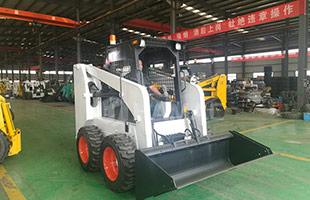

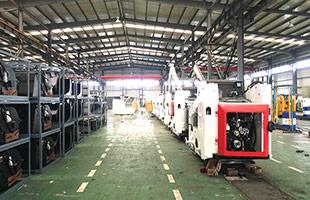

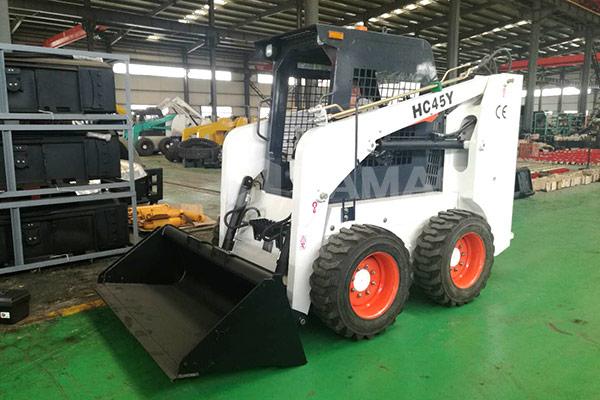

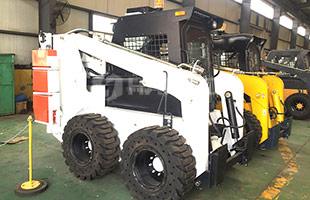

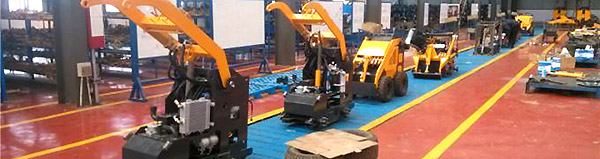

Detailed Photos

Specification

Model HC75C HC100C
Operating Load (kg) 1050 1200
Max. Speed (km/h) 12 12/18
Hydraulic flow (L/min) 75 75
Max. Working Flow (L/min) 120 140
Tire Model 12-16.5 12-16.5
Rated Power (kW) 55 74
Fuel tank Volume (L) 75 90
Self Weight (kg) 3500 3550
Bucket Volume (m³) 0.5 0.55

Structure Data:

Main data Model HC75C HC100C
Overall operating height (mm) 4070 4070
Height to bucket hinge pin (mm) 3150 3150
height to top of cab (mm) 2160 2160
Height to bottom of level bucket(mm) 2983 2983
Overall length without bucket(mm) 2880 2880
overall length with bucket(mm) 3580 3580
Dumping angle at maximum height(° ) 40 40
Dumping height(mm) 2450 2450
Dumping reach(mm) 700 700
Rollback o bucket on ground(° ) 30 30
Rollback of bucket at full height(° ) 104 104
Wheelbase(mm) 1115 1185
Ground clearance(mm) 205 205
Angle of departure(° ) 20 20
Front turning radius without bucket(mm) 1250 1278
Front tuning radius(mm) 2112 2144
Rear tuning radius(mm) 1774 1857
Rear axle to bumper (mm) 1082 1082
Tread width, centerline to centerline (mm) 1500 1500
Width (mm) 1880 1880
Bucket width (mm) 1880 1880

H
