What is the concrete hollow block size in the Philippines

What is the concrete hollow block size in the Philippines

Source: Hamac Machinery

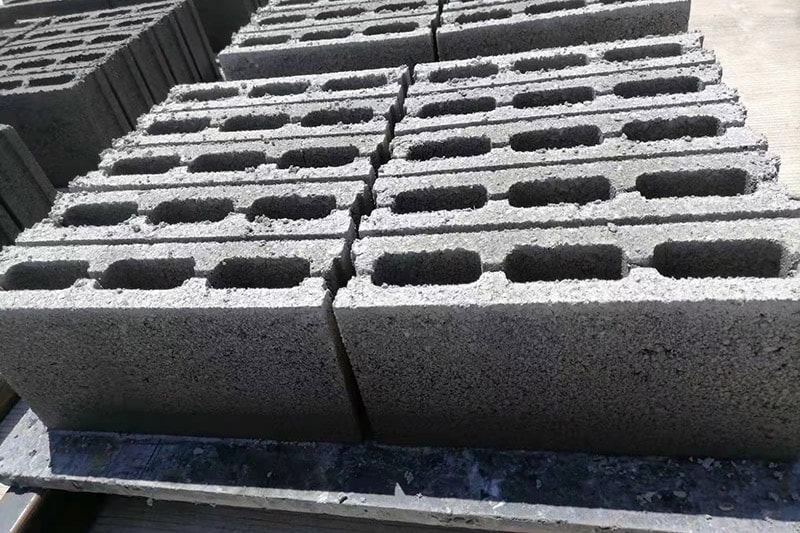

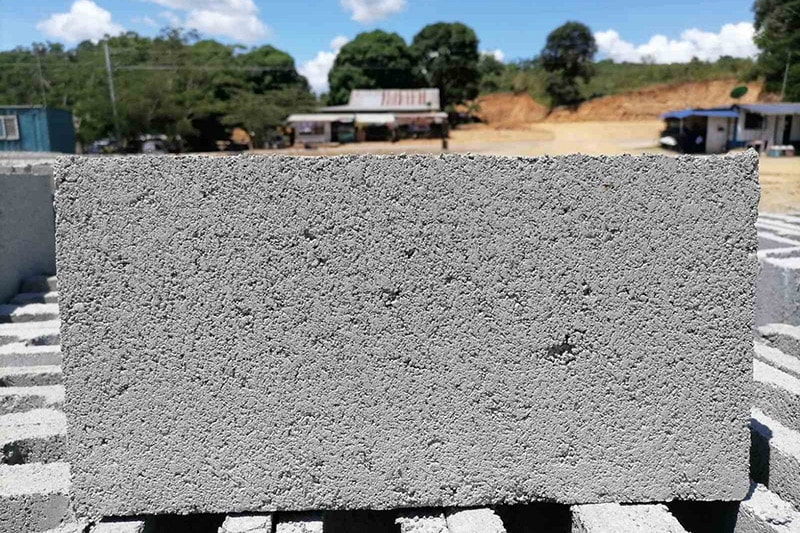

The hollow block sizes in the Philippines are the following:

40cm (length) x 20 cm (width) x 4 in (thickness)
40cm (length) x 20 cm (width) x 5 in (thickness)
40cm (length) x 20 cm (width) x 6 in (thickness)
40cm (length) x 20 cm (width) x 8 in (thickness)

hollow block sizes in the Philippines
hollow block sizes in the Philippines

- is a large rectangular block that is hollow inside and is used in building construction. Concrete blocks are made from cast concrete, e.g. Portland cement and aggregate, usually sand and fine gravel for high-density blocks. Lower density blocks may use industrial wastes as an aggregate. Lightweight blocks can also be produced using aerated concrete.

General Data Report OfQT4-15 CONCRETE HOLLOW BLOCK PRODUCTION LINEWith Mobile Stacking Device

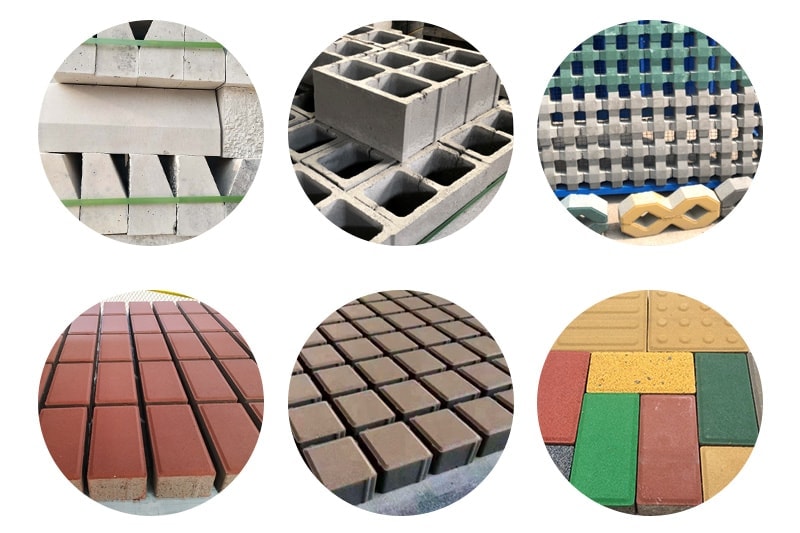

The block machine can be universally used for the manufacturing of pavers with and without face mix, kerbstones, hollow blocks and similar elements.

There are always some clients consulted more detailed information for the working area for the concrete block production line, hereby we take QT4-15 concrete brick making machine as an example to explain the factors which you have to consider before purchasing.

hollow block sizes in the Philippines
hollow block sizes in the Philippines
Details Data
Area of workshop (Including main workshop, curing Area, and batching and mixing plant) 1010(325+575+110)m2
The area of stock yard for cured blocks
(Based on the capacity of 30 days, two shifts one day)
The area of stock yard for raw materials (Based on two shifts/day) 200m2
Quantity request of pallets at least 1500pieces
Total power request for the production line 100KW
Total water consumption for the production 2m3/h
Basic Formula for CHB Cement 15%
Aggregates 40%
Sand 45%
Or with other raw materials -

How much is 1 bag of cement in the Philippines?

CEMENT Flat Latex - P375 - 450
One bag (40Kg) - P250-270 Gloss - P560 - 620
  Semi Gloss - P540 - 610
STEEL Price Enamel - P480 - 630

What is included in a concrete hollow block production line?

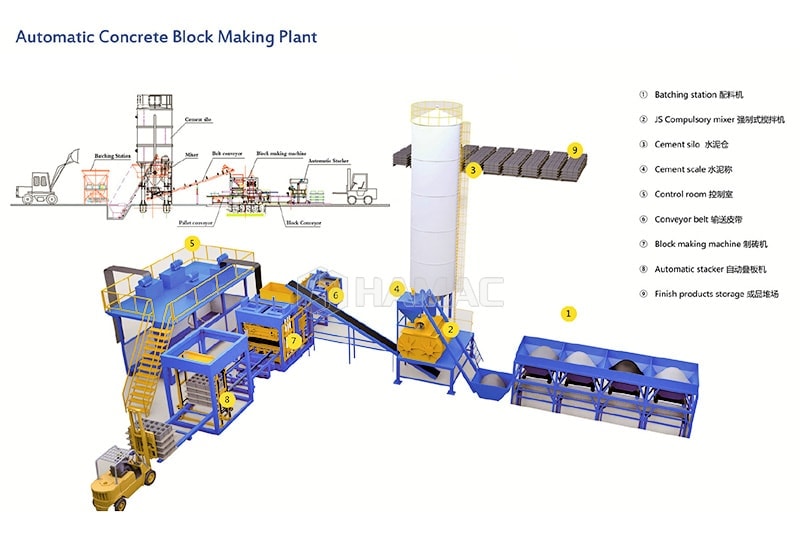

A fully automatic concrete block making machine production line includes aggregate batching machine, JS twin shaft concrete mixer or JQ pan mixer or planetary concrete mixer, concrete block making machine, automatic stacker and pallet feeding machine as options.

hollow block sizes in the Philippines
hollow block sizes in the Philippines

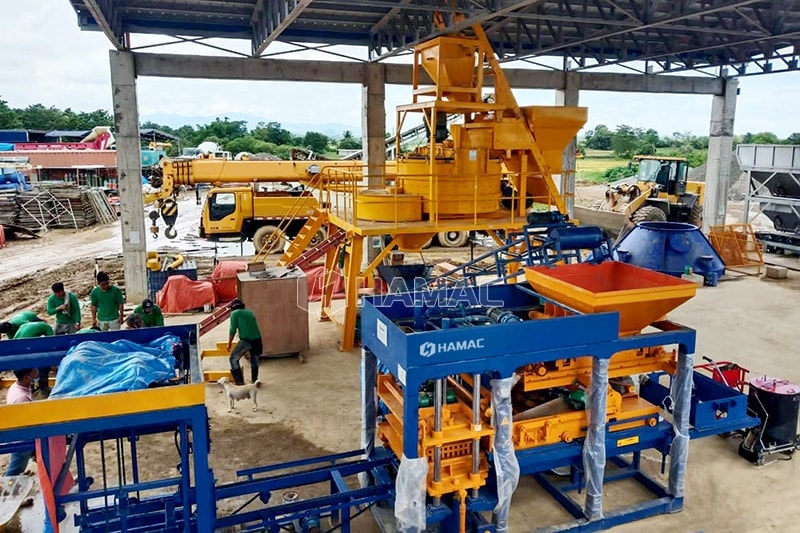

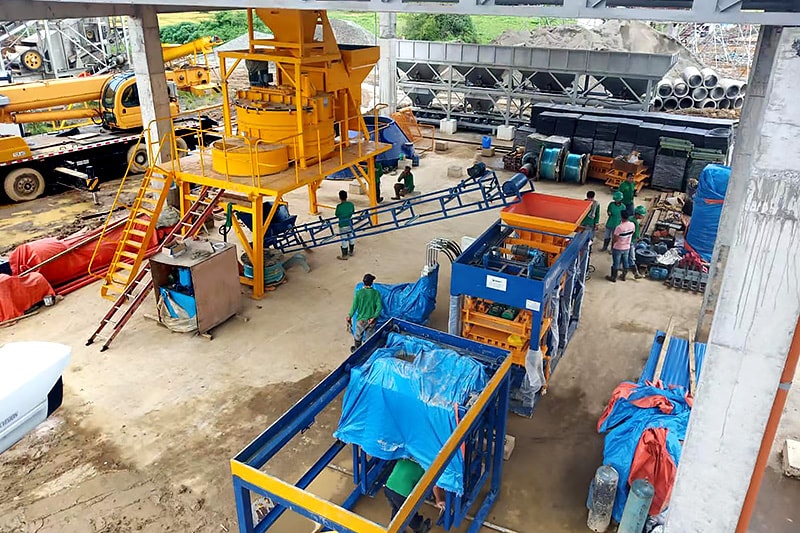

Application Cases

The concrete block production line is widely used for different projects all over the world. HAMAC exported the concrete block making machine to different countries. You can compare the difference between stationary type and mobile type and choose the one which is suitable for you.

Different types and models of concrete block making machine

There are many different types and models concrete block making machine in the market. According to different standard, we can divide them into different type.

  • Mobile type, also name egg-laying concrete block making machine, it can be moved all the time, and the block is produced on the ground, no need the pallet. It is suitable for some small factories with big working areas;
  • Stationary type, it is suitable for medium and big scale concrete block factory. Its capacity is much higher, so you need the pallet to take the concrete block to the curing area to stock them;

    Tips you need to consider before purchasing the concrete block machine

    If you want to invest on the concrete hollow block business, there are several factors needs to be considered before purchasing,

    • Your budget, it is the most important factor needs to be considered;
    • What is the most popular block size, brick size or paver size in your local market?
    • How many pcs block or brick you want to produce per day or per hour?
    • How many workers you want to employ?
    • Do you have enough land to arrange the concrete block machine there?

    You can also contact our HAMAC expert for professional consultation. We will consider your budget and actual market condition together and then recommend you a suitable concrete hollow block production line.

    Manufacturer of CHB machine

    HAMAC is the most experienced Chinese company that manufactures the concrete hollow block machine, also named CHB machine. HAMAC owns more than 25 years concrete hollow block machine experience. We exported many concrete hollow block machine to all over the world for some big group company and got good feedback from them.

There is no lowest price, only lower price. You get what you pay for. We hope you are looking for the perfect working performance of the equipment, not the low-priced inferior goods. HAMAC only provide our clients with high quality machines. Wish a cooperation with you in the future.
