Horizontal type Concrete Pipe Production Line

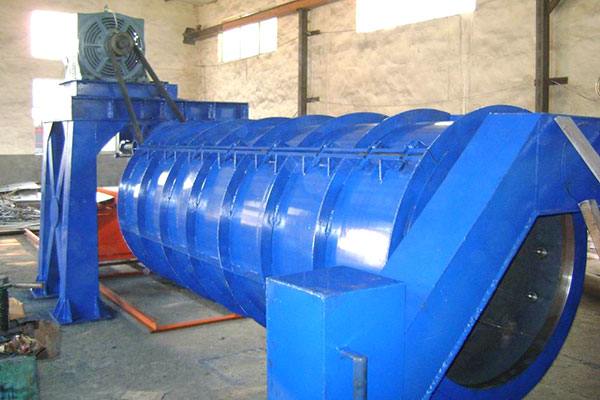

Roller hanging type concrete pipe machine is a kind of machine to produce concrete pipes and Pre-stress concrete pipe. This machine use the roller to support the pipe mould,and produce roller force to the concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force.

This machine use the roller to support the pipe mould,and produce roller force to the concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force. And when the mould with the inner concrete pass on the roller, the concrete between the mould and roller will be compacted solid to form a pipe(This machine uses the rotation of roller axle and steel mould to produce rolling pressure and centrifugal force and makes the mixed cement material shape into a pipe).





It can make pipes with diameter from 300-2400mm and with length from 2000-5000mm. We can design many kinds of pipe joint, including flush joint(flat mouth type), groove joint, socket and spigot joint(socket and plug mouth type) ect. And all the concrete pipes are widely used in admistrative drainage, agricultural field irrigation, rood culvert and deep water well .

Advantages

(a) short production cycle :because of the good effect of the roller to compact the concrete, every pipe just need 10 minutes with high speed roller rotation.

(b) This pipe use the dry cast material, there will no waste cement mud, then it will not pollute environment .

(c) During the production, the noise is very low, it is about 80-90 dB

(d) The concrete pipe is with high pressure load and with high production efficiency.

(e) This machine is simple in operation, rotates steadily, is reliable and durable in use, is low in fault rate .

Main  technical parameters

Model

Pipe length(mm)

Motor power(Kw)

Roller Diameter(mm)

Roller Rotation Speed

XG600

2000

15

Ø140

83-833(R/min)

XG1200

2000

30

Ø273

69-687(R/min)

XG1500

2000

55

Ø325

65-653(R/min)

Video of Horizontal type Concrete Pipe Production Line

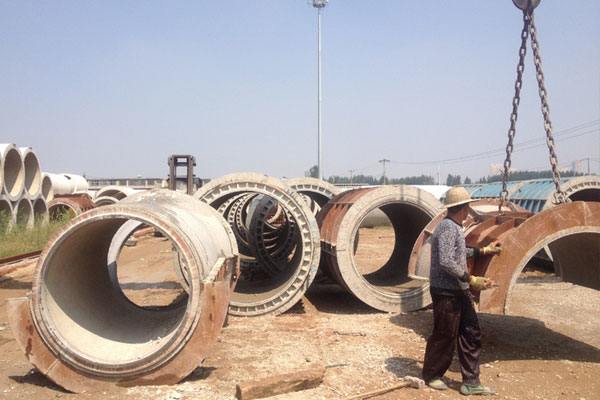

Working site of Horizontal type Concrete Pipe Production Line

The Horizontal type Concrete Pipe Production Line is widely used for different projects all over the world. HAMAC exported the Horizontal type Concrete Pipe Production Line to different countries and got good comments from our clients. They are used in different working sites for different projects.

YHZS50 Mobile concrete batching plant in Australia YHZS50 Mobile concrete batching plant in Australia Application Country: Australia

This projects was installed on 2012, it works for 5 years up to now. It is for a contracting company who has many different projects in Australia. When one projects finished, it will be transported to another working site for the next projects. It saves the installation time and transportation cost for concrete. …

YHZS50 Mobile Concrete Batching Plant in Myanmar YHZS50 Mobile Concrete Batching Plant in Myanmar Application Country: Myanmar

This is our project in Myanmar. This client has many different working sites. He wants to move the concrete batching plant after one project finished. So, we recommend him this mobile one. This customer visited us last year, and visited many companies. Finally he choose us because of our quality and our professional service for exporting even ou…
