Concrete placing boom
A concrete placing boom is the final element of concrete mixture pipeline transportation system. It is designed to deliver the concrete mixture for discharging where and when required, therefore, similar to cranes, it must be equipped with at least two mechanisms: boom extension and rotation. The mechanisms can be both manually and hydraulically actuated, hence, booms are differentiated between mechanical (manually controlled) and hydraulically or electrically controlled. It is an ideal device to assist the trailer concrete pump and truck-mounted concrete pumps.
After the concrete is pumped to the high-rise building, how is the concrete delivered to different parts of the floor? If the conveying pipe is disassembled and assembled frequently, it will inevitably reduce the efficiency. To solve this problem, we recommend customers to use concrete placing boom. There is a pipeline inlet under the concrete placing boom, just connect the pipeline of the pump to the pipeline under the concrete placing boom, then the concrete can be placed at different positions on the floor by the concrete placing boom.
With this system, the concrete is normally pumped by a diesel or electrically powered static concrete pump, through a fixed 5’’ pipeline, to the concrete placing boom

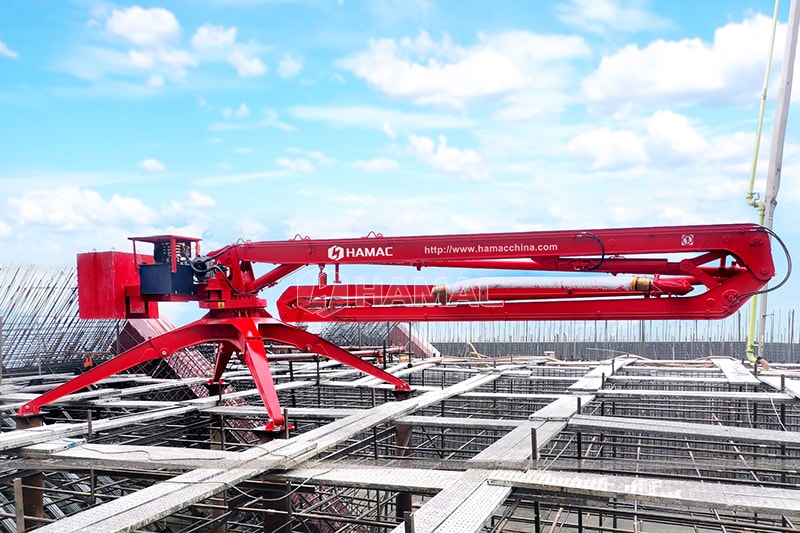

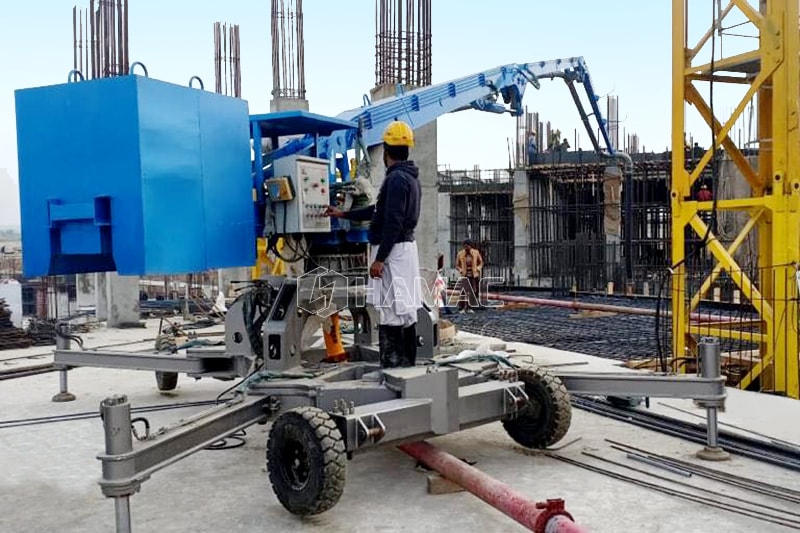

Spider concrete placing boom works in Pakistan
According to the different designs, there are three different types concrete placing booms as options for different usages.
1. Spider concrete placing boom
The spider concrete placing boom is an ideal equipment which can work together with stationary concrete pump. It is also named mobile concrete placing boom. Spider placing boom is easily installed on the jobsite and can connected to any of concrete pumps. This helps pour large areas without needing to work with the traditional heavy line systems.

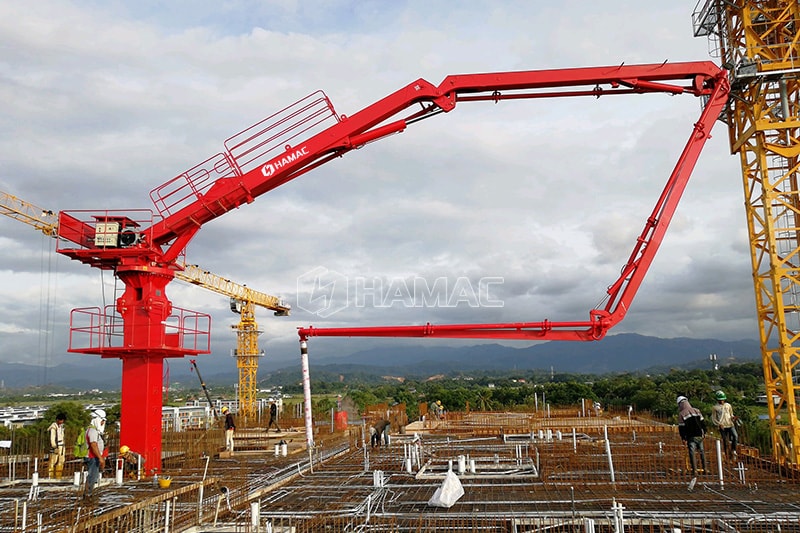

Spider concrete placing boom works in Costa Rica
Normally speaking, it is used for some building floors which is not so big occupation. It can be moved by a tower crane, that means, its weight is less than the maximum load of the tower crane which is installed onsite. After the concrete pouring work in the floor is finished, the spider concrete placer will be lifted by the tower crane and moved to another higher floor or another place.
In addition, we have developed and designed a mobile concrete placer boom with wheels and hydraulic outriggers, which makes it easier to move around the floor.

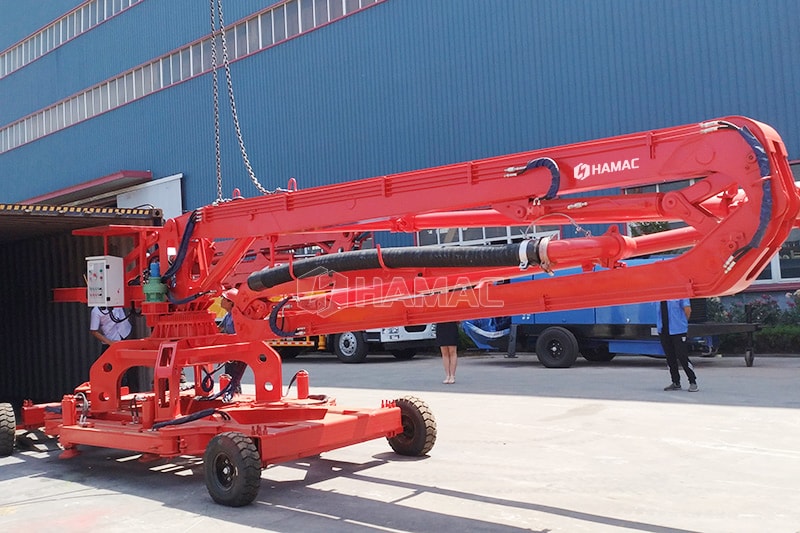

Spider concrete placing boom with wheels
HAMAC provide you with the full series hydraulic spider concrete placing boom HGY13, HGY15, HGY17, HGY21. The number stands for the working radius of the placing boom. It also can be understand as the length of the boom. You can choose the suitable model according to the length and width of the building.
2. Self-climbing concrete placing boom
The self climbing concrete placing boom machine is fixed in the elevator shaft and is equipped with an automatic climbing mechanism. It is lifted by a hydraulic cylinder and automatically climbs in the elevator shaft, so that the concrete boom placer rises with the rise of the floor. It also can be fixed in the floor directly if there is not an elevator shaft. From the below pictures, you can see how the concrete placing boom is fixed.

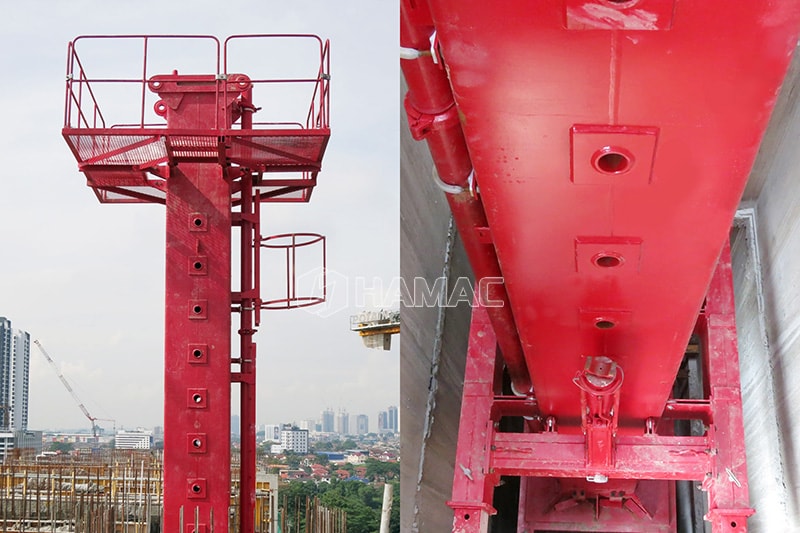

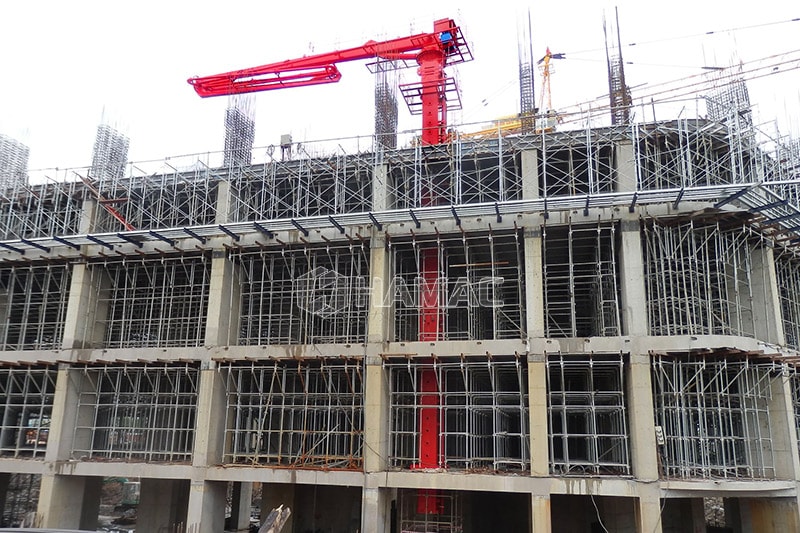

Self climbing concrete placing boom is fixed in the roof of each floor

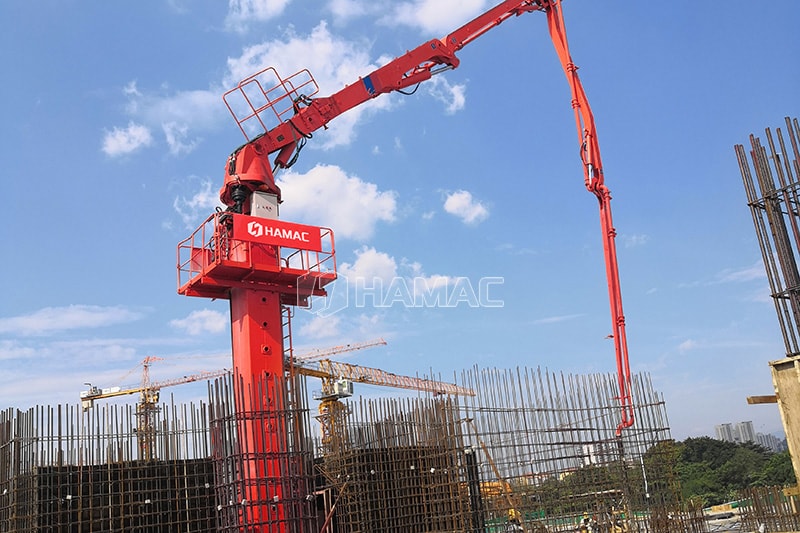

Self-climbing concrete placing boom is fixed in the elevator shaft
The concrete placing boom takes advantage of mature manufacturing platform of boom design of truck-mounted concrete boom pump by HAMAC. The placing range can be changed by assembling or disassembling the extension boom to meet different placing working condition more neatly.
Where the self-climbing concrete placing boom will be used?
1. It is suitable for the high-rise building,
2. There is elevator shaft in the building or you can reserve mounting holes in advance in the floor;
3. Equipped with automatic climbing mechanism, using hydraulic cylinder to lift, automatically climb in the elevator shaft or floor, so that the placing machine rises with the rise of the floor;
4. Time-saving and labor-saving, high efficiency.
As a manufacturer of concrete placing boom in China, we can provide you with the concrete placer boom for sale with 28m, 32m and 33m placing radius. The models are HG28, HG32, HG33 as options.
Working site of Concrete placing boom
The Concrete placing boom is widely used for different projects all over the world. HAMAC exported the Concrete placing boom to different countries and got good comments from our clients. They are used in different working sites for different projects.

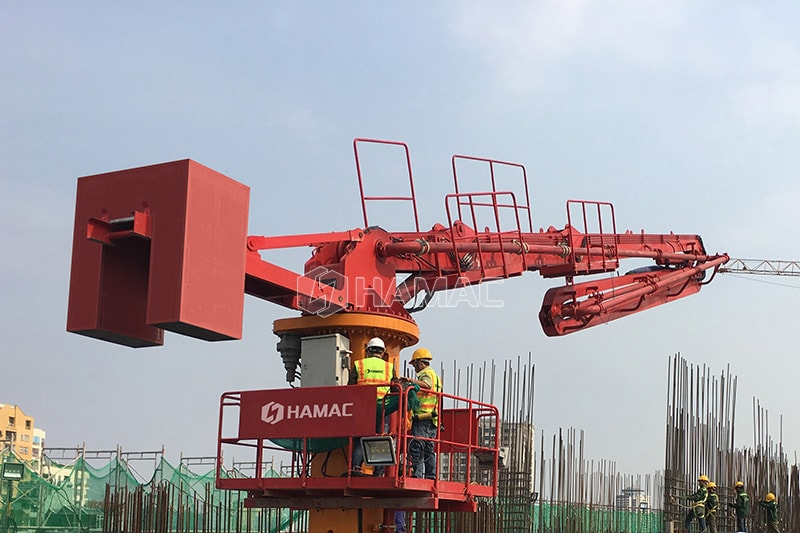

This concrete placing boom is purchased by a company in Malaysia but headquarter in Australia. After visiting several famous brands in China, finally they choose HAMAC as their supplier because they checked our factory and see our production procedure with strict quality control system.…
Our concrete placing boom has got the CE Certificate, it is subjected to European Union standard. It is an ideal machine which is used to place the concrete pump to different positions. It will be connected with the concrete pump, and then its arms can be folded and expanded for different positions.…
