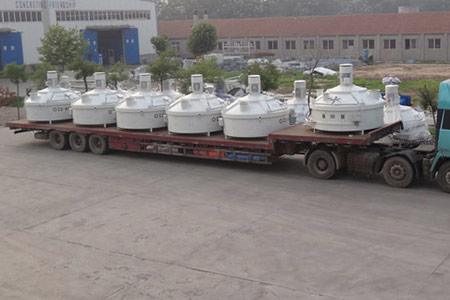

Clients' Working Site
1. Motion track
Motion track :the revolution and rotation speed of the blades have been extensively studied and tested to give the mixer a high output without causing the segregation of materials with diffrernt grain size and weight.the movement of the material inside the trough is smooth and continuous.As shown in the picture,the blades track covers the whole bottom of the trough after a cycle.
2. Gearing device
Gearing system:the power transmisssion is realized by a hard surface gear which is designed specially by our company.Fluid clutch is installed between the motor and the gearbox. It can keep the mixer start up normally even in the full load condition.The driving force provided by gearbox drives the mixing arms to do not only have a rotation but also has a revolution,the more complex of the motin track,the more turbulent the mixing is,and then the mixer works more effectively ,its mixing more homogeneos.
3. The security of the maintenance door device
According to market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.
Discharging device: according to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most .And there is special sealing device on the discharging door to ensure the sealing reliable.
6. Security device of lifting hopper
the security device of skip hopper safeguards against head-clashing when the hopper is climbing up.
7. Hydraulic pump station
Special designed hydraulic power unit is used to provide power for more than one discharging gates. On emergency, these discharging gates can be opened by hand.
8. Mixing device
Mixing device: driven by the gearing system, the blades fixed on mixing arms and the scarpers arms crush and overturn the material to complete the compelling mixing
Maintaining door: according to the market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.
10. Sprinkler head
The special designed sprayer is installed on the water pipe .the spraying water cloud can cover more area and also make the mixing more.
11. Viewing port
There is an observing port on the maintaining door .You can observe the mixing situation without cutting off power.MP company can long-termly supply the wearing parts.

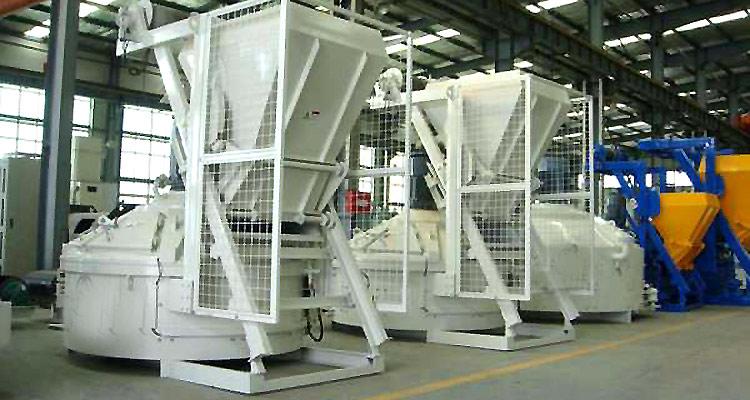

12. Enhance the hopper
he skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectivelyprevents the dust overflow the trough during the mixing to protect the environment.
13. Temperature and moisture
Temperature and moisture sensor: To ensure concrete and prefabricated parts quality. the sensor of temperature or moisture made in BIKOTRONIC in Germany can be selected to measure temperature or moisture of material being mixer.
According to the requirements with powder measure, the aggregate metering and water metering.
15. Dust catcher
The mixer equipped with dust catcher dust catcher to protect the environment.
16. Control system
The control system can automatically control the process of dosing, mixing and discharging.
Diameter of mixing
Note: Any change of technical data should not advise additionally.
