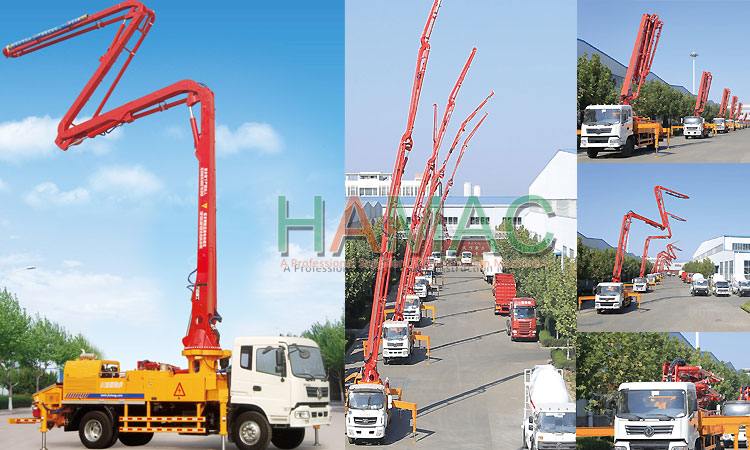

HMC5027 Truck Concrete Pump Boom

Introducción

HMC5027 Truck Concrete Pump Boom is the refined product among the middle and short arm pump truck, after HBT trailer concrete pump, HBC truck-mounted concrete pump, HGY hydraulic concrete placing boom, and it is the high efficient concrete conveying equipment integrating driving, pumping, placing.The boom covers high reliability, economy, safety, durability, owning reasonable matching of Chassis, power, electric control and hydraulic pump system.Besides, it has flexible telescopic boom, less space occupation of the leg, convenient moving vehicle, flexible and security.With the special chassis for the development of rural market and the 2.3 meters width, it can easily adjust to and pass through the narrow and sludge rural roads. Using flexible four arm design, fabric ranges 20% higher than three-arm.
inquiry! Leave a Message!

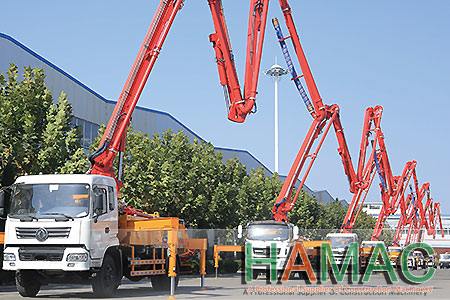

Clients' Working Site

Advantage

1. The construction is especially for the new rural middle-low levels.
2.The manufacture of short arm frame designed for high-speed rail construction.
3.The design of national IV emission standard for energy conservation, and environmental protection
4.Hydraulic automatic reversing of pumping system is for simple maintenance.
5.18-35 meters arms can move up and down, in accordance with high-speed rail laws.
6. X-legs is designed to lead more safe and stable operation.
7.Extremely high performance price ratio and use reliability help the party make profits.

Specification

HMC5027 Truck Concrete Pump Boom
CHASSIS Chassis FAW/FOTON/DONGFENG
Emission standards National standard IV
Engine DEUTZ or YUCHAI
Power and rated speed of engine 160-200p/2000rpm
Wheelbase 4700
Max driving speed 80km/h
Vehicle approach angle/departure angle



21°/11.5°
Tire type 9.00R20 16 layers


BOOM SYSTEM

Max concrete placing height 26.2m
Max concrete placing radius 22.6m
Max concrete placing depth 12m
First arm length(MM) 6960
Second arm length(MM) 5080
Third arm length(MM) 5085
Fourth arm length(MM) 5402
Arm foldable angle 90/180/360/540
Boom control system Load sensing proportion control system
Arm folding form M type
Turret rotation angle 90°
Front support leg span 5840
Back support leg span 3300
The leg longitudinal distance (MM) 6100
Leg opening type X-H
Trail length of hose 3000mm
Diameter of pipeline (MM) 125
Electrical control system Control Power Supply 24v
Control model PWM
Working voltage 24
Electric parts Omron
Wireless remote control Germany HBC or homebred
Hydraulic transmission system Hydraulic system type Open circuit
Rated working pressure 31.5Mpa
Main oil pump Rexroth /Kawasaki
Main oil pump model A11VO190,K3V140 K3V180
Main oil pump capacity 190,140,180
Electro-hydraulic directional control valve Imported or Domestic
Suction and back oil filter Liming(domestic)
Jib multi-way valve HAWE or domestic
Jib balance valve Italy
Jib oil pump Domestic
Support leg multi-way valve Italy or domestic
Safety valve Imported or domestic
Oil cylinder hydraulic seals Parker
Hydraulic hopper capacity 450
Hydraulic oil cooling Air-cooling
Main oil cylinder XIELI(domestic)
Transfer case Germany STIEBEL or domestic
Slewing reducer Domestic brand
Hose connection Eaton
Cleaning system Air pressure or plunger pump
DIMENSIONS&WEIGHT Total length of vehicle(MM) 9445/9910
Total width of vehicle(MM) 2300
Total height of vehicle(MM) 3550
Total weight of vehicle(T) 15.8
PUMPING SYSTEM The type of distribution valve S valve
Concrete piston Domestic
Max. outlet pressure(H/L) 10/5
Concrete cylinder Dia x Stroke 200/1200-1450
Max. feeding height(MM) 1450
Hopper capacity(M3) 0.65
Concrete slump 160-220
Allowable max diameter of aggregate(MM) 40
Lubricating model Centralized automatic
