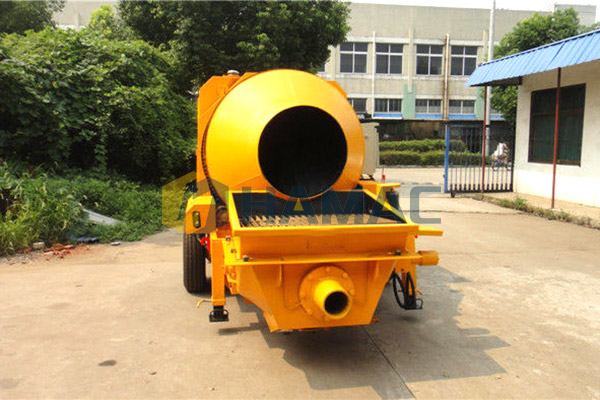

Professional Generator Trailer Concrete Pump With Mixer 50kw 4000Kg Weight

Introducción

Diesel concrete pump mixer is suitable for all kinds of dispersed locations, less construction, longer distance from site to commodity concrete agitate plant. For example: 10 layer below the group main building structure, building and underground garage floor, civil construction of inclined roof, small bridges, tunnels, water conservancy slope, small river locks and boat lock, electric power communication tower base, small wharf, mine construction, concrete roadway maintenance field sites scattered, engineering the quantity is less, the commodity concrete batch plant is not willing to do or they do not economic construction, concrete construction project site mixed.
inquiry! Leave a Message!

Clients' Working Site

Advantage

1.  specially designed for hydraulic tipping loading hopper and non accumulator hydraulic system.
2. Only a diesel engine to provide the power to drive tipping loading hopper cylinder, mixing drum, concrete pump stroke cylinders ,swing cylinders, concrete pump agatitor.
3. There is the isolation chamber sealing structure in stroke cylinder even if the inlet of the stroke cylinder seal damage, wear the seal from the washing room of the water will be discharged out of the machine, can not enter the hydraulic oil tank.
4. The electromagnetic clutch + timer control water system, automatic watering timer automatic control water supply.
5. The high median tank layout, oil flow into the hydraulic pump itself, to avoid the lack of oil to demad oil pump, high reliability.
6. The median tank layout, the center of gravity in the middle of the two wheels.
7. The mixer and concrete pump can be easily separated, can realize the independent use and combined use.Tere are two location- work alone and combination.and it is convenient for the replacement of the concrete piston. The mixer drum is not the barrier located above the concrete pump stroke cylinder part of the inspection, maintenance, it is easy to be maintenance by pull the pump unit out from mixer.
8. Diesel engine is on the rotary platform, with three different optional position: dragging, working and shipping container position. Working position is away from the hopper, avoid diesel close to the pollution source-------loading hopper, to increase reliability, while expanding loader working space. Dgging position close to the machine body, the focus is adjusted to the median of two wheels, and reduce the cross section of the transport process of size, reduce the transport road width.Shipping container position to ensure the machine just enter a standard 20 foot container without dismantling.

Specification

Diesel concrete pump mixer is with the rapid and flexible, mobile convenience, speed, labor saving features.

4000Kg Weight Of Concrete Pump With Mixer  Is Easy  For Generator  Trailer

Concrete pump with mixer performance parameters

Item Unit HBT25-06/JZM350
Theoretical Output m³/h 25
Max. Pressure on Concrete MPa 6
delivery cylinder mm 180×800
Motor power KW 22
Motor power KW 2.2
Max. diameter of aggregates mm 40
Maximum theoretical delivery Horizontal distance M 200
Maximum theoretical delivery Vertical distance M 60
Mixer Type   JZM350
Capacity of charge Hopper L 350
Capacity of discharge Hopper L 560
Agitate motor type   Y132S-4B5
Agitate motor power KW 5.5
Agitate motor speed rpm 1440
Hoister motor type   YEZ32-4
Hoister motor power KW 4.5
Hoister motor speed rpm 1380
Water pump motor power KW 0.75
Diameter of drum mm 1440
Drum rotary speed rpm 15
Charge hopper average hoisting speed m/s 0.3
Tread distance mm 2200
length ×width ×height mm 4950×2200×2700
Weight Kg 4100
