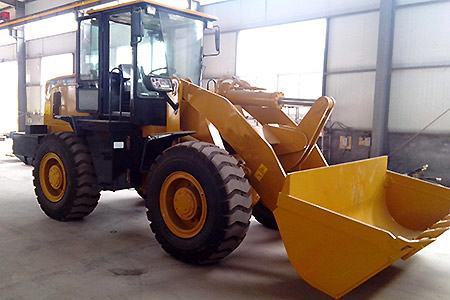

Wheel Loader
INTRODUCTION
Wheel loader, which belong to series of engineering machinery, were designed and developed by our company and professional institutes and colleges, we referenced and absorbed structure characteristics and advanced technology from foreign and domestic machinery according to the concrete demand of customers.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223
Detailed Photos
Performance
1. Powerful engine that saves labor and energy.
2. Load sensing hydraulic steering gear and central articulated frame.
3. Single pipe type hydraulic 4-wheel brake.
4. High-quality tire operating a long time in various environment.
5. High degree of safety for the cab, large space.
Manufacturing Process
Specification
| Model | ZL-18 | ZL-20 | ZL-30 | ZL-32 |
| Max dumping height | 2700mm | 3200mm | 3250mm | 3250mm |
| Max dumping distance | 760mm | 1100mm | 1200mm | 1200mm |
| Rate Weight(kg) | 1800 | 2000 | 3000 | 3000 |
| Bucket capacity(m3) | 0.5-0.6 | 1.03 | 1.7 | 1.3 |
| Distance between axles | 2000mm | 2140mm | 2760mm | 2760mm |
| Tread | 1400mm | 1480mm | 1800mm | 1800mm |
| Overall dimensions(L*W*H) | 5100*1720*2700 | 5850*2550*2700 | 5100*1720*2700 | 6450*2090*2930 |
| Engine model | LION LN490KC | WEICHAI4102 | DEUTZ TD | 4108 |
| Rated power | 39KW | 47KW | 135KW | 83KW |
| Working pressure | 16Mpa | 27.5Mpa | 27.5Mpa | |
| Max flux | 50ml/r | 100ml/r | 100ml/r | |
| Total weight | 3000kg | 9500kg | 6000kg | |
| Grade ability | 25% | 25% | 25% | |
| Min rotary radius | 4600mm | 5700mm | 5700mm | |
| Time | 7s | 9s | 11s | 11s |
| Max walking speed | 24km/h | 24km/h | 40km/h | 40km/h |
| Max. breakout force | 23kn | 32kn | 138kn | 138kn |
