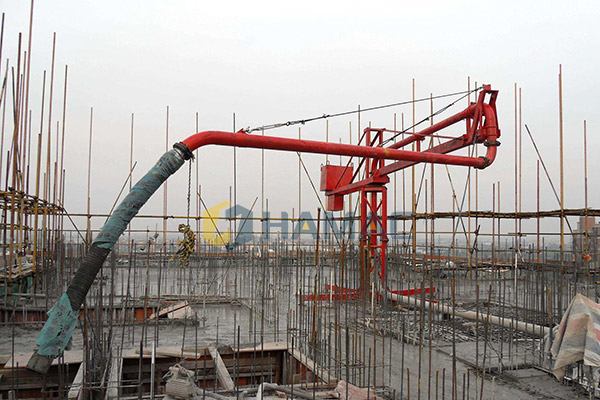

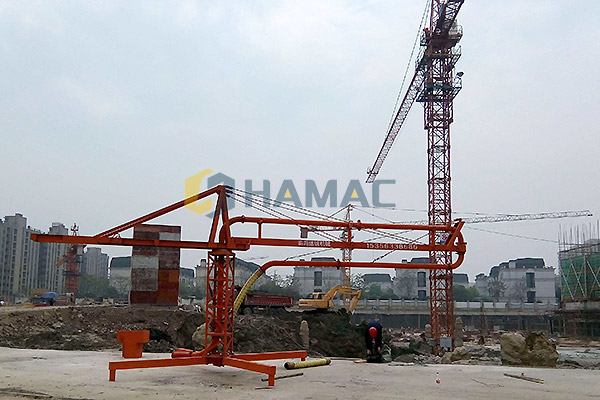

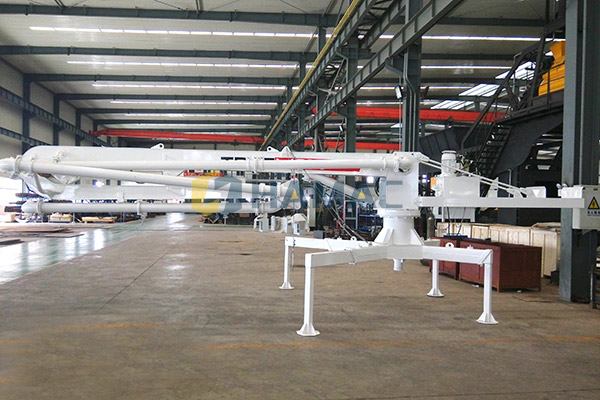

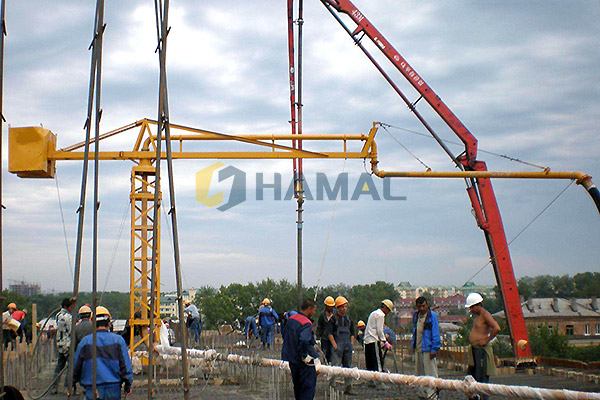

Detailed Photos
Performance
1) The placing boom has a R-shaped boom assembly with three foldable sections, wich can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes , columns , piles and other vertical structures without confined placement areas.
2) The boom assembly's luffing, folding/unfolding and swinging are carried out hydraulically with buttons.
3) Featuring compact structure, the placing boom can be lifted and transferred to any suitable places for concrete placement , such as floors , platforms , simply-structured racks or even trailers. It does not need to be fixed while working. In addition, it can be lifted off the placement sites when it is not needed , which leads to no disturbance to other jobs and easy maintenance.
Specification
Item | HG-12B | HG-15B | HG-18B | Remark |
Working radius (m) | 12 | 15 | 18 | Excluding hose |
Hose length (m) | 3 | 3 | 3 | |
Tail Rotary radius (m) | 3.1 | 4.4 | 4.4 | |
Supporting legs span (m) | 3.3×3.3 | 3.3×3.3 | 3.3×3.3 | |
Rotation mode | manual | manual | manual | |
Rotation angle (°) | 0~360 | 0~360 | 0~360 | |

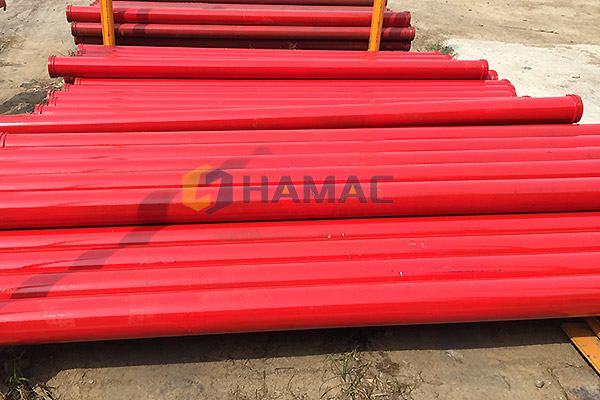

Concrete pipe dia. (mm) | Φ125 | Φ125 | Φ125 | |
Overall height (mm) | 6100 | 6100 | 6100 | |
Stand column section (mm) | 600×600 | 600×600 | 600×600 | |
Overall weight (kg) | 1400 | 1600 | 2500 | |
Balance weight (kg) | 1000 | 1200 | 1400 | |
Rotation support | Ma'anshan | Ma'anshan | Ma'anshan |
