Construction Belt Conveyor
INTRODUCTION
Belt conveyor is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force. The belt conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

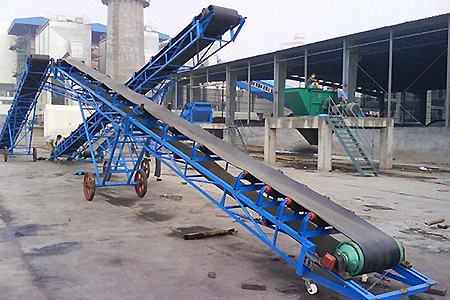

Detailed Photos
Performance
1. Checked daily drive motor and reducer whether the anomaly;
2. Daily check whether the belt loose, and the timely adjustment;
3. Conveyor belt monthly check whether drawl, and the timely adjustment;
4. Drum rotation monthly check whether flexible and timely repair;
5. Monthly inspections of the chain and sprocket drive anastomosis, timely adjustments and add to the chain lubricants;
6. Chuiqu monthly with an air gun control box dust to prevent failures;
7. Reducer used for the first time to be replaced after 100 hours cleaning internal gear oil, a new oil after every 2,500 hours to replace one; 8. Make a big annual maintenance, inspection accessories damage.
Manufacturing Process
Specification
| Belt Width(mm) | Belt Length (m) / Power (kW) | Belt Speed (m/s) | Capacity (t/h) | ||
| 500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 45-100 |
| 650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 70-120 |
| 800 | ≤10/4 | 10-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 120-180 |
| 1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-22 | 1.3-2.0 | 160-250 |
| 1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2.0 | 200-400 |
Note: Any change of Belt Conveyer technical data shall not be advised additionally.
