HMC200 Self-loading Concrete Mixer

HMC200 Self-loading Concrete Mixer video

INTRODUCTION

HMC150 Self-loading Concrete Mixer is a mini-mobile concrete batching plant, its capacity Of one Batch is 1.5m3, it owns all the functions of concrete batching plant, loading, weighing, pumping, mixing, travel, discharge and washing. It can produce concrete independently and efficiently in remote areas.

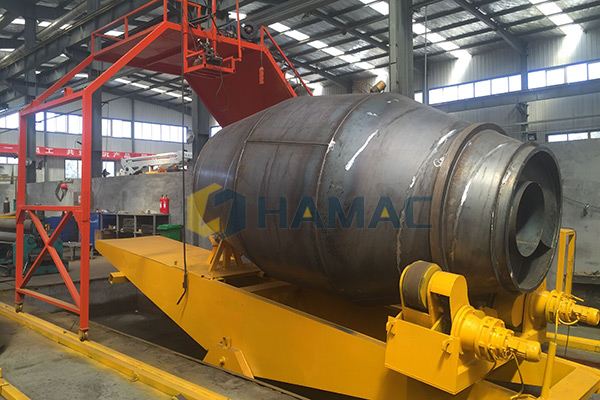

Drum geometric volume:2.0m3,Concrete drum output:1.5m3/batch,Double mixing screws, Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of  diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.

It is easy to operate and cost efficient to produce and distribute fresh concrete for mining, industrial complexes, shopping plazas, office buildings, warehouses, and residential homes for applications such as footings, poured foundations, floors, sidewalks, driveways, curbs, patios, pools, etc.

inquiry! Leave a Message!

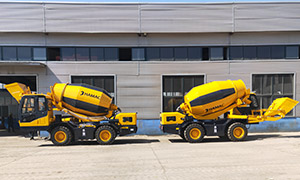

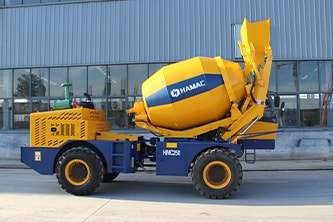

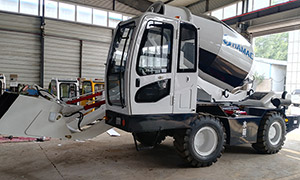

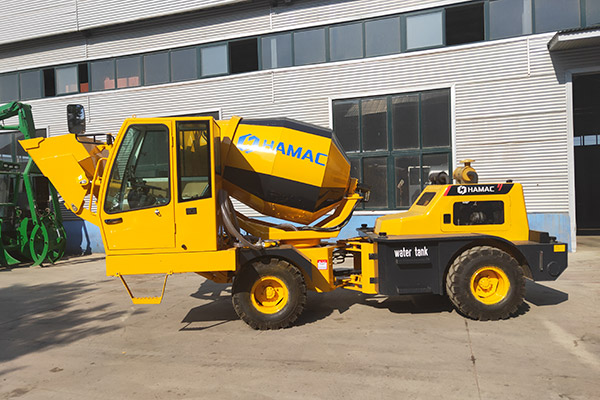

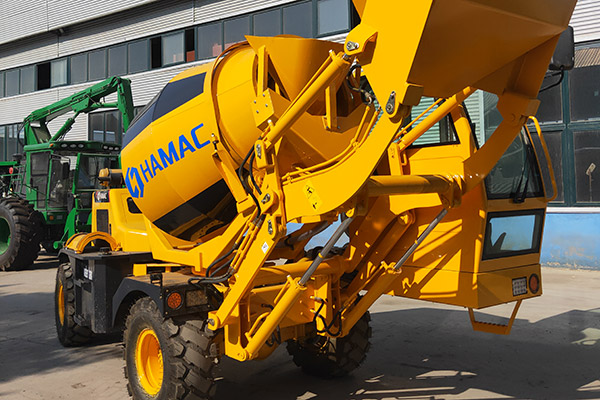

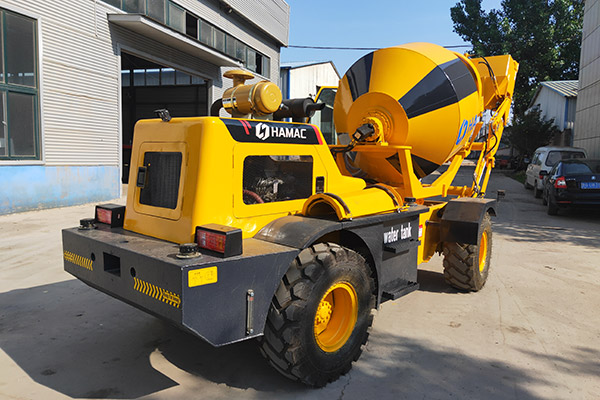

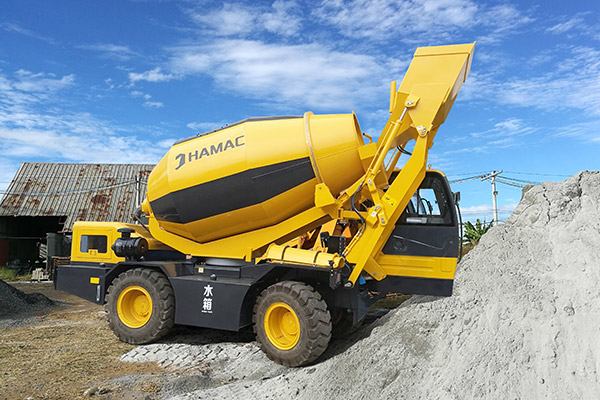

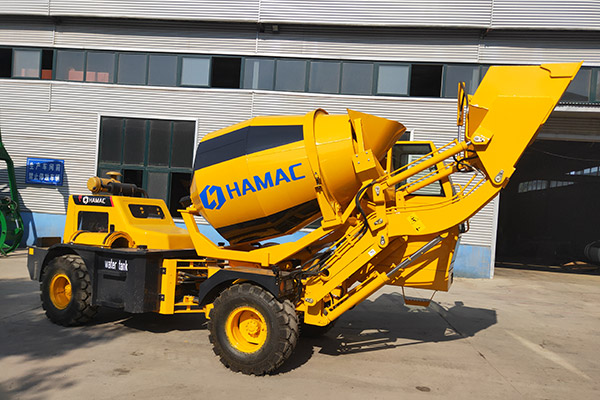

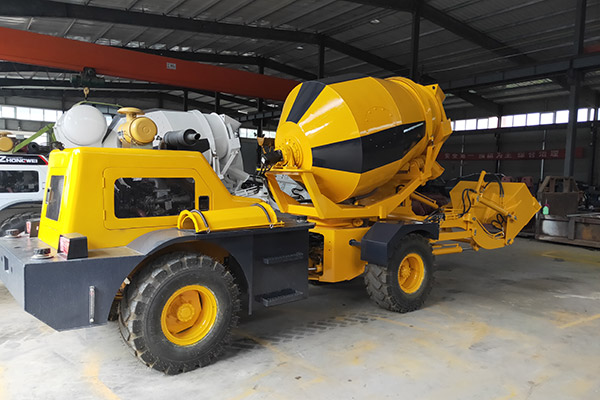

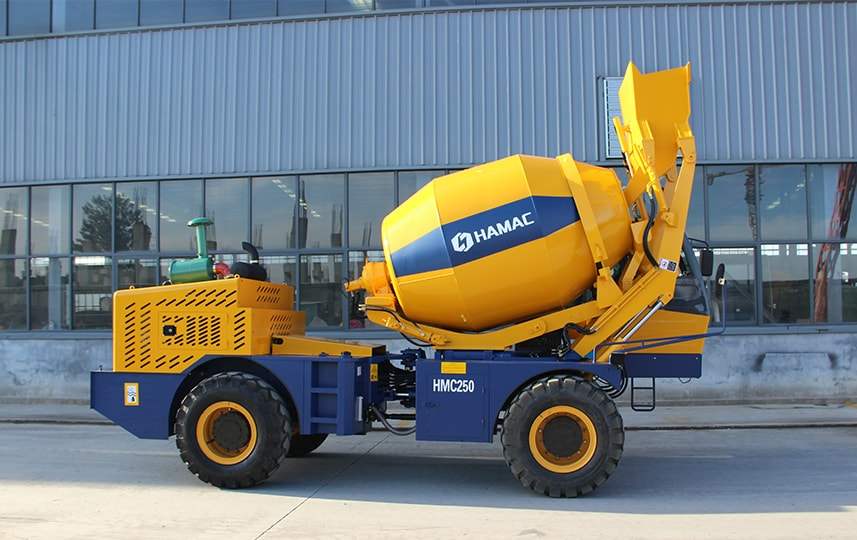

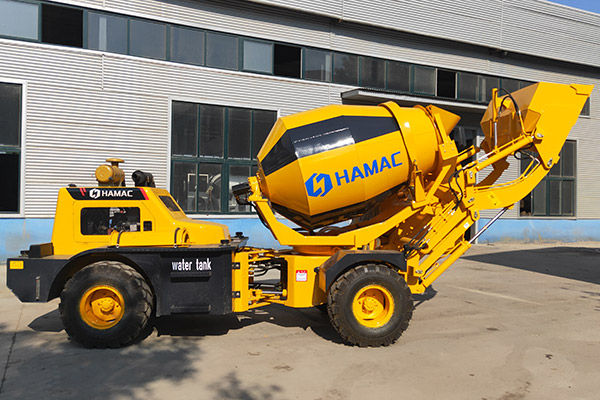

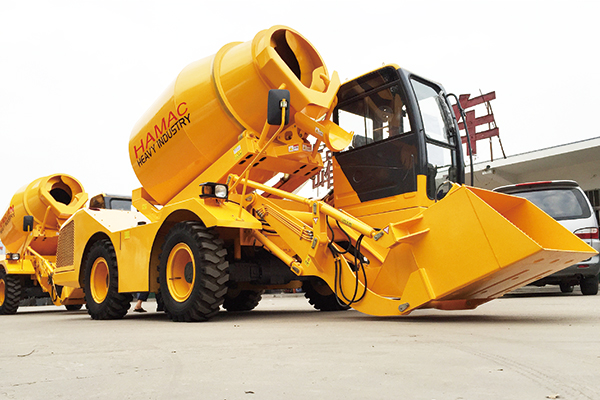

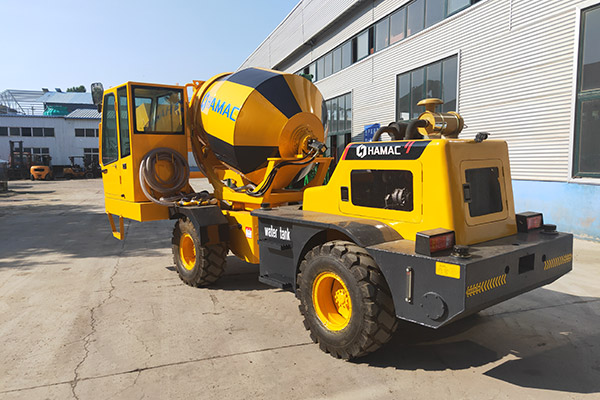

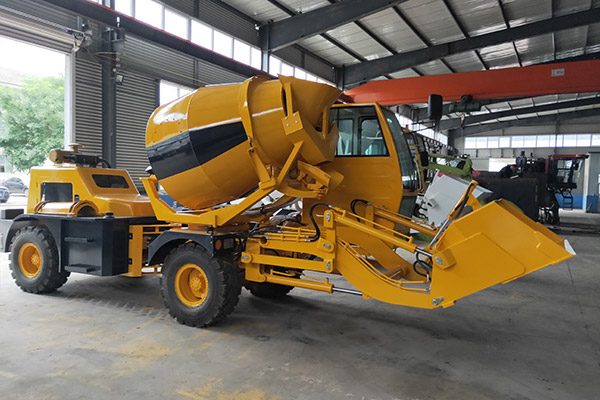

Detailed Photos

Specification

1.5m3 Self-loading concrete mixer Technical Data
No. Name Detailed information
1 Mixing system  Drum geometric volume:2.0m3,Concrete drum output:1.5m3/batch,Double mixing screws, Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of  diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.
2 Max. capacity 6m3/h
3 Transmission Diesel engine drives the torque converter, there is a transmission shaft installed on it to drive the transmission box which will be used to driven the four wheels
  High and low speed  flexible shaft shift gear
4 Running mode Hydraulic running
5 Joymix All hydraulic functions of shovel controlled by a single fully servo controlled Joystick.
6 Hand shank To controll the mixing drum rorate 270°
7 Diesel engine   YUNNEI490GBZ    3200r/min   Rated power:55kw
8 Hydraulic pump  Double gears2032/2032

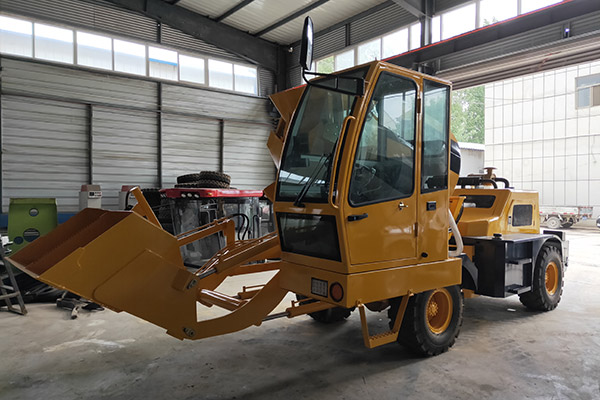

9 Loading shovel        Effective capacity per load 0.39m3, complete with hydraulic opening gate.
10 Discharging chute Slewing and mechanically tilting. Fitted with two pins easily detachable to increase the discharge height.
11 Water tank     330 L
12 Tanks Fuel tank:95 L    Hydraulic oil tank: 95 L
13 Tyre Off road industrial type 20.5/70-16
14 Weighing system Electronic system,“Load cells” acting on the arm, display and printer in the cab.
15 Servicing brake  vacuum servo brake
16 Parking brake  automatically air-cut brake
17 Water supply system Self-contained. Hydraulic driven water pump
18 Electric system 24V
19 Overall dimension Length: 6300mm;Width: 2300mm;Height: 2550 mm;Wheel base:2230 mm;Tread:1470mm
20 Running speed  Low speed:0-8km/h;High speed 8-25km/h;
21 Min. Turning radius 4850 mm
22 Weight  4800kgs

Note: Our products are being updated constantly, all rights reserved by HAMAC.
