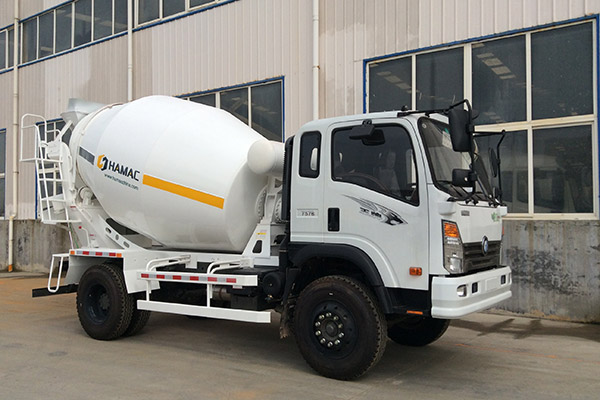

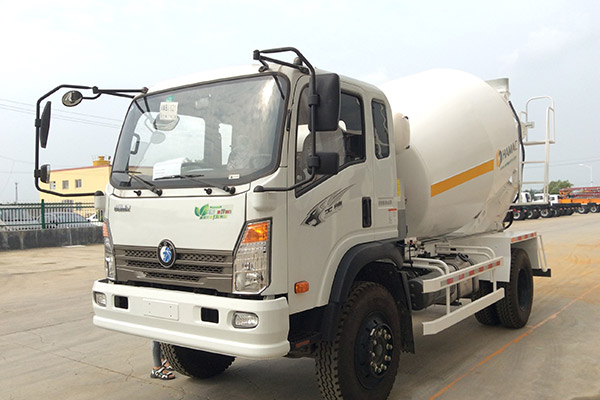

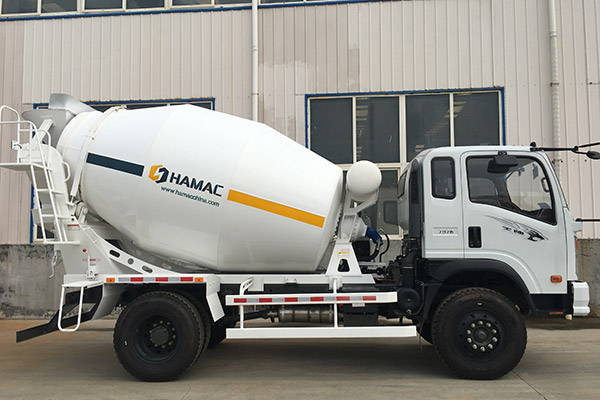

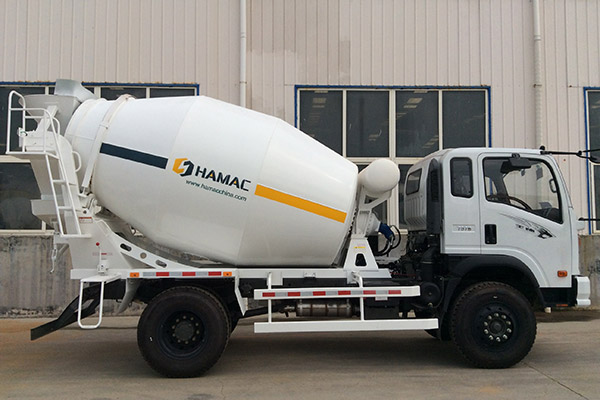

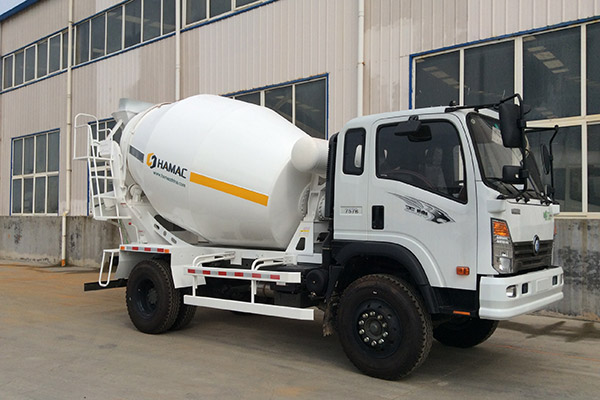

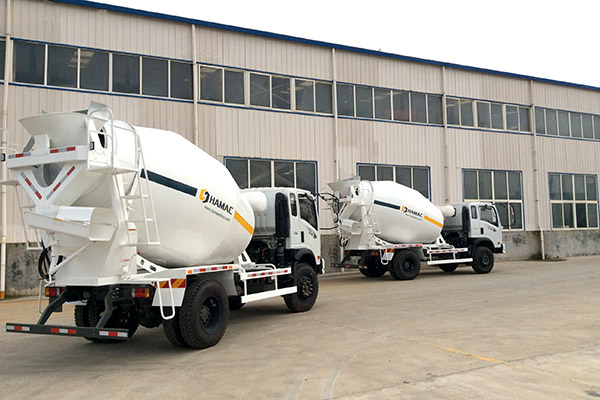

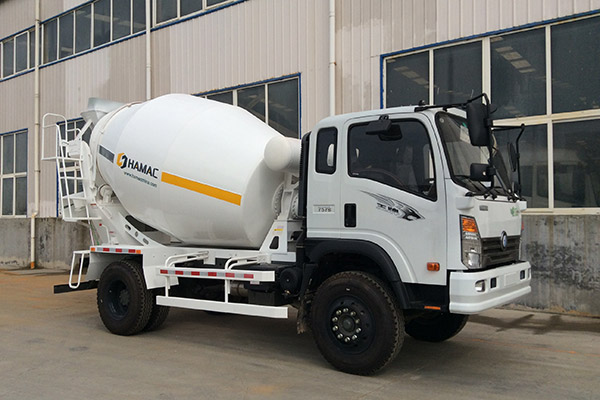

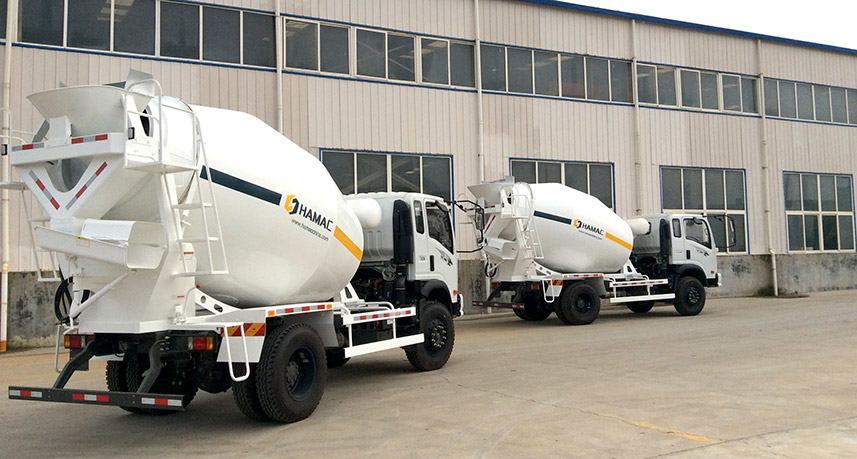

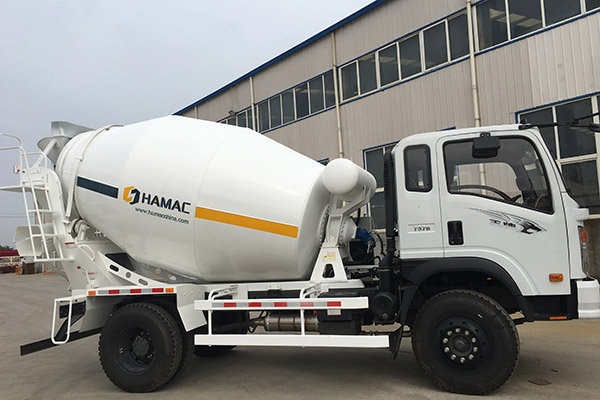

Detailed Photos
Performance
1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;
Specification
8 M3 TRANSIT MIXER TRUCK |
|
Overall parameter | |
Overall dimension | 8635x2485x3730mm |
Kerb weight | 10960kg |
Mixing Drum parameter | |
Mixing drum material | High quality wear-resistance steel |
Model:Q345 | |
Drum body thickness: 5mm, End cover thickness:6mm | |
Agitating capacity | 8M3 |
Drum overall dimension(with frame) | 6600*2500*2675mm |
Mixing drum size | Diameter: Φ2300mm Length: 4730mm |
Charging rate | ≥3 m3/min |
Top feed hopper dimension | ≥650 mm |
Discharging rate | ≥2 m3/min |
Residual rate | ≤0.5% |
Water supply | Baric water supply system |
Water tank capacity | 450L |
Radiator | 18L |
Reduction gear | HL Reducer, Italy brand |
Hydraulic pump | Interpump, Italy Brand |
Hydraulic motor | Interpump, Italy Brand |
Accessory | Tool box |
Chassis parameter | |
Chassis Brand | SINO Truck HOWO |
Chassis model | ZZ1257N3247W |
Axle base | 3225+1350mm |
Driving type | Right hand drive |
Engine model | WD615.69 |
Rated power (HP) | 336HP |
Emission standard | Euro II |
Fuel type | Diesel |
