Concrete Transit Mixers

INTRODUCTION

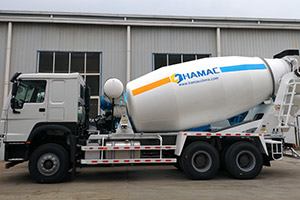

Concrete mixer truck consists of special device for automobile chassis and concrete mixing and transporting, always keeping the mixing drum rotating in the transport process and it is the special vehicle with integration of mixing and transport. We specialized in manufacturing the small concrete mixer truck working for the narrow working environments, including underground coal mine, reclamation construction, high-speed rail construction, township pavement construction, rural housing construction; main specifications: 4m³, 6m³, 8m³,10 m³ and so on.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

Detailed Photos

FEEDBACK

Performance

1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;

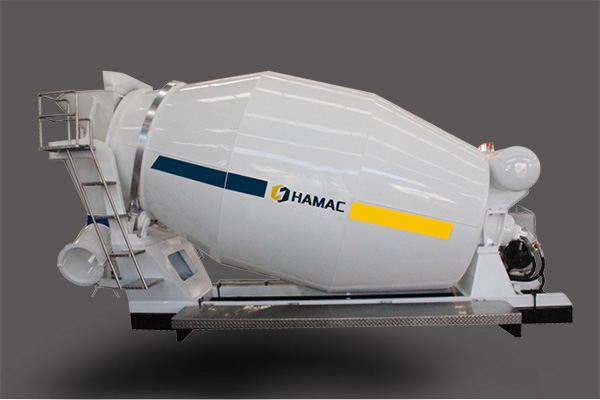

2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;

Manufacturing Process

Specification

Capacity	4m³	6m³		4m³	6m³
Chassis brand	FAW/FOTON/DFAC		Dimension (mm）	688024123500
Wheel base (mm)	3650	4100	Feeding Speed (m³/min)	⪖1.5	⪖2
Track Front (mm)	1725		Discharging speed (m³/min)	⪖1	⪖1.5
Track Rear (mm)	1670		Drum rotation speed (r/min）	0-16
Tire Type	9.00-20,9.00 R20		Rest Rate	⪕0.1%
Engine Emission standard	B17691-2005 National IV, GB3847-2005
Engine brand	YUCHAI
Power	130HP
Gearbox	Italy Interpump
Motor	Italy Interpump
Hydraulic Pump	Italy Interpump

Capacity	8m3
Chassis brand	FAW/FOTON/DFAC
Chassis Demission（mm）	8300×2470×2850
Wheelbase（mm）	3850+1300,4150+1300
Number of axles	3
Track front（mm）	1980
Track rear（mm）	1860/1860
Front overhang（mm）	1250/2300
Rear overhang （mm）	1250/2850
Approach angle/Departure angle	34/15,34/13
Tyre Number	10
Tyre Size	10.00-20,11.00-20
Plate Spring Number	9 10
Fuel	Diesel
Engine emission standard	National IV
Engine brand	YUCHAI
Power	215kw/290HP
Engine Rated speed（r/min）	2800
Engine Idle speed（r/min）	700~750
Clutch	Biplate Dried constant joint
Transmissions type	Shaft drive transission
Drive mode	Rear Wheel Drive
Turning form	Hydraulic power steering
Service brake	Air-brake
Parking braking	Air brake braking
Max. speed(km/h)	85
Concrete mixing truck Demission（mm）	8700,9550×2500×3760,3880
Mixing volume（m³）	8
Feeding rate（m³/min）	≥2
Discharging rate（m³/min）	≥1.5
Drum rotation speed（r/min）	3~9
Discharging remnant rate	≤0.1%
Water supply mode	Air pressure supply
water tank volume（L）	200
Radiator	24v air-cooled
Reduction box	Fuxin
Motor	Interpump
Hydraulic pump	Interpump

Model Name		Technical data
Model Name		Unit	9 m3	10m3
Vehicle data	Model		ZZ1257N4048W/ZZ1256N4046C1	ZZ1257N4048W/ZZ1256N4046C1
	Total Length	mm	9800	9800
	Total Width	mm	2490/2490	2490/2490
	Total Height	mm	3830	3830
	Chassis Model		HOWO ZZ1257N4048W/ ZZ1256N4046C1	HOWO ZZ1257N4048W/ ZZ1256N4046C1
	Overall Weight	kg	25000	25000
	Curb Weight	kg	15650	15650
	Wheel Base	mm	4025+1350	4025+1350
	Front Tread	mm	2022	2022
	Rear Tread	mm	1830	1830
	Tyre Model		11.00-20,12.00-20	11.00-20,12.00-20
	Front Overhang	mm	1500	1500
	Rear Overhang	mm	2980	2980
	Min. Turning Radius	m	10.1	10.1
	Max. Traveling Speed	Km/h	86/97	86/97
	Steering Device(GERMANY )		ZF8098	ZF8098
	Oil Consumption per 100 km(under limited conditions)	L	34	34
Engine	Engine Model		WD615.95(E)	WD615.95(E)
	Cylinder Number and Arrangement		Linear 6-cylinder	Linear 6-cylinder
	Engine max. output power	kw	247/2200	247/2200
	Max. Engine Torque	N.M	1420/1100		1420/1100
Working Device	Mixing Drum Volume	m3	17.05		17.05
	Mixing Cubage	m3	10		10
	Mixing Drum Slope Angle	%	12		12
	Mixing Drum Rotating Speed	r/min	0-14		0-14
	Feeding Speed	M3/min	≥3.5		≥3.5
	Discharging Speed	m3/min	≥1.5		≥1.5
	Slump	mm	100~230		100~230
	Surplus Rate	%	<0.5		<0.5
	Water Tank Capacity	L	260		260
