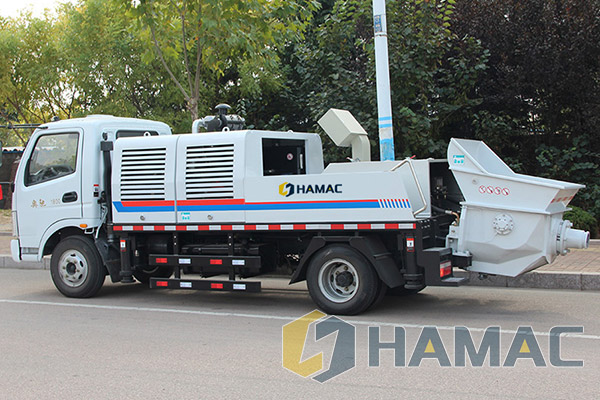

Truck Mounted Concrete Pump

Truck Mounted Concrete Pump video

INTRODUCTION

Combined our concrete pump with the high quality chassis, Hamac design the new generation of truck mounted concrete pump include the advantages of our concrete pump and our pump truck. Its working performance is reliable, structure is perfect, operation is easy. Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - DHBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom  - HBT80 Electric concrete pump

inquiry! Leave a Message!

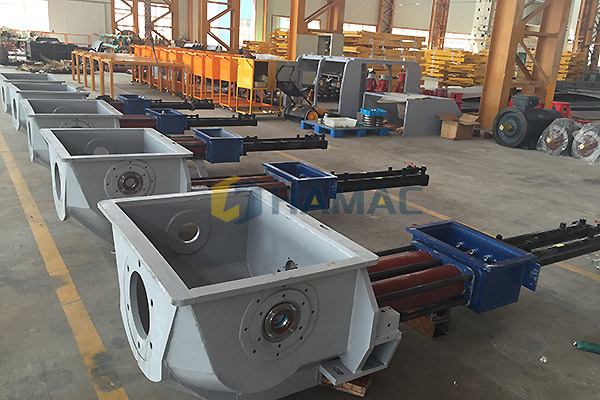

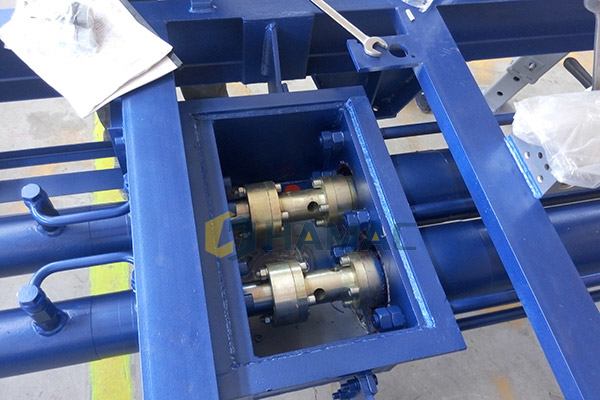

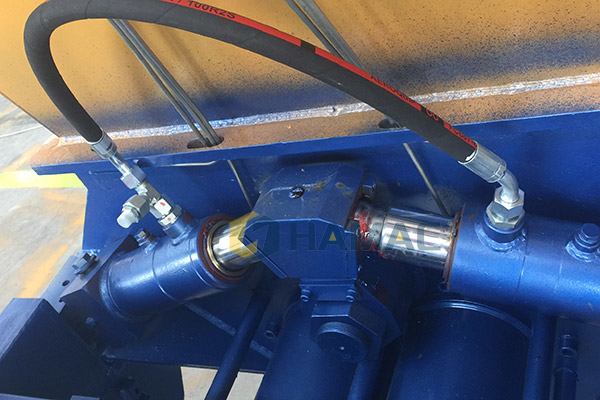

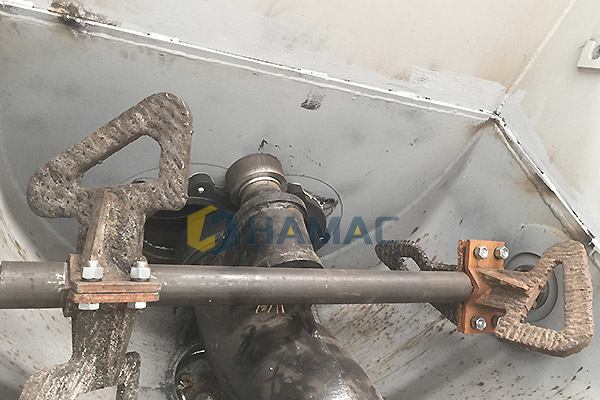

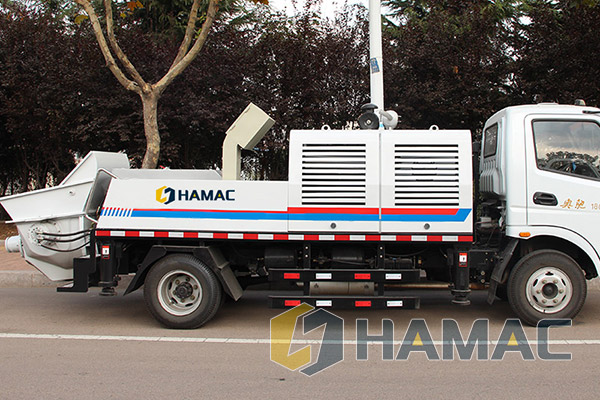

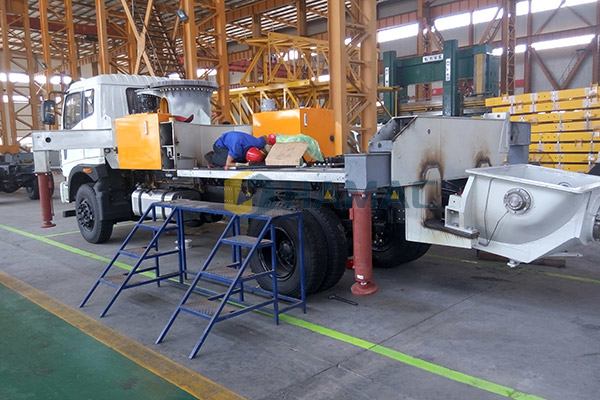

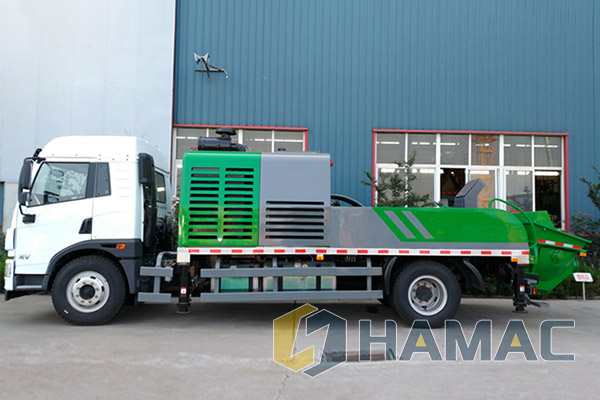

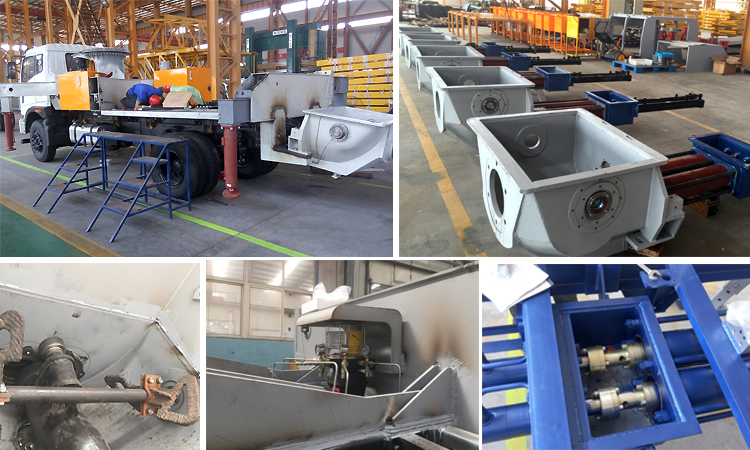

Detailed Photos

Specification

ITEM UNIT SPECIFICATION
Model   HMC5141THB
Driving system Chassis brand   FOTON DAIMLER, left drive
Chassis model   BJ1113VFPHG-RA
Fuel type   Diesel
Displacement/Power L/KW 6.7/156
Displacement standard    Euro III
Tyre model   8.25R20
Axle base m 5.0
quantity of axles   2
Max. driving speed Km/h 90
Front wheel base mm 1900
Back wheel base mm 1800
Min. turning radius m 9
Pumping system Brand of diesel engine   DEUTZ Brand
Diesel engine model   BF6M1013-25T3R
Diesel engine power KW 186
Driving mode   Hydraulic driving
Oil cylinder inner diameter × stroke mm Ф180×Ф125×1800
Concrete cylinder inner diameter × stroke mm Ф230×1800
Oil pressure of system MPa 32
Switch of H-pressure and L-pressure   Equipped
Fuel tank capacity L 290
Oil tank capacity L 600
Cooling mode of hydraulic system   Fan cooling
Max. theoretical capacity m3/h H-pressure 55
m3/h L-pressure 100
Pumping distance (H-pressure) Max. Horizontal m 125A pipe 880
Max. Vertical m 125A pipe 220
Hopper capacity m3 0.6
Feeding height mm ≤1500
Concrete slump cm 14~23
Max. aggregate diameter mm Crushed stone: 40 / Pebble: 50
Valve   S Valve
Water pump for cleaning   Equipped
Concrete pipe cleaning mode   Water cleaning
Water tank capacity L 400

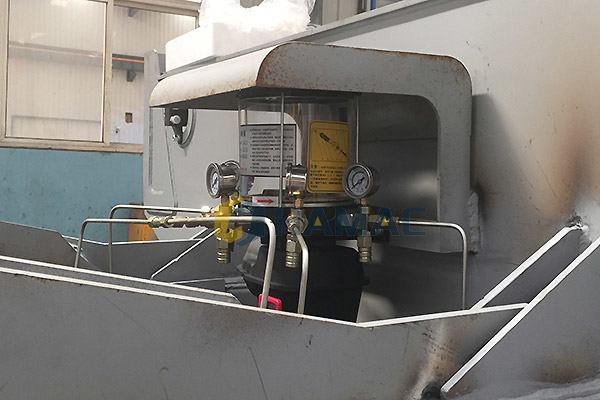

Lubrication mode   Automatic
Overall dimension Length (mm)*Width (mm)*Height (mm) mm 9195*2458*2623
Full-load total weight Kg 13500

Note: Our products are updated constantly, if there is any data discrepancy, please refer to the actual product.
