Vibrating Screen

Vibrating Screen Multiple models for selection, can be customized according to customer requirements
The device to select different sizes aggregate

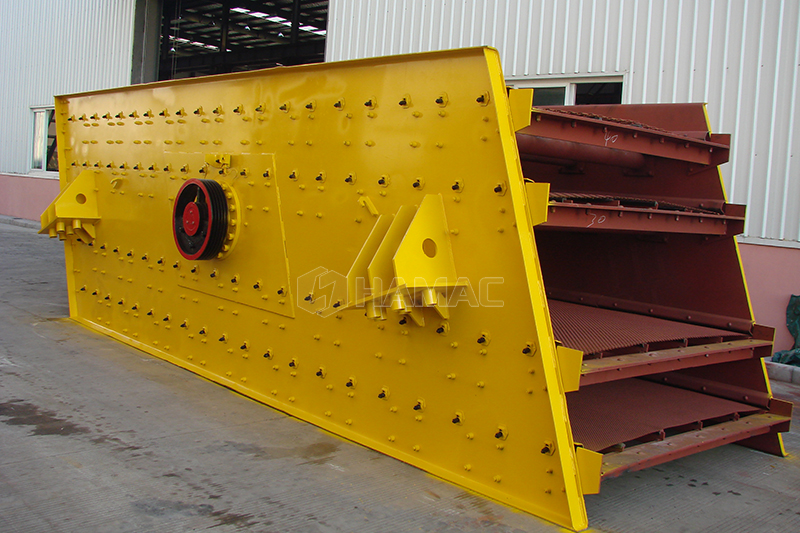

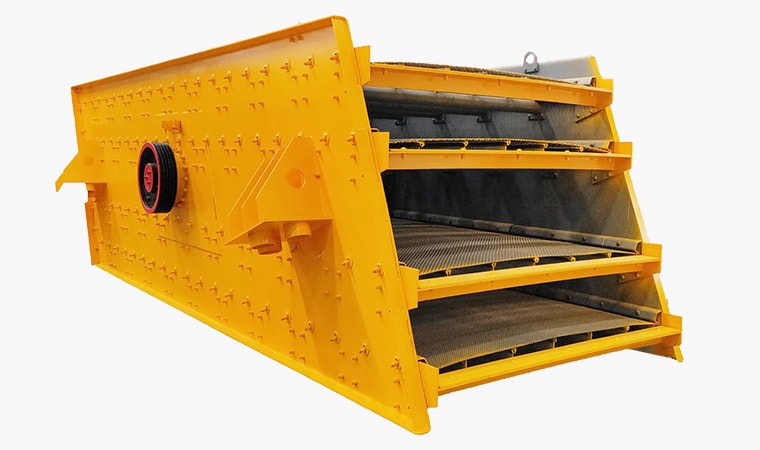

YK series vibrating screen is a circular vibrating screen with high strength and large exciting force successfully developed on the basis of more than 20 years of vibrating screen design experience and combined with advanced vibrating screen manufacturing technology. It is suitable for processing all kinds of ores and rocks with moisture content not more than 5%, large bulk and large bulk density, and is mainly used for screening operations in building materials, mining, chemical industry, cement and other industrial sectors.

  • Different models as options
  • Famous brand bearings
  • Eccentric shaft and eccentric block are available
  • introduction
  • Technical parameters
  • gallery
Related Product
Related Cases

YK series vibrating screen is mainly composed of motor transmission part, intermediate shaft parts, flexible couplings, exciter components, screen frame components and other parts. It is an important device in the crushing and screening production line.

Working Principle of vibrating screen:

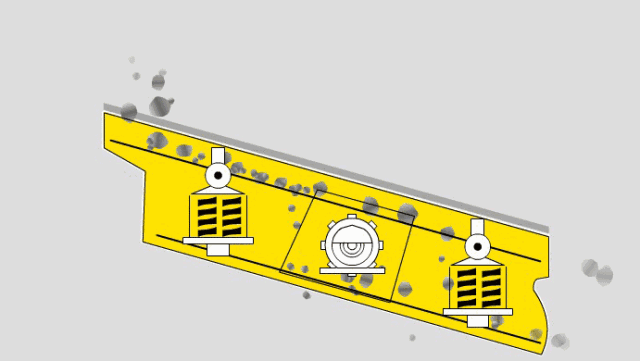

The screen frame is elastically supported on the base (or foundation), the eccentric block is installed on the shaft, and the shaft is installed on the side plate of the screen frame through the bearing and the bearing seat. When the main shaft rotates, the eccentric block rotates, and the inertial force generated by the eccentric block Force the screen frame to vibrate. With the continuous operation of the motor, the screening machine moves on an approximate circular trajectory to realize the screening operation.

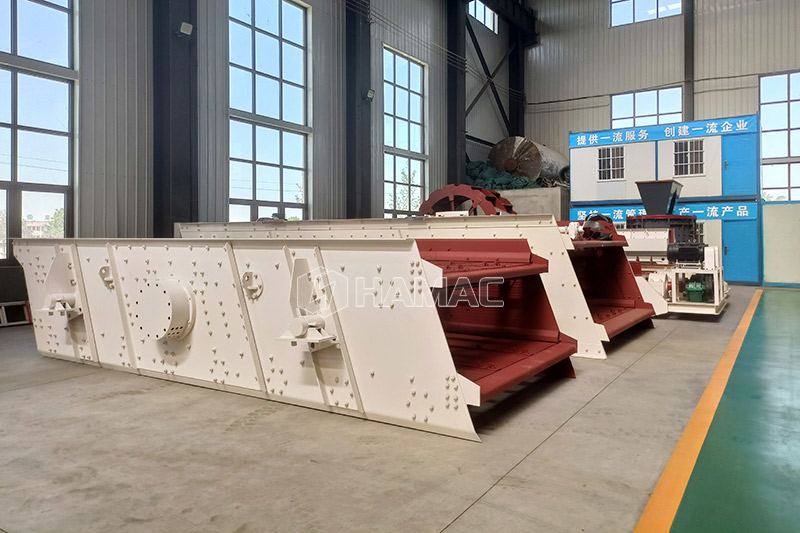

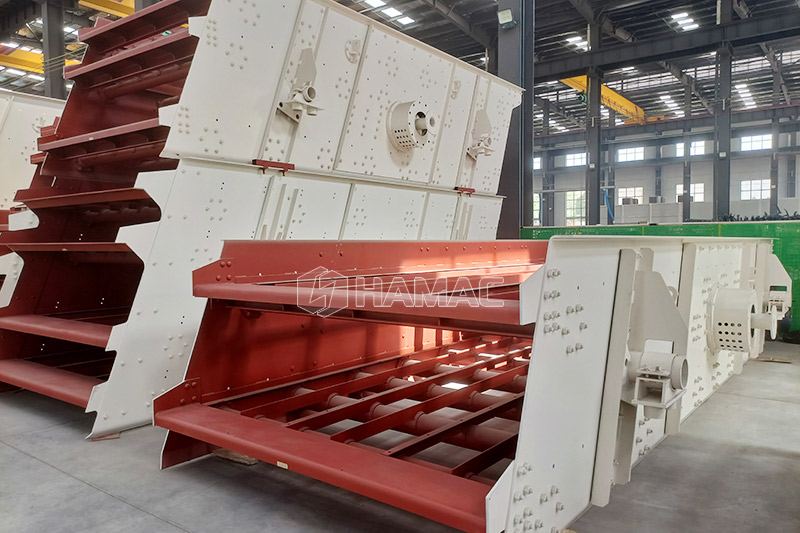

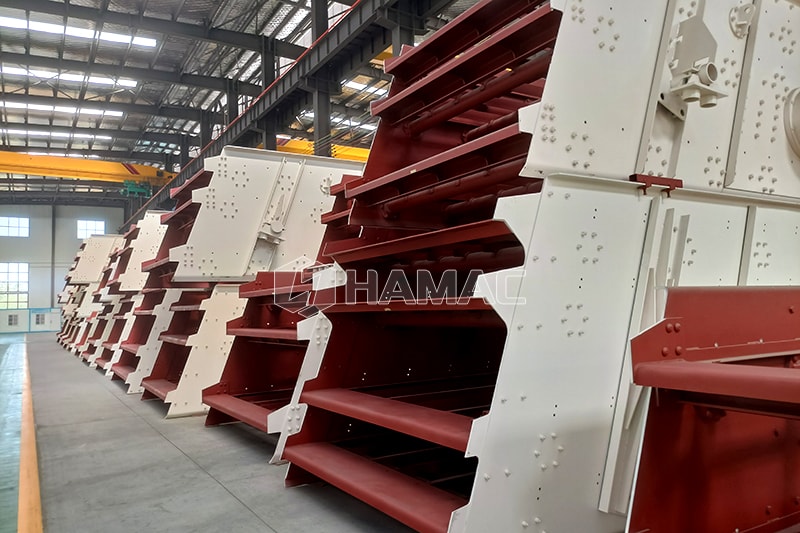

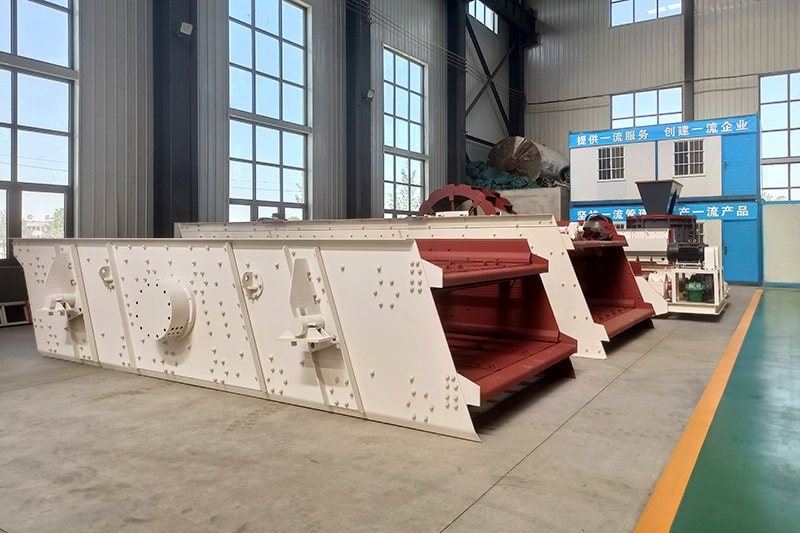

vibrating screen

Advantages

  • 1. The structure is advanced and the operation is reliable; the structure adopts the cylindrical vibration exciter and the partial block adjustment device, and the advanced rivet-connected assembled frame structure improves the service life of the equipment.
  • 2. An intermediate transition bearing seat is added to the transmission part. The application of the intermediate transition bearing seat effectively protects the motor and prolongs the service life of the motor.
  • 3. The screening efficiency is high. Due to the strong vibration of the screen box, the phenomenon of material blocking the screen holes is reduced, so that the screen has high screening efficiency and productivity.

Contact us to visit the factory or order products

Leave a message Online chat

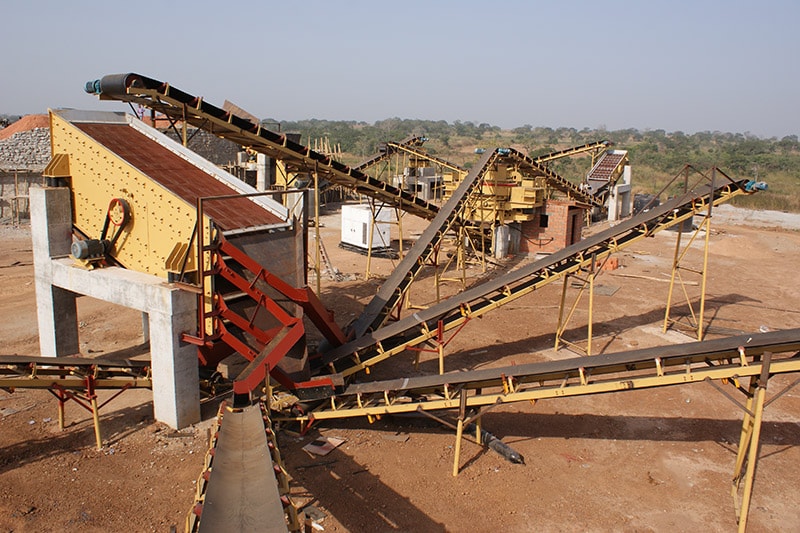

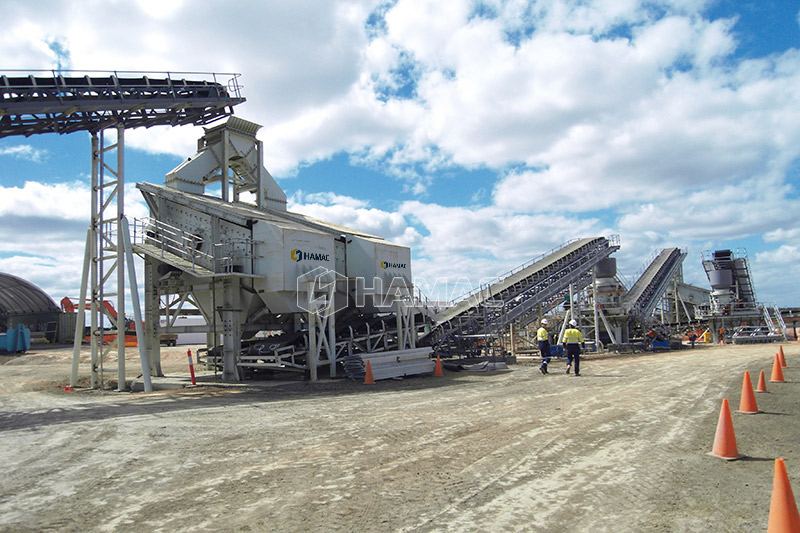

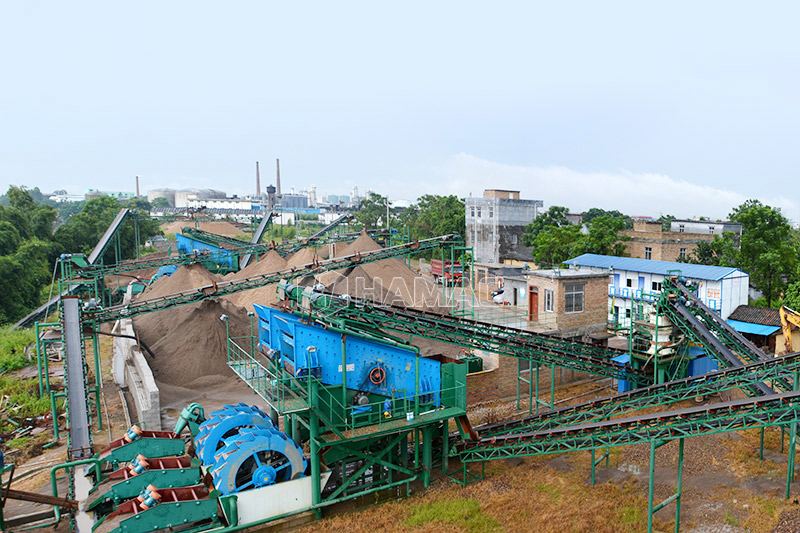

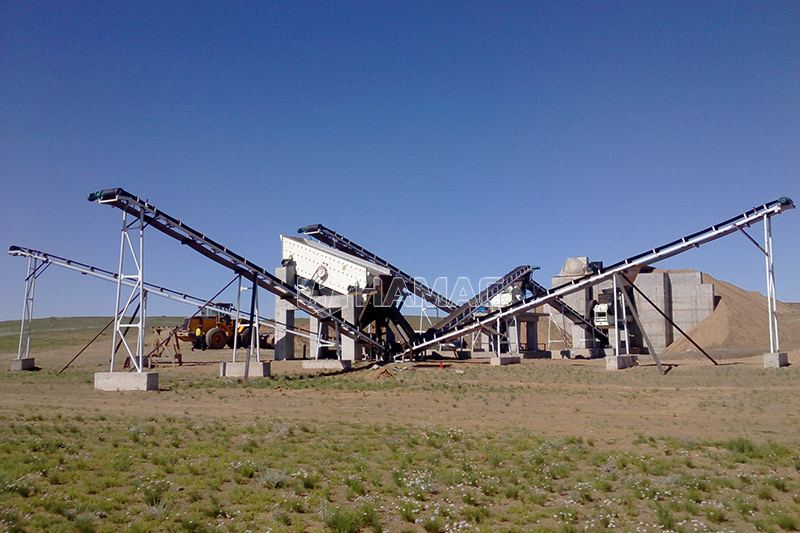

application case

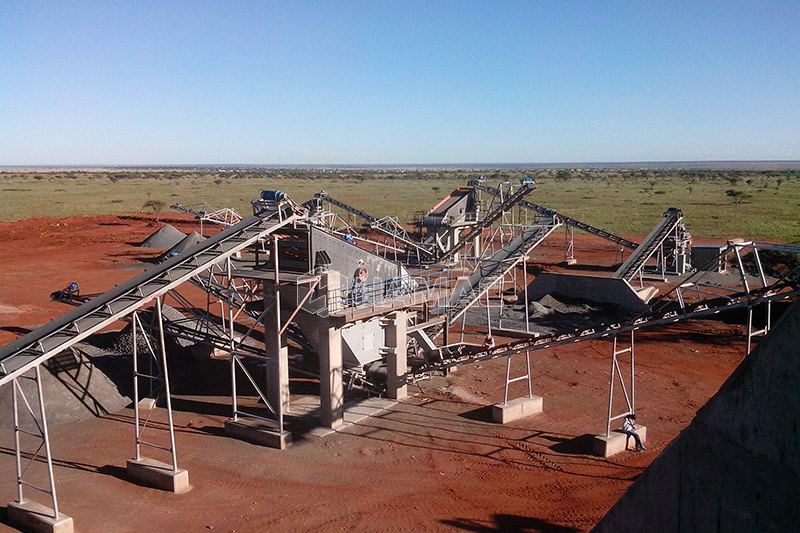

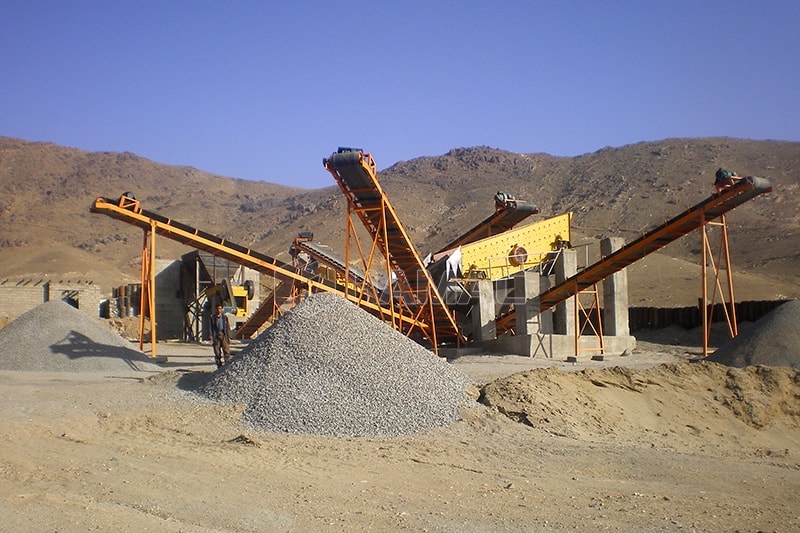

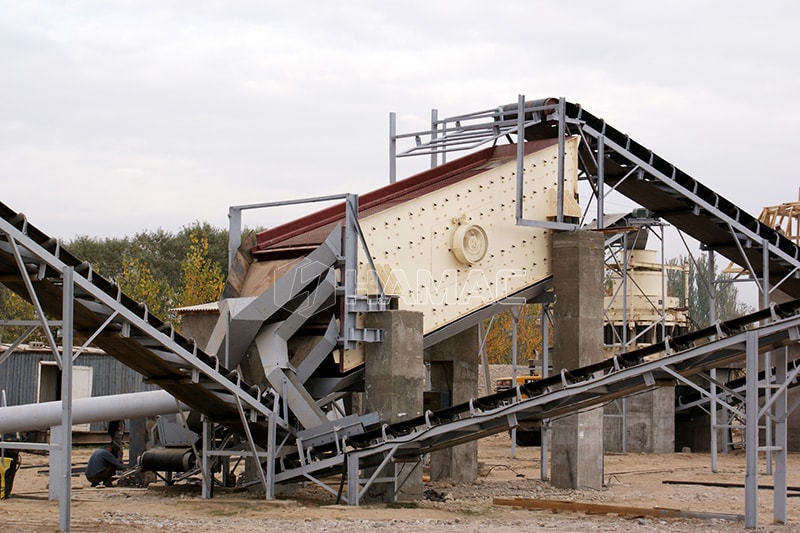

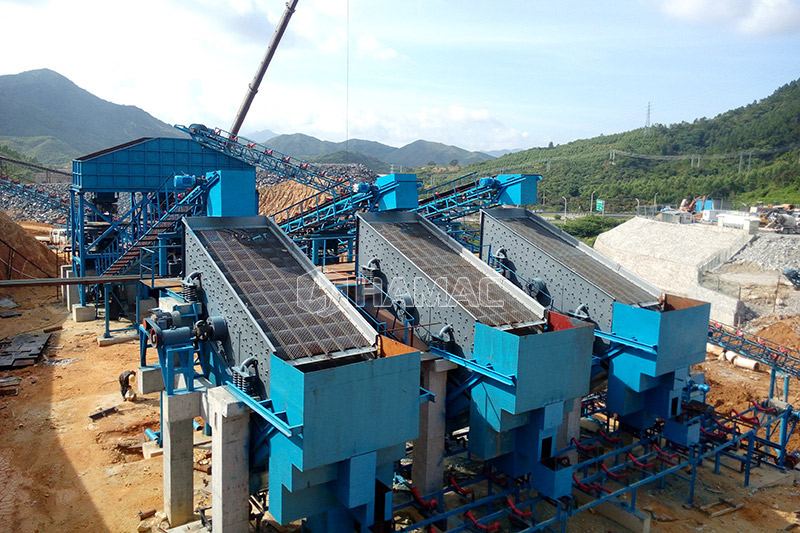

The Vibrating Screen is widely used for different projects all over the world. HAMAC exported the Vibrating Screen to different countries and got good comments from our clients.

Goods Delivery

Based on good quality and decades of experience, the Vibrating Screen which is manufactured by HAMAC was exported to different countries. The Vibrating Screen will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

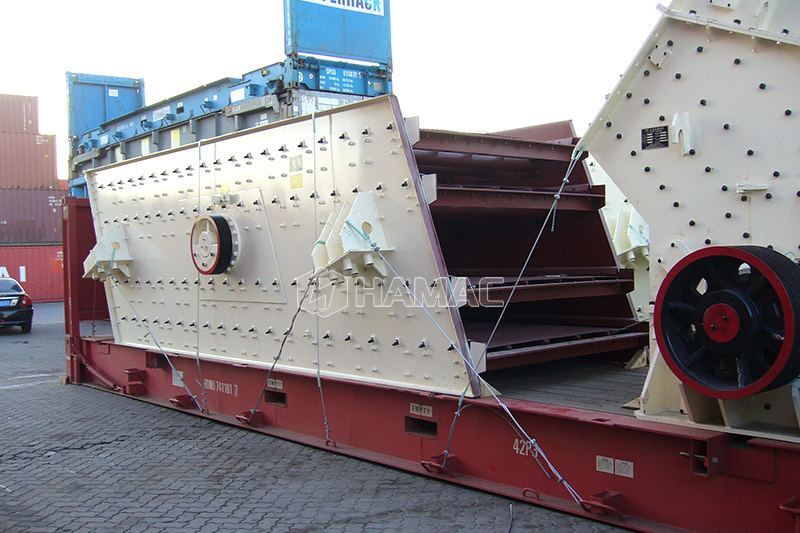

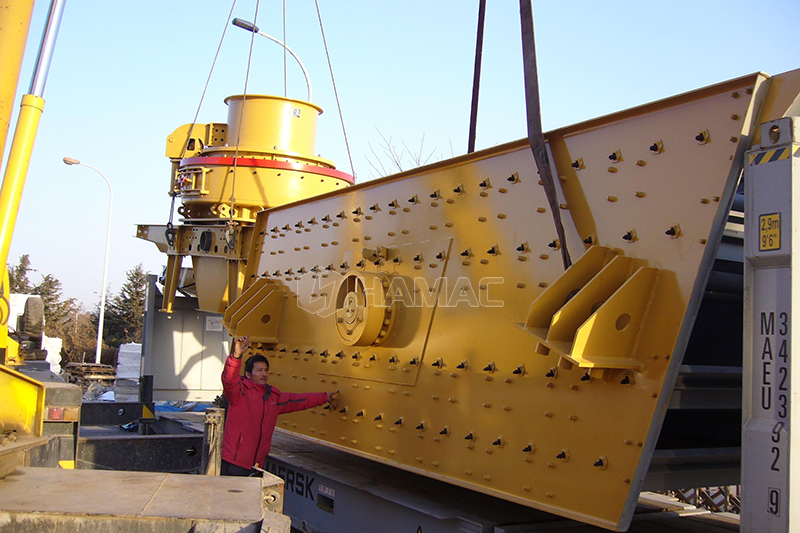

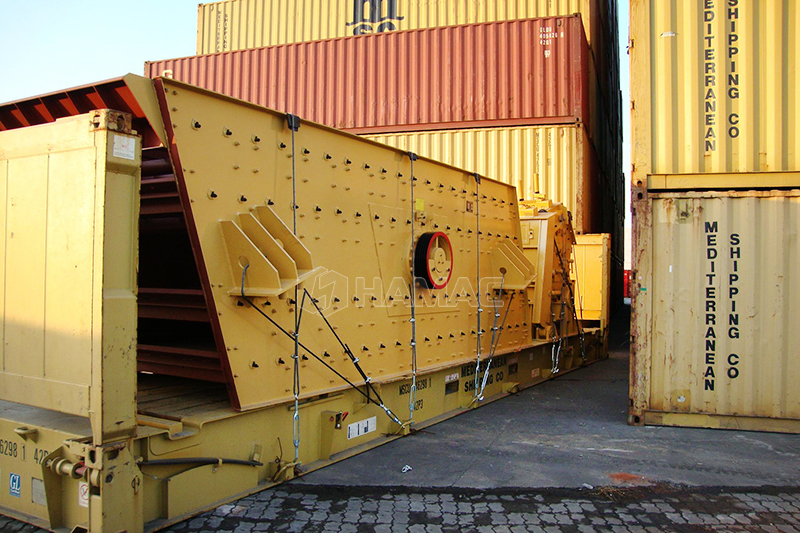

Vibrating Screen shipping pictures
Model Qty. of screen mesh Screen mesh size
(㎡)
Frequency
(r/min)
Double-amplitude
(mm)
Process capacity (m³/h) Motor power
(kW)
Overall dimension
(L×W×H)(mm)
YK1236 1 4.32 800-900 6-8 25-200 5.5 4110×1757×970
2YK1236 2 4.32 800-900 6-8 25-200 7.5 4142×1748×1340
3YK1236 3 4.32 800-900 6-8 25-200 11 4215×1748×1488
4YK1236 4 4.32 800-900 6-8 25-200 15 4336×1748×1840
YK1545 1 6.75 800-900 6-8 45-380 11 4970×2048×823
2YK1545 2 6.75 800-900 6-8 45-380 15 5573×2110×1582
3YK1545 3 6.75 800-900 6-8 45-380 15 5610×2110×1776
4YK1545 4 6.75 800-900 6-8 45-380 18.5 5798×2110×2191
YK1860 1 10.8 800-900 6-8 75-600 15 6105×2570×1265
2YK1860 2 10.8 800-900 6-8 75-600 22 6596×2510×1583
3YK1860 3 10.8 800-900 6-8 75-600 22 6759×2510×2008
4YK1860 4 10.8 800-900 6-8 75-600 30 6828×2510×2375
YK2160 1 12.6 800-900 6-8 85-700 22 6106×2820×1268
2YK2160 2 12.6 800-900 6-8 85-700 30 6596×2810×1580
3YK2160 3 12.6 800-900 6-8 85-700 30 6765×2810×2025
4YK2160 4 12.6 800-900 6-8 85-700 37 6912×2810×2380
YK2460 1 14.4 800-900 6-8 100-800 22 6538×3120×1255
2YK2460 2 14.4 800-900 6-8 100-800 30 6693×3110×1587
3YK2460 3 14.4 800-900 6-8 100-800 30 6758×3110×2027
4YK2460 4 14.4 800-900 6-8 100-800 37 6905×3110×2350
YK2475 1 18 800-900 6-8 130-1000 30 7770×3124×1273
2YK2475 2 18 800-900 6-8 130-1000 30 7942×3120×1578
3YK2475 3 18 800-900 6-8 130-1000 37 8124×3120×2020
4YK2475 4 18 800-900 6-8 130-1000 45 8350×3120×2285
YK2675 1 19.5 800-900 6-8 145-1100 30 7780×3320×1285
2YK2675 2 19.5 800-900 6-8 145-1100 37 8187×3316×1790
3YK2675 3 19.5 800-900 6-8 145-1100 45 8305×3316×2215
4YK2675 4 19.5 800-900 6-8 145-1100 55 8357×3316×2355
2YK3075 2 22.5 800-900 6-8 165-1250 55 8229×3776×1784
3YK3075 3 22.5 800-900 6-8 165-1250 55 8378×3776×2190
4YK3075 4 22.5 800-900 6-8 165-1250 75 8465×3776×2399
2YKS3075 2 22.5 800-900 8-10 180-1850 30×2 8229×3776×1784
3YKS3075 3 22.5 800-900 8-10 180-1850 30×2 8378×3776×2190
4YKS3075 4 22.5 800-900 8-10 180-1850 37×2 8465×3776×2399
2YK3675 2 27 800-900 6-8 200-1500 75 8286×4460×1987
3YK3675 3 27 800-900 6-8 200-1500 90 8435×4460×2393
2YKS3675 2 27 800-900 8-10 225-2250 37×2 8286×4460×1987
3YKS3675 3 27 800-900 8-10 225-2250 45×2 8435×4460×2393

Note: Our products are being updated constantly, all rights reserved by HAMAC.
