Wheel Loader

Wheel Loader Multiple models for selection, delivered by container to save shipping cost
A kind of shovel transportation machinery

Wheel loader is a kind of shovel transportation machinery widely used in highway, railway, port, wharf, coal, mine, water conservancy, national defense and other projects and urban construction. It plays an important role in reducing labor intensity, speeding up project construction and improving project quality.

  • Different models as options
  • Famous brand hydraulic parts
  • High cost performance
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

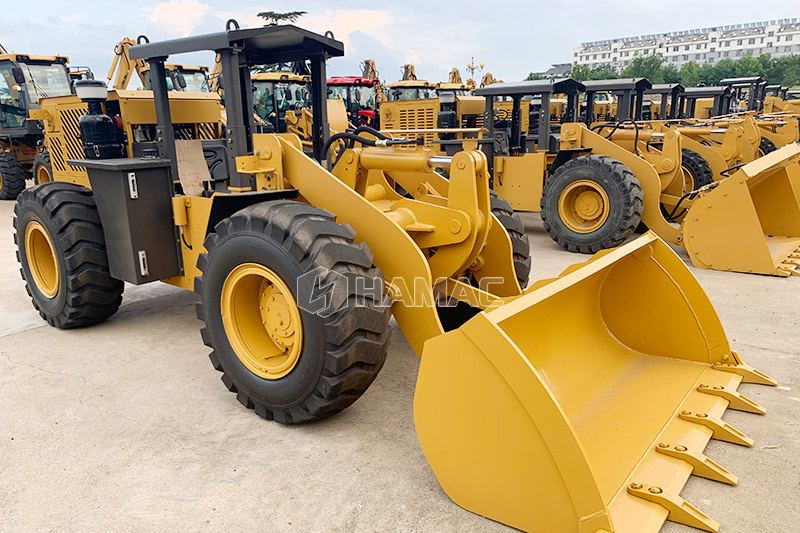

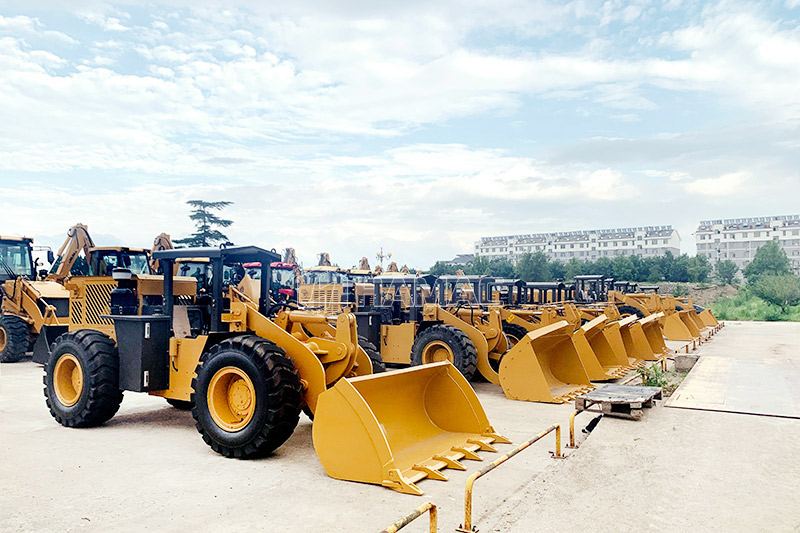

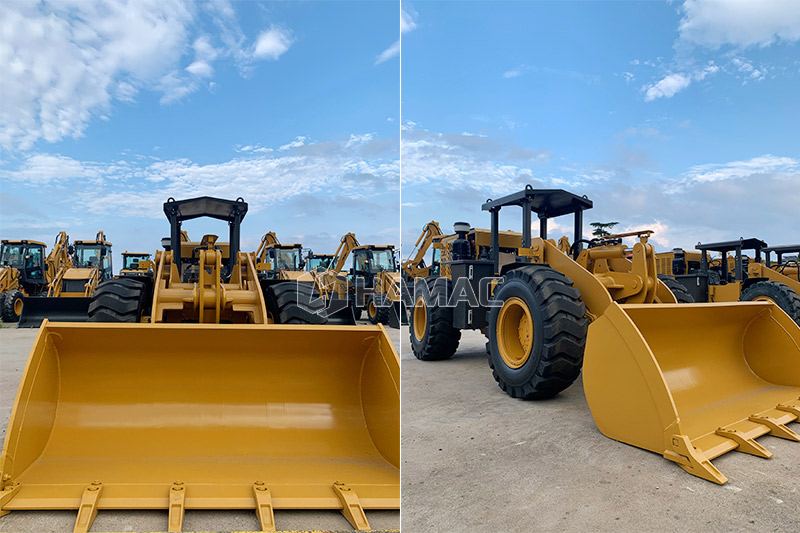

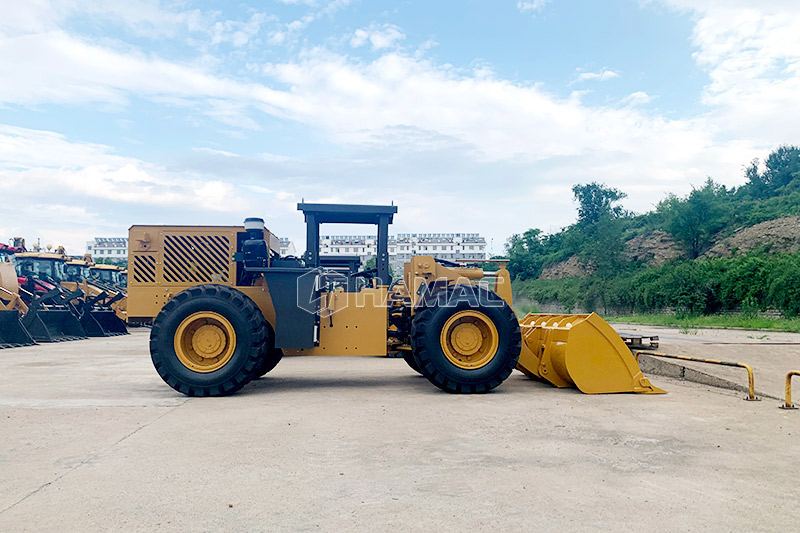

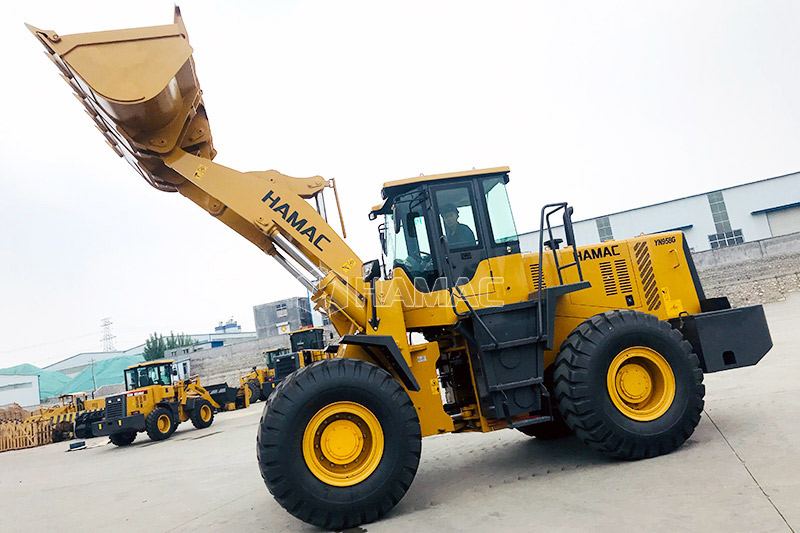

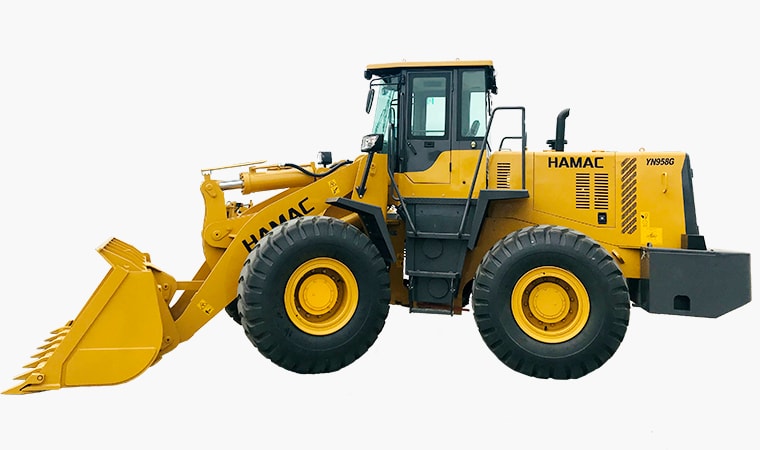

Introduction to Wheel Loader

HAMAC provide our clients with various model of wheel loader from 1 tons to 5 tons. It is an important ancillary machine when we provide a complete solution to our client.

Wheel Loader Features

  • 1. Adopt famous brand engine, large reserve torque and strong power;
  • 2. Adopt famous brand hydraulic torque converter, planetary gearbox, compact structure and high reliability;
  • 3. Soft shaft control gear shift, 2 front and rear 1 gears, easy to operate;

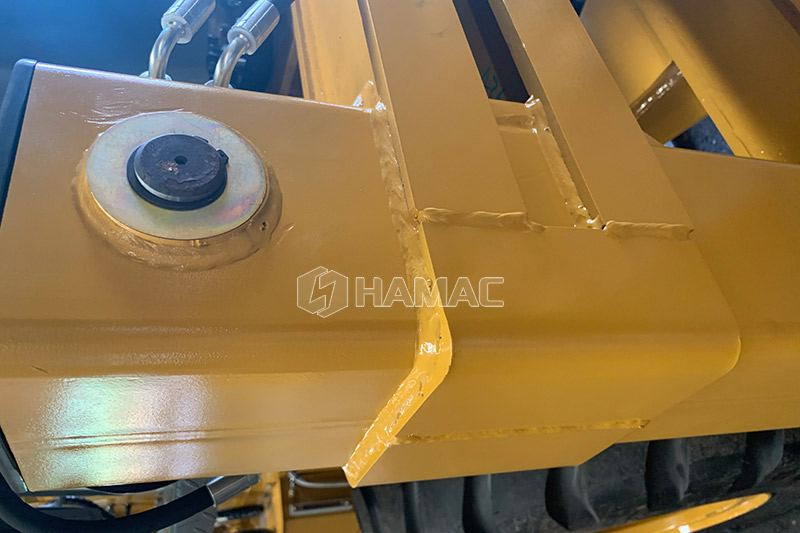

  • 4. Reinforced drive axle with large bearing capacity and high reliability;
  • 5. Double-pump confluence working hydraulic system, with remarkable energy saving effect;
  • 6. Coaxial flow amplification full hydraulic steering system, easy and flexible operation, good stability;

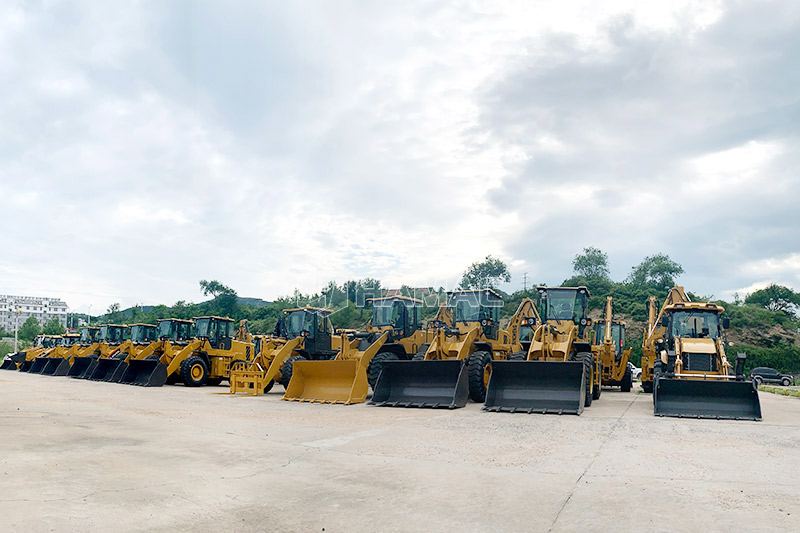

Wheel Loader Goods Delivery

Based on good quality and decades of experience, the Wheel Loader which is manufactured by HAMAC was exported to different countries. The Wheel Loader will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

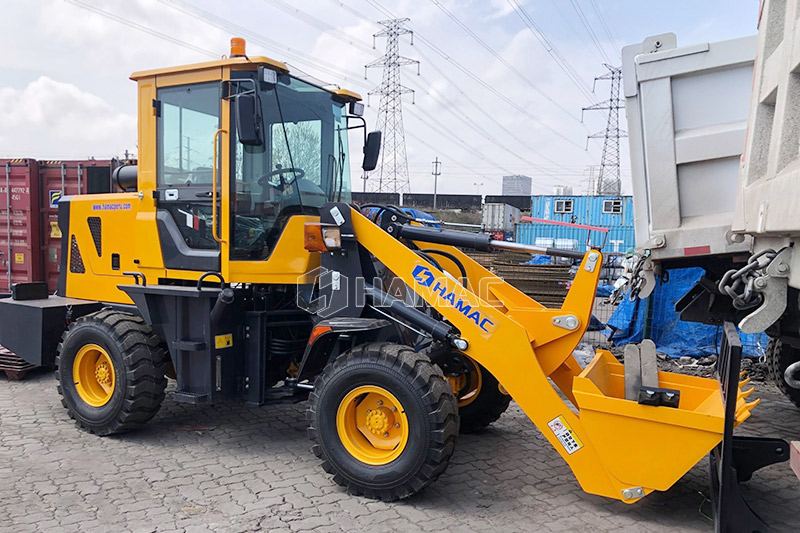

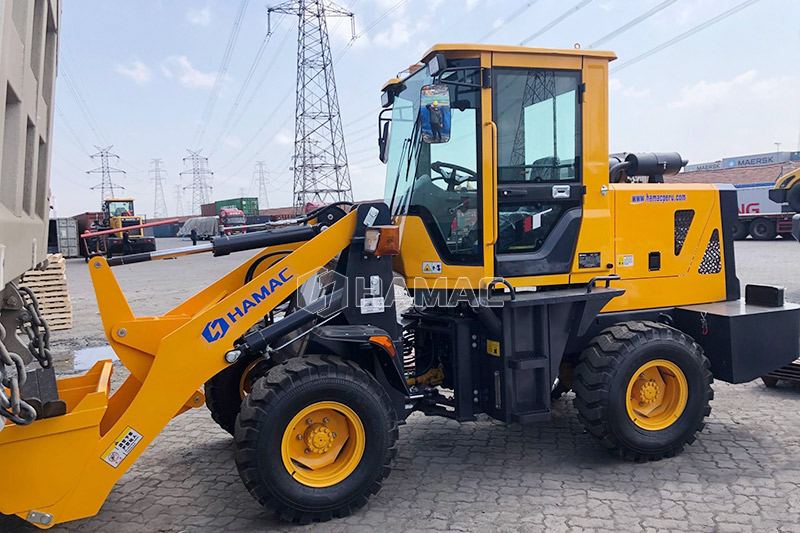

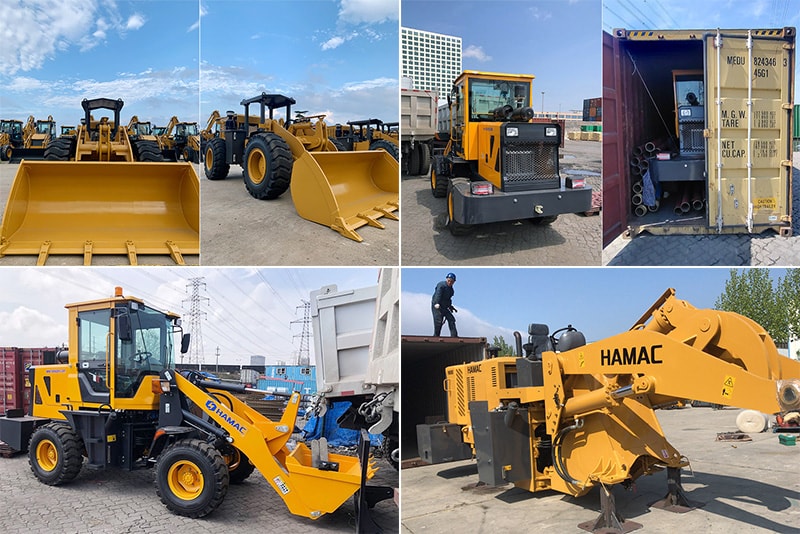

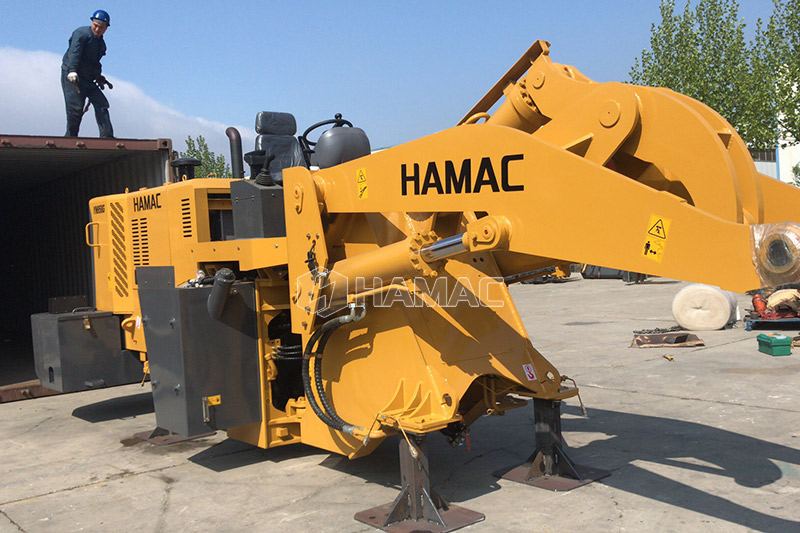

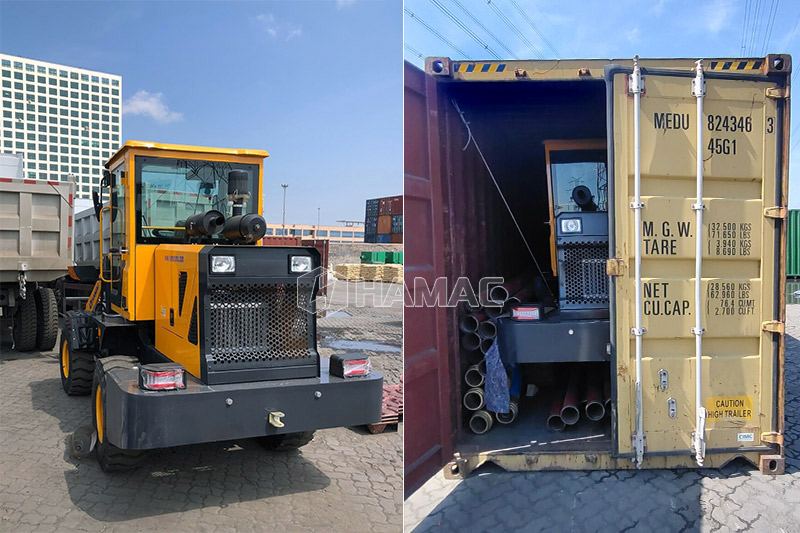

Wheel Loader shipping pictures

Wheel Loader Technical Parameters

Model 920 926 930 936
Overall dimension (mm)(L*W*H) 5600*1840*2760 5600*1840*2760 6040*2030*2950 6040*2030*2950
Total weight(Kg) 3200 3500 4500 5020
Operate weight(kg) 1800 1800 2000 2000
Diesel engine model YN27 YN27GBZ YN38GBZ YCD4M22T-105
Power(kW) 42 58 76 77.3
Engine speed (r/min) 2400 2400 2400 2400
Transmission box 265 265 265 280
Tyre

20.5-16

20.5-16

1670-20

1670-20

Nominal bucket volume (m³)

0.8

0.8

1

1.2

Max. speed (km/h)

25

25 25 25
Discharge height (mm)

3200

3200 3600 3600
Discharge distance (mm)

840

840 970 970
Wheel base (mm) 2130 2130 2450 2450
Tread (mm) 1490 1490 1565 1565
Min. turning radius (mm) 4000 4000 4500 4500

Note: Our products are being updated constantly, all rights reserved by HAMAC.

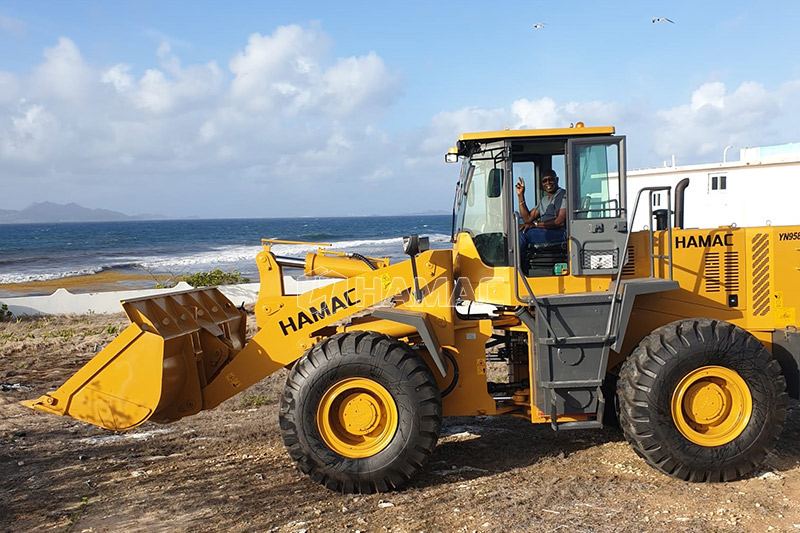

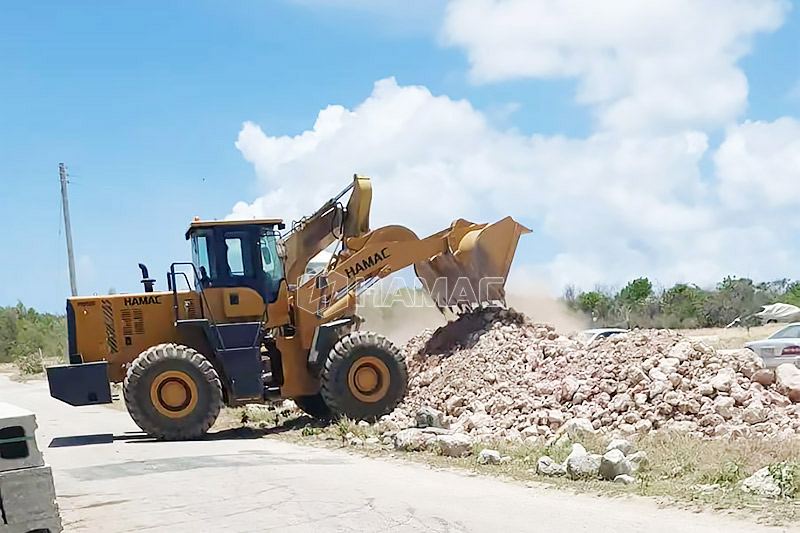

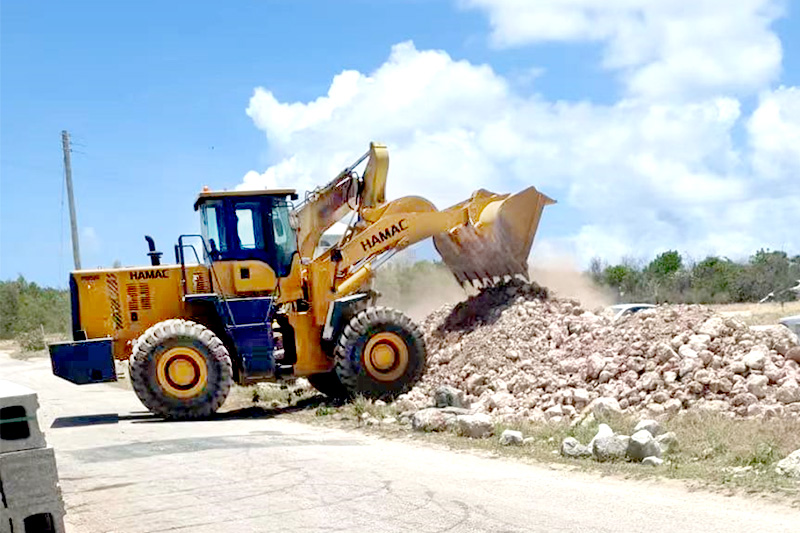

Wheel Loader Application Case

The Wheel Loader is widely used for different projects all over the world. HAMAC exported the Wheel Loader to different countries and got good comments from our clients.
