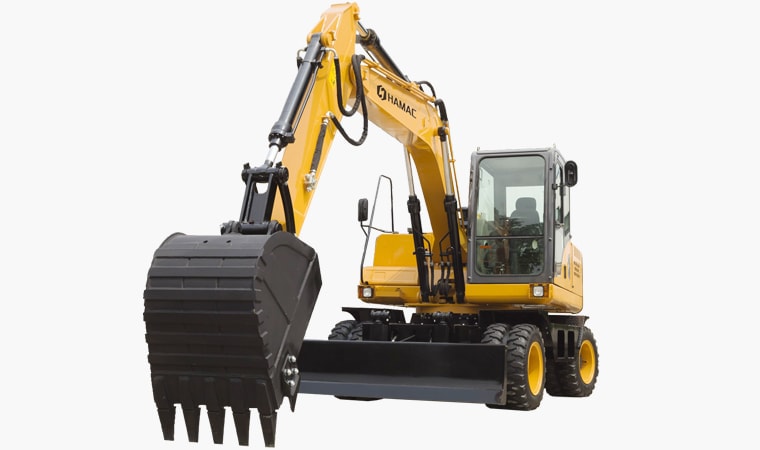

Wheel type Excavator

Wheel type Excavator Multiple models for selection, delivered by container to save shipping cost
New generation of fully hydraulic wheel excavator independently developed

Wheel type excavator is suitable for road administration or small projects in the city, with high driving speed, strong site adaptability, and flexible transition. Wheeled excavators are general-purpose excavators. The main difference is that instead of running on tracks, they run on wheels. An advantage of a wheeled excavator is that it can be driven from one job site to another even on a road, while crawler excavators running on tracks are usually carried on a trailer for long-distance travel.

  • Different models as options
  • Famous brand hydraulic parts
  • High cost performance
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

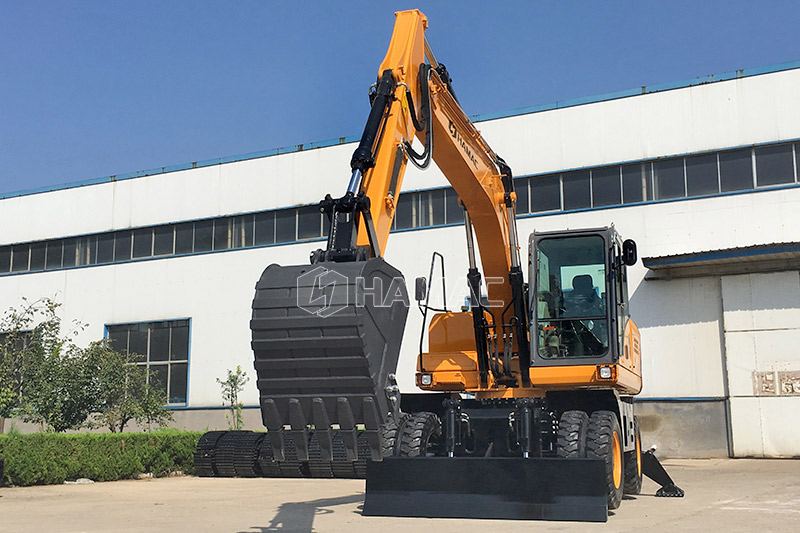

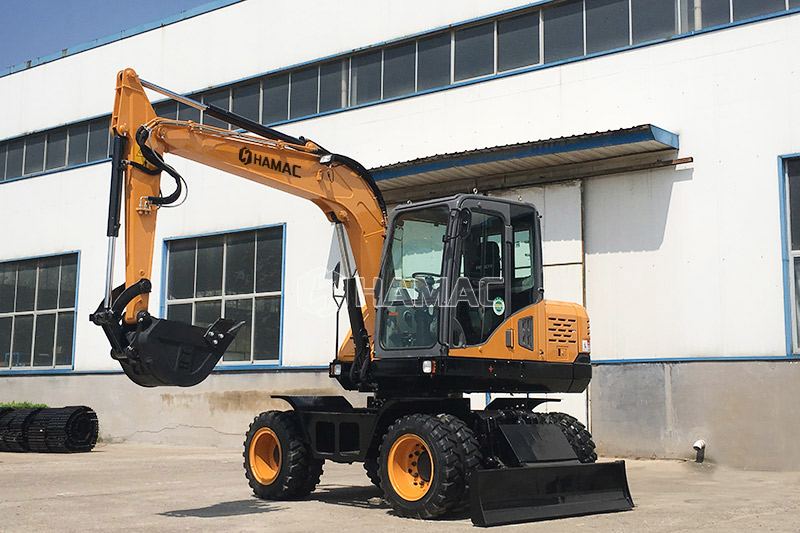

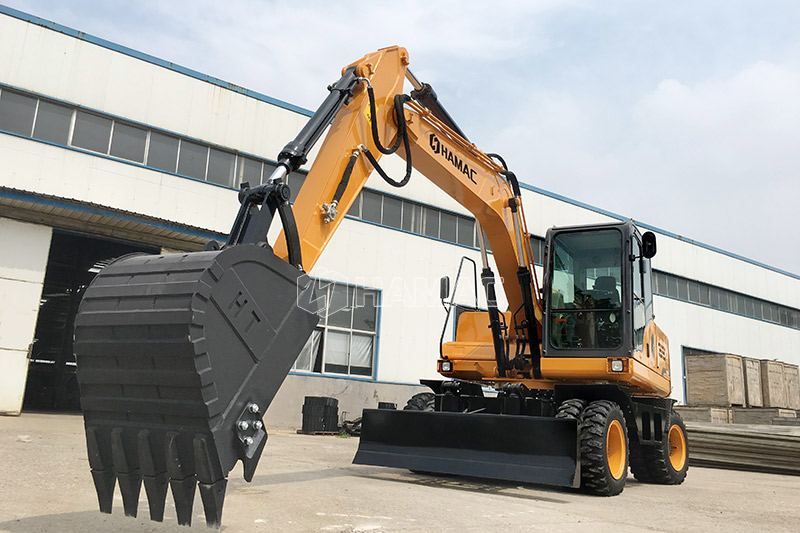

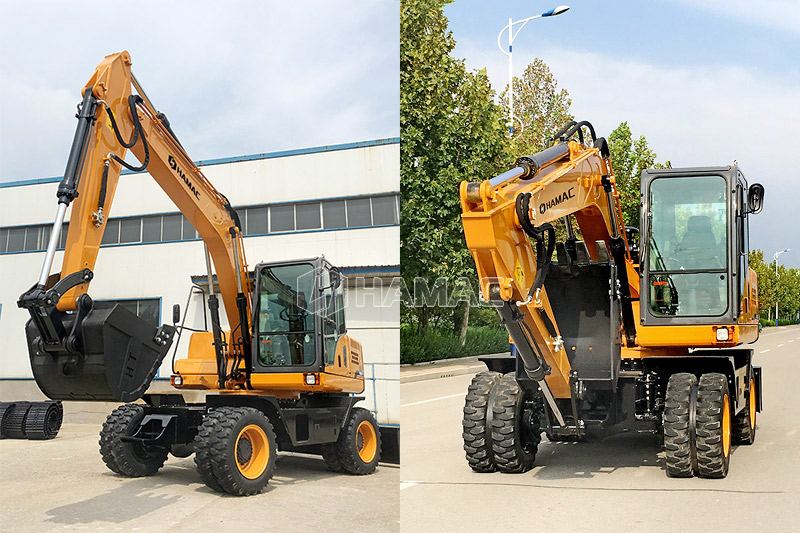

Introduction to Wheel type Excavator

Wheel type excavator is a new generation of fully hydraulic wheel excavator independently developed by HAMAC Group. It adopts famous brands engine with high power and low fuel consumption, which ensures the strong power and power reserve of the whole machine; Precise matching ensures random switching between working state and walking state; the hydraulic system of the whole machine is matched with imported hydraulic components, and has the characteristics of "high reliability, genuine goods, safety and environmental protection, comfort and convenience", and can provide a variety of special configuration options, Can adapt to the needs of different countries and customers.

Wheel type Excavator Features

  • 1. Famous brand engine, in line with EuroⅡemission standard, large torque, strong power, especially suitable for heavy-duty operation.
  • 2. Adopting the design without outriggers, without stopping and shifting gears, the driving speed is high, the site adaptability is strong, and the transition is flexible.
  • 3. In order to ensure reliability, each designed excavator must undergo 2000 hours of industrial testing and pass the strict test of the National Construction Machinery Quality Supervision and Inspection Center.
  • 4. International famous brand hydraulic components to ensure the high reliability of the hydraulic system.

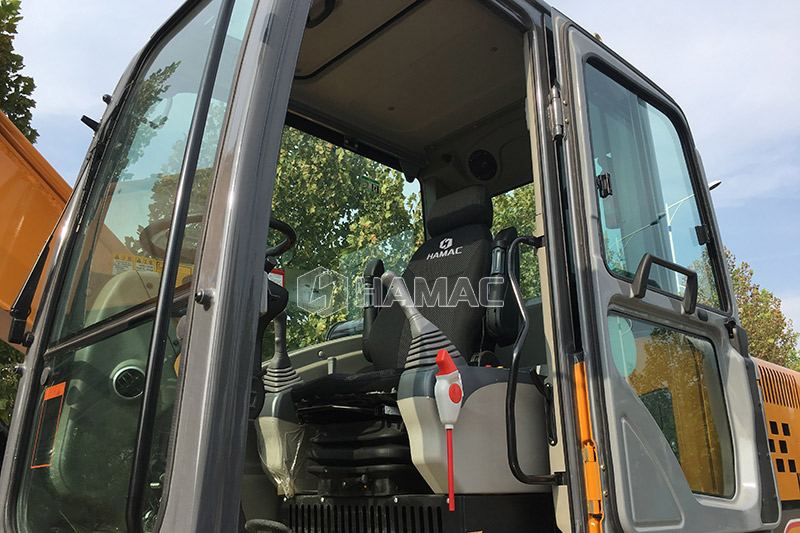

  • 5. The cab adopts anti-overturning and anti-falling structure design, which meets the safety standards of China, EU, North America and other regions, and has obtained TOPS and FOPS safety certification.
  • 6. The filter element is centrally arranged on one side of the main pump, and maintenance can be carried out by standing on the ground and opening the door.

Wheel type Excavator Goods Delivery

Based on good quality and decades of experience, the Wheel type Excavator which is manufactured by HAMAC was exported to different countries. The Wheel type Excavator will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

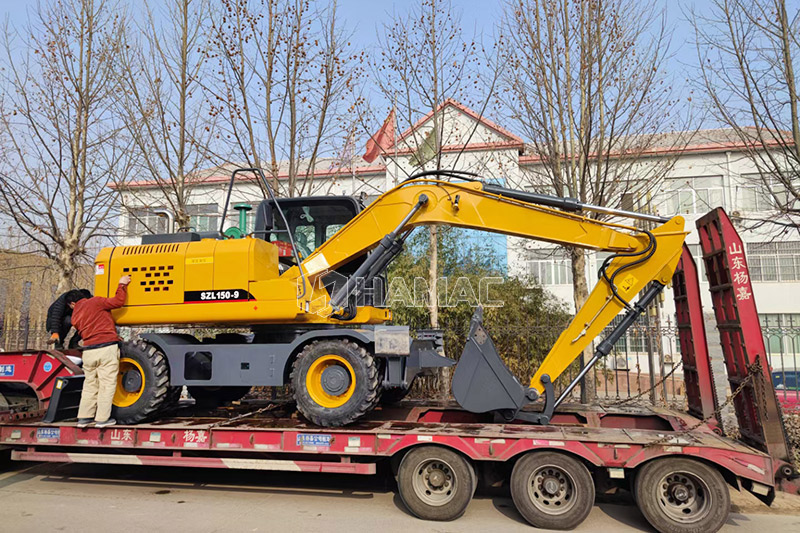

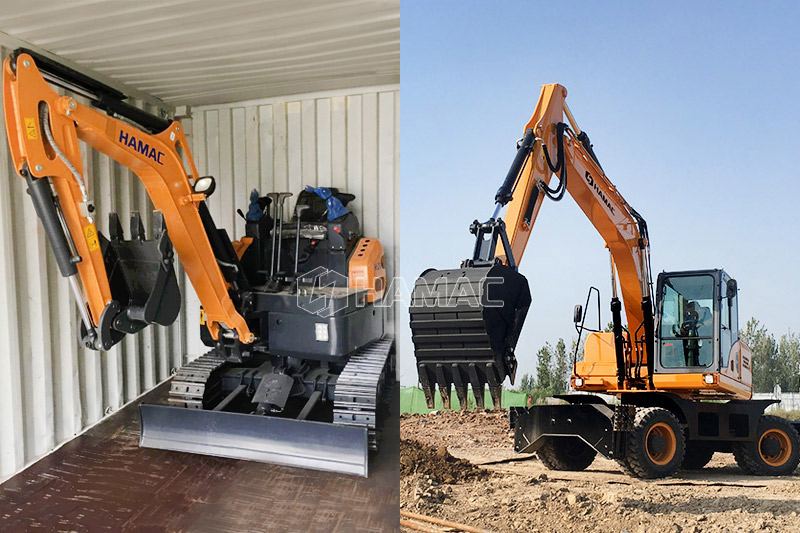

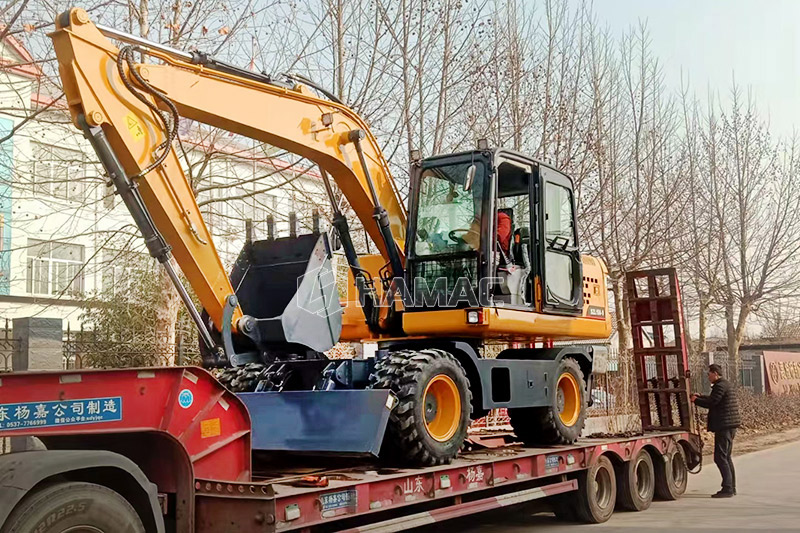

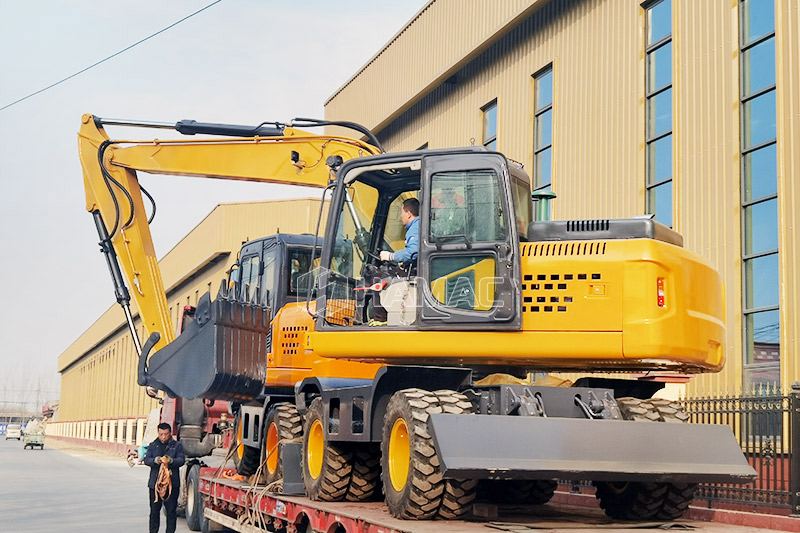

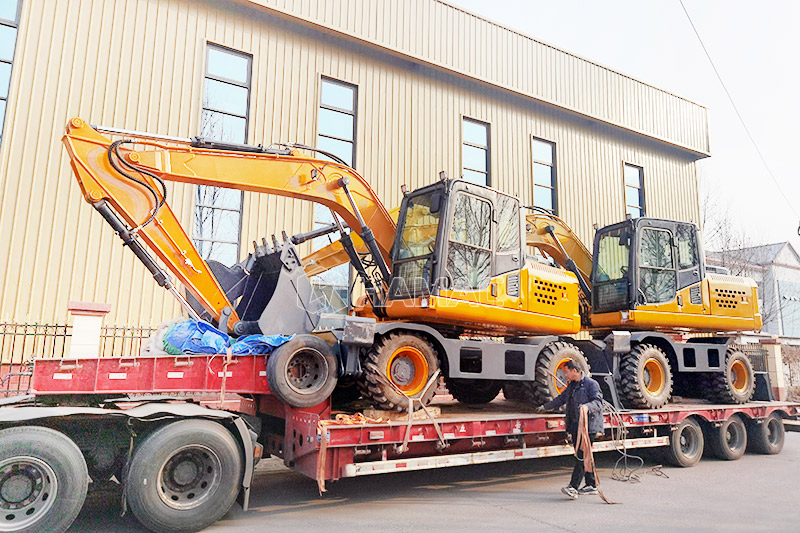

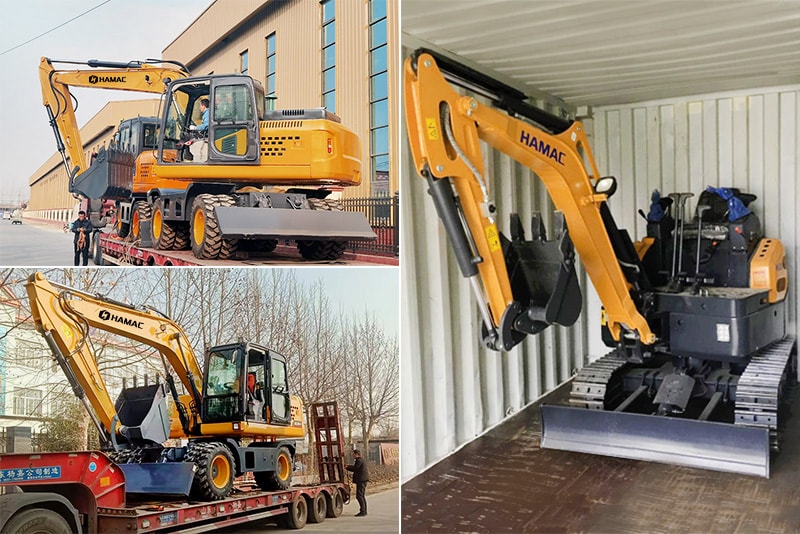

Wheel type Excavator shipping pictures

Wheel type Excavator Technical Parameters

Model HMC75W HMC135W HMC145W HMC155W
General Information
Transport Length (Mm) 5690 7350 7485 7760
Transport Height (Mm) 2920 3005 3100 3120
Width (Mm) 2150 2520 2570 2700
Tail Turning Radius (Mm) 1855 2395 2395 2400
Turntable Width (Mm) 1930 / / /
Wheelbase (Mm) 1665 2000 1910 1970
Wheelbase (Mm) 2350 2620 2620 2670
Scope Of Work
Maximum Digging Height (Mm) 6218 7340 7340 9100
Discharge Height (Mm) 4490 5250 5250 6650
Maximum Digging Depth (Mm) 3930 4500 4500 5040
Maximum Digging Radius (Mm) 6405 7500 7500 8120
Other Parameters
Engine Model YC4F70Z-T21 YC4D125-T310 QSB3.9-C125 QSB3.9-C125
Engine Power (Mm) 50/2200 92/2200 93/2200 93/2200
Optional Engine Model Yanmar 4TNV98-ZCSLKC
Optional Motor Power (Kw/Rpm) 46.3KW/2200rpm/Min
Hydraulic System Pressure (Mpa) 22 34.3 32 32
Hydraulic System Flow (L/Min) 2*60+1*40 2*130 2*130 2*130
Bucket Capacity (M3) 0.23 0.53 0.53 0.53
Bucket Digging Force (KN) Four. Five 85 85 85
Arm Digging Force (KN) 22 53 53 53
Climbing Angle (%) 70 70 70 70
Rotation Speed (R/Min) 9—10 13-14 13-14 13-14
Maximum Road Speed (Km/H) 24 28 28 30
Total Weight (Kg) 6950 12500 13640 15450

Note: Our products are being updated constantly, all rights reserved by HAMAC.

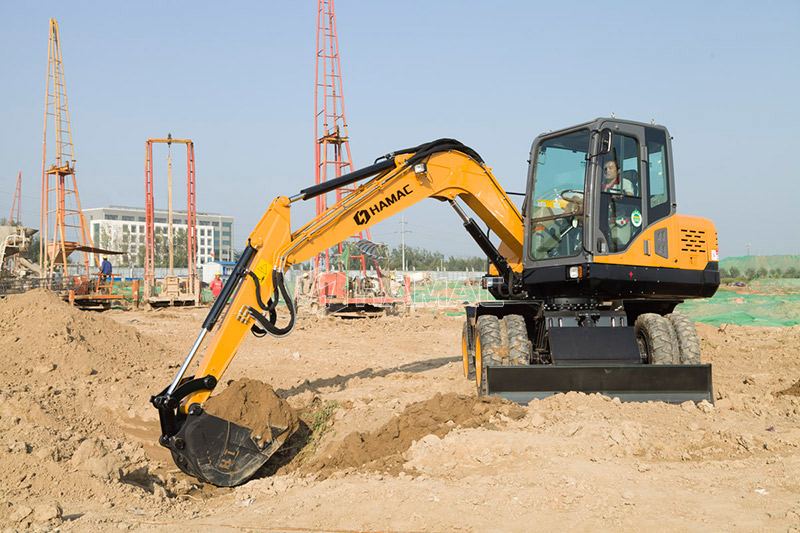

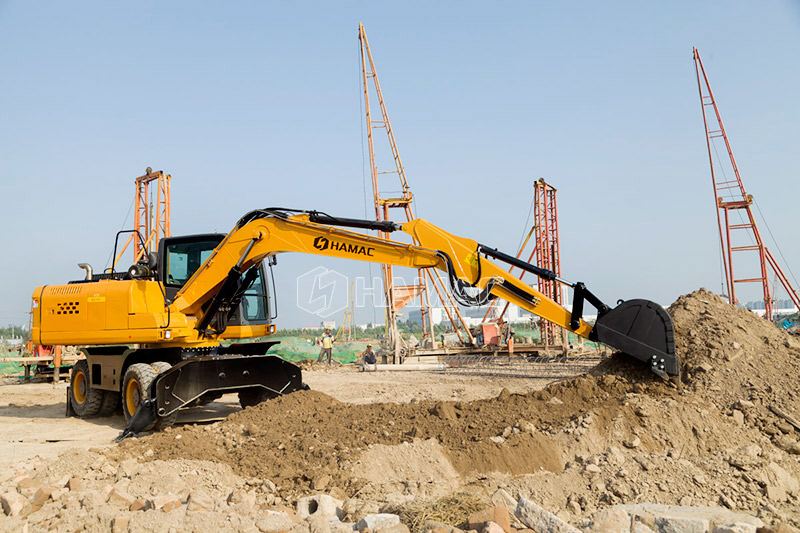

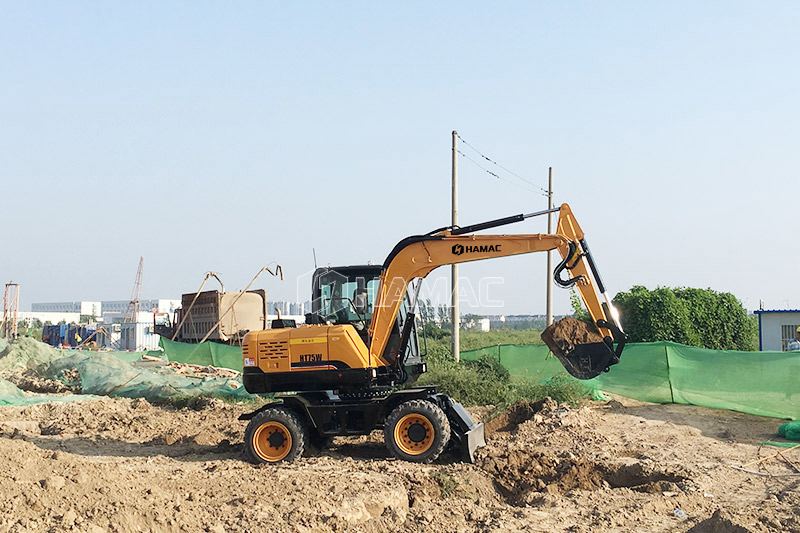

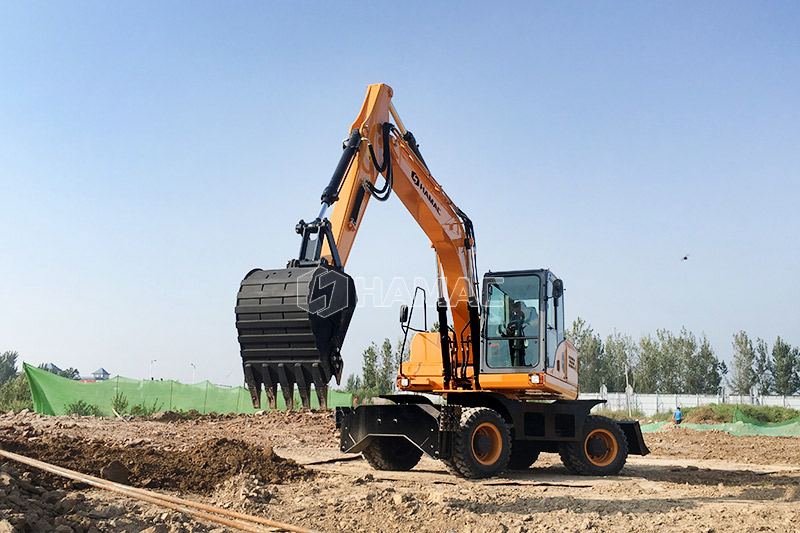

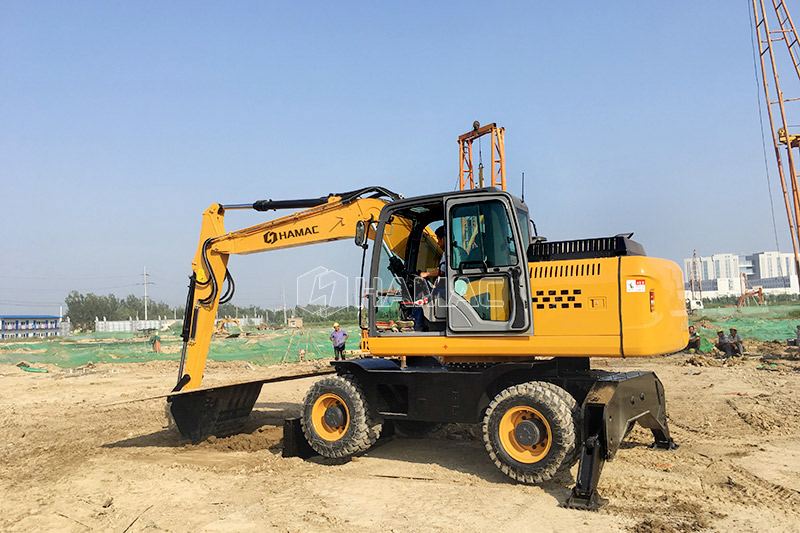

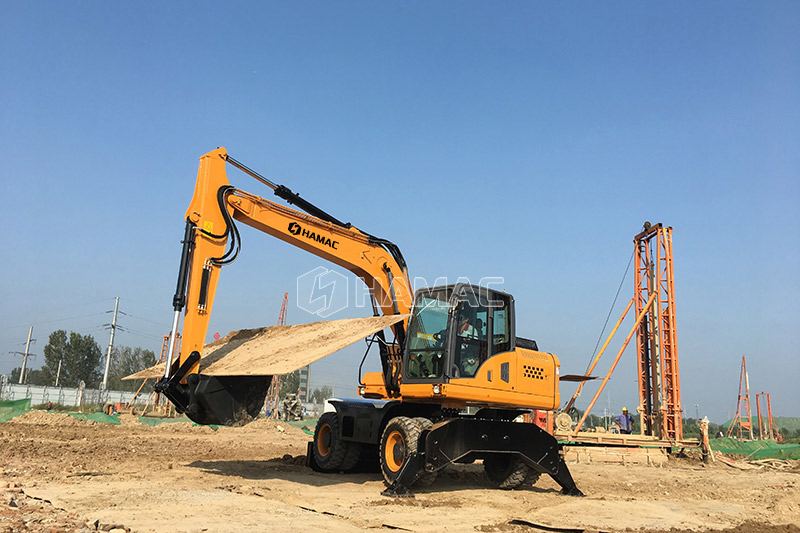

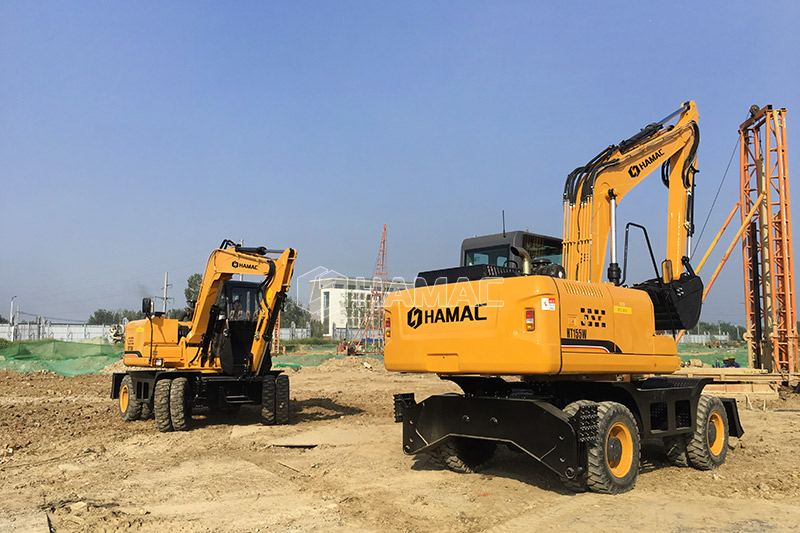

Wheel type Excavator Application Case

The Wheel type Excavator is widely used for different projects all over the world. HAMAC exported the Wheel type Excavator to different countries and got good comments from our clients.
