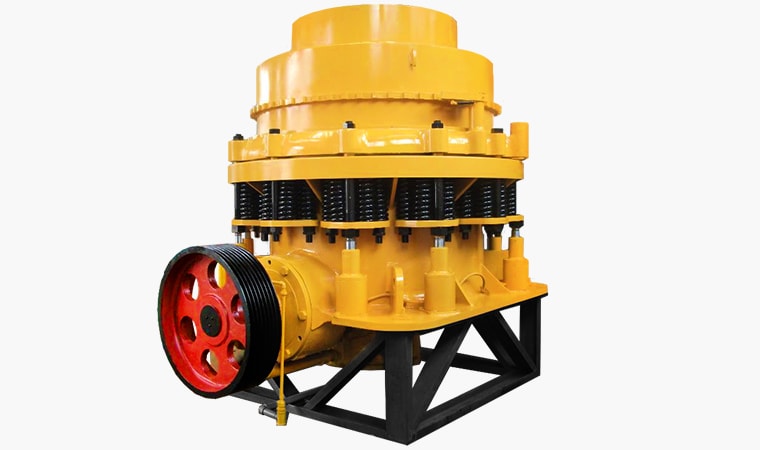

S series Spring Cone Crusher

S series Spring Cone Crusher Multiple models for selection, can be customized according to customer requirements
An ideal equipment for hard stone quarry and mining industry

S series spring cone crusher is a kind of high efficiency spring cone crusher, which integrate optimization of cavity-type and reasonable stroke and advanced technology, and the conception of laminated crushing follows the principle of more crushing and less grinding. The type of crushing chamber depend upon the size of feed and fineness of the crushed product.

  • High cost performance
  • Big crushing ratio
  • Small volume but high efficiency
  • Introduction
  • Technical Parameters
  • Gallery
Content Index

What is S series spring Cone Crusher for sale?

S series spring Cone Crusher is an advanced cone rock crusher which represents the domestic advanced technology level. For years, HAMAC has been using the US-developed advanced crusher technology. This series cone crusher machine can be widely used in metallurgical, construction, chemical and building material industry, suitable for hard and medium hard materials such as mine ore, limestone, quartz, granite, sandstone and so on. It is proven that the crusher with worldwide performance and reliable quality has gained the customers' praise. It is an ideal cone crusher the same as Symons cone crusher for sale.

What is S series spring Cone Crusher for sale?

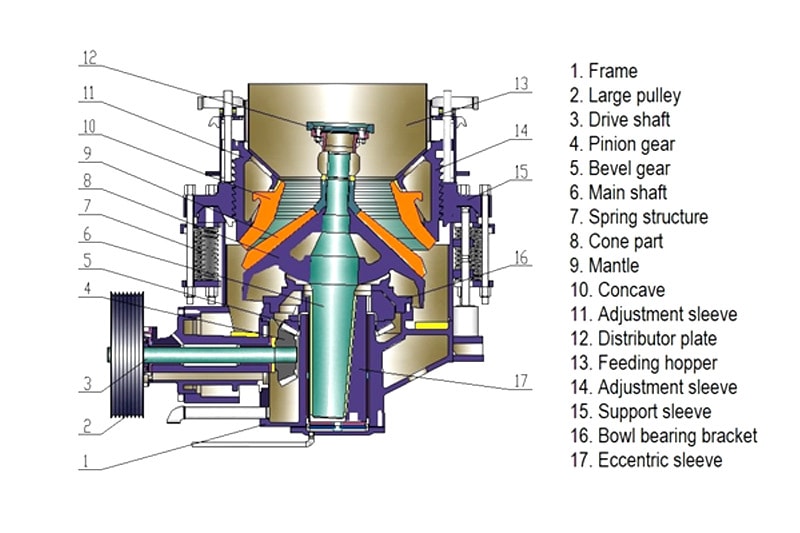

How does a cone crusher work?

Motor drives eccentric bushing to rotate via V-belts, pulley, shaft, pinion, gear. Mantle rotates with eccentric bushing, so cone crusher mantle goes near and far from the cone crusher concave, and crush stone into smaller size. This is the working principle of cone crusher.

This is the working principle of cone crusher

Advantages of S series Symons cone crusher

  1. 1.Have many types of crushing cavity.The S series cone crusher possess special design, and the customers can choose the type of crushing cavity which has high efficiency, uniform granularity, good shape, uniform abrasion and long use life of bowl liner and mantle. Choose special material to manufacture key assemblies to support large crushing force.
  2. 2.High capacity.Compared with other types of spring cone crusher for sale, the series of S cone crusher has longer crush arm, larger stroke, higher crushing force. It can crush the material more efficiently.
  3. 3.Every stroke crushes more material.
  4. 4.The mantle of S series cone crusher leaves bowl liner further in every stroke,so the crushed material is much more at every stroke, and the materiel pass through the cavity more quickly. As a result, the capacity is increased by many times;
  5. 5.Low cost of daily run and maintenance.The component of cone crusher spare parts and structure is better, prolong the use life; the long crush arm to reduce the load of slip bearing, gear, and shell; the granularity of the product is uniform, so the circular load is less; the system of cleaning cavity with hydraulic pressure is convenient , save time, low power and distribution in reason.
Advantages of S series Symons cone crusher

Types and models of Symons cone crusher for sale we provide

For this S series Symons cone crusher, there are different types and models for sale. They are designed for different application.

According to the crushing cavity, there are two types cone crusher for sale. Standard cone crusher and short head cone crusher. Standard cone crusher is usually used as a secondary crusher, short head cone crusher is usually used a tertiary cone crusher to get smaller sizes aggregates and sand.

According to the cone crusher sizes, HAMAC can provide Symons 3ft cone crusher, 4.25ft cone crusher, 5.5ft cone crusher and 7ft cone crusher.Welcome your inquiry.

Types and models of Symons cone crusher for sale we provide

Typical flow chart of cone crusher plant

When a cone crusher machine is working together with the jaw crusher machine, vibrating screen for sale in a whole stone crusher plant, there are two different typical flow chart of cone crusher plant. Please see the below flow chart.

When a cone crusher machine is working together with the jaw crusher machine, vibrating screen for sale in a whole stone crusher plant Typical flow chart of cone crusher plant

Cone Crusher CSS setting

CSS means close side setting, it can control the aggregates output size of the cone crusher. Based on many years’ experience on stone crusher plant for sale, HAMAC summarize the following two indicative gradation curves, you can check the percentage of different sizes aggregates in the final product of the hard stone and soft stone.

CSS means close side setting

S series Spring Cone Crusher Goods Delivery

Based on good quality and decades of experience, the S series Spring Cone Crusher which is manufactured by HAMAC was exported to different countries. The S series Spring Cone Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

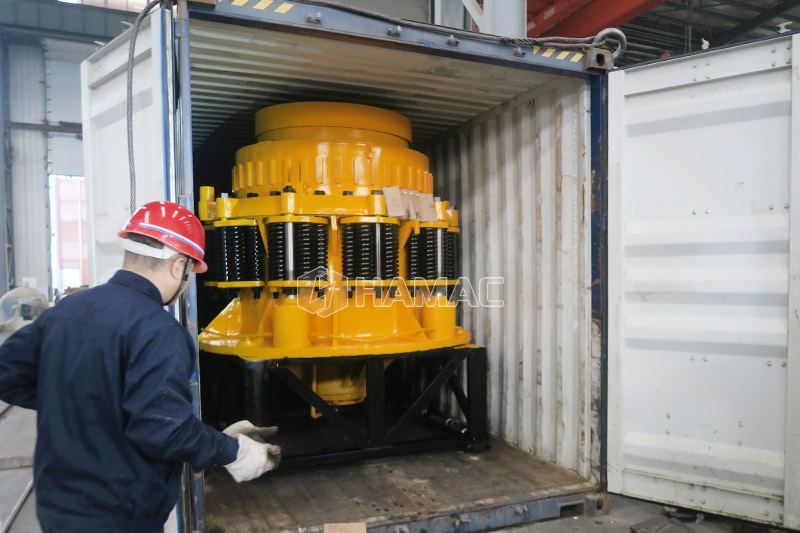

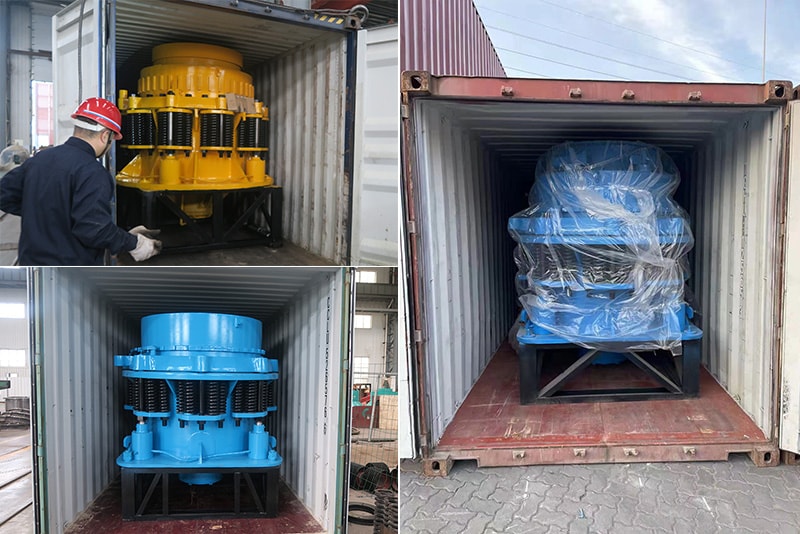

S series Spring Cone Crusher shipping pictures

S series Spring Cone Crusher Technical Parameters

Standard Type

Model Dia. mm (inch) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/h) Weight (t) Dimension (mm)
Closing Side (mm) Open Side (mm)
SCC 3’ 900 (3’) Fine 83 102 9-22 580 75 45-91 15 2821×1880×2164
Coarse 159 175 13-38 59-163
SCC4 1/4’ 1295 (4 1/4’) Fine 109 137 13-31 485 160 109-181 27 2800×2342×2668
Medium 188 210 16-38 132-253
Coarse 216 241 19-51 172-349
SCC5 1/2’ 1650 (5 1/2’) Fine 188 209 16-38 485 220 181-327 55 3911×2870×3771
Medium 213 241 22-51 258-417
Coarse 241 268 25-64 299-635
SCC7’ 2134 (7’) Fine 253 278 19-38 435 315 381-726 110 4613×3251×4732
Medium 303 334 25-51 608-998
Coarse 334 369 31-64 789-1270

Short Head

Model Dia. mm (inch) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (ton/hour) Weight (t) Dimension (mm)
Closing Side (mm) Open Side (mm)
SCCD3’ 914 (3’) Fine 13 41 3-13 580 75 27-90 15 2821×1880×2410
Coarse 33 60 3-16 27-100
Medium 44 73 10-16 90-145
Coarse 56 89 13-19 141-181
SCCD4 1/4’ 1295 (4 1/4’) Fine 29 64 3-16 485 160 36-163 27 2800×2342×2668
Medium 54 89 6-16 82-163
Coarse 70 105 10-25 109-227
SCCD5 1/2’ 1676 (5 1/2’) Fine 35 70 5-13 485 220 90-209 55 3917×2870×3771
Medium 54 89 6-19 136-281
Coarse 98 133 10-25 190-336
SCCD7’ 2134 (7’) Fine 51 105 5-16 435 315 190-408 110 4130×3251×4454
Medium 95 133 10-19 354-508
Coarse 127 178 13-25 454-599

Note: Our products are being updated constantly, all rights reserved by HAMAC.

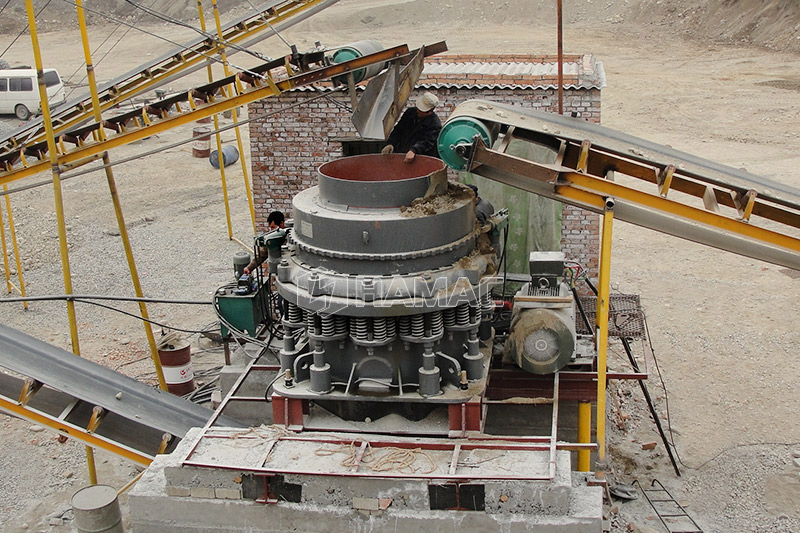

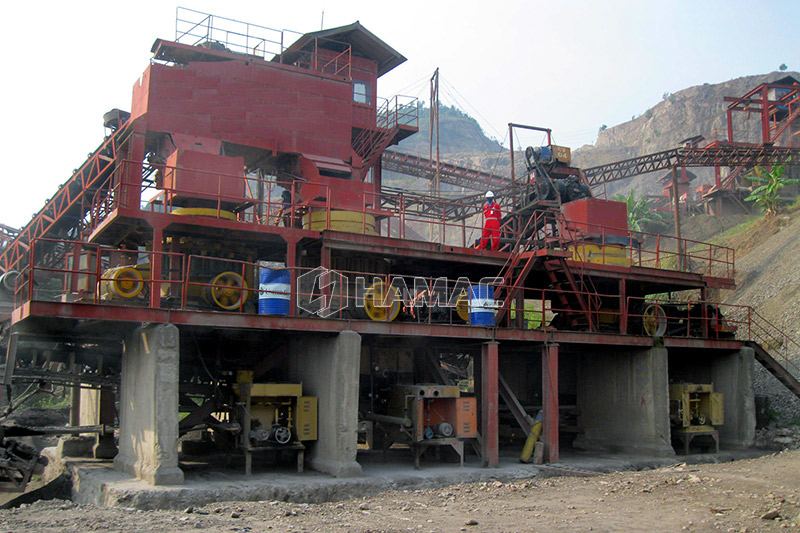

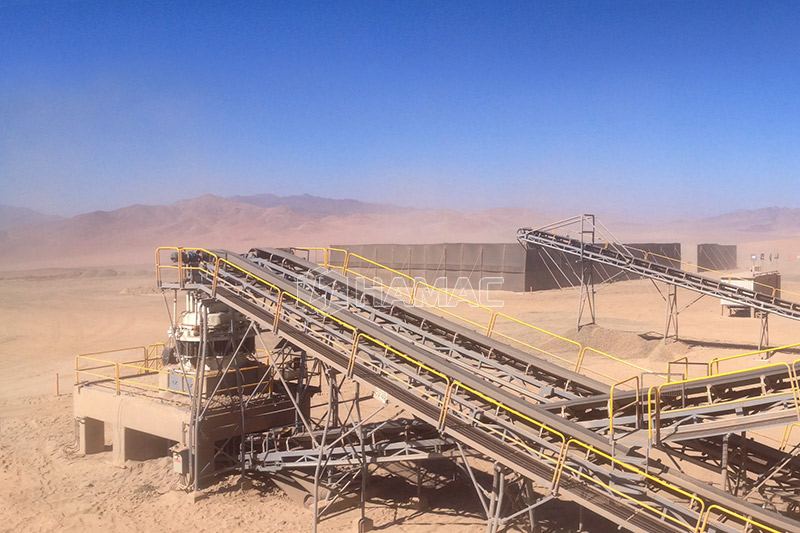

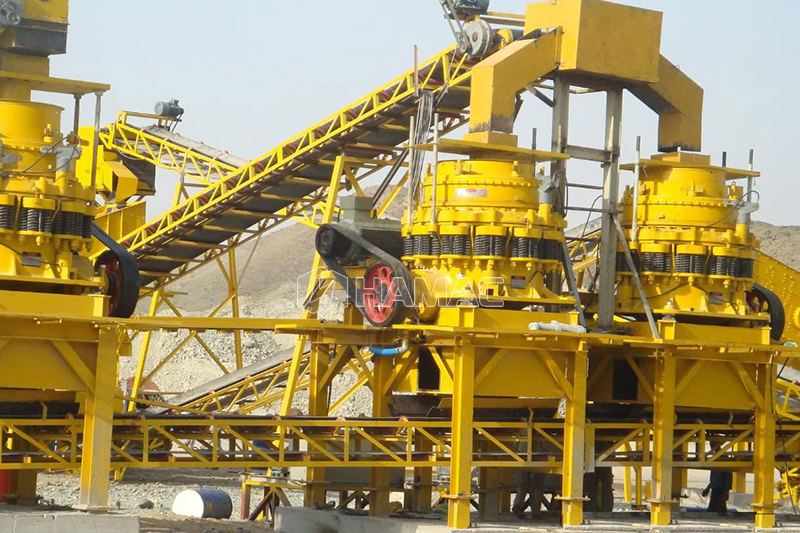

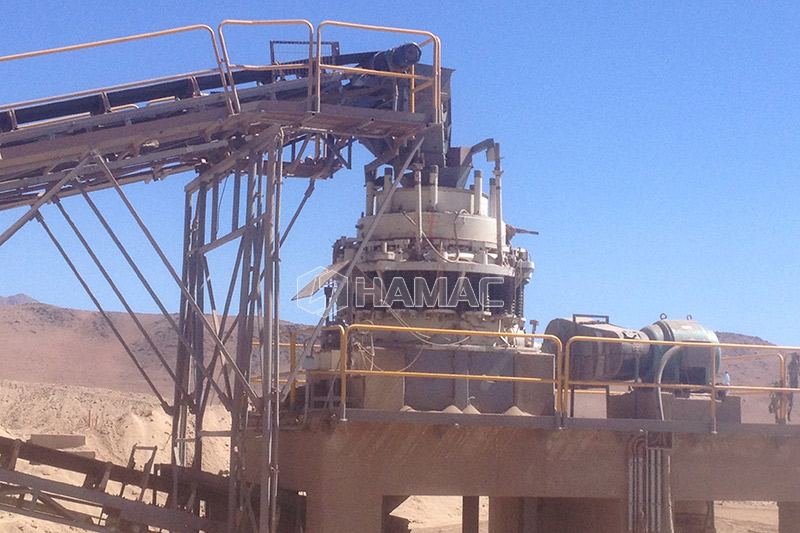

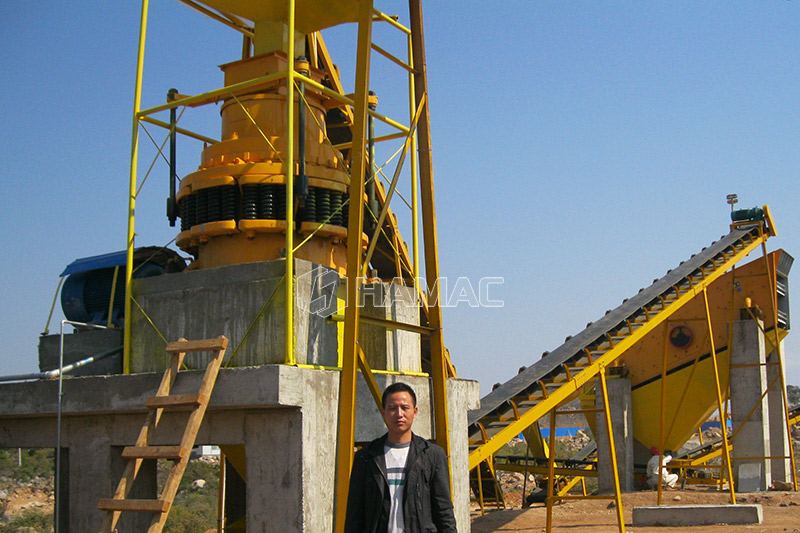

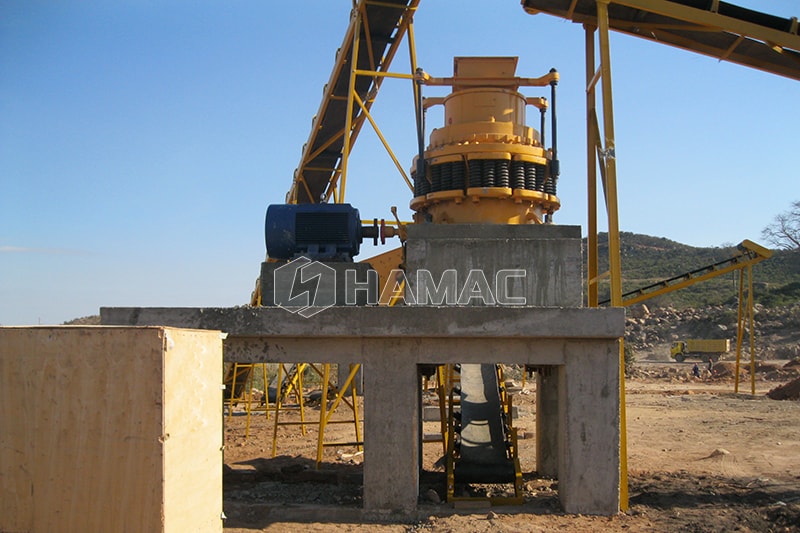

S series Spring Cone Crusher Application Case

The S series Spring Cone Crusher is widely used for different projects all over the world. HAMAC exported the S series Spring Cone Crusher to different countries and got good comments from our clients.
