Limestone crushing and screening plant

This limestone crushing and screening plant is used to crush soft or medium hard stone such as: limestone, gypsum, marble, calcite, dolomite, etc) from big size to about 0-5, 5-10, 10-20, 20-40mm (or other sizes according to your need) as aggregate for construction.

Normally speaking, because the hardness of these stone is not high, they are easily to be crushed by common impact crusher. And the final shape of the aggregates is cubical and round which is very good for concrete requirement.

The flow chart as below:

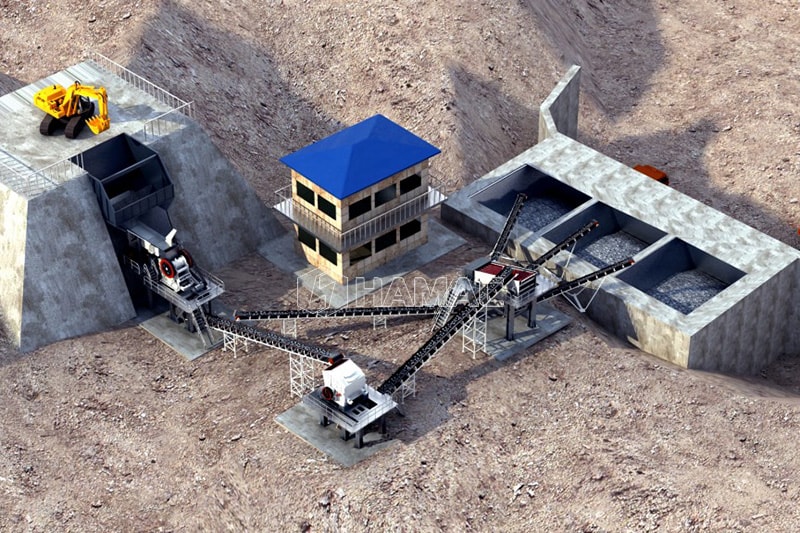

3D Flow Chart of limestone crushing and screening plant

3D Flow Chart of limestone crushing and screening plant

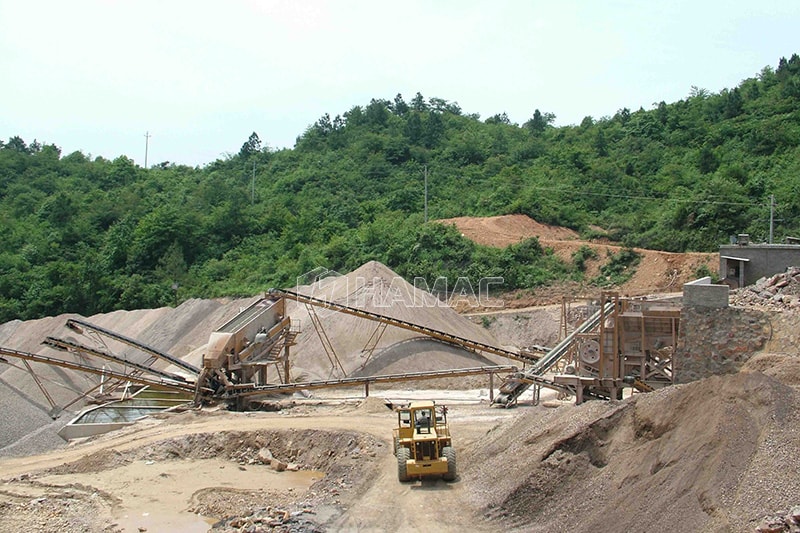

150 tons per hour limestone crushing and screening plant

150 tons per hour limestone crushing and screening plant

The brief explanation of HAMAC SOLUTION is as bellows:

1. The limestone in the collecting hopper is fed into the jaw crusher continuously by a vibrating feeder, the stone will be crushed by jaw crusher from bigger size to medium size, this is a primary crushing;
2. The crushed stone from jaw crusher will be transited to the impact crusher by 1# belt conveyor, we will select the discharge opening of impact crusher accordingly; the stone after secondary crushing will be transit to vibrating screen to be screened;
3. There vibrating screen will divide the crushed stone to different sizes based on the requirement of the clients, the stone is bigger than required size will be transit to the impact crusher by 3# belt conveyor to be crushed again. Finally all the aggregates will be the size as requested, and then the four different sizes aggregate will be screened out and transit to final product pile by belt conveyor.

Flow chart of granite crushing and screening plant production line

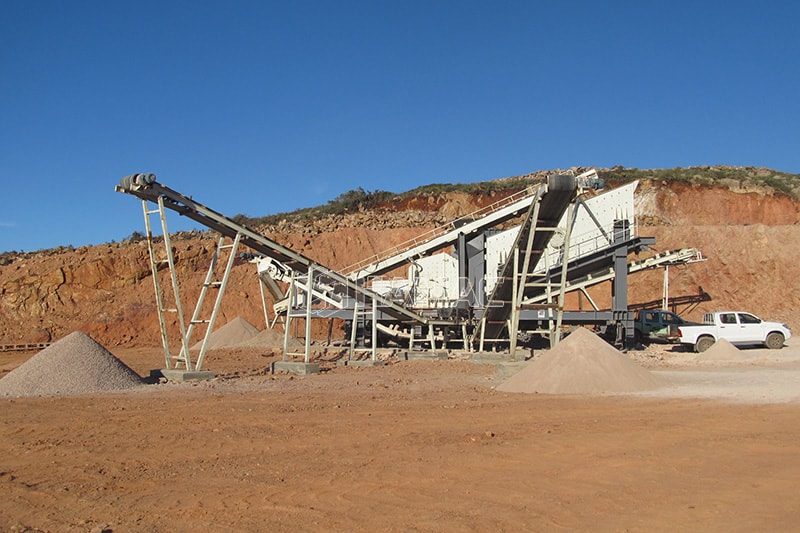

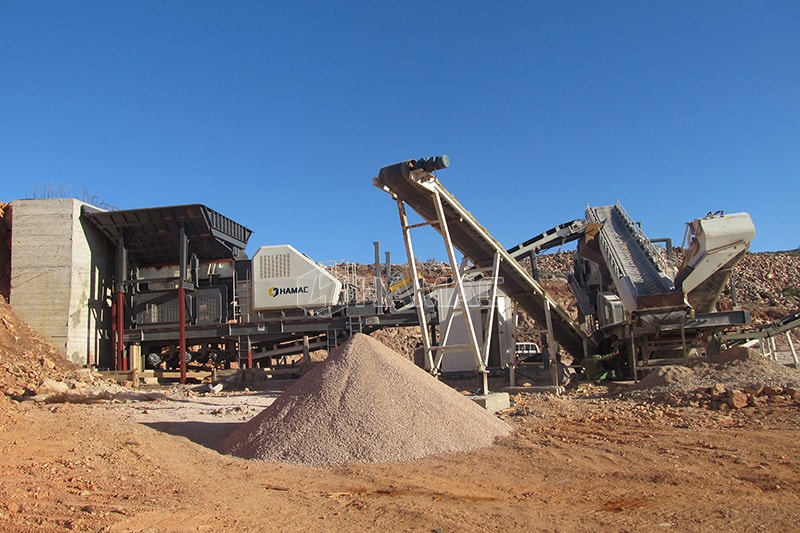

Mobile crushing and screening plant for limestone in Algeria

Mobile crushing and screening plant for limestone in Algeria

Mobile crushing and screening plant for limestone in Algeria

HAMAC provide you with mobile aggregate crushing and screening plant, stationary crushing and screening plant as options. Please contact our expert for more information.

Working site of Limestone crushing and screening plant

The Limestone crushing and screening plant is widely used for different projects all over the world. HAMAC exported the Limestone crushing and screening plant to different countries and got good comments from our clients. They are used in different working sites for different projects.

250tph stationary crushing and screening plant in China 250tph stationary crushing and screening plant in China Application Country: China

This 250tph stationary crushing and screening plant was installed in 2012 in China. Our clients came to our city visited many manufacturers of the crushing and screening plant. We had a meeting with our client together with our chief engineer.…

150tph stationary crushing and screening plant in Iraq 150tph stationary crushing and screening plant in Iraq Application Country: Iraq

This 150tph stationary crushing and screening plant was installed in 2011 in Iraq. It was installed in a mountain valley. Up to now, it still works smoothly. This client purchased blow bar, jaw plate, line board, screen mesh, rollers for belt conveyor every year. It is a good business in that area. Almost all the aggregates are supplied by this …
