What is a concrete placing boom?

Concrete placing boom is the terminal equipment connected to the various concrete pumps (concrete line pump, trailer concrete pump etc) and then placing the concrete. It is an auxiliary equipment of concrete conveying pump. It is connected by standard 5 inches conveying piping, just like a manipulator can quickly and accurately reach any pouring part of the working surface and carry out continuous pouring, which is a better solution to the problem. The distribution problem of concrete conveying greatly reduces labor intensity and improves the progress and quality of construction.

Spider concrete placing boom with wheels

Spider concrete placing boom with wheels

33m Self-climbing concrete placing boom

33m Self-climbing concrete placing boom

How many types concrete placing boom there are?

At present, there are many types of concrete placing boom on the market. Let's introduce the characteristics of the placing boom and its usefulness.

1. Manual placing boom machine, which is the most commonly used concrete placing machine at present. It is cheap, but the efficiency is very low. At least 4 workers are required to operate this machine, and the placing radius of the manual type is from 12 meters to 18 meters.

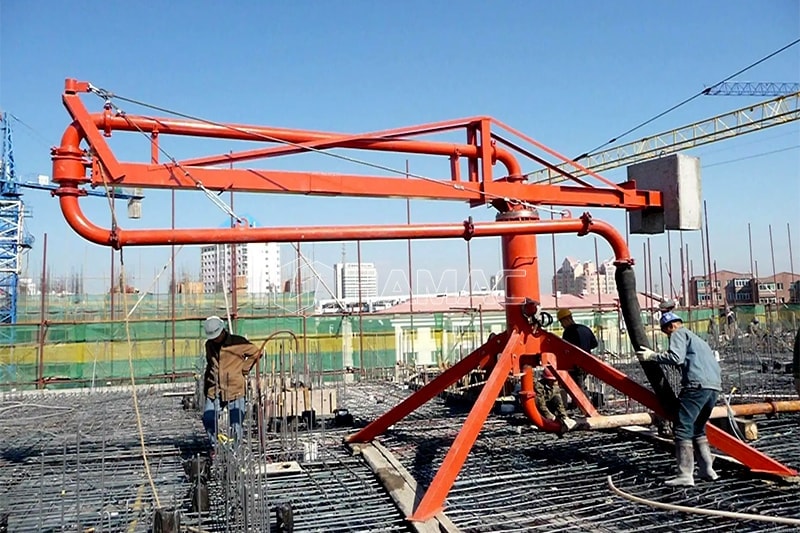

Manual concrete placing boom is working

Manual concrete placing boom is working

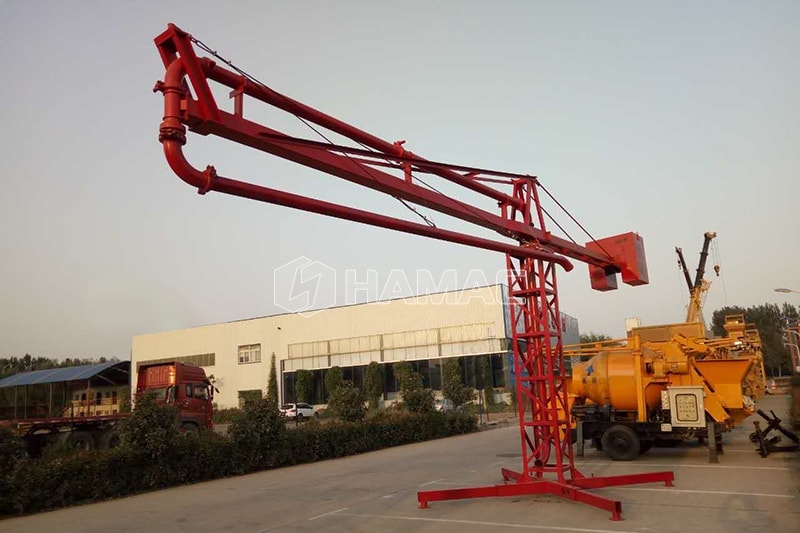

Manual concrete placing boom with support frame

Manual concrete placing boom with support frame

2. Spider type placing boom, it is also named mobile concrete placing boom, its placing radius from 13-21m. We have HGY13, HGY15, HGY17, HGY21. It is fully hydraulic driven, its working efficiency is higher compared with the manual type. It can be lifted by the tower crane which is nearby the building. So, it can be moved in different positions on the floor.

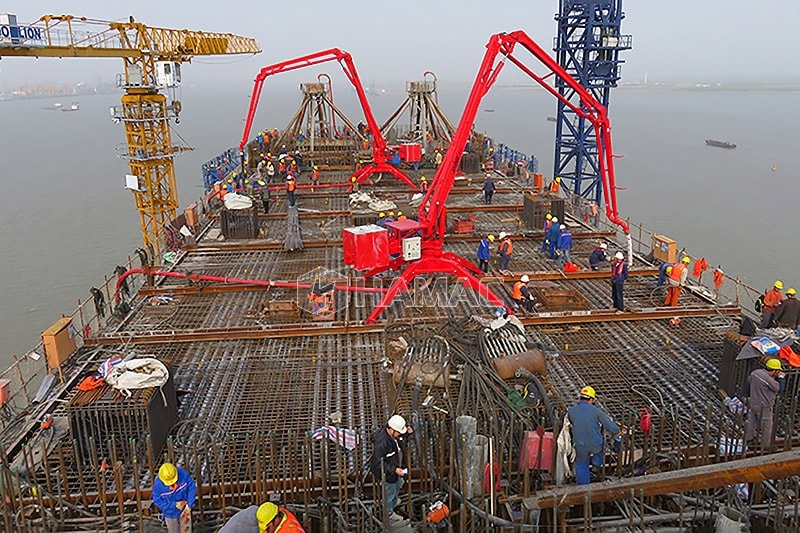

Bird view to see how does the placing boom work

Bird view to see how does the placing boom work

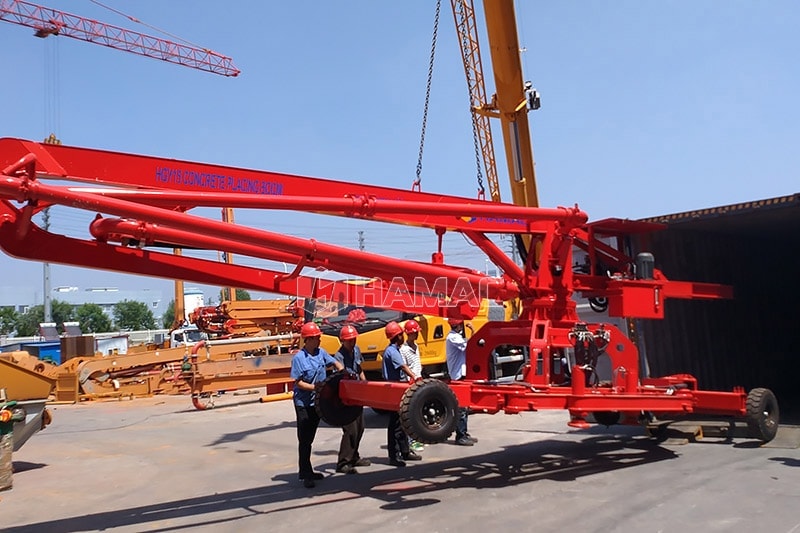

Mobile Concrete placing boom loaded into container

Mobile Concrete placing boom loaded into container

Item HGY13 HGY15 HGY17 HGY21
Max. Placing Radius (M) 13 15 17 21
Small Arm Elevation (°) 0~180 0~180 0~180 0~180
Hose Length (M) 3 3 3 3
Concrete Delivery Pipe (Mm) Ø125×6 Ø125×6 Ø125×6 Ø125×6
Tail Rotary Radius (M) 2.72 2.81 3.51 3.51
Total Power (Kw) 4 4 5.5/7.5 11
Rotary Range (°) 0~360 0~360 0~360 0~360
Overall Height (M) 2.9 2.6 3.2 3.2
Bare Machine Weight (Kg) 2700 3230 5000 10000
Balance Weight (Kg) 2×900 2×1100 2200 2×2500
Control Mode Panel/ Wireless Remote Control Panel/ Wireless Remote Control Panel/ Wireless Remote Control Panel/ Wireless Remote Control

3. Self-climbing concrete placing boom, its placing boom radius is bigger. Normally speaking, it is installed in the elevator shaft or in the building floors. It can rise by itself through the hydraulic climbing system. It is more suitable for the high building with big floor area.

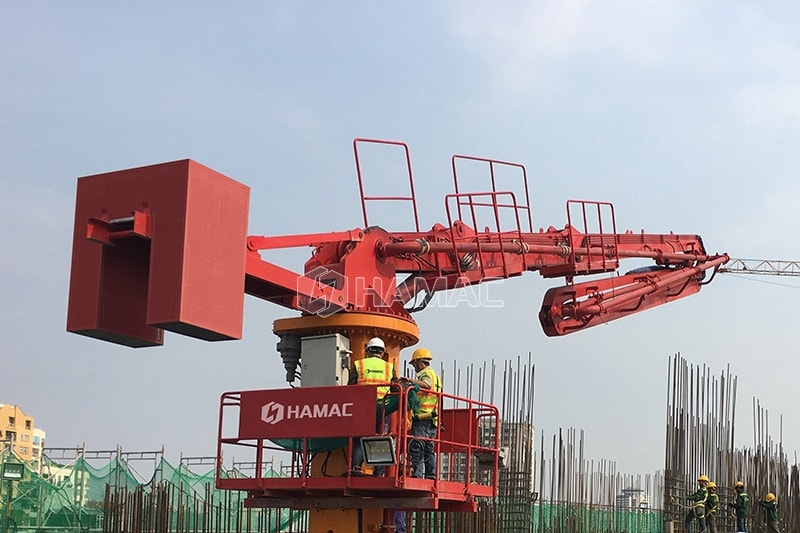

Self-climbing placing boom installed in the bulding

Self-climbing placing boom installed in the bulding

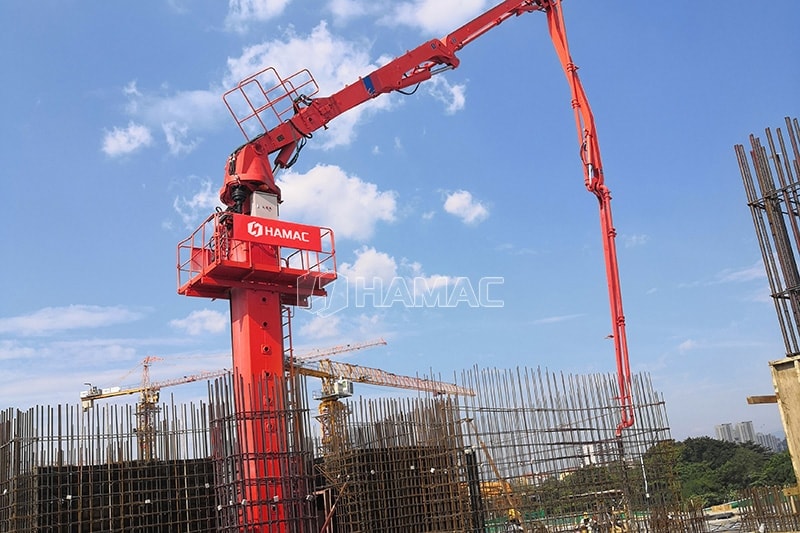

HGY32 concrete placing boom with counter weight

HGY32 concrete placing boom with counter weight

Working principle of the concrete placing boom

Concrete placing boom is composed of supporting device, boom, pipeline installed on the boom, hydraulic drive device, rotating device, end hose and control system etc.

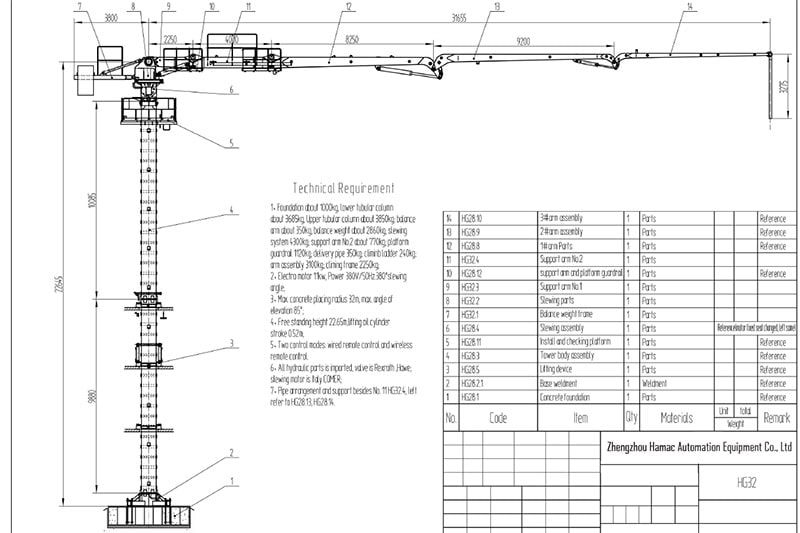

Drwing of self-climbing concrete placing boom

Drwing of self-climbing concrete placing boom

The front end of the feeding elbow pipe of the concrete placing boom is connected with the tail end of the concrete pump conveying pipe, and the conveying pipeline road of the integrity pumping project is formed. The concrete is pumped by the trailer concrete pump into the pipe of concrete placing boom, and then the concrete placing boom can rotate, fold and unfold, so the concrete is continuously transmitted to the construction site.

Please note: The concrete placing boom machine is only auxiliary equipment, and the output capacity and pumping pressure are not related to this equipment.

Advantages of concrete placing boom

1. Greatly reduce labor intensity, improve work efficiency, and improve economic benefits; due to the large distribution range and flexible and convenient operation, there is no need for workers to constantly transport concrete back and forth or frequently dismantle and connect pump pipes like other pouring methods. While reducing labor intensity and reducing workers, the pouring speed is greatly accelerated, the construction period is shortened, and the economic benefit is improved.

2. Improve the quality of concrete construction: In the process of large-scale concrete pouring, it often takes a certain amount of time to transport concrete through the hopper, and the concrete is easy to lose water, which affects the quality. However, due to the frequent back-and-forth shipment and pouring of concrete, the labor intensity of the workers is high, resulting in labor-intensive labor, and the workers are prone to do not pour according to the construction process at convenience, and artificially cause construction cold joints. The concrete placing boom machine can solve this problem very well, the second layer of concrete can be poured before the initial setting of the newly poured concrete, and it can be formed at one time as much as possible to avoid the construction of cold joints.

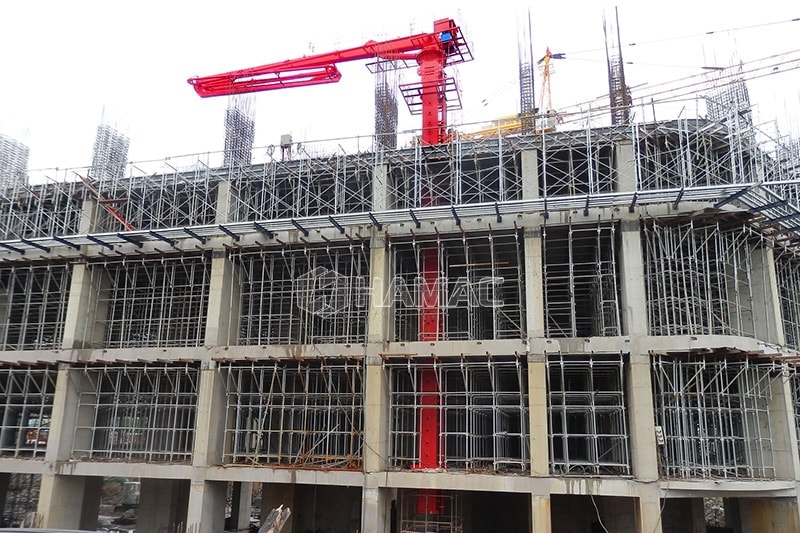

 HG33 concrete placing boom in Chile

 HG33 concrete placing boom in Chile

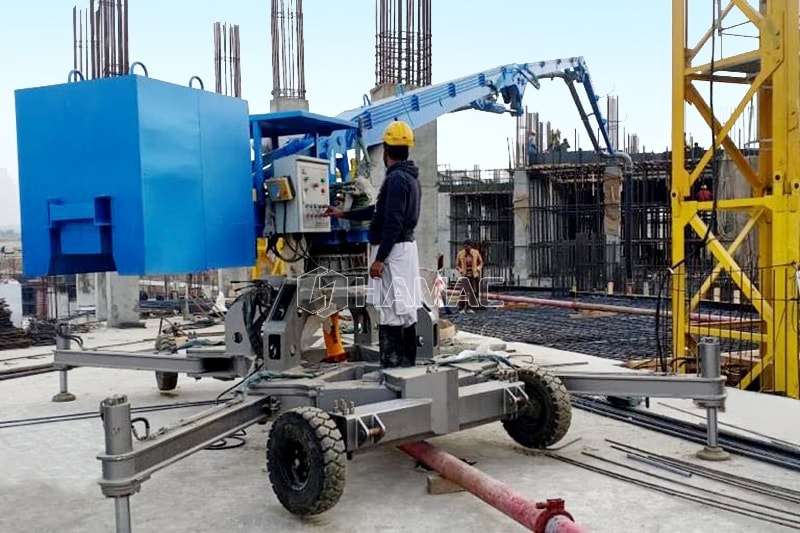

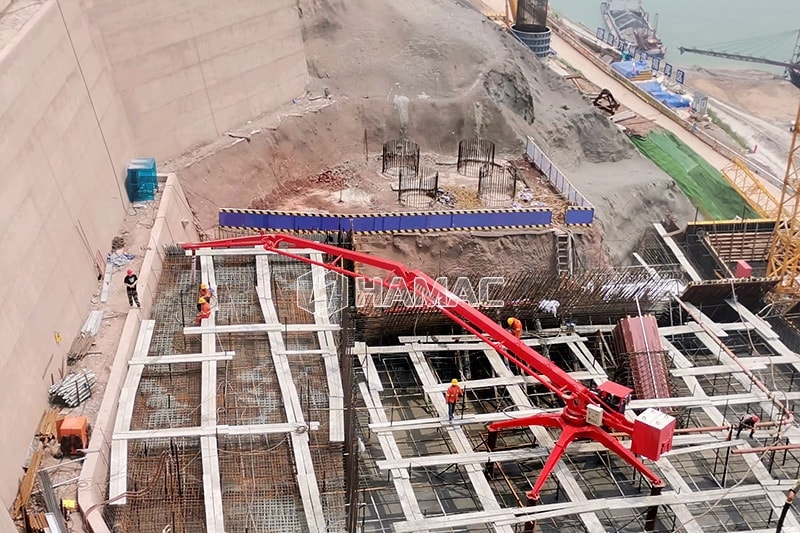

Spider concrete placing boom working site

Spider concrete placing boom working site

3. Flexibility of the concrete placing boom: After using the placing boom, it does not contact the formwork and does not vibrate the formwork, which can avoid damage to the structure. The placing boom machine can flexibly pour concrete in layers and sections, so that the formwork is evenly stressed, avoids the occurrence of burst form, and is conducive to ensuring the correct geometric dimensions of the structure.

4. After using the placing machine, there is no need to connect and remove the pump pipe on the platform, which reduces the number of operators on the platform, and does not require other messy concrete pouring equipment, which reduces the damage to the slab.

The factors need to be considered for selecting a concrete placing boom.

There are several more related factors to be considered for selecting the suitable placing boom as below,

  1. The length and width of the working project; then you can see how many meters placing radius you need,
  2. Your budget and efficiency you need; then we can see which type you select, manual one or hydraulic one;
  3. Height of the building, for the high building, its length and width is also big, the self-climbing concrete placing boom with 24-36 m placing radius is recommended;
  4. If there is a tower crane near the building? If yes, one spider type concrete placing boom can be considered because it can be lifted and moved by the tower crane;

What is the price of concrete placing boom?

The price of the concrete placing boom for sale is related to the model and configuration specifications, such as: the coverage area (placing radius) and configuration. At present, there are three types of distribution machines in the market: manual type placing boom, mobile spider concrete placing boom, and self-climbing placing boom. The use method and effect of a placing boom machine are also different, so the price is also different.

  1. The manual type concrete placing pipe is the cheapest one. It has a simple structure and low cost. The time of delivery is about 3 days. It is fully manual operation, so the cost is low and the price is relatively cheap. The models are 12 meters, 15 meters, and 18 meters. Three specifications, prices ranging from 2000-3000USD;
  2. The hydraulic placing boom machine is also an intelligent placing boom machine, and it is also a one-time pouring and molding equipment for concrete on the market. It is also a time-saving, labor-saving and high-efficiency equipment for concrete pouring. One person can perform concrete pouring, which is more than three times the efficiency of traditional concrete pouring. The model is also a relatively comprehensive placing machine, from 13 meters to 36 meters (placing radius), because the price of full hydraulic intelligent operation is relatively high, the price is more than USD20000, and the detailed price needs to be confirmed with manufacturer’s sales manager.

Concrete placing boom manufacturers in China

There are several professional concrete placing boom manufacturers in China. As one of them, HAMAC is a manufacturing enterprise specializing in the production of concrete placing boom machines, our placing boom machines have passed the EU CE certification and are exported to developed countries such as Europe and the United States. Our products cover the placing range of 13-36 meters, and are the ideal supplier for your purchase of concrete placing booms.

Support column of concrete placing boom

Support column of concrete placing boom

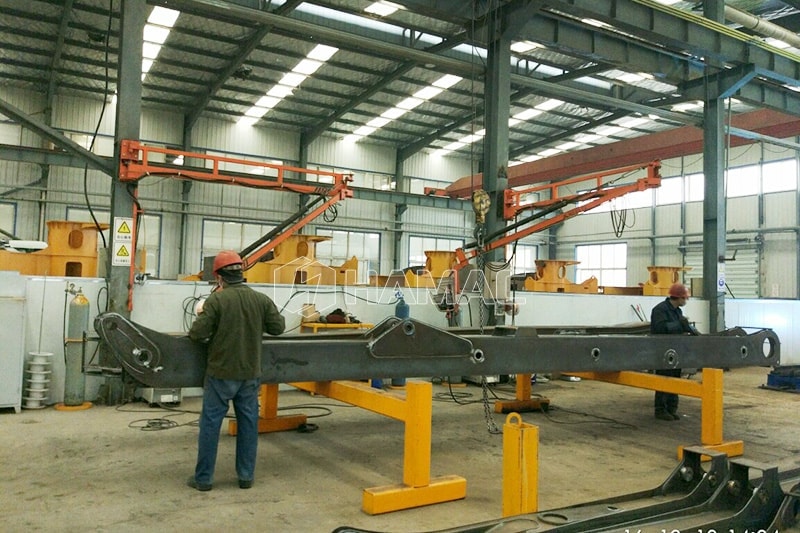

Placing boom is being produced in factory

Placing boom is being produced in factory

There is no lowest price, only lower price. You get what you pay for. We hope you are looking for the perfect working performance of the equipment, not the low-priced inferior goods. HAMAC only provide our clients with high quality machines. Wish a cooperation with you in the future.
